Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)

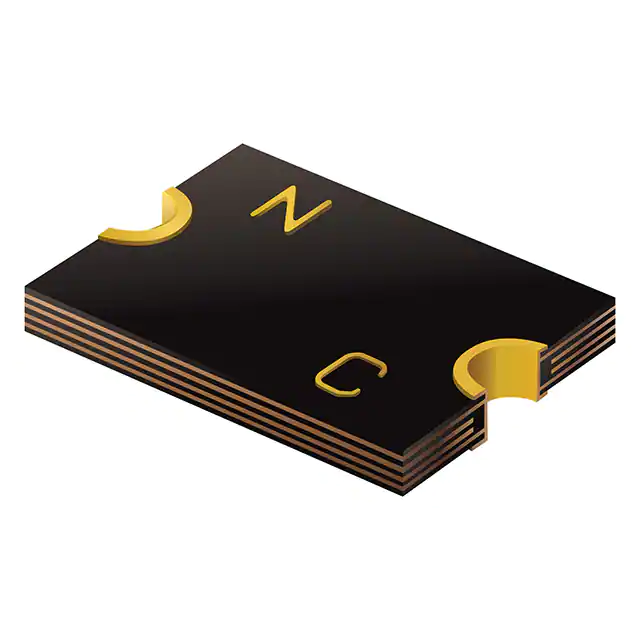

MF-GSMF300/36X-2 PTC RESET FUSE 36V 3A SMD Bourns Inc.	12,078	-	RFQ	Datasheet	Nonstandard SMD	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-GSMF	Active	Polymeric	36V	20 A	3 A	5.2 A	20 s	10 mOhms	60 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.341 L x 0.250 W (8.65mm x 6.35mm)	-	0.063 (1.60mm)
1812L020/60DR PTC RESET FUSE 60V 200MA 1812 Littelfuse Inc.	15,414	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1812L	Active	Polymeric	60V	40 A	200 mA	400 mA	2 s	1.4 Ohms	4.4 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.049 (1.25mm)
0ZCF0330FF2C PTC RESET FUSE 24V 3.3A 2920 Bel Fuse Inc.	23,825	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	0ZCF	Active	Polymeric	24V	100 A	3.3 A	5.5 A	20 s	10 mOhms	48 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.045 (1.15mm)

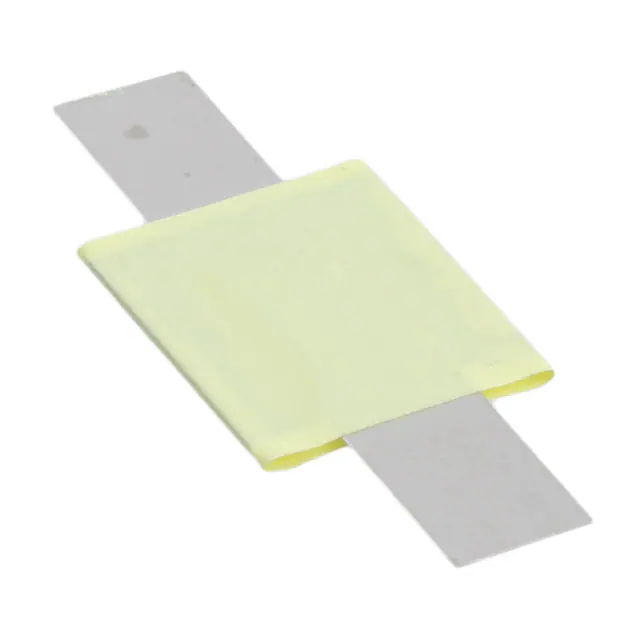

MF-S350 PTC RESET FUSE 30V 3.5A STRAP Bourns Inc.	18,531	-	RFQ	Datasheet	Strap	Bulk	Multifuse®, MF-S	Active	Polymeric	30V	100 A	3.5 A	6.3 A	3 s	17 mOhms	40 mOhms	-	-40°C ~ 85°C	-	User Defined	1.185 L x 0.522 W (30.10mm x 13.25mm)	-	0.043 (1.10mm)
0ZCJ0025FF2E PTC RESET FUSE 16V 250MA 1206 Bel Fuse Inc.	253,437	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	0ZCJ	Active	Polymeric	16V	100 A	250 mA	500 mA	80 ms	550 mOhms	2.3 Ohms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.128 L x 0.065 W (3.25mm x 1.65mm)	-	0.030 (0.75mm)
0ZCH0075FF2G PTC RESET FUSE 8V 750MA 1210 Bel Fuse Inc.	47,468	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	0ZCH	Active	Polymeric	8V	100 A	750 mA	1.5 A	100 ms	130 mOhms	400 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.102 W (3.22mm x 2.58mm)	-	0.028 (0.70mm)
PTS181260V014 PTC RESET FUSE 60V 140MA 1812 Eaton - Electronics Division	25,115	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PTS1812	Active	Polymeric	60V	10 A	140 mA	340 mA	200 ms	1.5 Ohms	6 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.035 (0.90mm)
0ZCG0035AF2C PTC RESET FUSE 30V 350MA 1812 Bel Fuse Inc.	115,790	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	0ZCG	Active	Polymeric	30V	40 A	350 mA	700 mA	100 ms	320 mOhms	1.5 Ohms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.028 (0.70mm)
0ZCG0110FF2C PTC RESET FUSE 8V 1.1A 1812 Bel Fuse Inc.	35,889	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	0ZCG	Active	Polymeric	8V	100 A	1.1 A	2.2 A	300 ms	40 mOhms	210 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.022 (0.55mm)
MINISMDC150F-2 PTC RESET FUSE 6V 1.5A 1812 Littelfuse Inc.	18,132	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, miniSMD	Active	Polymeric	6V	100 A	1.5 A	3 A	500 ms	40 mOhms	110 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.019 (0.48mm)
MF-RX160/72-2 PTC RESET FUSE 72V 1.6A RADIAL Bourns Inc.	140,638	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-RX/72	Active	Polymeric	72V	40 A	1.6 A	3.2 A	11.4 s	90 mOhms	220 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.642 L x 0.122 W (16.30mm x 3.10mm)	0.839 (21.30mm)	-
RXEF050-AP PTC RESET FUSE 72V 500MA RADIAL Littelfuse Inc.	9,903	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	500 mA	1 A	4 s	500 mOhms	1.17 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.311 Dia x 0.118 T (7.90mm x 3.00mm)	0.539 (13.70mm)	-
RXEF030-AP PTC RESET FUSE 72V 300MA RADIAL Littelfuse Inc.	4,000	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	300 mA	600 mA	3 s	880 mOhms	2.1 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.118 T (7.40mm x 3.00mm)	0.500 (12.70mm)	-
PICOSMDC050S-2 PTC RESET FUSE 6V 500MA 0805 Littelfuse Inc.	10,893	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, picoSMD	Active	Polymeric	6V	100 A	500 mA	1 A	100 ms	150 mOhms	800 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.083 L x 0.055 W (2.10mm x 1.40mm)	-	0.037 (0.93mm)
RKEF300 PTC RESET FUSE 60V 3A RADIAL Littelfuse Inc.	18,447	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RKEF	Active	Polymeric	60V	40 A	3 A	6 A	19.8 s	30 mOhms	80 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.650 L x 0.118 W (16.50mm x 3.00mm)	0.835 (21.20mm)	-
0ZRE0055FF1A PTC RESET FUSE 240V 550MA RADIAL Bel Fuse Inc.	96,876	-	RFQ	Datasheet	Radial, Disc	Box	0ZRE	Active	Polymeric	240V	7 A	550 mA	1.25 A	26 s	450 mOhms	1.45 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.551 L x 0.161 W (14.00mm x 4.10mm)	0.854 (21.70mm)	-
0603L050SLYR PTC RESET FUSE 6V 500MA 0603 Littelfuse Inc.	58,558	-	RFQ	Datasheet	0603 (1608 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, LoRho	Active	Polymeric	6V	50 A	500 mA	1 A	100 ms	70 mOhms	350 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.063 L x 0.032 W (1.60mm x 0.80mm)	-	0.030 (0.75mm)
0805L075SLYR PTC RESET FUSE 6V 750MA 0805 Littelfuse Inc.	40,839	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, LoRho	Active	Polymeric	6V	50 A	750 mA	1.5 A	200 ms	40 mOhms	160 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.083 L x 0.053 W (2.10mm x 1.35mm)	-	0.030 (0.75mm)
0603L075SLYR PTC RESET FUSE 6V 750MA 0603 Littelfuse Inc.	45,614	-	RFQ	Datasheet	0603 (1608 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, LoRho	Active	Polymeric	6V	50 A	750 mA	1.5 A	200 ms	20 mOhms	165 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.063 L x 0.032 W (1.60mm x 0.80mm)	-	0.030 (0.75mm)
1206L075SLYR PTC RESET FUSE 6V 750MA 1206 Littelfuse Inc.	33,295	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, LoRho	Active	Polymeric	6V	50 A	750 mA	1.5 A	300 ms	17 mOhms	180 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.030 (0.75mm)
