Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
PTR016V1300-TR1 PTC RESET FUSE 16V 13A RADIAL Eaton - Electronics Division	2,522	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	PTR016V	Active	Polymeric	16V	100 A	13 A	22.1 A	8.5 s	2 mOhms	8 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.850 L x 0.122 W (21.60mm x 3.10mm)	1.260 (32.00mm)	-
PTCCL05H950HTE PTC RESET FUSE 265V 95MA RADIAL Vishay Beyschlag/Draloric/BC Components	3,567	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PTCCL - 265V	Active	Ceramic	265V	600 mA	95 mA	143 mA	-	-	-	56 Ohms	0°C ~ 70°C	-	Through Hole	0.197 Dia x 0.217 T (5.00mm x 5.50mm)	0.394 (10.00mm)	-
PTCCL05H131ETE PTC RESET FUSE 60V 130MA RADIAL Vishay Beyschlag/Draloric/BC Components	2,269	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PTCCL - 60V	Active	Ceramic	60V	1.2 A	130 mA	195 mA	-	-	-	25 Ohms	-40°C ~ 85°C	-	Through Hole	0.197 Dia x 0.157 T (5.00mm x 4.00mm)	0.394 (10.00mm)	-
MF-RHT750-AP-14 PTC 7.5A 16V RADIAL LEADED HI-TE Bourns Inc.	2,644	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	Multifuse®, MF-RHT	Active	Polymeric	16V	100 A	7.5 A	13.1 A	7 s	9.4 mOhms	22 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	0.862 (21.90mm)	-
MF-RHT750-2-14 PTC 7.5A 16V RADIAL LEADED HI-TE Bourns Inc.	2,414	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	Multifuse®, MF-RHT	Active	Polymeric	16V	100 A	7.5 A	13.1 A	7 s	9.4 mOhms	22 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	0.862 (21.90mm)	-
CMF-SDP75-2 PTC RESET FUSE 230V 70MA 4SMD Bourns Inc.	2,139	-	RFQ	Datasheet	4-SMD Cube	Tape & Reel (TR)	CMF-SDP	Active	Ceramic	230V (600V Int)	2.5 A	70 mA	150 mA	120 ms	-	-	75 Ohms	-40°C ~ 125°C	-	Surface Mount	0.433 L x 0.354 W (11.00mm x 9.00mm)	-	0.453 (11.50mm)
PTCTL4NR100LBE PTC RESET FUSE 350V 100MA RADIAL Vishay Beyschlag/Draloric/BC Components	3,451	-	RFQ	Datasheet	Radial, Disc	Bulk	-	Active	Ceramic	350V	1 A	100 mA	270 mA	4 s	-	-	10 Ohms	0°C ~ 70°C	-	Through Hole	0.335 Dia x 0.157 T (8.50mm x 4.00mm)	0.453 (11.50mm)	-
MF-RHT1000-AP PTC RESET FUSE 16V 10A RADIAL Bourns Inc.	2,837	-	RFQ	Datasheet	Radial, Disc	Bulk	Multifuse®, MF-RHT	Active	Polymeric	16V	100 A	10 A	18.5 A	9 s	6.2 mOhms	15 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.689 L x 0.118 W (17.50mm x 3.00mm)	1.051 (26.70mm)	-

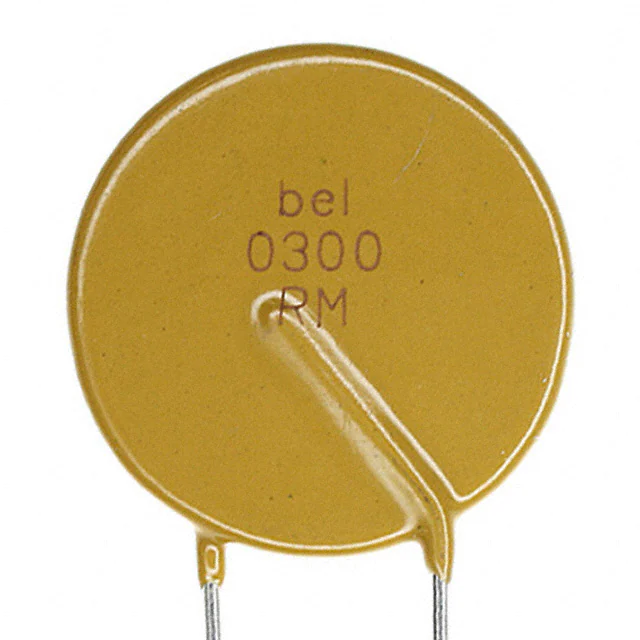

0ZRM0300FF1A PTC RESET FUSE 120V 3A RADIAL Bel Fuse Inc.	3,832	-	RFQ	Datasheet	Radial, Disc	Box	0ZRM	Active	Polymeric	120V	17 A	3 A	6 A	19.8 s	40 mOhms	100 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	1.004 Dia x 0.161 T (25.50mm x 4.10mm)	1.181 (30.00mm)	-
YQS8119 PTC RESET FUSE 265V 15MA RADIAL Amphenol Thermometrics	2,648	-	RFQ	Datasheet	Radial, Disc	Bulk	YP	Active	Ceramic	265V	200 mA	15 mA	45 mA	-	-	-	150 Ohms	0°C ~ 60°C	-	Through Hole	0.177 Dia x 0.197 T (4.50mm x 5.00mm)	0.354 (9.00mm)	-
PFRA.900 PTC RESET FUSE 30V 9A RADIAL SCHURTER Inc.	3,746	-	RFQ	Datasheet	Radial, Disc	Bulk	PFRA	Active	Polymeric	30V	40 A	9 A	18 A	20 s	5 mOhms	20 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.953 L x 0.118 W (24.20mm x 3.00mm)	1.295 (32.90mm)	-
PTCCL09H171HTE PTC RESET FUSE 265V 170MA RADIAL Vishay Beyschlag/Draloric/BC Components	2,784	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PTCCL - 265V	Active	Ceramic	265V	900 mA	170 mA	255 mA	-	-	-	22 Ohms	0°C ~ 70°C	-	Through Hole	0.335 Dia x 0.217 T (8.50mm x 5.50mm)	0.532 (13.50mm)	-
MF-RHT1000-0-14 PTC 10.0A 16V RADIAL LEADED HI-T Bourns Inc.	2,684	-	RFQ	Datasheet	Radial, Disc	Bulk	Multifuse®, MF-R	Active	Polymeric	16V	100 A	10 A	18.5 A	9 s	6.2 mOhms	15 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.689 L x 0.118 W (17.50mm x 3.00mm)	1.051 (26.70mm)	-
PTR016V1400-TR1 PTC RESET FUSE 16V 14A RADIAL Eaton - Electronics Division	3,069	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	PTR016V	Active	Polymeric	16V	100 A	14 A	23.8 A	9 s	2 mOhms	7 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.925 L x 0.122 W (23.50mm x 3.10mm)	1.181 (30.00mm)	-
YQB120N0025 PTC RESET FUSE 80V 100MA RADIAL Amphenol Thermometrics	3,290	-	RFQ	Datasheet	Radial, Disc	Bulk	YQ	Active	Ceramic	80V	1 A	100 mA	200 mA	-	-	-	25 Ohms	0°C ~ 60°C	-	Through Hole	0.256 Dia x 0.157 T (6.50mm x 4.00mm)	-	-
YQB120N0055 PTC RESET FUSE 80V 60MA RADIAL Amphenol Thermometrics	3,246	-	RFQ	Datasheet	Radial, Disc	Bulk	YQ	Active	Ceramic	80V	700 mA	60 mA	120 mA	-	-	-	55 Ohms	0°C ~ 60°C	-	Through Hole	0.157 Dia x 0.138 T (4.00mm x 3.50mm)	-	-
YQS8103 PTC RESET FUSE 30V 120MA RADIAL Amphenol Thermometrics	2,357	-	RFQ	Datasheet	Radial, Disc	Bulk	YP	Active	Ceramic	30V	700 mA	120 mA	240 mA	-	-	-	13 Ohms	0°C ~ 60°C	-	Through Hole	0.177 Dia x 0.138 T (4.50mm x 3.50mm)	0.394 (10.00mm)	-
MF-PSML350/8-2 PTC RESET FUSE 8V 3.5A 0805 Bourns Inc.	2,048	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-PSML/X	Active	Polymeric	8V	50 A	3.5 A	7 A	5 s	2 mOhms	18 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.085 L x 0.053 W (2.15mm x 1.35mm)	-	0.055 (1.40mm)
PRG21BC4R7MS5RA PTC RESET FUSE Murata Electronics	3,170	-	RFQ		-	Tape & Reel (TR)	*	Not For New Designs	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PTCCL13H831DTE PTC RESET FUSE 30V 830MA RADIAL Vishay Beyschlag/Draloric/BC Components	3,707	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PTCCL - 30V	Active	Ceramic	30V	10 A	830 mA	1.245 A	-	-	-	1.1 Ohms	-40°C ~ 85°C	-	Through Hole	0.492 Dia x 0.157 T (12.50mm x 4.00mm)	0.689 (17.50mm)	-
