Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
B59950C0120A051 PTC RESET FUSE 80V 320MA RADIAL EPCOS - TDK Electronics	2,885	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	Automotive, AEC-Q200	Active	Ceramic	80V	5.5 A	320 mA	640 mA	-	-	-	3.7 Ohms	-40°C ~ 85°C	-	Through Hole	0.532 Dia x 0.138 T (13.50mm x 3.50mm)	0.669 (17.00mm)	-
PTCTL4MR350STE PTC RESET FUSE 600V 70MA RADIAL Vishay Beyschlag/Draloric/BC Components	2,289	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	-	Active	Ceramic	600V	1 A	70 mA	600 mA	3 s	-	-	35 Ohms	0°C ~ 70°C	-	Through Hole	0.315 Dia x 0.197 T (8.00mm x 5.00mm)	0.433 (11.00mm)	-
B59955C0160A051 PTC RESET FUSE 20V 950MA RADIAL EPCOS - TDK Electronics	2,793	-	RFQ		Radial, Disc	Tape & Reel (TR)	Automotive, AEC-Q200	Active	Ceramic	20V	5.5 A	950 mA	1.9 A	-	-	-	800 mOhms	-40°C ~ 85°C	AEC-Q200	Through Hole	0.532 Dia x 0.138 T (13.50mm x 3.50mm)	0.669 (17.00mm)	-
PFRY.300 PTC RESET FUSE 72V 3A RADIAL SCHURTER Inc.	2,895	-	RFQ	Datasheet	Radial, Disc	Bulk	PFRY	Active	Polymeric	72V	40 A	3 A	6 A	19.8 s	40 mOhms	100 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.814 L x 0.118 W (20.67mm x 3.00mm)	0.937 (23.80mm)	-
MF-RG1000-0-14 PTC RESETTABLE 10A 16V RADIAL LE Bourns Inc.	3,095	-	RFQ	Datasheet	Radial, Disc	Bulk	Multifuse®, MF-RG	Active	Polymeric	16V	100 A	10 A	17 A	6 s	4 mOhms	10.2 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.650 L x 0.118 W (16.50mm x 3.00mm)	0.854 (21.70mm)	-
MF-RHT1300-AP PTC RESET FUSE 16V 13A RADIAL Bourns Inc.	3,096	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	Multifuse®, MF-RHT	Active	Polymeric	16V	100 A	13 A	24 A	13 s	4.1 mOhms	10 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.925 L x 0.142 W (23.50mm x 3.60mm)	1.130 (28.70mm)	-
MF-RG1000-AP-14 PTC RESETTABLE 10A 16V RADIAL LE Bourns Inc.	2,196	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	Multifuse®, MF-RG	Active	Polymeric	16V	100 A	10 A	17 A	6 s	4 mOhms	10.2 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.650 L x 0.118 W (16.50mm x 3.00mm)	0.854 (21.70mm)	-
MF-RG1000-2-14 PTC RESETTABLE 10A 16V RADIAL LE Bourns Inc.	3,691	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	Multifuse®, MF-RG	Active	Polymeric	16V	100 A	10 A	17 A	6 s	4 mOhms	10.2 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.650 L x 0.118 W (16.50mm x 3.00mm)	0.854 (21.70mm)	-
MF-RHT1300-0-14 PTC 13.0A 16V RADIAL LEADED HI-T Bourns Inc.	3,867	-	RFQ	Datasheet	Radial, Disc	Bulk	Multifuse®, MF-R	Active	Polymeric	16V	100 A	13 A	24 A	13 s	4.1 mOhms	10 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.925 L x 0.142 W (23.50mm x 3.60mm)	1.130 (28.70mm)	-
B59955C0120A051 PTC RESET FUSE 30V 850MA RADIAL EPCOS - TDK Electronics	2,261	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	Automotive, AEC-Q200	Active	Ceramic	30V	5.5 A	850 mA	1.7 A	-	-	-	800 mOhms	-40°C ~ 125°C	AEC-Q200	Through Hole	0.532 Dia x 0.138 T (13.50mm x 3.50mm)	0.669 (17.00mm)	-
PTCTL6MR250STE PTC RESET FUSE 600V 70MA RADIAL Vishay Beyschlag/Draloric/BC Components	3,706	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	-	Active	Ceramic	600V	2 A	70 mA	170 mA	5 s	-	-	25 Ohms	0°C ~ 70°C	-	Through Hole	0.413 Dia x 0.197 T (10.50mm x 5.00mm)	0.496 (12.60mm)	-

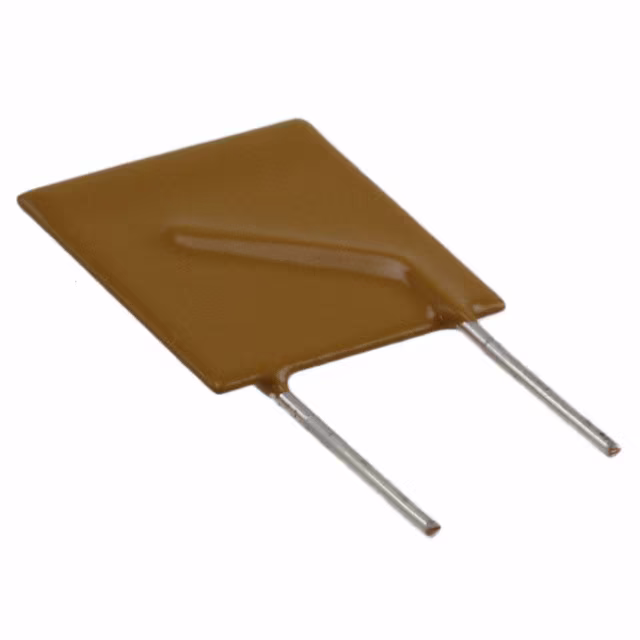

PFRA.500 PTC RESET FUSE 30V 5A RADIAL SCHURTER Inc.	3,668	-	RFQ	Datasheet	Radial, Disc	Bulk	PFRA	Active	Polymeric	30V	40 A	5 A	10 A	14.5 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.685 L x 0.118 W (17.40mm x 3.00mm)	0.980 (24.90mm)	-

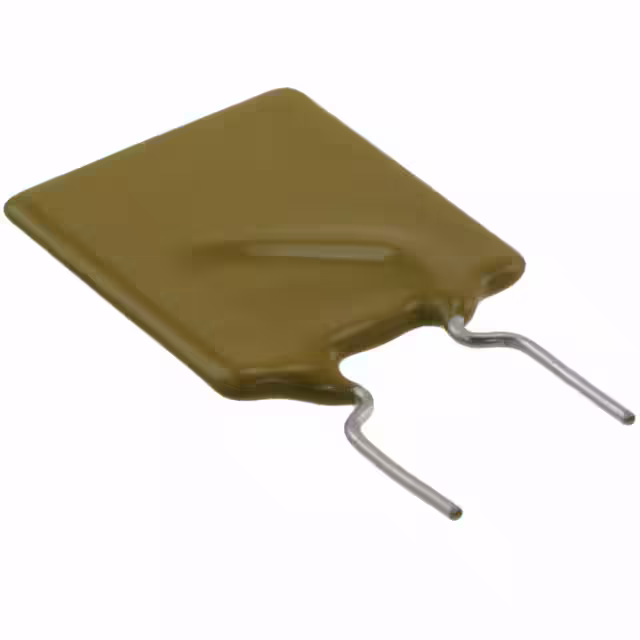

30R700UF PTC RESET FUSE 30V 7A RADIAL Littelfuse Inc.	3,747	-	RFQ	Datasheet	Radial, Disc	Bulk	POLY-FUSE®, 30R	Obsolete	Polymeric	30V	40 A	7 A	14 A	17.5 s	5 mOhms	30 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.752 L x 0.118 W (19.10mm x 3.00mm)	1.126 (28.60mm)	-

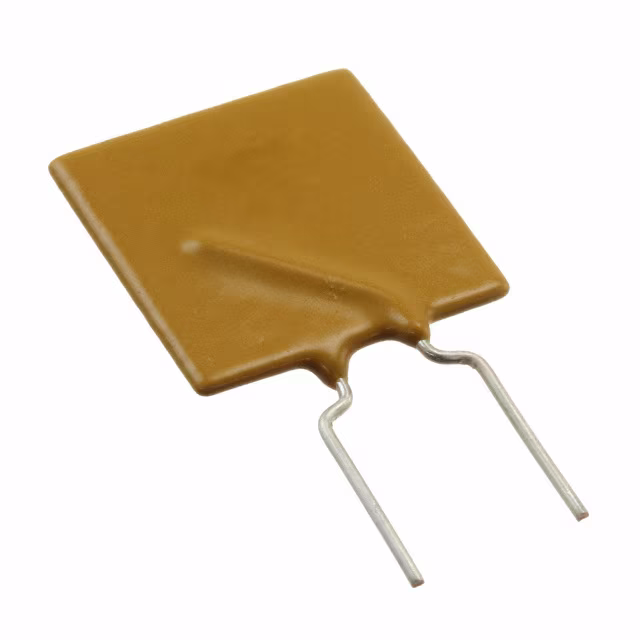

0ZRN1100FF1A PTC RESET FUSE 16V 11A RADIAL Bel Fuse Inc.	3,619	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRN	Active	Polymeric	16V	100 A	11 A	20 A	11 s	5.5 mOhms	13 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.827 L x 0.118 W (21.00mm x 3.00mm)	1.028 (26.10mm)	-
0ZRN1300FF1A PTC RESET FUSE 16V 13A RADIAL Bel Fuse Inc.	2,850	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRN	Active	Polymeric	16V	100 A	13 A	24 A	13 s	4.1 mOhms	10 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.925 L x 0.142 W (23.50mm x 3.60mm)	1.130 (28.70mm)	-

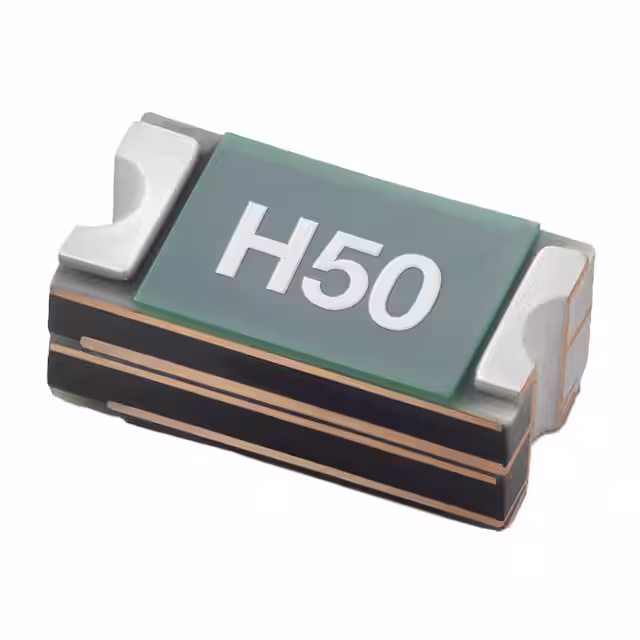

MINIASMDCH050F-2 PTC RESET FUSE 0.50A 30V 1812 Littelfuse Inc.	3,099	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, miniASMD	Obsolete	Polymeric	30V	20 A	500 mA	1.6 A	100 ms	200 mOhms	1.35 Ohms	-	-40°C ~ 125°C	AEC-Q200	Surface Mount	0.181 L x 0.128 W (4.60mm x 3.24mm)	-	0.032 (0.82mm)
MF-RG1100-AP PTC RESET FUSE 16V 11A RADIAL Bourns Inc.	3,396	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	Multifuse®, MF-RG	Active	Polymeric	16V	100 A	11 A	18.7 A	7 s	3.7 mOhms	8.9 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.689 L x 0.118 W (17.50mm x 3.00mm)	1.024 (26.00mm)	-
MF-RHT1300-AP-14 PTC 13.0A 16V RADIAL LEADED HI-T Bourns Inc.	2,431	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	Multifuse®, MF-R	Active	Polymeric	16V	100 A	13 A	24 A	13 s	4.1 mOhms	10 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.925 L x 0.142 W (23.50mm x 3.60mm)	1.130 (28.70mm)	-
MF-RHT1300-2-14 PTC 13.0A 16V RADIAL LEADED HI-T Bourns Inc.	3,963	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	Multifuse®, MF-R	Active	Polymeric	16V	100 A	13 A	24 A	13 s	4.1 mOhms	10 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.925 L x 0.142 W (23.50mm x 3.60mm)	1.130 (28.70mm)	-
TRF250-110U PTC RESET FUSE 60V 110MA RADIAL Littelfuse Inc.	2,526	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, TRF250	Active	Polymeric	60V (250V Int)	3 A	110 mA	220 mA	1.2 s	5 Ohms	16 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.209 Dia x 0.150 T (5.30mm x 3.80mm)	0.370 (9.40mm)	-
