Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
YQD120N0010 PTC RESET FUSE 265V 250MA RADIAL Amphenol Thermometrics	3,786	-	RFQ	Datasheet	Radial, Disc	Bulk	YQ	Active	Ceramic	265V	1.8 A	250 mA	500 mA	-	-	-	10 Ohms	0°C ~ 60°C	-	Through Hole	0.532 Dia x 0.197 T (13.50mm x 5.00mm)	-	-

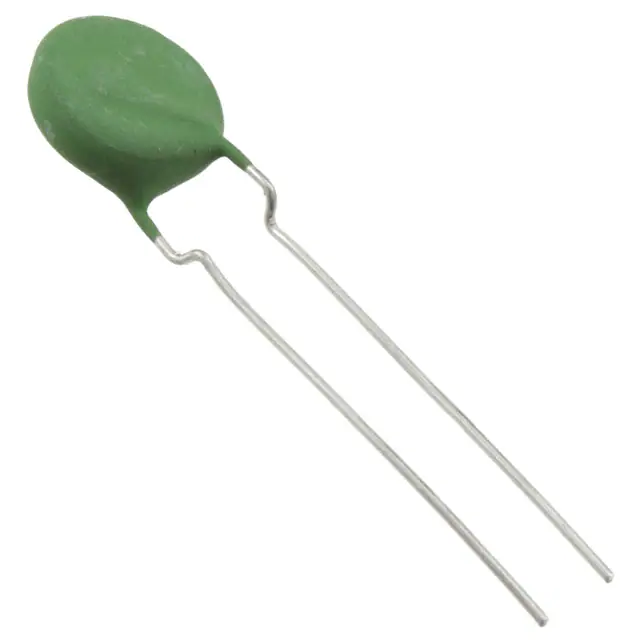

YQD120N0015 PTC RESET FUSE 265V 180MA RADIAL Amphenol Thermometrics	2,471	-	RFQ	Datasheet	Radial, Disc	Bulk	YQ	Active	Ceramic	265V	1.2 A	180 mA	350 mA	-	-	-	15 Ohms	0°C ~ 60°C	-	Through Hole	0.433 Dia x 0.197 T (11.00mm x 5.00mm)	-	-

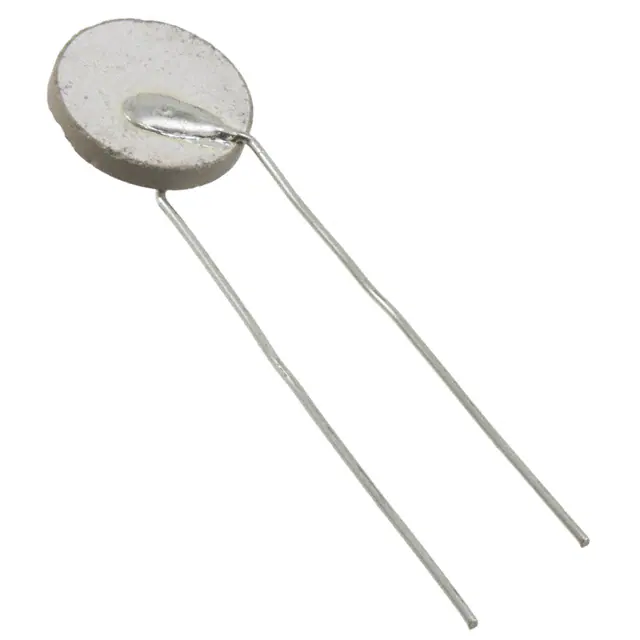

YQS5917PTO PTC RESET FUSE 120V RADIAL DISC Amphenol Thermometrics	2,997	-	RFQ	Datasheet	Radial, Disc	Bulk	PTO	Active	Ceramic	120V	-	-	-	-	-	-	20 Ohms	10°C ~ 55°C	-	Through Hole	0.650 Dia x 0.230 T (16.51mm x 5.84mm)	0.728 (18.50mm)	-
SCF4030-22-07 FUSE TRIGGERABLE 22A 48V 7 CELL Eaton - Electronics Division	3,572	-	RFQ	Datasheet	1612 (4030 Metric)	Tape & Reel (TR)	SCF4030	Active	Polymeric	48V	22 A	-	-	-	0.8 mOhms	1.8 mOhms	-	-20°C ~ 60°C	-	Surface Mount	0.157 L x 0.118 W (4.00mm x 3.00mm)	-	0.039 (1.00mm)
SCF4030-22-05 FUSE TRIGGERABLE 22A 48V 5 CELL Eaton - Electronics Division	2,868	-	RFQ	Datasheet	1612 (4030 Metric)	Tape & Reel (TR)	SCF4030	Active	Polymeric	48V	22 A	-	-	-	0.8 mOhms	1.8 mOhms	-	-20°C ~ 60°C	-	Surface Mount	0.157 L x 0.118 W (4.00mm x 3.00mm)	-	0.039 (1.00mm)
PTCCL13H831DBE PTC RESET FUSE 30V 830MA RADIAL Vishay Beyschlag/Draloric/BC Components	3,626	-	RFQ	Datasheet	Radial, Disc	Bulk	PTCCL - 30V	Active	Ceramic	30V	10 A	830 mA	1.245 A	-	-	-	1.1 Ohms	-40°C ~ 85°C	-	Through Hole	0.492 Dia x 0.157 T (12.50mm x 4.00mm)	0.689 (17.50mm)	-
PTCCL13H411FBE PTC RESET FUSE 145V 410MA RADIAL Vishay Beyschlag/Draloric/BC Components	3,524	-	RFQ	Datasheet	Radial, Disc	Bulk	PTCCL - 145V	Active	Ceramic	145V	4.5 A	410 mA	615 mA	-	-	-	4.6 Ohms	0°C ~ 70°C	-	Through Hole	0.492 Dia x 0.197 T (12.50mm x 5.00mm)	0.689 (17.50mm)	-
AHRF450 PTC RESET FUSE 16V 4.5A RADIAL Littelfuse Inc.	2,328	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AHRF	Active	Polymeric	16V	100 A	4.5 A	8.7 A	4 s	17 mOhms	54 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.409 Dia x 0.122 T (10.40mm x 3.10mm)	0.563 (14.30mm)	-
YQD120N0045 PTC RESET FUSE 265V 105MA RADIAL Amphenol Thermometrics	2,741	-	RFQ	Datasheet	Radial, Disc	Bulk	YQ	Active	Ceramic	265V	800 mA	105 mA	200 mA	-	-	-	45 Ohms	0°C ~ 60°C	-	Through Hole	0.354 Dia x 0.197 T (9.00mm x 5.00mm)	-	-
YQS5679 PTC RESET FUSE Amphenol Thermometrics	3,135	-	RFQ		-	Bulk	YQ	Active	Ceramic	-	-	-	-	-	-	-	50 Ohms	-	-	-	-	-	-
B59930C0130A070 PTC RESET FUSE 80V 700MA RADIAL EPCOS - TDK Electronics	3,451	-	RFQ	Datasheet	Radial, Disc	Bulk	-	Active	Ceramic	80V	8 A	700 mA	1.1 A	-	-	-	2.2 Ohms	0°C ~ 60°C	-	Through Hole	0.689 Dia x 0.138 T (17.50mm x 3.50mm)	0.827 (21.00mm)	-

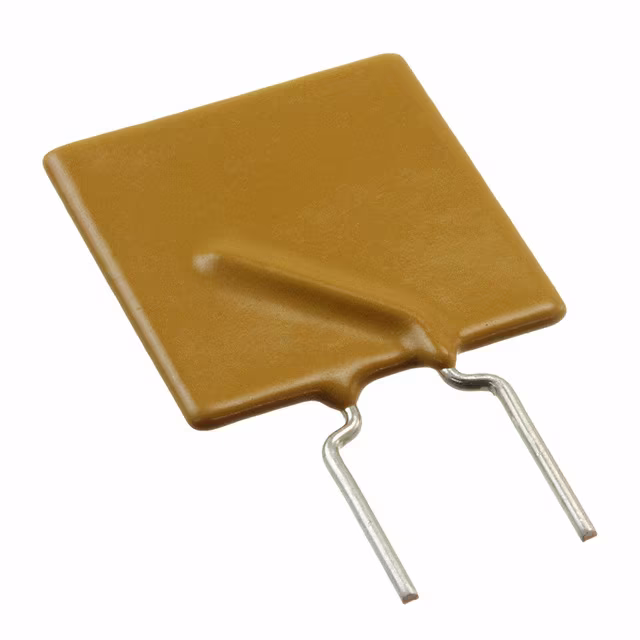

0ZRN1400FF1A PTC RESET FUSE 16V 14A RADIAL Bel Fuse Inc.	3,849	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRN	Active	Polymeric	16V	100 A	14 A	27 A	13 s	3 mOhms	9 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.925 L x 0.142 W (23.50mm x 3.60mm)	1.130 (28.70mm)	-
B59945C0120A051 PTC RESET FUSE 30V 1.3A RADIAL EPCOS - TDK Electronics	2,894	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	Automotive, AEC-Q200	Active	Ceramic	30V	8 A	1.3 A	2.6 A	-	-	-	450 mOhms	-40°C ~ 85°C	AEC-Q200	Through Hole	0.689 Dia x 0.138 T (17.50mm x 3.50mm)	0.827 (21.00mm)	-
1812L370SLPR PTC RESET FUSE 6V 3.7A 1812 Littelfuse Inc.	2,921	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	POLY-FUSE®, LoRho	Active	Polymeric	6V	50 A	3.7 A	9.1 A	2 s	3 mOhms	18 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.028 (0.70mm)
TRF250-145-RA-B-0.5 PTC RESET FUSE 60V 145MA RADIAL Littelfuse Inc.	3,924	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, TRF250	Active	Polymeric	60V (250V Int)	3 A	145 mA	290 mA	2.5 s	3 Ohms	12 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.256 L x 0.181 W (6.50mm x 4.60mm)	0.433 (11.00mm)	-

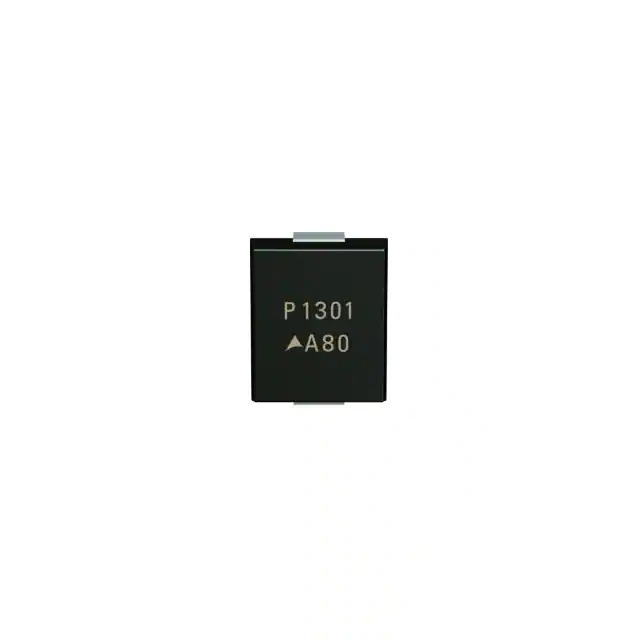

B59301P1080A062 PTC RESET FUSE 30V 100MA 4032 EPCOS - TDK Electronics	2,858	-	RFQ	Datasheet	4032 (10080 Metric)	Tape & Reel (TR)	Automotive, AEC-Q200, B59301	Active	Ceramic	30V	1 A	100 mA	200 mA	-	-	-	25 Ohms	-40°C ~ 60°C	AEC-Q200	Surface Mount	0.394 L x 0.315 W (10.00mm x 8.00mm)	-	0.150 (3.80mm)
TRF250-145T PTC RESET FUSE 60V 145MA RADIAL Littelfuse Inc.	2,518	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, TRF250	Active	Polymeric	60V (250V Int)	3 A	145 mA	290 mA	2.5 s	5.4 Ohms	14 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.256 L x 0.181 W (6.50mm x 4.60mm)	0.433 (11.00mm)	-
1210L600SL-VYR PTC RESET FUSE 6V 6A 1210 Littelfuse Inc.	2,015	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR)	POLY-FUSE®, LoRho	Active	Polymeric	6V	50 A	6 A	12 A	2 s	1 mOhms	10 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.101 W (3.22mm x 2.58mm)	-	0.039 (1.00mm)
1210L700SLWR PTC RESET FUSE 6V 7A 1210 Littelfuse Inc.	2,522	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR)	POLY-FUSE®, LoRho	Active	Polymeric	6V	50 A	7 A	14 A	-	-	-	-	85°C	-	Surface Mount	0.127 L x 0.101 W (3.22mm x 2.58mm)	-	-
YQS5920POC PTC RESET FUSE COATED 100 120V Amphenol Thermometrics	2,565	-	RFQ		-	Bulk	YQ	Active	Ceramic	-	-	-	-	-	-	-	100 Ohms	-	-	-	-	-	-
