Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

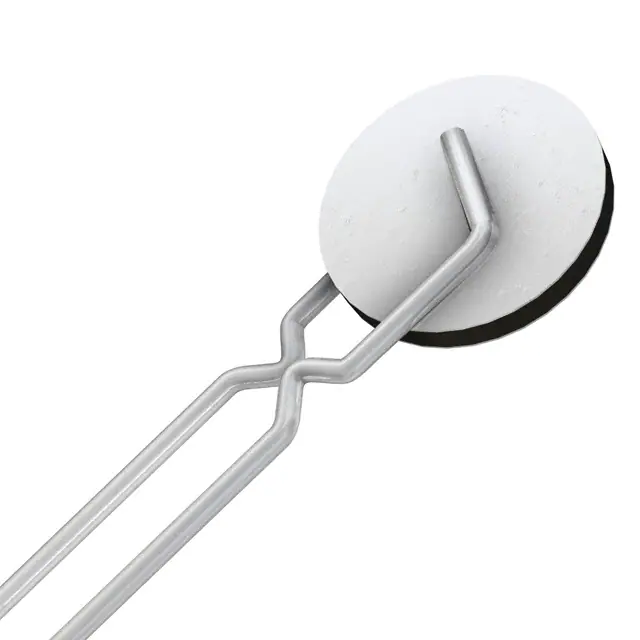

MF-R055/90U-0PTC RESET FUSE 90V 550MA RADIAL |
2,040 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | Multifuse®, MF-R/90 | Obsolete | Polymeric | 90V | 10 A | 550 mA | 1.1 A | 28 s | 450 mOhms | 2 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.429 Dia x 0.142 T (10.90mm x 3.60mm) | 0.657 (16.70mm) | - | |
1812L050ZRTPTC RESET FUSE 15V 500MA 1812 |
3,884 | - |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR) | POLY-FUSE®, 1812L | Obsolete | Polymeric | 15V | 100 A | 500 mA | 1 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.030 (0.75mm) | |
1812L075ZRPTC RESET FUSE 13.2V 75MA 1812 |
3,301 | - |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR) | POLY-FUSE®, 1812L | Obsolete | Polymeric | 13.2V | 100 A | 75 mA | 1.5 A | 200 ms | 100 mOhms | 450 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.030 (0.75mm) | |
1812L110ZRPTC RESET FUSE 8V 1.1A 1812 |
2,850 | - |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR) | POLY-FUSE®, 1812L | Obsolete | Polymeric | 8V | 100 A | 1.1 A | 2.2 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.028 (0.71mm) | |
LVR005SPTC RESET FUSE 240V 50MA RADIAL |
2,350 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVR | Obsolete | Polymeric | 240V (265V Int) | 1 A | 50 mA | 120 mA | 10 s | 18.5 Ohms | 65 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.327 Dia x 0.150 T (8.30mm x 3.80mm) | 0.430 (10.70mm) | - | |
LVR008SPTC RESET FUSE 240V 80MA RADIAL |
3,199 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVR | Obsolete | Polymeric | 240V (265V Int) | 1.2 A | 80 mA | 190 mA | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.327 Dia x 0.150 T (8.30mm x 3.80mm) | 0.430 (10.70mm) | - | |
RL3006-50-60-25-PT4PTC RESET FUSE 25V RADIAL DISC |
2,946 | - |
RFQ |
Radial, Disc | Bulk | - | Obsolete | - | 25V | - | - | - | - | - | - | - | - | - | Through Hole | 0.350 Dia x 0.150 T (8.90mm x 3.80mm) | 0.350 (8.89mm) | - | ||
PFMD.125.2PTC RESET FUSE 6V 1.25A 1812 |
3,131 | - |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PFMD | Obsolete | Polymeric | 6V | 100 A | 1.25 A | 2.5 A | 400 ms | 35 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.121 W (4.55mm x 3.07mm) | - | 0.033 (0.85mm) | |
PFMD.150.2PTC RESET FUSE 6V 1.5A 1812 |
2,820 | - |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PFMD | Obsolete | Polymeric | 6V | 100 A | 1.5 A | 3 A | 500 ms | 30 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.121 W (4.55mm x 3.07mm) | - | 0.033 (0.85mm) | |
PFMD.014.2PTC RESET FUSE 60V 140MA 1812 |
2,704 | - |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PFMD | Obsolete | Polymeric | 60V | 40 A | 140 mA | 340 mA | 150 ms | 400 mOhms | 6.5 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.121 W (4.55mm x 3.07mm) | - | 0.043 (1.10mm) | |
PFMD.020.2PTC RESET FUSE 30V 200MA 1812 |
3,061 | - |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PFMD | Obsolete | Polymeric | 30V | 80 A | 200 mA | 400 mA | 60 ms | 400 mOhms | 6 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.121 W (4.55mm x 3.07mm) | - | 0.043 (1.10mm) | |
PFMD.160.2PTC RESET FUSE 8V 1.6A 1812 |
3,192 | - |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PFMD | Obsolete | Polymeric | 8V | 100 A | 1.6 A | 2.8 A | 2 s | 35 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.121 W (4.55mm x 3.07mm) | - | 0.033 (0.85mm) | |
PFMD.050.2PTC RESET FUSE 15V 500MA 1812 |
2,777 | - |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PFMD | Obsolete | Polymeric | 15V | 100 A | 500 mA | 1 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.121 W (4.55mm x 3.07mm) | - | 0.033 (0.85mm) | |
PFMD.010.2PTC RESET FUSE 60V 100MA 1812 |
2,309 | - |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PFMD | Obsolete | Polymeric | 60V | 40 A | 100 mA | 300 mA | 1.5 s | 700 mOhms | 15 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.121 W (4.55mm x 3.07mm) | - | 0.043 (1.10mm) | |
PFMD.075.2PTC RESET FUSE 13.2V 750MA 1812 |
3,215 | - |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PFMD | Obsolete | Polymeric | 13.2V | 100 A | 750 mA | 1.5 A | 200 ms | 110 mOhms | 450 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.121 W (4.55mm x 3.07mm) | - | 0.033 (0.85mm) | |
PFMD.110.2PTC RESET FUSE 6V 1.1A 1812 |
3,149 | - |
RFQ |
Datasheet |
1812 (4532 Metric) | Tape & Reel (TR) | PFMD | Obsolete | Polymeric | 6V | 100 A | 1.1 A | 2.2 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.121 W (4.55mm x 3.07mm) | - | 0.033 (0.85mm) | |
PFMU.075.2PTC RESET FUSE 6V 750MA 1210 |
2,100 | - |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | PFMU | Obsolete | Polymeric | 6V | 40 A | 750 mA | 1.5 A | 100 ms | 70 mOhms | 450 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.101 W (3.22mm x 2.56mm) | - | 0.024 (0.62mm) | |
PFMU.110.2PTC RESET FUSE 6V 1.1A 1210 |
3,051 | - |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | PFMU | Obsolete | Polymeric | 6V | 40 A | 1.1 A | 2.2 A | 100 ms | 50 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.101 W (3.22mm x 2.56mm) | - | 0.024 (0.62mm) | |
PFMU.050.2PTC RESET FUSE 13.2V 500MA 1210 |
2,957 | - |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | PFMU | Obsolete | Polymeric | 13.2V | 40 A | 500 mA | 1 A | 100 ms | 180 mOhms | 900 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.101 W (3.22mm x 2.56mm) | - | 0.024 (0.62mm) | |
PFMU.035.2PTC RESET FUSE 6V 350MA 1210 |
3,633 | - |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | PFMU | Obsolete | Polymeric | 6V | 40 A | 350 mA | 750 mA | 200 ms | 200 mOhms | 1.3 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.101 W (3.22mm x 2.56mm) | - | 0.024 (0.62mm) |
