Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
SMD2920P125TSA PTC RESET FUSE 15V 1.25A 2920 Littelfuse Inc.	3,688	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR)	POLY-FUSE®, SMD2920	Obsolete	Polymeric	15V	40 A	1.25 A	2.5 A	2 s	70 mOhms	250 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.031 (0.78mm)
SMD2920P300TSA PTC RESET FUSE 6V 3A 2920 Littelfuse Inc.	2,708	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR)	POLY-FUSE®, SMD2920	Obsolete	Polymeric	6V	40 A	3 A	6 A	20 s	15 mOhms	48 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.039 (1.00mm)

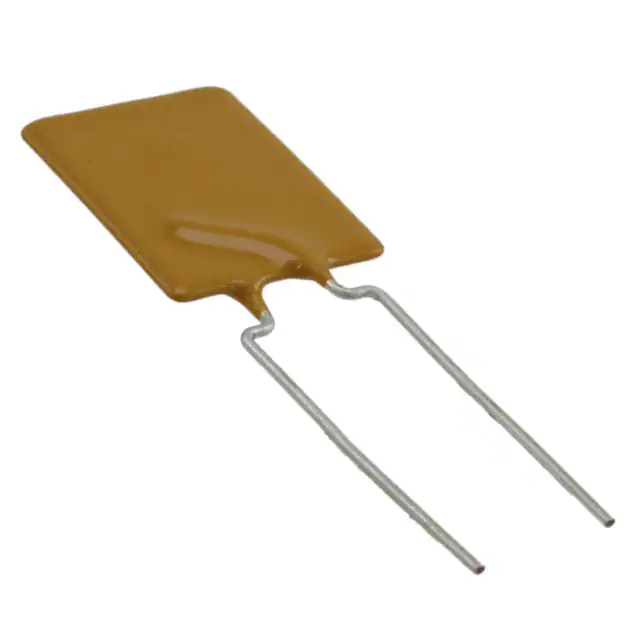

AHR1000 PTC RESET FUSE 16V 10A RADIAL Littelfuse Inc.	2,476	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, AHR	Obsolete	Polymeric	16V	100 A	10 A	20.5 A	10.5 s	5.1 mOhms	10.5 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.689 L x 0.118 W (17.50mm x 3.00mm)	1.043 (26.50mm)	-
TSM600-250-2 POLYSWITCH 0.250A HOLD SMD Littelfuse Inc.	2,259	-	RFQ	Datasheet	4-SMD	Cut Tape (CT)	PolySwitch®, TSM	Obsolete	Polymeric	250V (600V Int)	3 A	250 mA	860 mA	6 s	1 Ohms	7 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.681 L x 0.425 W (17.30mm x 10.80mm)	-	0.451 (11.45mm)
TSM600-250-RA-2 POLYSWITCH 0.250A HOLD SMD Littelfuse Inc.	3,864	-	RFQ	Datasheet	4-SMD	Cut Tape (CT)	PolySwitch®, TSM	Obsolete	Polymeric	250V	3 A	250 mA	860 mA	6 s	1 Ohms	5 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.681 L x 0.425 W (17.30mm x 10.80mm)	-	0.461 (11.70mm)
MF-MSMD110/16-2 FUSE RESETTABLE 1.1A 16V SMD Bourns Inc.	2,542	-	RFQ	Datasheet	1812 (4532 Metric)	Cut Tape (CT)	MF-MSMD	Obsolete	Polymeric	16V	100 A	1.1 A	2.2 A	0.3 s	40 mOhms	210 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.020 W (4.55mm x 0.50mm)	-	0.134 (3.41mm)
RUSB155 PTC RESET FUSE 6V 1.55A RADIAL Littelfuse Inc.	3,121	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®	Obsolete	Polymeric	6V	40 A	1.55 A	2.65 A	2.2 s	40 mOhms	100 mOhms	-	-	-	Through Hole	0.272 Dia x 0.122 T (6.90mm x 3.10mm)	0.461 (11.70mm)	-

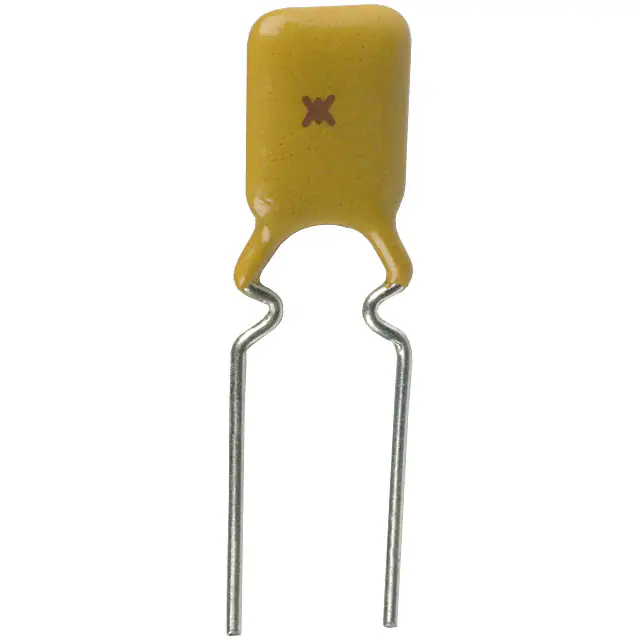

RTE120 PTC RESET FUSE 33V 1.2A RADIAL Littelfuse Inc.	3,977	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®	Obsolete	Polymeric	33V	40 A	1.2 A	2.3 A	3.5 s	74 mOhms	180 mOhms	-	-	-	Through Hole	0.291 L x 0.118 W (7.40mm x 3.00mm)	0.480 (12.20mm)	-
RTE120-2 PTC RESET FUSE 33V 1.2A RADIAL Littelfuse Inc.	2,524	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	PolySwitch®	Obsolete	Polymeric	33V	40 A	1.2 A	2.3 A	3.5 s	74 mOhms	180 mOhms	-	-	-	Through Hole	0.291 L x 0.118 W (7.40mm x 3.00mm)	0.480 (12.20mm)	-
RTE135 PTC RESET FUSE 33V 1.35A RADIAL Littelfuse Inc.	2,688	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®	Obsolete	Polymeric	33V	40 A	1.35 A	2.5 A	4.5 s	59 mOhms	143 mOhms	-	-	-	Through Hole	0.291 L x 0.118 W (7.40mm x 3.00mm)	0.559 (14.20mm)	-
RTE135-2 PTC RESET FUSE 33V 1.35A RADIAL Littelfuse Inc.	3,869	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	PolySwitch®	Obsolete	Polymeric	33V	40 A	1.35 A	2.5 A	4.5 s	59 mOhms	143 mOhms	-	-	-	Through Hole	0.291 L x 0.118 W (7.40mm x 3.00mm)	0.559 (14.20mm)	-
RTE190 PTC RESET FUSE 33V 1.9A RADIAL Littelfuse Inc.	3,282	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®	Obsolete	Polymeric	33V	40 A	1.9 A	3 A	3.5 s	45 mOhms	92 mOhms	-	-	-	Through Hole	0.350 L x 0.118 W (8.90mm x 3.00mm)	0.532 (13.50mm)	-
RTE190-2 PTC RESET FUSE 33V 1.9A RADIAL Littelfuse Inc.	2,800	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	PolySwitch®	Obsolete	Polymeric	33V	40 A	1.9 A	3 A	3.5 s	45 mOhms	92 mOhms	-	-	-	Through Hole	0.350 L x 0.118 W (8.90mm x 3.00mm)	0.532 (13.50mm)	-
MF-USMD005-2 PTC RESET FUSE 30V 50MA 1210 Bourns Inc.	2,154	-	RFQ	Datasheet	1210 (3225 Metric)	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-USMD	Obsolete	Polymeric	30V	10 A	50 mA	150 mA	1.5 s	2.8 Ohms	50 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.102 W (3.22mm x 2.58mm)	-	0.033 (0.85mm)
MF-USMD010-2 PTC RESET FUSE 30V 100MA 1210 Bourns Inc.	2,371	-	RFQ	Datasheet	1210 (3225 Metric)	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-USMD	Obsolete	Polymeric	30V	10 A	100 mA	300 mA	600 ms	800 mOhms	15 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.102 W (3.22mm x 2.58mm)	-	0.033 (0.85mm)
MF-USMD020-2 PTC RESET FUSE 30V 200MA 1210 Bourns Inc.	3,391	-	RFQ	Datasheet	1210 (3225 Metric)	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-USMD	Obsolete	Polymeric	30V	10 A	200 mA	400 mA	20 ms	400 mOhms	5 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.102 W (3.22mm x 2.58mm)	-	0.033 (0.85mm)
MF-USMD050-2 PTC RESET FUSE 13.2V 500MA 1210 Bourns Inc.	3,845	-	RFQ	Datasheet	1210 (3225 Metric)	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-USMD	Obsolete	Polymeric	13.2V	40 A	500 mA	1 A	100 ms	180 mOhms	900 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.102 W (3.22mm x 2.58mm)	-	0.024 (0.62mm)
MF-USMD075-2 PTC RESET FUSE 6V 750MA 1210 Bourns Inc.	3,051	-	RFQ	Datasheet	1210 (3225 Metric)	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-USMD	Obsolete	Polymeric	6V	40 A	750 mA	1.5 A	100 ms	70 mOhms	450 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.102 W (3.22mm x 2.58mm)	-	0.024 (0.62mm)
MF-USMD110-2 PTC RESET FUSE 6V 1.1A 1210 Bourns Inc.	3,718	-	RFQ	Datasheet	1210 (3225 Metric)	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-USMD	Obsolete	Polymeric	6V	40 A	1.1 A	2.2 A	1 s	50 mOhms	210 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.102 W (3.22mm x 2.58mm)	-	0.019 (0.48mm)
MF-R055/90-0 PTC RESET FUSE 90V 550MA RADIAL Bourns Inc.	3,439	-	RFQ	Datasheet	Radial, Disc	Bulk	Multifuse®, MF-R/90	Obsolete	Polymeric	90V	10 A	550 mA	1.1 A	60 s	450 mOhms	2 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.429 Dia x 0.142 T (10.90mm x 3.60mm)	0.657 (16.70mm)	-
