Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
B59965C0120A054 PTC RESET FUSE 30V 600MA RADIAL EPCOS - TDK Electronics	2,472	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	-	Obsolete	Ceramic	30V	4.3 A	600 mA	1.2 A	-	-	-	1.2 Ohms	-40°C ~ 85°C	AEC-Q200	Through Hole	0.433 Dia x 0.138 T (11.00mm x 3.50mm)	0.571 (14.50mm)	-
B59870C130A51 PTC RESET FUSE 265V 100MA RADIAL EPCOS - TDK Electronics	3,733	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	-	Active	Ceramic	265V	400 mA	100 mA	150 mA	-	-	-	50 Ohms	0°C ~ 60°C	-	Through Hole	0.256 Dia x 0.197 T (6.50mm x 5.00mm)	0.394 (10.00mm)	-
B59890C0160A051 PTC RESET FUSE 160V 35MA RADIAL EPCOS - TDK Electronics	3,248	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	-	Obsolete	Ceramic	160V	200 mA	35 mA	70 mA	-	-	-	150 Ohms	0°C ~ 60°C	-	Through Hole	0.157 Dia x 0.197 T (4.00mm x 5.00mm)	0.295 (7.50mm)	-
B59890C80A51 PTC RESET FUSE 265V 15MA RADIAL EPCOS - TDK Electronics	3,042	-	RFQ		Radial, Disc	Tape & Reel (TR)	-	Obsolete	Ceramic	265V	200 mA	15 mA	40 mA	-	-	-	150 Ohms	0°C ~ 60°C	-	Through Hole	0.157 Dia x 0.197 T (4.00mm x 5.00mm)	0.295 (7.50mm)	-
LTP070SF PTC RESET FUSE 15V 700MA STRAP Littelfuse Inc.	3,465	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, LTP	Obsolete	Polymeric	15V	100 A	700 mA	1.45 A	5 s	100 mOhms	340 mOhms	-	-40°C ~ 85°C	-	User Defined	0.866 L x 0.199 W (22.00mm x 5.05mm)	-	0.039 (1.00mm)
LTP100F PTC RESET FUSE 24V 1A STRAP Littelfuse Inc.	2,201	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, LTP	Obsolete	Polymeric	24V	100 A	1 A	2.5 A	7 s	70 mOhms	260 mOhms	-	-40°C ~ 85°C	-	User Defined	0.866 L x 0.199 W (22.00mm x 5.05mm)	-	0.039 (1.00mm)
LTP100SF PTC RESET FUSE 24V 1A STRAP Littelfuse Inc.	2,610	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, LTP	Obsolete	Polymeric	24V	100 A	1 A	2.5 A	7 s	70 mOhms	260 mOhms	-	-40°C ~ 85°C	-	User Defined	0.866 L x 0.199 W (22.00mm x 5.05mm)	-	0.039 (1.00mm)
LTP180F PTC RESET FUSE 24V 1.8A STRAP Littelfuse Inc.	2,447	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, LTP	Obsolete	Polymeric	24V	100 A	1.8 A	3.8 A	2.9 s	40 mOhms	120 mOhms	-	-40°C ~ 85°C	-	User Defined	0.984 L x 0.199 W (25.00mm x 5.05mm)	-	0.039 (1.00mm)
LTP180SF PTC RESET FUSE 24V 1.8A STRAP Littelfuse Inc.	2,405	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, LTP	Obsolete	Polymeric	24V	100 A	1.8 A	3.8 A	2.9 s	40 mOhms	120 mOhms	-	-40°C ~ 85°C	-	User Defined	0.984 L x 0.199 W (25.00mm x 5.05mm)	-	0.039 (1.00mm)
PTCCL13H451FTC PTC RESET FUSE 145V 450MA RADIAL Vishay Beyschlag/Draloric/BC Components	2,682	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	PTCCL - 145V	Obsolete	Ceramic	145V	5 A	450 mA	675 mA	-	-	-	3.8 Ohms	0°C ~ 70°C	-	Through Hole	0.492 Dia x 0.197 T (12.50mm x 5.00mm)	0.689 (17.50mm)	-
PTGL05AS3R9K2B51B0 PTC RESET FUSE 30V 340MA RADIAL Murata Electronics	2,197	-	RFQ	Datasheet	Radial, Disc	Bulk	POSISTOR®, PTGL	Obsolete	Ceramic	30V	3.5 A	340 mA	452 mA	-	-	-	3.9 Ohms	-30°C ~ 85°C	-	Through Hole	0.217 Dia x 0.138 T (5.50mm x 3.50mm)	0.413 (10.50mm)	-
PTGL07AS2R7K2B51B0 PTC RESET FUSE 30V 425MA RADIAL Murata Electronics	2,938	-	RFQ	Datasheet	Radial, Disc	Bulk	POSISTOR®, PTGL	Obsolete	Ceramic	30V	4.5 A	425 mA	565 mA	-	-	-	2.7 Ohms	-30°C ~ 85°C	-	Through Hole	0.287 Dia x 0.138 T (7.30mm x 3.50mm)	0.484 (12.30mm)	-
PTGL07AS1R8K2B51B0 PTC RESET FUSE 30V 532MA RADIAL Murata Electronics	2,101	-	RFQ	Datasheet	Radial, Disc	Bulk	POSISTOR®, PTGL	Obsolete	Ceramic	30V	5 A	532 mA	708 mA	-	-	-	1.8 Ohms	-30°C ~ 85°C	-	Through Hole	0.287 Dia x 0.138 T (7.30mm x 3.50mm)	0.484 (12.30mm)	-
PTGL04AS100K3B51B0 PTC RESET FUSE 51V 213MA RADIAL Murata Electronics	3,689	-	RFQ	Datasheet	Radial, Disc	Bulk	POSISTOR®, PTGL	Obsolete	Ceramic	51V	1 A	213 mA	283 mA	-	-	-	10 Ohms	-30°C ~ 85°C	-	Through Hole	0.177 Dia x 0.138 T (4.50mm x 3.50mm)	0.551 (14.00mm)	-
PTGL07AS150K6B51B0 PTC RESET FUSE 140V 187MA RADIAL Murata Electronics	2,144	-	RFQ	Datasheet	Radial, Disc	Bulk	POSISTOR®, PTGL	Obsolete	Ceramic	140V	1.5 A	187 mA	249 mA	-	-	-	15 Ohms	-30°C ~ 85°C	-	Through Hole	0.287 Dia x 0.177 T (7.30mm x 4.50mm)	0.484 (12.30mm)	-
PTGL09AS120K6B51B0 PTC RESET FUSE 140V 244MA RADIAL Murata Electronics	3,651	-	RFQ	Datasheet	Radial, Disc	Bulk	POSISTOR®, PTGL	Obsolete	Ceramic	140V	2 A	244 mA	324 mA	-	-	-	12 Ohms	-30°C ~ 85°C	-	Through Hole	0.366 Dia x 0.177 T (9.30mm x 4.50mm)	0.563 (14.30mm)	-
PTGL09AS7R6K6B51B0 PTC RESET FUSE 140V 287MA RADIAL Murata Electronics	3,824	-	RFQ	Datasheet	Radial, Disc	Bulk	POSISTOR®, PTGL	Obsolete	Ceramic	140V	2.2 A	287 mA	382 mA	-	-	-	7.6 Ohms	-30°C ~ 85°C	-	Through Hole	0.366 Dia x 0.138 T (9.30mm x 3.50mm)	0.563 (14.30mm)	-

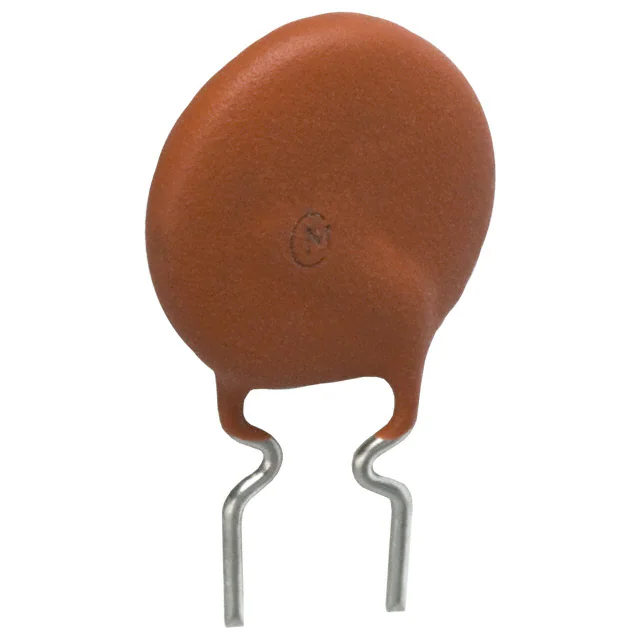

PTGL12AS4R7K6B51B0 PTC RESET FUSE 140V 393MA RADIAL Murata Electronics	2,168	-	RFQ	Datasheet	Radial, Disc	Bulk	POSISTOR®, PTGL	Obsolete	Ceramic	140V	3.5 A	393 mA	523 mA	-	-	-	4.7 Ohms	-30°C ~ 85°C	-	Through Hole	0.453 Dia x 0.138 T (11.50mm x 3.50mm)	0.650 (16.50mm)	-
YPBL0055N PTC RESET FUSE 80V 50MA RADIAL Amphenol Thermometrics	3,368	-	RFQ	Datasheet	Radial, Disc	Bulk	YP	Obsolete	Ceramic	80V	700 mA	50 mA	100 mA	-	-	-	55 Ohms	0°C ~ 60°C	-	Through Hole	0.157 Dia x 0.138 T (4.00mm x 3.50mm)	0.217 (5.50mm)	-

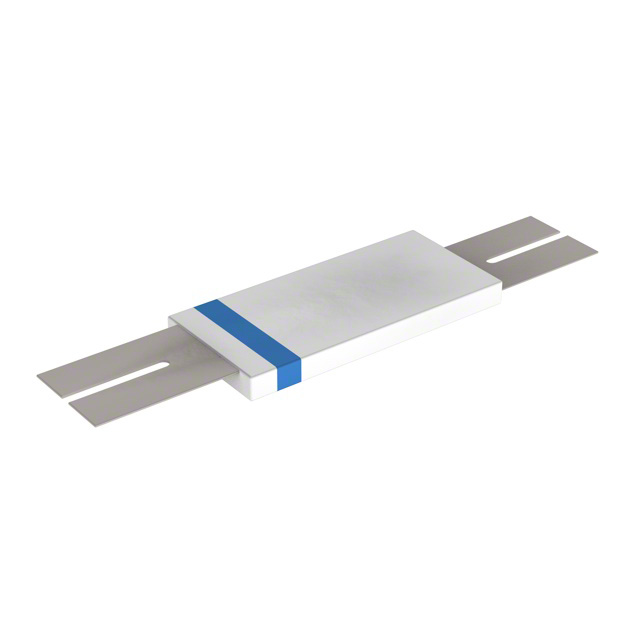

16VT210SSU PTC RESET FUSE 16V 2.1A STRAP Littelfuse Inc.	2,336	-	RFQ	Datasheet	Strap	Bulk	POLY-FUSE®, VT	Obsolete	Polymeric	16V	100 A	2.1 A	4.7 A	5 s	18 mOhms	60 mOhms	-	-40°C ~ 85°C	-	User Defined	0.866 L x 0.201 W (22.00mm x 5.10mm)	-	-
