Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PFLR.260PTC RESET FUSE 15V 2.6A STRAP |
3,634 | - |
RFQ |
Datasheet |
Strap | Bulk | PFLR | Obsolete | Polymeric | 15V | 100 A | 2.6 A | 5.8 A | 5 s | 20 mOhms | 63 mOhms | - | -45°C ~ 85°C | - | User Defined | 0.866 L x 0.199 W (22.00mm x 5.05mm) | - | 0.039 (1.00mm) | |
PFLR.380PTC RESET FUSE 15V 3.8A STRAP |
3,755 | - |
RFQ |
Datasheet |
Strap | Bulk | PFLR | Obsolete | Polymeric | 15V | 100 A | 3.8 A | 8.3 A | 5 s | 13 mOhms | 37 mOhms | - | -45°C ~ 85°C | - | User Defined | 0.984 L x 0.283 W (25.00mm x 7.20mm) | - | 0.039 (1.00mm) | |
PFLR.550PTC RESET FUSE 10V 5.5A STRAP |
3,875 | - |
RFQ |
Datasheet |
Strap | Bulk | PFLR | Obsolete | Polymeric | 10V | 100 A | 5.5 A | 10.5 A | 5 s | 9 mOhms | 22 mOhms | - | -45°C ~ 85°C | - | User Defined | 1.417 L x 0.283 W (36.00mm x 7.20mm) | - | - | |
PFMT.013.250.2PTC RESET FUSE 60V 130MA 2SMD |
2,109 | - |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR) | PFMT | Obsolete | Polymeric | 60V (250V Int) | 3 A | 130 mA | - | - | 6.5 Ohms | 20 Ohms | - | -45°C ~ 85°C | - | Surface Mount | 0.352 L x 0.291 W (8.95mm x 7.40mm) | - | 0.134 (3.40mm) | |
PFLR.450PTC RESET FUSE 10V 4.5A STRAP |
2,918 | - |
RFQ |
Datasheet |
Strap | Bulk | PFLR | Obsolete | Polymeric | 10V | 100 A | 4.5 A | 8.9 A | 5 s | 11 mOhms | 28 mOhms | - | -45°C ~ 85°C | - | User Defined | 0.984 L x 0.402 W (25.00mm x 10.21mm) | - | 0.039 (1.00mm) | |
PFVS.210PTC RESET FUSE 16V 2.1A STRAP |
2,266 | - |
RFQ |
Datasheet |
Strap | Bulk | PFVS | Obsolete | Polymeric | 16V | 100 A | 2.1 A | 4.7 A | 5 s | 18 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.878 L x 0.201 W (22.30mm x 5.10mm) | - | 0.032 (0.80mm) | |
PFMT.013.250.C.2PTC RESET FUSE 60V 130MA 2SMD |
2,575 | - |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR) | PFMT | Obsolete | Polymeric | 60V (250V Int) | 3 A | 130 mA | - | - | 7 Ohms | 20 Ohms | - | -45°C ~ 85°C | - | Surface Mount | 0.352 L x 0.291 W (8.95mm x 7.40mm) | - | 0.134 (3.40mm) | |
PFLR.600PTC RESET FUSE 10V 6A STRAP |
2,076 | - |
RFQ |
Datasheet |
Strap | Bulk | PFLR | Obsolete | Polymeric | 10V | 100 A | 6 A | 11.7 A | 5 s | 7 mOhms | 16 mOhms | - | -45°C ~ 85°C | - | User Defined | 0.984 L x 0.559 W (25.00mm x 14.20mm) | - | - | |
PFVS.170PTC RESET FUSE 16V 1.7A STRAP |
2,657 | - |
RFQ |
Datasheet |
Strap | Bulk | PFVS | Obsolete | Polymeric | 16V | 100 A | 1.7 A | 3.4 A | 3 s | 30 mOhms | 105 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.679 L x 0.201 W (17.25mm x 5.10mm) | - | 0.032 (0.80mm) | |
PFRX.300PTC RESET FUSE 60V 3A RADIAL |
3,058 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRX | Obsolete | Polymeric | 60V | 40 A | 3 A | 6 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.980 Dia x 0.122 T (24.90mm x 3.10mm) | 1.181 (30.00mm) | - | |
PFMT.013.250.B.2PTC RESET FUSE 60V 130MA 2SMD |
3,317 | - |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR) | PFMT | Obsolete | Polymeric | 60V (250V Int) | 3 A | 130 mA | - | - | 9 Ohms | 20 Ohms | - | -45°C ~ 85°C | - | Surface Mount | 0.352 L x 0.291 W (8.95mm x 7.40mm) | - | 0.134 (3.40mm) | |
PFMT.013.250.A.2PTC RESET FUSE 60V 130MA 2SMD |
3,410 | - |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR) | PFMT | Obsolete | Polymeric | 60V (250V Int) | 3 A | 130 mA | - | - | 6.5 Ohms | 20 Ohms | - | -45°C ~ 85°C | - | Surface Mount | 0.352 L x 0.291 W (8.95mm x 7.40mm) | - | 0.134 (3.40mm) | |
PFLR.730PTC RESET FUSE 10V 7.3A STRAP |
3,102 | - |
RFQ |
Datasheet |
Strap | Bulk | PFLR | Obsolete | Polymeric | 10V | 100 A | 7.3 A | 14.1 A | 5 s | 6 mOhms | 15 mOhms | - | -45°C ~ 85°C | - | User Defined | 1.085 L x 0.559 W (27.55mm x 14.20mm) | - | - | |
PFRX.375PTC RESET FUSE 60V 3.75A RADIAL |
3,278 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRX | Obsolete | Polymeric | 60V | 40 A | 3.75 A | 7.5 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Through Hole | 1.118 Dia x 0.122 T (28.40mm x 3.10mm) | 1.319 (33.50mm) | - | |
PFRT.018.250.UPTC RESET FUSE 60V 180MA RADIAL |
3,084 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PFRT | Obsolete | Polymeric | 60V (250V Int) | 10 A | 180 mA | - | - | 800 mOhms | 4 Ohms | - | -45°C ~ 85°C | - | Through Hole | 0.236 L x 0.197 W (6.00mm x 5.00mm) | 0.394 (10.00mm) | - | |
PFME.190.2PTC RESET FUSE 16V 1.9A 4520 |
3,585 | - |
RFQ |
Datasheet |
4520 (11350 Metric) | Tape & Reel (TR) | PMFE | Obsolete | Polymeric | 16V | 100 A | 1.9 A | 3.8 A | 2 s | 17 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.446 L x 0.200 W (11.33mm x 5.08mm) | - | 0.025 (0.63mm) | |
B59850C0080A051PTC RESET FUSE 265V 110MA RADIAL |
2,672 | - |
RFQ |
Radial, Disc | Tape & Reel (TR) | - | Obsolete | Ceramic | 265V | 2.2 A | 110 mA | 230 mA | - | - | - | 10 Ohms | 0°C ~ 60°C | - | Through Hole | 0.532 Dia x 0.197 T (13.50mm x 5.00mm) | 0.669 (17.00mm) | - | ||
B59940C0120A054PTC RESET FUSE 80V 450MA RADIAL |
2,607 | - |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | - | Obsolete | Ceramic | 80V | 8 A | 450 mA | 900 mA | - | - | - | 2.3 Ohms | -40°C ~ 125°C | - | Through Hole | 0.689 Dia x 0.138 T (17.50mm x 3.50mm) | 0.827 (21.00mm) | - | |
B59830C80A70PTC RESET FUSE 265V 250MA RADIAL |
3,017 | - |
RFQ |
Radial, Disc | Bulk | - | Obsolete | Ceramic | 265V | 7 A | 250 mA | 510 mA | - | - | - | - | 0°C ~ 60°C | - | Through Hole | 0.689 Dia x 0.197 T (17.50mm x 5.00mm) | 0.827 (21.00mm) | - | ||

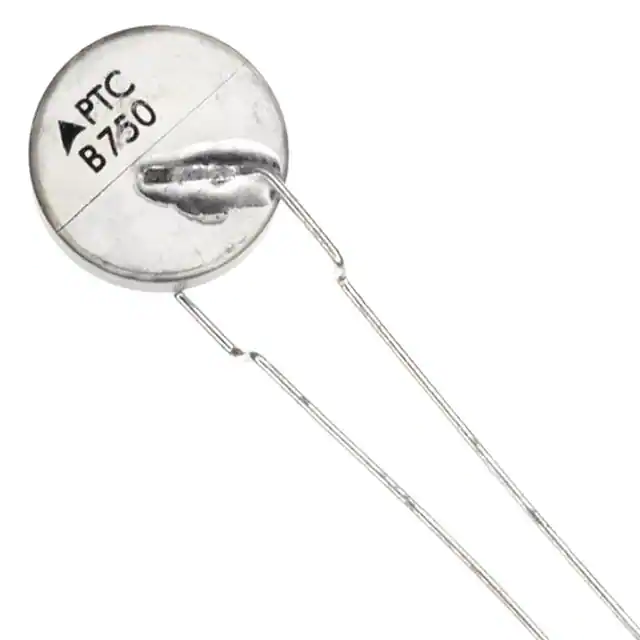

B59750B0120A070PTC RESET FUSE 420V RADIAL DISC |
3,266 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | - | Obsolete | Ceramic | 420V | 2 A | - | 245 mA | 6 s | - | - | 25 Ohms | 0°C ~ 60°C | - | Through Hole | 0.492 Dia x 0.197 T (12.50mm x 5.00mm) | 0.650 (16.50mm) | - |
