Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

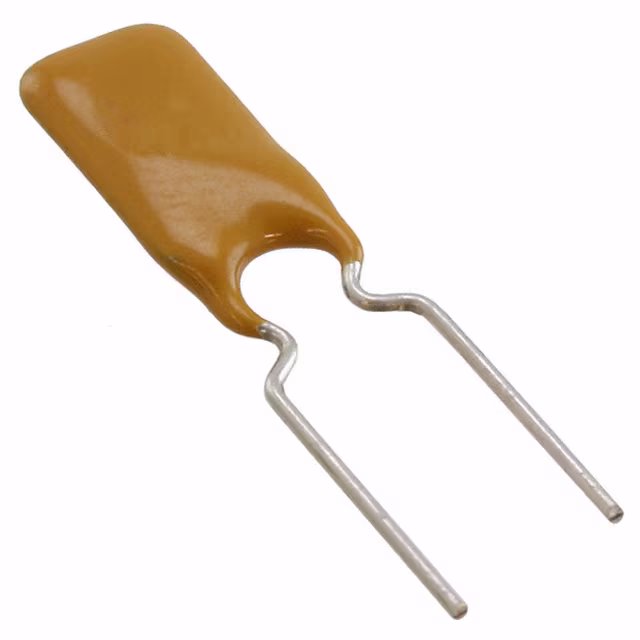

16R110BUPTC RESET FUSE 16V 1.1A RADIAL |
2,571 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, USBR | Obsolete | Polymeric | 16V | 40 A | 1.1 A | 2.2 A | 2.3 s | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.291 L x 0.118 W (7.40mm x 3.00mm) | 0.559 (14.20mm) | - | |
15ST175UPTC RESET FUSE 15V 1.75A STRAP |
2,904 | - |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, ST | Obsolete | Polymeric | 15V | 100 A | 1.75 A | 3.8 A | 5 s | 50 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.866 L x 0.199 W (22.00mm x 5.05mm) | - | 0.039 (1.00mm) | |
15ST175SUPTC RESET FUSE 15V 1.75A STRAP |
2,807 | - |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, ST | Obsolete | Polymeric | 15V | 100 A | 1.75 A | 3.8 A | 5 s | 50 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.866 L x 0.199 W (22.00mm x 5.05mm) | - | 0.039 (1.00mm) | |
15ST120UPTC RESET FUSE 15V 1.2A STRAP |
3,322 | - |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, ST | Obsolete | Polymeric | 15V | 100 A | 1.2 A | 2.7 A | 5 s | 85 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | User Defined | - | - | - | |
15ST120SUPTC RESET FUSE 15V 1.2A STRAP |
2,189 | - |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, ST | Obsolete | Polymeric | 15V | 100 A | 1.2 A | 2.7 A | 5 s | 85 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | User Defined | - | - | - | |
15LT070UPTC RESET FUSE 15V 700MA STRAP |
2,982 | - |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, LT | Obsolete | Polymeric | 15V | 100 A | 700 mA | 1.5 A | 5 s | 100 mOhms | 340 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.827 L x 0.199 W (21.00mm x 5.05mm) | - | 0.047 (1.20mm) | |
PTCTT95R200GTEPTC RESET FUSE 240V 90MA 4SMD |
2,340 | - |
RFQ |
Datasheet |
4-SMD | Tape & Reel (TR) | - | Active | Ceramic | 240V | 8 A | 90 mA | 200 mA | 2 s | - | - | 20 Ohms | -40°C ~ 85°C | - | Surface Mount | 0.354 L x 0.283 W (9.00mm x 7.20mm) | - | 0.272 (6.90mm) | |
PTCTT95R250GTEPTC RESET FUSE 240V 100MA 4SMD |
2,754 | - |
RFQ |
Datasheet |
4-SMD | Tape & Reel (TR) | - | Active | Ceramic | 240V | 4 A | 100 mA | 200 mA | 2 s | - | - | 25 Ohms | -40°C ~ 85°C | - | Surface Mount | 0.354 L x 0.283 W (9.00mm x 7.20mm) | - | 0.272 (6.90mm) | |
PTCTT95R350GTEPTC RESET FUSE 240V 100MA 4SMD |
2,752 | - |
RFQ |
Datasheet |
4-SMD | Tape & Reel (TR) | - | Active | Ceramic | 240V | 4 A | 100 mA | 200 mA | 1.5 s | - | - | 35 Ohms | -40°C ~ 85°C | - | Surface Mount | 0.354 L x 0.283 W (9.00mm x 7.20mm) | - | 0.272 (6.90mm) | |

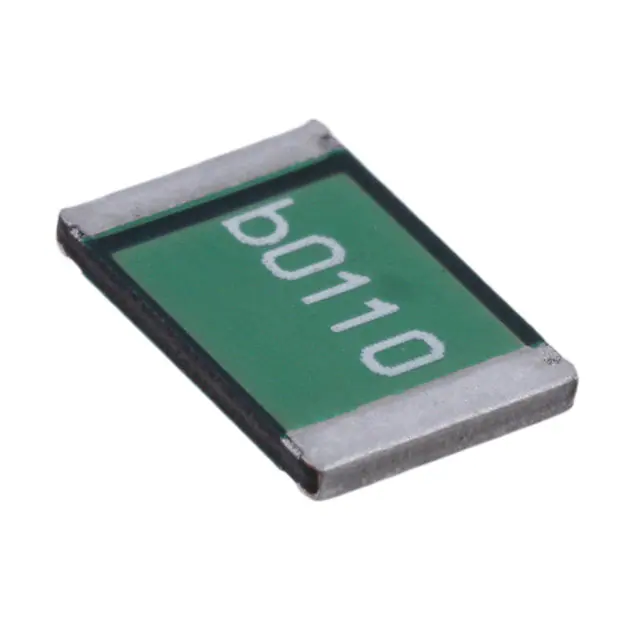

0ZCD0110FF2CPTC RESET FUSE 33V 1.1A 2920 |
3,497 | - |
RFQ |
Datasheet |
2920 (7351 Metric) | Tape & Reel (TR),Cut Tape (CT) | 0ZCD | Obsolete | Polymeric | 33V | 40 A | 1.1 A | 2.2 A | 500 ms | 90 mOhms | 410 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.039 (1.00mm) | |
0ZCD0125FF2CPTC RESET FUSE 33V 1.25A 2920 |
3,228 | - |
RFQ |
Datasheet |
2920 (7351 Metric) | Tape & Reel (TR),Cut Tape (CT) | 0ZCD | Obsolete | Polymeric | 33V | 40 A | 1.25 A | 2.5 A | 2 s | 50 mOhms | 250 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.035 (0.90mm) | |
0ZCD0150FF2CPTC RESET FUSE 33V 1.5A 2920 |
3,650 | - |
RFQ |
Datasheet |
2920 (7351 Metric) | Tape & Reel (TR),Cut Tape (CT) | 0ZCD | Obsolete | Polymeric | 33V | 40 A | 1.5 A | 3 A | 2 s | 50 mOhms | 230 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.035 (0.90mm) | |
0ZCD0185FF2CPTC RESET FUSE 33V 1.85A 2920 |
2,564 | - |
RFQ |
Datasheet |
2920 (7351 Metric) | Tape & Reel (TR),Cut Tape (CT) | 0ZCD | Obsolete | Polymeric | 33V | 40 A | 1.85 A | 3.7 A | 2.5 s | 40 mOhms | 150 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.035 (0.90mm) | |
0ZCD0200FF2CPTC RESET FUSE 16V 2A 2920 |
3,871 | - |
RFQ |
Datasheet |
2920 (7351 Metric) | Tape & Reel (TR),Cut Tape (CT) | 0ZCD | Obsolete | Polymeric | 16V | 40 A | 2 A | 4 A | 4.5 s | 35 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.035 (0.90mm) | |
0ZCD0250FF2CPTC RESET FUSE 16V 2.5A 2920 |
3,664 | - |
RFQ |
Datasheet |
2920 (7351 Metric) | Tape & Reel (TR),Cut Tape (CT) | 0ZCD | Obsolete | Polymeric | 16V | 40 A | 2.5 A | 5 A | 16 s | 25 mOhms | 85 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.035 (0.90mm) | |

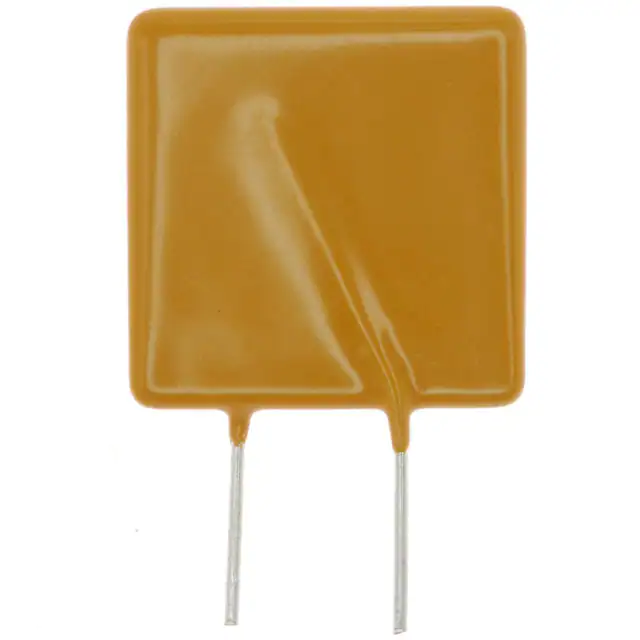

LVRL075SPTC RESET FUSE 120V 750MA RADIAL |
2,707 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVRL | Obsolete | Polymeric | 120V (135V Int) | 7.5 A | 750 mA | 1.52 A | 14.4 s | 250 mOhms | 690 mOhms | - | -20°C ~ 85°C | - | Through Hole | 0.430 L x 0.160 W (10.90mm x 4.10mm) | 0.669 (17.00mm) | - | |
LVRL100SPTC RESET FUSE 120V 1A RADIAL |
2,542 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVRL | Obsolete | Polymeric | 120V (135V Int) | 10 A | 1 A | 2 A | 13.6 s | 180 mOhms | 470 mOhms | - | -20°C ~ 85°C | - | Through Hole | 0.453 L x 0.161 W (11.50mm x 4.10mm) | 0.791 (20.10mm) | - | |
LVRL125SPTC RESET FUSE 120V 1.25A RADIAL |
2,589 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVRL | Obsolete | Polymeric | 120V (135V Int) | 12.5 A | 1.25 A | 2.5 A | 20 s | 110 mOhms | 330 mOhms | - | -20°C ~ 85°C | - | Through Hole | 0.551 L x 0.161 W (14.00mm x 4.10mm) | 0.854 (21.70mm) | - | |
LVRL135SPTC RESET FUSE 120V 1.35A RADIAL |
3,319 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVRL | Obsolete | Polymeric | 120V (135V Int) | 13.5 A | 1.35 A | 2.7 A | 20 s | 110 mOhms | 300 mOhms | - | -20°C ~ 85°C | - | Through Hole | 0.640 L x 0.160 W (16.30mm x 4.10mm) | 0.854 (21.70mm) | - | |
LVRL200PTC RESET FUSE 120V 2A RADIAL |
2,827 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVRL | Obsolete | Polymeric | 120V (135V Int) | 20 A | 2 A | 4.2 A | 36 s | 80 mOhms | 210 mOhms | - | -20°C ~ 85°C | - | Through Hole | 0.925 L x 0.161 W (23.50mm x 4.10mm) | 1.252 (31.80mm) | - |
