Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

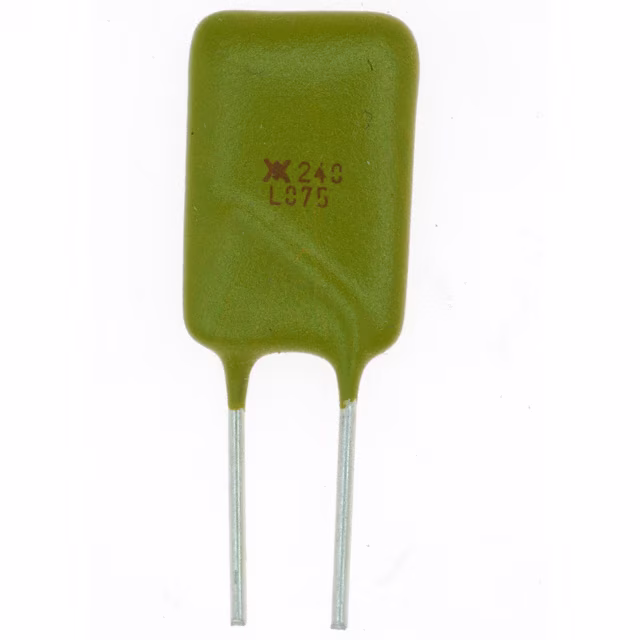

LVR075SPTC RESET FUSE 240V 750MA RADIAL |
2,177 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVR | Obsolete | Polymeric | 240V (265V Int) | 7.5 A | 750 mA | 1.5 A | 18 s | 316 mOhms | 839 mOhms | - | -20°C ~ 85°C | - | Through Hole | 0.450 L x 0.189 W (11.43mm x 4.80mm) | 0.921 (23.40mm) | - | |
LVR100SPTC RESET FUSE 240V 1A RADIAL |
2,405 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVR | Obsolete | Polymeric | 240V (265V Int) | 10 A | 1 A | 2 A | 21 s | 218 mOhms | 580 mOhms | - | -20°C ~ 85°C | - | Through Hole | 0.736 Dia x 0.201 T (18.70mm x 5.10mm) | 0.961 (24.40mm) | - | |

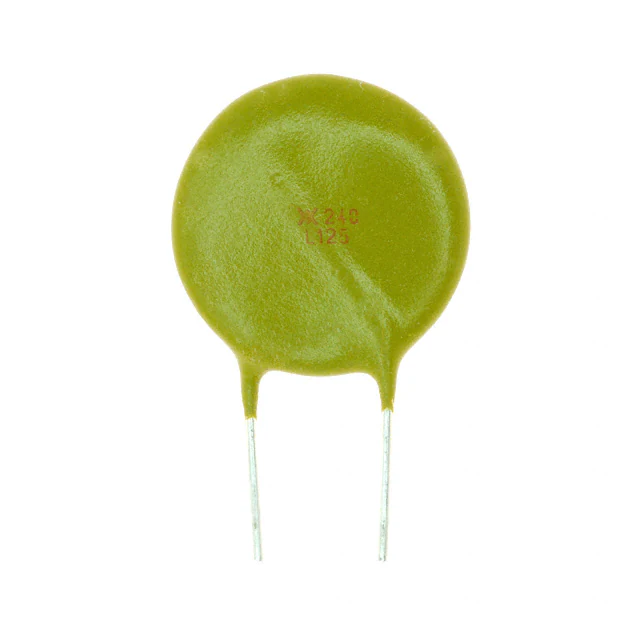

LVR125SPTC RESET FUSE 240V 1.25A RADIAL |
3,493 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVR | Obsolete | Polymeric | 240V (265V Int) | 12.5 A | 1.25 A | 2.5 A | 23 s | 165 mOhms | 440 mOhms | - | -20°C ~ 85°C | - | Through Hole | 0.835 Dia x 0.209 T (21.20mm x 5.30mm) | 1.079 (27.40mm) | - | |

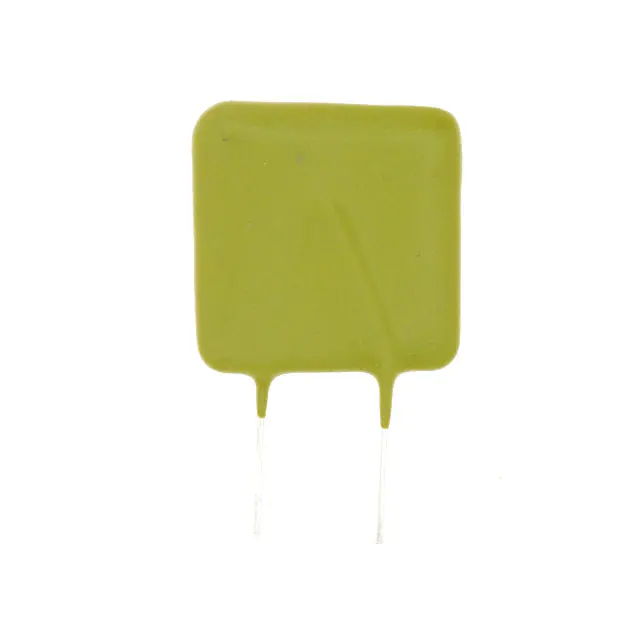

LVR200SPTC RESET FUSE 240V 2A RADIAL |
2,252 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVR | Obsolete | Polymeric | 240V (265V Int) | 20 A | 2 A | 4 A | 28 s | 89 mOhms | 221 mOhms | - | -20°C ~ 85°C | - | Through Hole | 0.980 L x 0.240 W (24.90mm x 6.10mm) | 1.331 (33.80mm) | - | |
PTGL09AR250H8B52B0PTC RESET FUSE 265V 150MA RADIAL |
2,780 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | POSISTOR®, PTGL | Obsolete | Ceramic | 265V | 1 A | 150 mA | 290 mA | - | - | - | 25 Ohms | -10°C ~ 60°C | - | Through Hole | 0.394 Dia x 0.236 T (10.00mm x 6.00mm) | 0.630 (16.00mm) | - | |
PTGL07BB220N0B52A0PTC RESET FUSE 250V 130MA RADIAL |
3,142 | - |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POSISTOR®, PTGL | Obsolete | Ceramic | 250V | 500 mA | 130 mA | 250 mA | - | - | - | 22 Ohms | -10°C ~ 60°C | - | Through Hole | 0.315 Dia x 0.236 T (8.00mm x 6.00mm) | 0.315 (8.00mm) | - | |
PTGL09AR390N0B52A0PTC RESET FUSE 250V 115MA RADIAL |
3,373 | - |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POSISTOR®, PTGL | Obsolete | Ceramic | 250V | 600 mA | 115 mA | 245 mA | - | - | - | 39 Ohms | -10°C ~ 60°C | - | Through Hole | 0.394 Dia x 0.236 T (10.00mm x 6.00mm) | 0.630 (16.00mm) | - | |

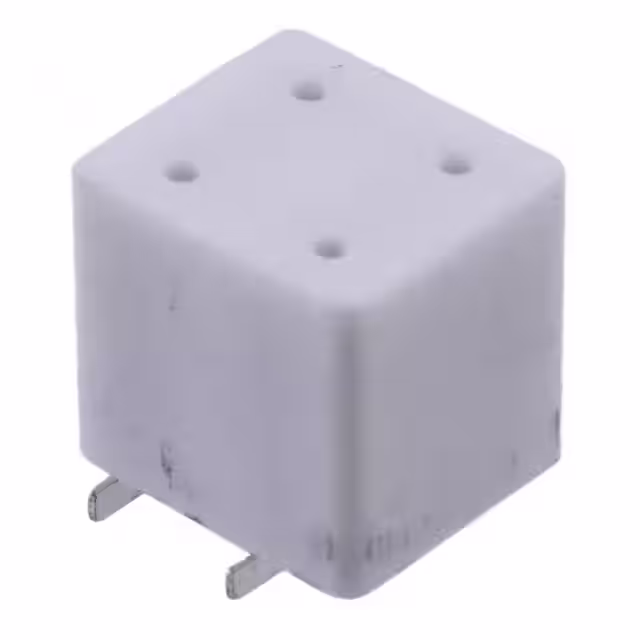

CMF-SD25-2PTC RESET FUSE 230V 130MA 4SMD |
3,438 | - |
RFQ |
Datasheet |
4-SMD Cube | Tape & Reel (TR),Cut Tape (CT) | CMF-SD | Obsolete | Ceramic | 230V (600V Int) | 2.8 A | 130 mA | 260 mA | 300 ms | - | - | 25 Ohms | - | - | Surface Mount | 0.402 L x 0.354 W (10.20mm x 9.00mm) | - | 0.425 (10.80mm) | |
CMF-SD35A-2PTC RESET FUSE 230V 100MA 4SMD |
3,073 | - |
RFQ |
Datasheet |
4-SMD Cube | Tape & Reel (TR),Cut Tape (CT) | CMF-SD | Obsolete | Ceramic | 230V (600V Int) | 2.5 A | 100 mA | 200 mA | 200 ms | - | - | 35 Ohms | - | - | Surface Mount | 0.319 L x 0.282 W (8.10mm x 7.15mm) | - | 0.335 (8.50mm) | |

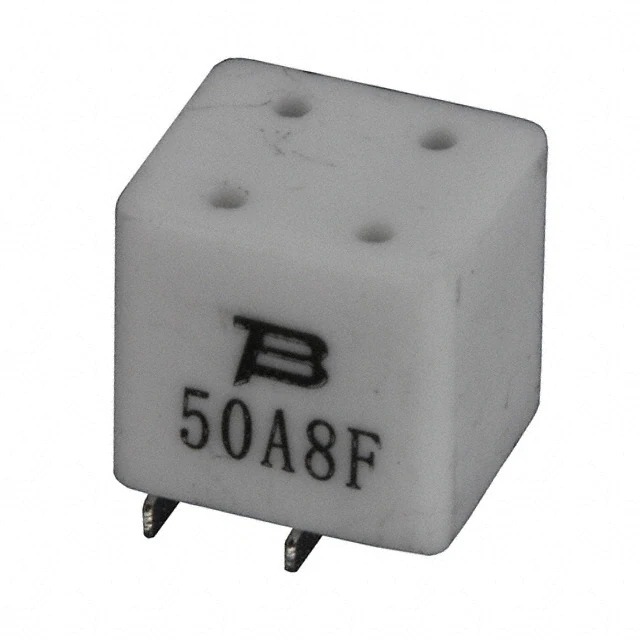

CMF-SD50A-10-2PTC RESET FUSE 230V 90MA 4SMD |
3,049 | - |
RFQ |
Datasheet |
4-SMD Cube | Tape & Reel (TR),Cut Tape (CT) | CMF-SD | Obsolete | Ceramic | 230V (600V Int) | 3 A | 90 mA | 190 mA | 100 ms | - | - | 50 Ohms | - | - | Surface Mount | 0.319 L x 0.282 W (8.10mm x 7.15mm) | - | 0.335 (8.50mm) | |
YPAL045TPTC RESET FUSE 30V 1.3A RADIAL |
2,028 | - |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | YP | Obsolete | Ceramic | 30V | 8 A | 1.3 A | 2.6 A | - | - | - | 450 mOhms | 0°C ~ 60°C | - | Through Hole | 0.689 Dia x 0.138 T (17.50mm x 3.50mm) | 0.748 (19.00mm) | - | |
YPAL0.80TPTC RESET FUSE 30V 850MA RADIAL |
2,993 | - |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | YP | Active | Ceramic | 30V | 5.5 A | 850 mA | 1.7 A | - | - | - | 800 mOhms | 0°C ~ 60°C | - | Through Hole | 0.532 Dia x 0.138 T (13.50mm x 3.50mm) | 0.591 (15.00mm) | - | |
YPAL1.20TPTC RESET FUSE 30V 600MA RADIAL |
2,882 | - |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | YP | Active | Ceramic | 30V | 4.3 A | 600 mA | 1.2 A | - | - | - | 1.2 Ohms | 0°C ~ 60°C | - | Through Hole | 0.433 Dia x 0.138 T (11.00mm x 3.50mm) | 0.492 (12.50mm) | - | |
YPAL1.80TPTC RESET FUSE 30V 450MA RADIAL |
3,429 | - |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | YP | Obsolete | Ceramic | 30V | 3 A | 450 mA | 900 mA | - | - | - | 1.8 Ohms | 0°C ~ 60°C | - | Through Hole | 0.354 Dia x 0.138 T (9.00mm x 3.50mm) | 0.413 (10.50mm) | - | |
YPAL4.60TPTC RESET FUSE 30V 250MA RADIAL |
2,498 | - |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | YP | Active | Ceramic | 30V | 1 A | 250 mA | 500 mA | - | - | - | 4.6 Ohms | 0°C ~ 60°C | - | Through Hole | 0.256 Dia x 0.138 T (6.50mm x 3.50mm) | 0.315 (8.00mm) | - | |
YPAL0013TPTC RESET FUSE 30V 120MA RADIAL |
2,203 | - |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | YP | Active | Ceramic | 30V | 700 mA | 120 mA | 240 mA | - | - | - | 13 Ohms | 0°C ~ 60°C | - | Through Hole | 0.157 Dia x 0.138 T (4.00mm x 3.50mm) | 0.217 (5.50mm) | - | |
YPBJ2.30TPTC RESET FUSE 80V 245MA RADIAL |
3,522 | - |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | YP | Obsolete | Ceramic | 80V | 8 A | 245 mA | 500 mA | - | - | - | 2.3 Ohms | 0°C ~ 60°C | - | Through Hole | 0.689 Dia x 0.138 T (17.50mm x 3.50mm) | 0.748 (19.00mm) | - | |
YPBJ3.70TPTC RESET FUSE 80V 170MA RADIAL |
3,003 | - |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | YP | Obsolete | Ceramic | 80V | 5.5 A | 170 mA | 350 mA | - | - | - | 3.7 Ohms | 0°C ~ 60°C | - | Through Hole | 0.532 Dia x 0.138 T (13.50mm x 3.50mm) | 0.591 (15.00mm) | - | |
YPBJ5.60TPTC RESET FUSE 80V 130MA RADIAL |
2,446 | - |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | YP | Obsolete | Ceramic | 80V | 4.3 A | 130 mA | 265 mA | - | - | - | 5.6 Ohms | 0°C ~ 60°C | - | Through Hole | 0.433 Dia x 0.138 T (11.00mm x 3.50mm) | 0.492 (12.50mm) | - | |
YPBJ9.40TPTC RESET FUSE 80V 90MA RADIAL |
3,221 | - |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | YP | Obsolete | Ceramic | 80V | 3 A | 90 mA | 190 mA | - | - | - | 9.4 Ohms | 0°C ~ 60°C | - | Through Hole | 0.354 Dia x 0.138 T (9.00mm x 3.50mm) | 0.413 (10.50mm) | - |
