Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
LR4-250UF PTC RESET FUSE 15V 2.5A STRAP Littelfuse Inc.	2,248	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, LR4	Obsolete	Polymeric	15V	100 A	2.5 A	-	-	-	-	-	-	-	User Defined	-	-	-
LR4-560F PTC RESET FUSE 20V 5.6A STRAP Littelfuse Inc.	2,887	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, LR4	Obsolete	Polymeric	20V	100 A	5.6 A	-	-	-	-	-	-	-	User Defined	0.984 L x 0.559 W (25.00mm x 14.20mm)	-	0.039 (1.00mm)
LR4-600-C100F PTC RESET FUSE 20V 6A STRAP Littelfuse Inc.	3,692	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, LR4	Discontinued at Mosen	Polymeric	20V	100 A	6 A	11.7 A	5 s	-	-	-	-	-	User Defined	-	-	-
LR4-970H-C65F PTC RESET FUSE 20V 9.7A STRAP Littelfuse Inc.	3,800	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, LR4	Obsolete	Polymeric	20V	100 A	9.7 A	-	-	-	-	-	-	-	User Defined	-	-	-
MINISMDE190F-2 PTC RESET FUSE 16V 1.9A 4520 Littelfuse Inc.	3,922	-	RFQ	Datasheet	4520 (11350 Metric), Concave	Tape & Reel (TR)	PolySwitch®	Obsolete	Polymeric	16V	100 A	1.9 A	3.8 A	2 s	24 mOhms	-	-	-	-	Surface Mount	0.446 L x 0.200 W (11.33mm x 5.08mm)	-	0.021 (0.53mm)
RTEF190S PTC RESET FUSE 33V 1.9A RADIAL Littelfuse Inc.	2,211	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®	Obsolete	Polymeric	33V	40 A	1.9 A	3 A	3.5 s	45 mOhms	92 mOhms	-	-	-	Through Hole	0.350 L x 0.118 W (8.90mm x 3.00mm)	0.532 (13.50mm)	-
RUEF300-1 PTC RESET FUSE 30V 3A RADIAL Littelfuse Inc.	3,288	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, RUEF	Obsolete	Polymeric	30V	100 A	3 A	6 A	10.8 s	20 mOhms	80 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.449 L x 0.118 W (11.40mm x 3.00mm)	0.650 (16.50mm)	-
RUEF400K-0.138 PTC RESET FUSE 30V 4A RADIAL Littelfuse Inc.	3,807	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, RUEF	Obsolete	Polymeric	30V	100 A	4 A	8 A	12.7 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	0.839 (21.30mm)	-
RUSBF075-1 PTC RESET FUSE 6V 750MA RADIAL Littelfuse Inc.	3,171	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, RUSBF	Obsolete	Polymeric	6V	40 A	750 mA	1.3 A	400 ms	110 mOhms	230 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.272 Dia x 0.122 T (6.90mm x 3.10mm)	0.449 (11.40mm)	-
RXEF050S-0.236 PTC RESET FUSE 72V 500MA RADIAL Littelfuse Inc.	2,433	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, RXEF	Obsolete	Polymeric	72V	40 A	500 mA	1 A	4 s	500 mOhms	1.17 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.311 Dia x 0.118 T (7.90mm x 3.00mm)	0.539 (13.70mm)	-
RXEF375-0.476 PTC RESET FUSE 72V 3.75A RADIAL Littelfuse Inc.	2,651	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, RXEF	Obsolete	Polymeric	72V	40 A	3.75 A	7.5 A	24 s	30 mOhms	80 mOhms	-	-40°C ~ 85°C	-	Through Hole	1.071 Dia x 0.118 T (27.20mm x 3.00mm)	1.252 (31.80mm)	-
RXEF375K-0.144 PTC RESET FUSE 72V 3.75A RADIAL Littelfuse Inc.	3,959	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, RXEF	Obsolete	Polymeric	72V	40 A	3.75 A	7.5 A	24 s	30 mOhms	80 mOhms	-	-40°C ~ 85°C	-	Through Hole	1.071 Dia x 0.118 T (27.20mm x 3.00mm)	1.252 (31.80mm)	-
SRP120LF PTC RESET FUSE 15V 1.2A STRAP Littelfuse Inc.	3,840	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, SRP	Active	Polymeric	15V	100 A	1.2 A	2.7 A	5 s	85 mOhms	220 mOhms	-	-40°C ~ 85°C	-	User Defined	0.827 L x 0.199 W (21.00mm x 5.05mm)	-	0.039 (1.00mm)
SRP120SF PTC RESET FUSE 15V 1.2A STRAP Littelfuse Inc.	3,324	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, SRP	Active	Polymeric	15V	100 A	1.2 A	2.7 A	5 s	85 mOhms	220 mOhms	-	-40°C ~ 85°C	-	User Defined	0.827 L x 0.199 W (21.00mm x 5.05mm)	-	0.039 (1.00mm)

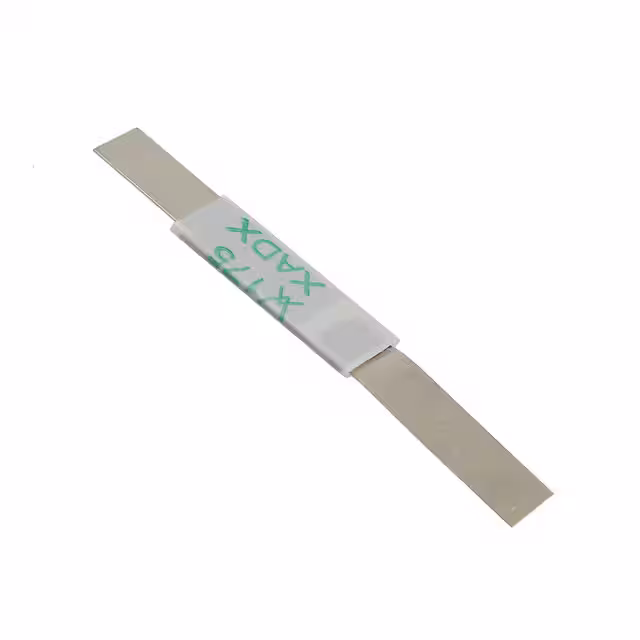

SRP175LF PTC RESET FUSE 15V 1.75A STRAP Littelfuse Inc.	3,098	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®	Active	Polymeric	15V	100 A	1.75 A	3.8 A	5 s	50 mOhms	90 mOhms	-	-	-	User Defined	0.866 L x 0.199 W (22.00mm x 5.05mm)	-	0.039 (1.00mm)

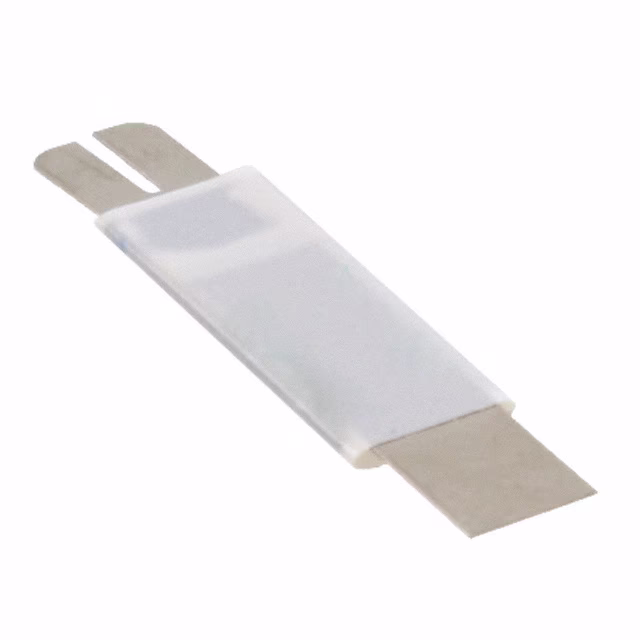

SRP175SF PTC RESET FUSE 15V 1.75A STRAP Littelfuse Inc.	3,519	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, SRP	Active	Polymeric	15V	100 A	1.75 A	3.8 A	5 s	50 mOhms	120 mOhms	-	-40°C ~ 85°C	-	User Defined	0.866 L x 0.199 W (22.00mm x 5.05mm)	-	0.039 (1.00mm)
TCF250-100RT-B-0.5 PTC RESET FUSE 60V 90MA SMD Littelfuse Inc.	2,300	-	RFQ	Datasheet	Nonstandard SMD	Bulk	PolySwitch®, TCF250	Active	Polymeric	60V (250V Int)	3 A	90 mA	150 mA	200 ms	14 Ohms	24 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.195 L x 0.195 W (4.95mm x 4.95mm)	-	0.083 (2.10mm)
TCF250-100T-RA-B-0.5 PTC RESET FUSE 60V 90MA SMD Littelfuse Inc.	2,943	-	RFQ	Datasheet	Nonstandard SMD	Bulk	PolySwitch®, TCF250	Active	Polymeric	60V (250V Int)	3 A	90 mA	150 mA	200 ms	14 Ohms	24 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.187 L x 0.187 W (4.75mm x 4.75mm)	-	0.091 (2.30mm)
TCF250-100T-RB-B-0.5 PTC RESET FUSE 60V 90MA SMD Littelfuse Inc.	3,815	-	RFQ	Datasheet	Nonstandard SMD	Bulk	PolySwitch®, TCF250	Active	Polymeric	60V (250V Int)	3 A	90 mA	150 mA	200 ms	15.4 Ohms	24 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.187 L x 0.187 W (4.75mm x 4.75mm)	-	0.091 (2.30mm)
TRF250-080U-2 PTC RESET FUSE 60V 80MA RADIAL Littelfuse Inc.	2,245	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	PolySwitch®, TRF250	Obsolete	Polymeric	60V (250V Int)	3 A	80 mA	160 mA	4 s	14 Ohms	33 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.189 Dia x 0.150 T (4.80mm x 3.80mm)	0.366 (9.30mm)	-
