Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RHEF050US-2PTC RESET FUSE 30V 500MA RADIAL |
3,258 | - |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | PolySwitch®, RHEF | Obsolete | Polymeric | 30V | 40 A | 500 mA | 920 mA | 2.5 s | 480 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | - | Through Hole | 0.201 Dia x 0.118 T (5.10mm x 3.00mm) | 0.201 (5.10mm) | - | |

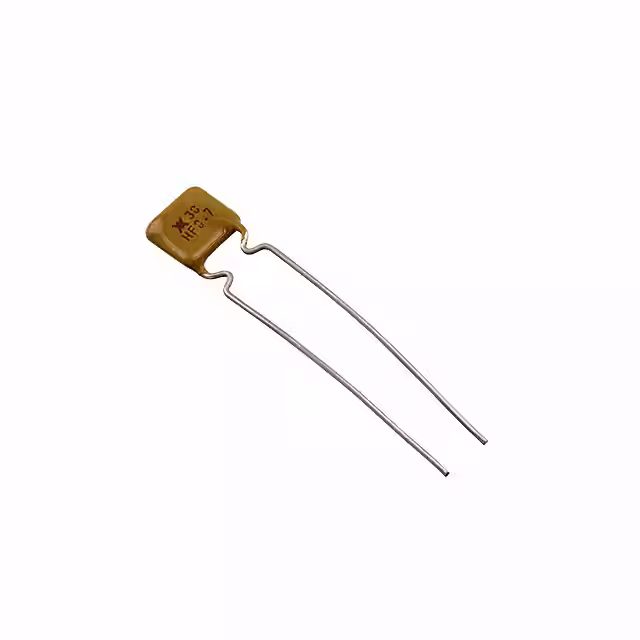

RHEF070UPTC RESET FUSE 30V 700MA RADIAL |
3,399 | - |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RHEF | Obsolete | Polymeric | 30V | 40 A | 700 mA | 1.4 A | 3.2 s | 300 mOhms | 800 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.272 L x 0.118 W (6.90mm x 3.00mm) | 0.425 (10.80mm) | - | |
RHEF070U-2PTC RESET FUSE 30V 700MA RADIAL |
3,222 | - |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | PolySwitch®, RHEF | Obsolete | Polymeric | 30V | 40 A | 700 mA | 1.4 A | 3.2 s | 300 mOhms | 800 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.272 L x 0.118 W (6.90mm x 3.00mm) | 0.425 (10.80mm) | - | |
RHEF600SPTC RESET FUSE 16V 6A RADIAL |
3,913 | - |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RHEF | Obsolete | Polymeric | 16V | 100 A | 6 A | 10.8 A | 5 s | 13 mOhms | 32 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.441 L x 0.118 W (11.20mm x 3.00mm) | 0.827 (21.00mm) | - | |
TRF250-180-0.125POLYSWITCH PTC RESET 0.180A T/H |
3,899 | - |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch® | Active | - | 100V | 10 A | 180 mA | 650 mA | 2 s | - | - | - | - | - | Through Hole | 0.350 Dia x 0.150 W (8.89mm x 3.81mm) | 0.472 (12.00mm) | - | |

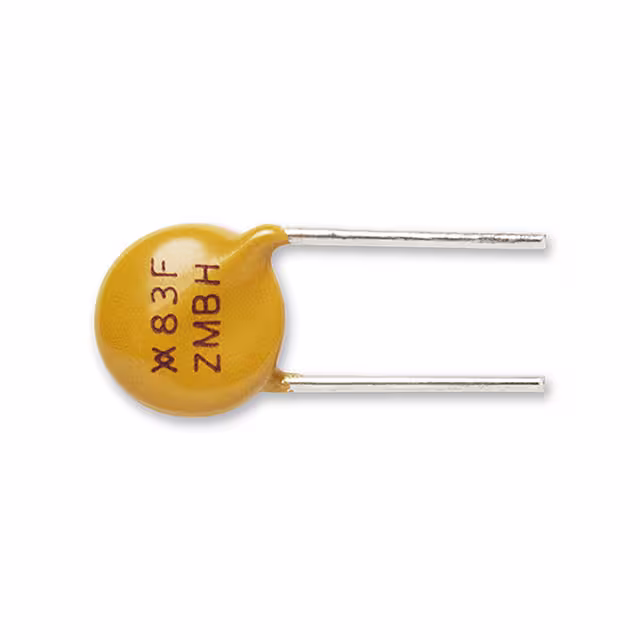

TRF250-183S-0.110PTC RESET FUSE 100V 183MA RADIAL |
3,755 | - |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 100V (250V Int) | 10 A | 183 mA | 685 mA | 1.8 s | 800 mOhms | 3.4 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.295 Dia x 0.150 T (7.50mm x 3.80mm) | 0.374 (9.50mm) | - | |
16VT270UPTC RESET FUSE 16V 2.7A STRAP |
3,079 | - |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, VT | Obsolete | Polymeric | 16V | 100 A | 2.7 A | - | - | - | - | - | - | - | User Defined | - | - | - | |
250R080TUPTC RESET FUSE 60V 80MA RADIAL |
2,128 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 250R | Obsolete | Polymeric | 60V (250V Int) | 3 A | 80 mA | 160 mA | 4 s | 15 Ohms | 33 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.228 Dia x 0.181 T (5.80mm x 4.60mm) | 0.390 (9.90mm) | - | |
250R080TZRPTC RESET FUSE 60V 80MA RADIAL |
3,406 | - |
RFQ |
Datasheet |
Radial, Disc | Tape & Box (TB) | POLY-FUSE®, 250R | Obsolete | Polymeric | 60V (250V Int) | 3 A | 80 mA | 160 mA | 4 s | 15 Ohms | 33 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.228 Dia x 0.181 T (5.80mm x 4.60mm) | 0.390 (9.90mm) | - | |

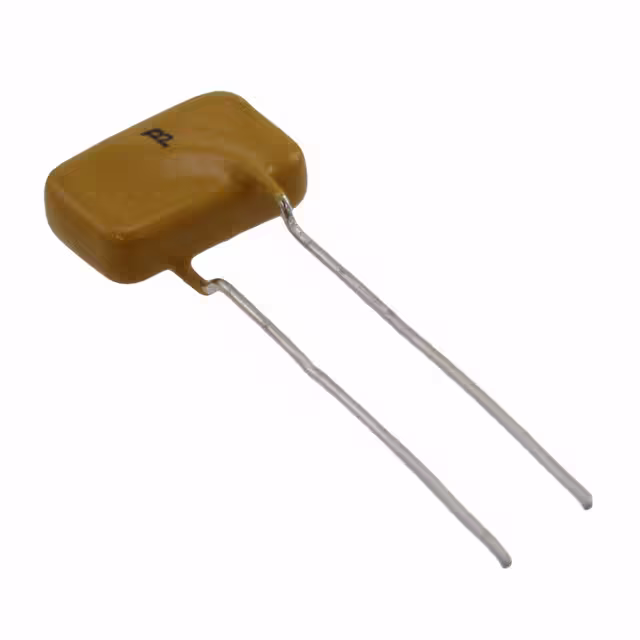

MF-R015/600-0PTC RESET FUSE 250V 150MA RADIAL |
2,643 | - |
RFQ |
Datasheet |
Radial, Box | Bulk | Multifuse®, MF-R/600 | Obsolete | Polymeric | 250V (600V Int) | 3 A | 150 mA | 300 mA | 5 s | 6 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.531 L x 0.236 W (13.50mm x 6.00mm) | 0.496 (12.60mm) | - | |
MF-R016/600-0PTC RESET FUSE 250V 160MA RADIAL |
2,998 | - |
RFQ |
Datasheet |
Radial, Box | Bulk | Multifuse®, MF-R/600 | Obsolete | Polymeric | 250V (600V Int) | 3 A | 160 mA | 320 mA | 7 s | 4 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.630 L x 0.236 W (16.00mm x 6.00mm) | 0.496 (12.60mm) | - | |
1206L100WRPTC RESET FUSE 6V 1A 1206 |
3,059 | - |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1206L | Obsolete | Polymeric | 6V | 100 A | 1 A | 1.8 A | 300 ms | 55 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | 0.030 (0.75mm) | |
1210L110WRPTC RESET FUSE 8V 1.1A 1210 |
2,304 | - |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1210L | Obsolete | Polymeric | 8V | 100 A | 1.1 A | 2.2 A | 100 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.051 (1.30mm) | |
0ZCA0005FF2EPTC RESET FUSE 60V 50MA 1206 |
2,342 | - |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | 0ZCA | Obsolete | Polymeric | 60V | 10 A | 50 mA | 150 mA | 1.5 s | 3.6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.033 (0.85mm) | |

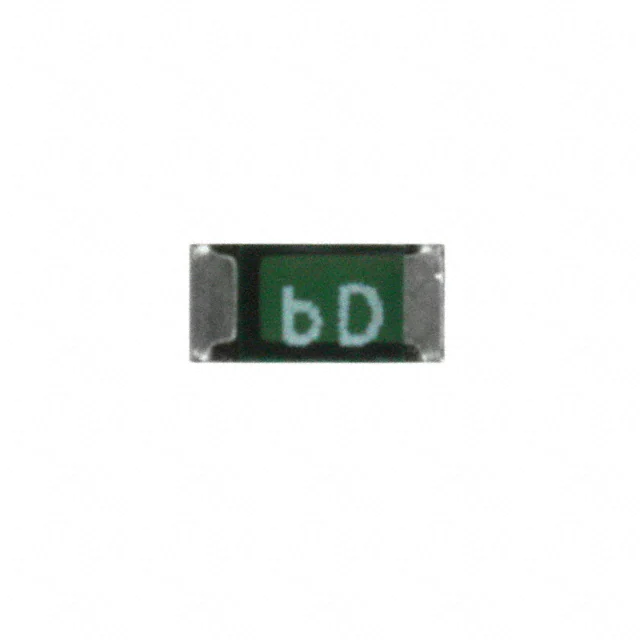

0ZCA0010FF2EPTC RESET FUSE 60V 100MA 1206 |
2,796 | - |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | 0ZCA | Obsolete | Polymeric | 60V | 10 A | 100 mA | 250 mA | 1 s | 1.6 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.033 (0.85mm) | |
0ZCA0020FF2EPTC RESET FUSE 30V 200MA 1206 |
2,956 | - |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | 0ZCA | Obsolete | Polymeric | 30V | 10 A | 200 mA | 400 mA | 50 ms | 600 mOhms | 2.5 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.030 (0.75mm) | |

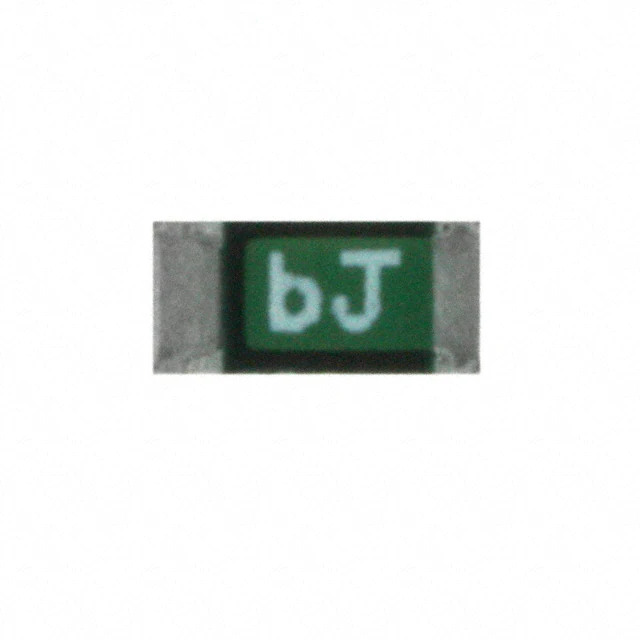

0ZCA0035FF2GPTC RESET FUSE 16V 350MA 1206 |
2,391 | - |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | 0ZCA | Obsolete | Polymeric | 16V | 40 A | 350 mA | 750 mA | 100 ms | 300 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.030 (0.75mm) | |
0ZCA0050FF2GPTC RESET FUSE 8V 500MA 1206 |
3,089 | - |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | 0ZCA | Obsolete | Polymeric | 8V | 40 A | 500 mA | 1 A | 100 ms | 150 mOhms | 700 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.022 (0.55mm) | |
0ZCA0075FF2GPTC RESET FUSE 6V 750MA 1206 |
2,270 | - |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | 0ZCA | Obsolete | Polymeric | 6V | 100 A | 750 mA | 1.5 A | 200 ms | 90 mOhms | 290 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.049 (1.25mm) | |
0ZCA0100FF2EPTC RESET FUSE 6V 1A 1206 |
2,085 | - |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | 0ZCA | Obsolete | Polymeric | 6V | 100 A | 1 A | 1.8 A | 300 ms | 55 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.039 (1.00mm) |
