Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0ZRR0300FF1APTC RESET FUSE 60V 3A RADIAL |
6,561 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | 0ZRR | Active | Polymeric | 60V | 40 A | 3 A | 6 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.980 Dia x 0.122 T (24.90mm x 3.10mm) | 1.181 (30.00mm) | - | |

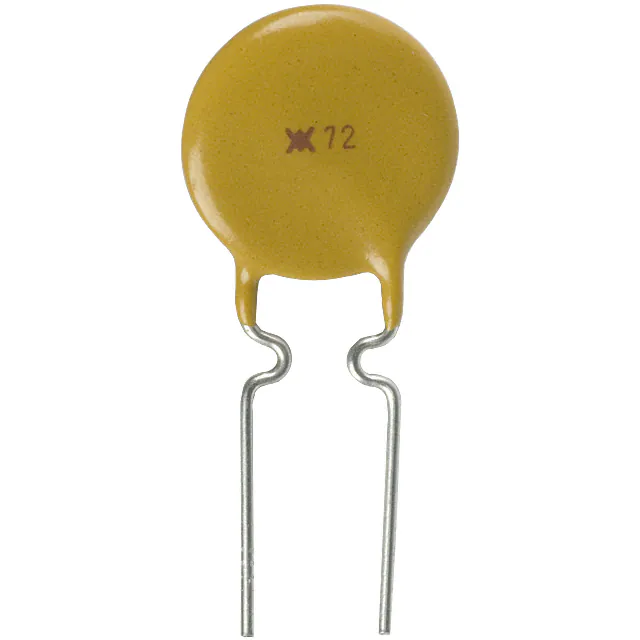

RXEF090PTC RESET FUSE 72V 900MA RADIAL |
1,900 | - |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 900 mA | 1.8 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.441 Dia x 0.118 T (11.20mm x 3.00mm) | 0.622 (15.80mm) | - | |

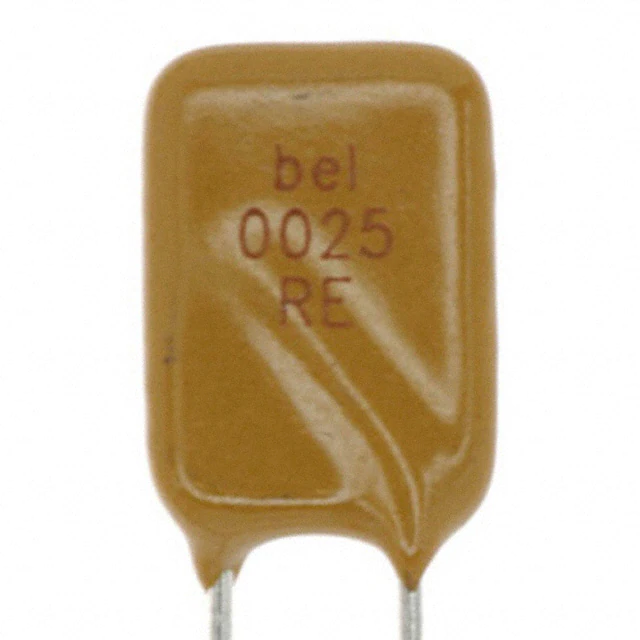

0ZRE0025FF1EPTC RESET FUSE 240V 250MA RADIAL |
37,470 | - |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRE | Active | Polymeric | 240V | 6 A | 250 mA | 560 mA | 18.5 s | 1.3 Ohms | 3.8 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.378 L x 0.150 W (9.60mm x 3.80mm) | 0.685 (17.40mm) | - | |

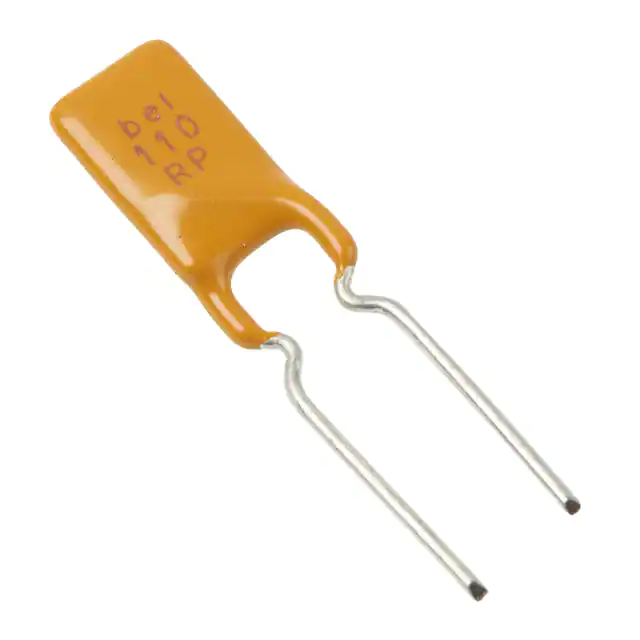

0ZRP0110FF1EPTC RESET FUSE 60V 1.1A RADIAL |
24,888 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | 0ZRP | Active | Polymeric | 60V | 40 A | 1.1 A | 2.2 A | 3 s | 170 mOhms | 470 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.299 L x 0.142 W (7.60mm x 3.60mm) | 0.591 (15.00mm) | - | |

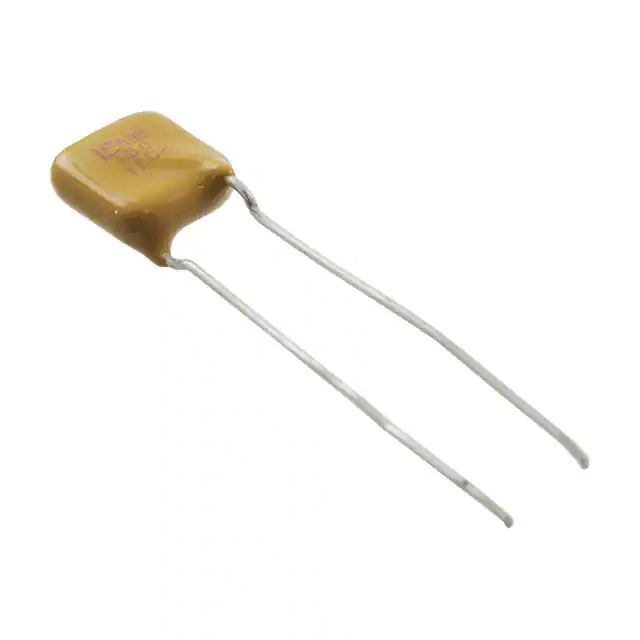

600R150-RBZRPTC RESET FUSE 60V 150MA RADIAL |
6,323 | - |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 600R | Active | Polymeric | 60V (600V Int) | 3 A | 150 mA | 300 mA | 3 s | 9 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.354 L x 0.181 W (9.00mm x 4.60mm) | 0.492 (12.50mm) | - | |

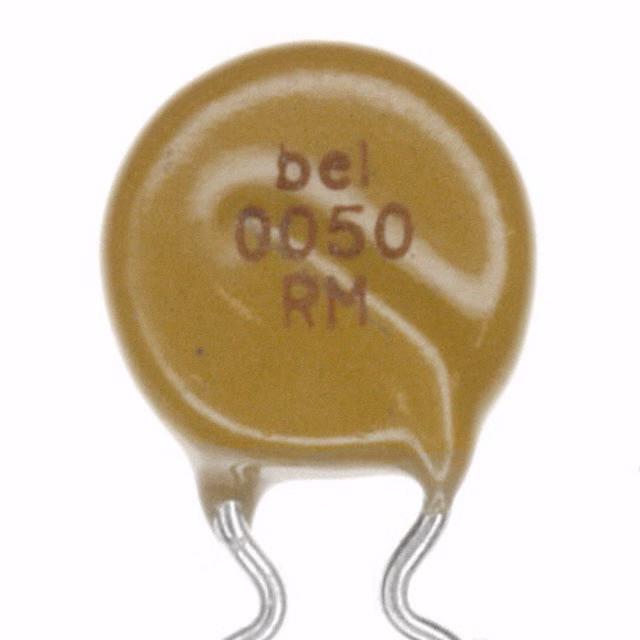

0ZRM0050FF1EPTC RESET FUSE 120V 500MA RADIAL |
9,141 | - |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRM | Active | Polymeric | 120V | 3 A | 500 mA | 1 A | 6 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.362 Dia x 0.150 T (9.20mm x 3.80mm) | 0.587 (14.90mm) | - | |
30R185UUPTC RESET FUSE 30V 1.85A RADIAL |
1,581 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 30R | Active | Polymeric | 30V | 40 A | 1.85 A | 3.7 A | 8.7 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 L x 0.118 W (10.20mm x 3.00mm) | 0.618 (15.70mm) | - | |
MF-R500PTC RESET FUSE 30V 5A RADIAL |
5,911 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | Multifuse®, MF-R | Active | Polymeric | 30V | 40 A | 5 A | 10 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.685 L x 0.118 W (17.40mm x 3.00mm) | 0.980 (24.90mm) | - | |

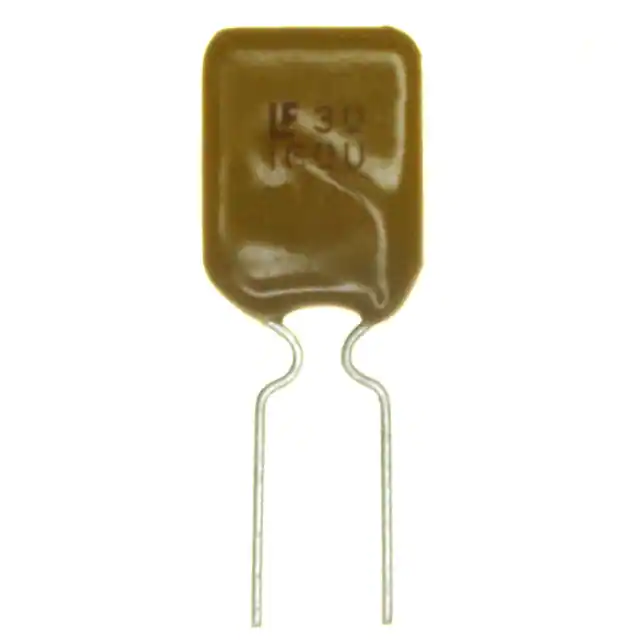

30R160UUPTC RESET FUSE 30V 1.6A RADIAL |
5,922 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 30R | Active | Polymeric | 30V | 40 A | 1.6 A | 3.2 A | 8 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.598 (15.20mm) | - | |

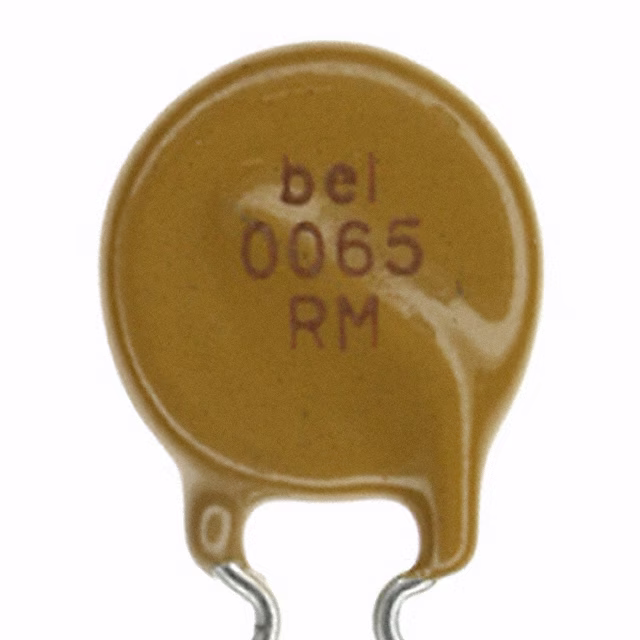

0ZRM0065FF1EPTC RESET FUSE 120V 650MA RADIAL |
2,932 | - |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRM | Active | Polymeric | 120V | 5 A | 650 mA | 1.3 A | 5.7 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.382 Dia x 0.150 T (9.70mm x 3.80mm) | 0.587 (14.90mm) | - | |
MF-RX014/250-0PTC RESET FUSE 60V 145MA RADIAL |
38,738 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | Multifuse®, MF-RX/250 | Active | Polymeric | 60V (250V Int) | 3 A | 145 mA | - | - | 3 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - | |
MF-R017PTC RESET FUSE 60V 170MA RADIAL |
1,701 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | Multifuse®, MF-R | Active | Polymeric | 60V | 40 A | 170 mA | 340 mA | 3 s | 2 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.500 (12.70mm) | - | |
RKEF135PTC RESET FUSE 60V 1.35A RADIAL |
11,850 | - |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RKEF | Active | Polymeric | 60V | 40 A | 1.35 A | 2.7 A | 4.5 s | 110 mOhms | 370 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 L x 0.150 W (10.20mm x 3.80mm) | 0.669 (17.00mm) | - | |

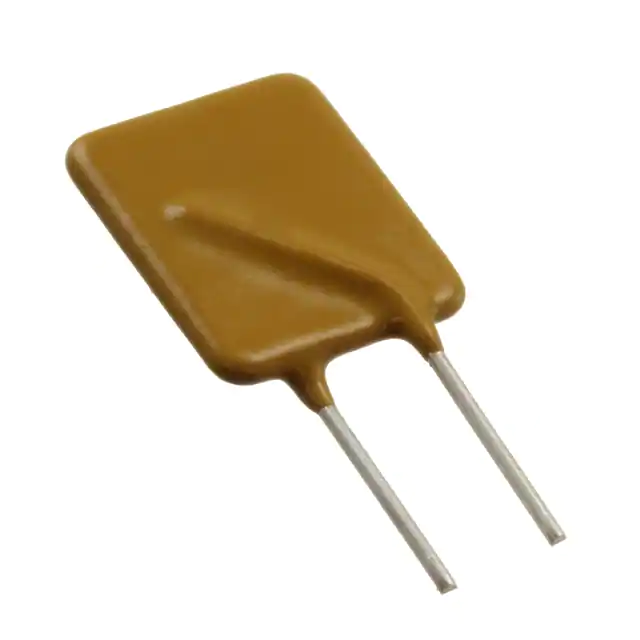

0ZRP0185FF1APTC RESET FUSE 60V 1.85A RADIAL |
2,754 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | 0ZRP | Active | Polymeric | 60V | 40 A | 1.85 A | 3.7 A | 12.6 s | 60 mOhms | 250 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.512 L x 0.142 W (13.00mm x 3.60mm) | 0.740 (18.80mm) | - | |

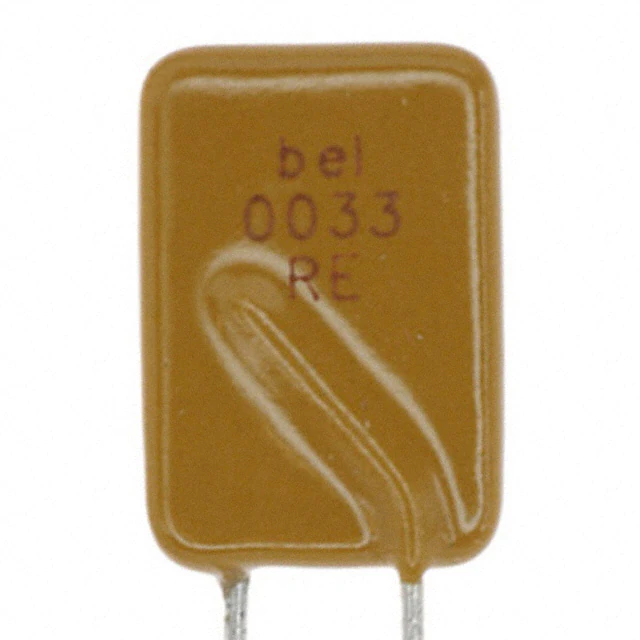

0ZRE0033FF1APTC RESET FUSE 240V 330MA RADIAL |
5,070 | - |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRE | Active | Polymeric | 240V | 6 A | 330 mA | 740 mA | 21 s | 830 mOhms | 2.6 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.449 L x 0.150 W (11.40mm x 3.80mm) | 0.650 (16.50mm) | - | |
RGEF300PTC RESET FUSE 16V 3A RADIAL |
3,664 | - |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 3 A | 5.1 A | 1 s | 38 mOhms | 97.5 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.260 L x 0.098 W (6.60mm x 2.50mm) | 0.433 (11.00mm) | - | |
16R300GUPTC RESET FUSE 16V 3A RADIAL |
33,751 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 16R | Active | Polymeric | 16V | 100 A | 3 A | 5.1 A | 1 s | 38 mOhms | 97.5 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.280 L x 0.118 W (7.10mm x 3.00mm) | 0.433 (11.00mm) | - | |

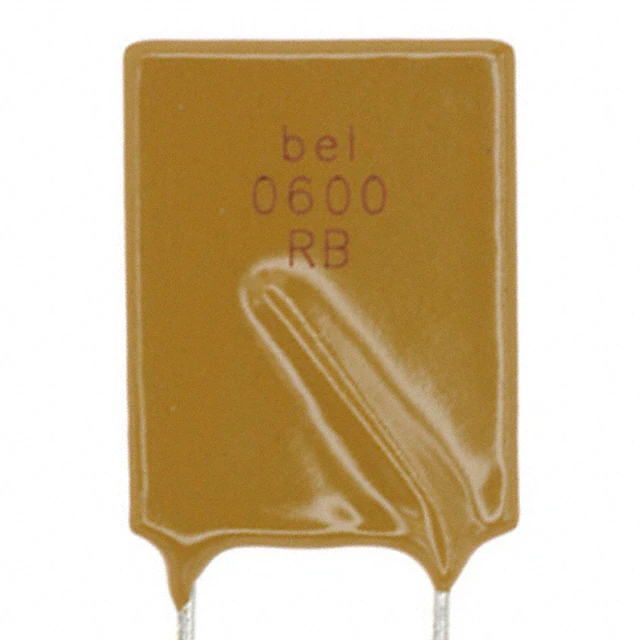

0ZRB0600FF1APTC RESET FUSE 30V 6A RADIAL |
11,795 | - |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRB | Active | Polymeric | 30V | 40 A | 6 A | 12 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 0.980 (24.90mm) | - | |
MF-R600PTC RESET FUSE 30V 6A RADIAL |
6,374 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | Multifuse®, MF-R | Active | Polymeric | 30V | 40 A | 6 A | 12 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.760 L x 0.118 W (19.30mm x 3.00mm) | 1.256 (31.90mm) | - | |
RKEF160PTC RESET FUSE 60V 1.6A RADIAL |
5,412 | - |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RKEF | Active | Polymeric | 60V | 40 A | 1.6 A | 3.2 A | 9 s | 100 mOhms | 320 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.480 L x 0.150 W (12.20mm x 3.81mm) | 0.720 (18.30mm) | - |
