Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
72R250XF PTC RESET FUSE 72V 2.5A RADIAL Littelfuse Inc.	1,217	-	RFQ	Datasheet	Radial, Disc	Bulk	POLY-FUSE®, 72R	Active	Polymeric	72V	40 A	2.5 A	5 A	15.6 s	50 mOhms	130 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.785 Dia x 0.122 T (19.93mm x 3.10mm)	1.032 (26.20mm)	-

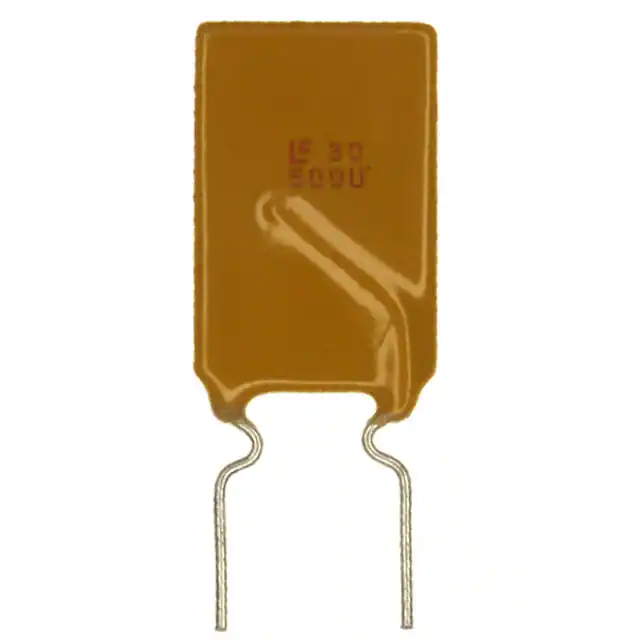

30R500UF PTC RESET FUSE 30V 5A RADIAL Littelfuse Inc.	17,475	-	RFQ	Datasheet	Radial, Disc	Bulk	POLY-FUSE®, 30R	Active	Polymeric	30V	40 A	5 A	10 A	14.5 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	1.008 (25.60mm)	-
0805L175SLYR PTC RESET FUSE 6V 1.75A 0805 Littelfuse Inc.	22,814	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, LoRho	Active	Polymeric	6V	50 A	1.75 A	3.5 A	600 ms	5 mOhms	55 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.083 L x 0.053 W (2.10mm x 1.35mm)	-	0.024 (0.60mm)
LVR005NS PTC RESET FUSE 240V 50MA RADIAL Littelfuse Inc.	17,836	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, LVR	Active	Polymeric	240V (265V Int)	1 A	50 mA	120 mA	10 s	18.5 Ohms	65 Ohms	-	-20°C ~ 85°C	-	Through Hole	0.272 Dia x 0.181 T (6.90mm x 4.60mm)	0.390 (9.90mm)	-
LVR005NK PTC RESET FUSE 240V 50MA RADIAL Littelfuse Inc.	6,521	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, LVR	Active	Polymeric	240V (265V Int)	1 A	50 mA	120 mA	10 s	18.5 Ohms	65 Ohms	-	-20°C ~ 85°C	-	Through Hole	0.272 Dia x 0.181 T (6.90mm x 4.60mm)	0.476 (12.10mm)	-
MF-S200 PTC RESET FUSE 30V 2A STRAP Bourns Inc.	5,960	-	RFQ	Datasheet	Strap	Bulk	Multifuse®, MF-S	Active	Polymeric	30V	100 A	2 A	4.4 A	4 s	30 mOhms	80 mOhms	-	-40°C ~ 85°C	-	User Defined	0.880 L x 0.417 W (22.35mm x 10.60mm)	-	0.043 (1.10mm)
RUEF400K PTC RESET FUSE 30V 4A RADIAL Littelfuse Inc.	5,670	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	4 A	8 A	12.7 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	0.839 (21.30mm)	-
0ZRP0300FF1A PTC RESET FUSE 60V 3A RADIAL Bel Fuse Inc.	3,144	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRP	Active	Polymeric	60V	40 A	3 A	6 A	19.8 s	30 mOhms	80 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.650 L x 0.142 W (16.50mm x 3.60mm)	0.835 (21.20mm)	-
MF-RX135/72-0 PTC RESET FUSE 72V 1.35A RADIAL Bourns Inc.	2,249	-	RFQ	Datasheet	Radial, Disc	Bulk	Multifuse®, MF-RX/72	Active	Polymeric	72V	40 A	1.35 A	2.7 A	9.6 s	120 mOhms	300 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.483 L x 0.122 W (12.26mm x 3.10mm)	0.718 (18.26mm)	-
60R250XF PTC RESET FUSE 60V 2.5A RADIAL Littelfuse Inc.	1,600	-	RFQ	Datasheet	Radial, Disc	Bulk	POLY-FUSE®, 60R	Active	Polymeric	60V	40 A	2.5 A	5 A	15.6 s	50 mOhms	130 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.785 Dia x 0.122 T (19.93mm x 3.10mm)	1.032 (26.20mm)	-

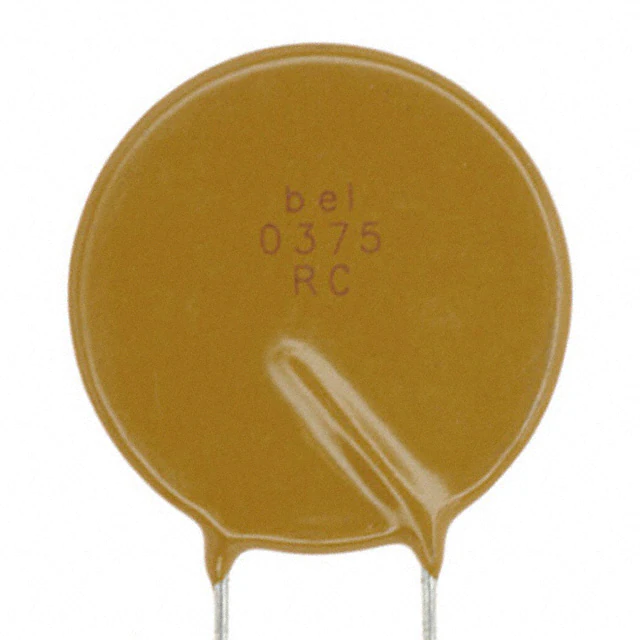

0ZRC0375FF1A PTC RESET FUSE 90V 3.75A RADIAL Bel Fuse Inc.	3,516	-	RFQ	Datasheet	Radial, Disc	Box	0ZRC	Active	Polymeric	90V	40 A	3.75 A	7.5 A	24 s	30 mOhms	80 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	1.122 L x 0.122 W (28.50mm x 3.10mm)	1.319 (33.50mm)	-
0603L002/60YR PTC RESET FUSE 60V 20MA 0603 Littelfuse Inc.	8,755	-	RFQ	Datasheet	0603 (1608 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 0603L	Active	Polymeric	60V	40 A	20 mA	60 mA	1 s	12 Ohms	70 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.063 L x 0.031 W (1.60mm x 0.80mm)	-	0.039 (1.00mm)
0603L003/36YR PTC RESET FUSE 36V 30MA 0603 Littelfuse Inc.	5,565	-	RFQ	Datasheet	0603 (1608 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 0603L	Active	Polymeric	36V	40 A	30 mA	90 mA	1 s	6 Ohms	50 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.063 L x 0.031 W (1.60mm x 0.80mm)	-	0.039 (1.00mm)
0ZRM0090FF1E PTC RESET FUSE 120V 900MA RADIAL Bel Fuse Inc.	23,084	-	RFQ	Datasheet	Radial, Disc	Box	0ZRM	Active	Polymeric	120V	5 A	900 mA	1.8 A	7.2 s	200 mOhms	470 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.469 Dia x 0.150 T (11.90mm x 3.80mm)	0.626 (15.90mm)	-

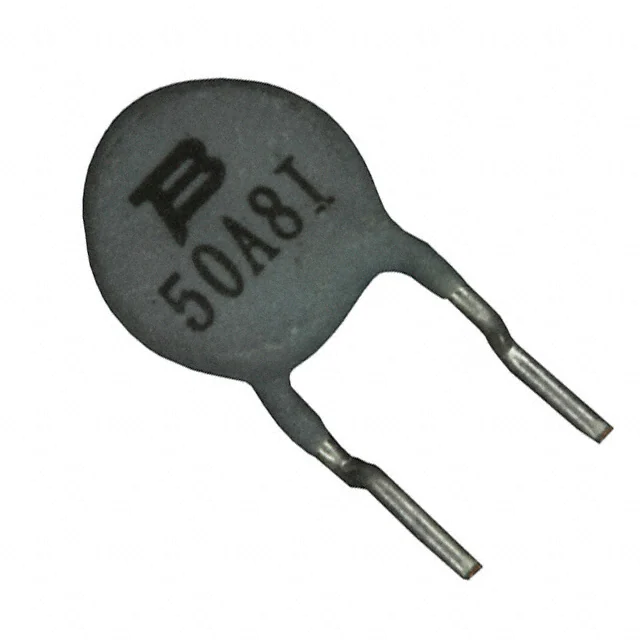

CMF-RL50A-0 PTC RESET FUSE 220V 50MA RADIAL Bourns Inc.	2,300	-	RFQ	Datasheet	Radial, Disc	Bulk	CMF-RL	Active	Ceramic	220V (600V Int)	3 A	50 mA	100 mA	100 ms	-	-	50 Ohms	-40°C ~ 125°C	-	Through Hole	0.295 L x 0.220 W (7.50mm x 5.60mm)	0.512 (13.00mm)	-
0ZRN0200FF1E PTC RESET FUSE 16V 2A RADIAL Bel Fuse Inc.	37,853	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRN	Active	Polymeric	16V	100 A	2 A	3.8 A	3 s	45 mOhms	110 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.370 Dia x 0.118 T (9.40mm x 3.00mm)	0.567 (14.40mm)	-
0ZRN0050FF1E PTC RESET FUSE 30V 500MA RADIAL Bel Fuse Inc.	10,270	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRN	Active	Polymeric	30V	40 A	500 mA	900 mA	2.5 s	480 mOhms	1.1 Ohms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.291 Dia x 0.118 T (7.40mm x 3.00mm)	0.500 (12.70mm)	-
0ZRN0100FF1E PTC RESET FUSE 30V 1A RADIAL Bel Fuse Inc.	9,755	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRN	Active	Polymeric	30V	40 A	1 A	1.8 A	5.2 s	180 mOhms	430 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.382 Dia x 0.118 T (9.70mm x 3.00mm)	0.535 (13.60mm)	-
TRF250-080U PTC RESET FUSE 60V 80MA RADIAL Littelfuse Inc.	8,174	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, TRF250	Active	Polymeric	60V (250V Int)	3 A	80 mA	160 mA	4 s	14 Ohms	33 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.189 Dia x 0.150 T (4.80mm x 3.80mm)	0.366 (9.30mm)	-
72R375XH PTC RESET FUSE 72V 3.75A RADIAL Littelfuse Inc.	43,711	-	RFQ	Datasheet	Radial, Disc	Bulk,Bulk	POLY-FUSE®, 72R	Active	Polymeric	72V	40 A	3.75 A	7.5 A	24 s	30 mOhms	80 mOhms	-	-40°C ~ 85°C	-	Through Hole	1.035 Dia x 0.122 T (26.30mm x 3.10mm)	1.224 (31.10mm)	-
