Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SMDC310F/18-02PTC RESET FUSE 18V 3.1A 2920 |
3,360 | - |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | SMDC | Active | Polymeric | 18V | 50 A | 3.1 A | 6 A | 25 s | - | - | - | - | - | Surface Mount | 0.295 L x 0.201 W (7.50mm x 5.10mm) | - | 0.067 (1.70mm) | |

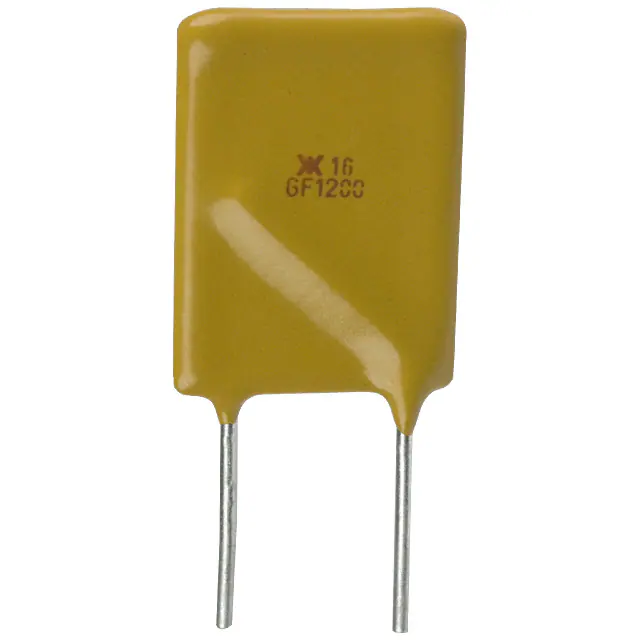

RGEF1200PTC RESET FUSE 16V 12A RADIAL |
3,338 | - |
RFQ |
Datasheet |
Radial, Disc | Bag,Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 12 A | 20.4 A | 7.5 s | 3.3 mOhms | 8.6 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.670 L x 0.520 W (16.95mm x 2.90mm) | 1.102 (28.00mm) | - | |
B59990C0080A070PTC RESET FUSE 80V 30MA RADIAL |
3,206 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | Automotive, AEC-Q200 | Active | Ceramic | 80V | 700 mA | 30 mA | 60 mA | - | - | - | 55 Ohms | -40°C ~ 85°C | - | Through Hole | 0.157 Dia x 0.138 T (4.00mm x 3.50mm) | 0.295 (7.50mm) | - | |
MF-RM055/240-0PTC RESET FUSE 240V 550MA RADIAL |
6,530 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | Multifuse®, MF-RM | Active | Polymeric | 240V (265V Int) | 7 A | 550 mA | 1.25 A | 26 s | 450 mOhms | 1.45 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.551 L x 0.161 W (14.00mm x 4.10mm) | 0.882 (22.40mm) | - | |
0ZRE0150FF1APTC RESET FUSE 240V 1.5A RADIAL |
8,816 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | 0ZRE | Active | Polymeric | 240V | 15 A | 1.5 A | 3 A | 23 s | 120 mOhms | 320 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.921 Dia x 0.210 T (23.40mm x 5.30mm) | 1.217 (30.90mm) | - | |
0ZRP0500FF1APTC RESET FUSE 60V 5A RADIAL |
9,300 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | 0ZRP | Active | Polymeric | 60V | 40 A | 5 A | 10 A | 28 s | 12 mOhms | 50 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.949 L x 0.142 W (24.10mm x 3.60mm) | 1.142 (29.00mm) | - | |
B59884C0120A070PTC RESET FUSE 420V 21MA RADIAL |
7,900 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | - | Active | Ceramic | 420V | 200 mA | 21 mA | 39 mA | - | - | - | 600 Ohms | 0°C ~ 60°C | - | Through Hole | 0.256 Dia x 0.197 T (6.50mm x 5.00mm) | 0.394 (10.00mm) | - | |

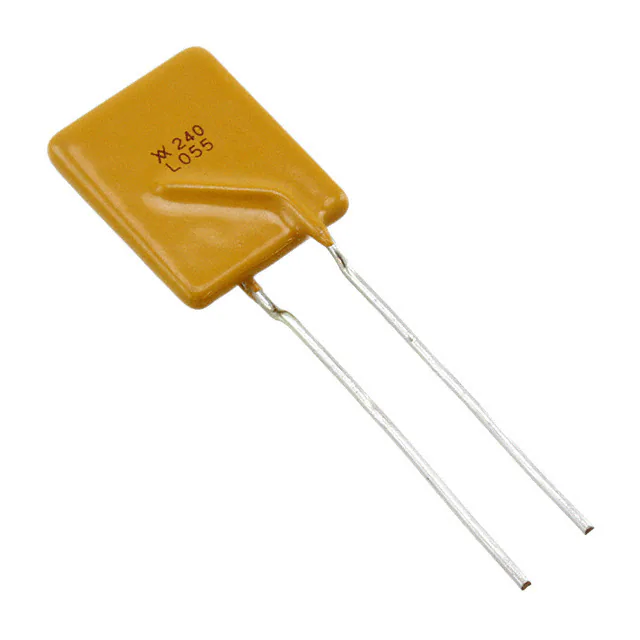

LVR055KPTC RESET FUSE 240V 550MA RADIAL |
1,450 | - |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 7 A | 550 mA | 1.25 A | 26 s | 450 mOhms | 1.45 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.551 L x 0.161 W (14.00mm x 4.10mm) | 0.822 (20.87mm) | - | |
0ZRS0500FF1APTC RESET FUSE 32V 5A RADIAL |
1,811 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | 0ZRS | Active | Ceramic | 32V | 100 A | 5 A | 10 A | 9 s | 15 mOhms | 40 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.551 L x 0.150 W (14.00mm x 3.80mm) | 0.949 (24.10mm) | - | |

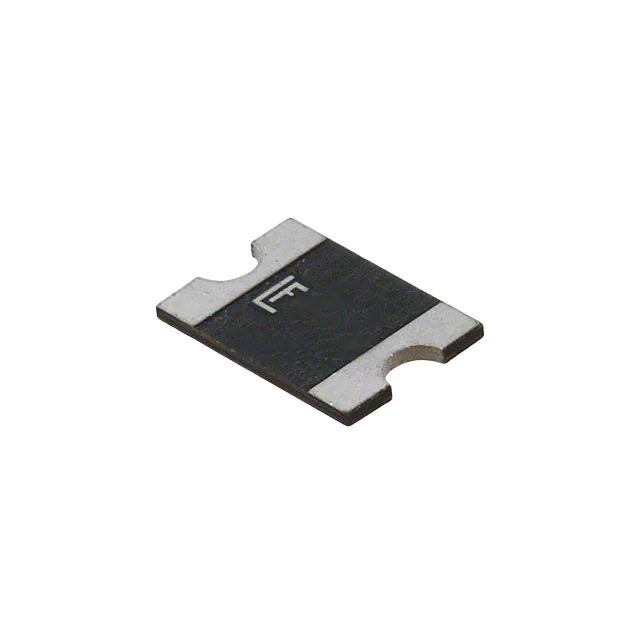

2920L700SLPRPTC RESET FUSE 6V 7A 2920 |
6,771 | - |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 7 A | 14 A | 200 ms | 1 mOhms | 7 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.289 L x 0.202 W (7.35mm x 5.12mm) | - | 0.026 (0.65mm) | |
B59985C0120A070PTC RESET FUSE 30V 250MA RADIAL |
7,489 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | Automotive, AEC-Q200 | Active | Ceramic | 30V | 1 A | 250 mA | 500 mA | - | - | - | 4.6 Ohms | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.256 Dia x 0.138 T (6.50mm x 3.50mm) | 0.394 (10.00mm) | - | |
RGEF1400PTC RESET FUSE 16V 14A RADIAL |
2,690 | - |
RFQ |
Datasheet |
Radial, Disc | Bag,Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 14 A | 23.8 A | 9 s | 2.6 mOhms | 6.4 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.925 L x 0.114 W (23.50mm x 2.90mm) | 1.102 (28.00mm) | - | |
AHEF500PTC RESET FUSE 32V 5A RADIAL |
2,347 | - |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AHEF | Active | Polymeric | 32V | 100 A | 5 A | 10 A | 9 s | 15 mOhms | 40 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.551 L x 0.150 W (14.00mm x 3.80mm) | 0.949 (24.10mm) | - | |
PTCCL05H630HBEPTC RESET FUSE 265V 63MA RADIAL |
3,484 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTCCL - 265V | Active | Ceramic | 265V | 450 mA | 63 mA | 95 mA | - | - | - | 120 Ohms | 0°C ~ 70°C | - | Through Hole | 0.197 Dia x 0.197 T (5.00mm x 5.00mm) | 0.394 (10.00mm) | - | |
PTCCL05H110HBEPTC RESET FUSE 265V 11MA RADIAL |
1,161 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTCCL - 265V | Active | Ceramic | 265V | 80 mA | 11 mA | 17 mA | - | - | - | 3 kOhms | 0°C ~ 70°C | - | Through Hole | 0.197 Dia x 0.197 T (5.00mm x 5.00mm) | 0.394 (10.00mm) | - | |
PTCCL05H390HBEPTC RESET FUSE 265V 39MA RADIAL |
1,070 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTCCL - 265V | Active | Ceramic | 265V | 300 mA | 39 mA | 59 mA | - | - | - | 260 Ohms | 0°C ~ 70°C | - | Through Hole | 0.197 Dia x 0.217 T (5.00mm x 5.50mm) | 0.394 (10.00mm) | - | |
0603L300/9SLYRPTC RESET FUSE 9V 3A 0603 |
7,806 | - |
RFQ |
Datasheet |
0603 (1608 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 9V | 50 A | 3 A | 6 A | 1 s | 3 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.063 L x 0.032 W (1.60mm x 0.80mm) | - | 0.039 (1.00mm) | |

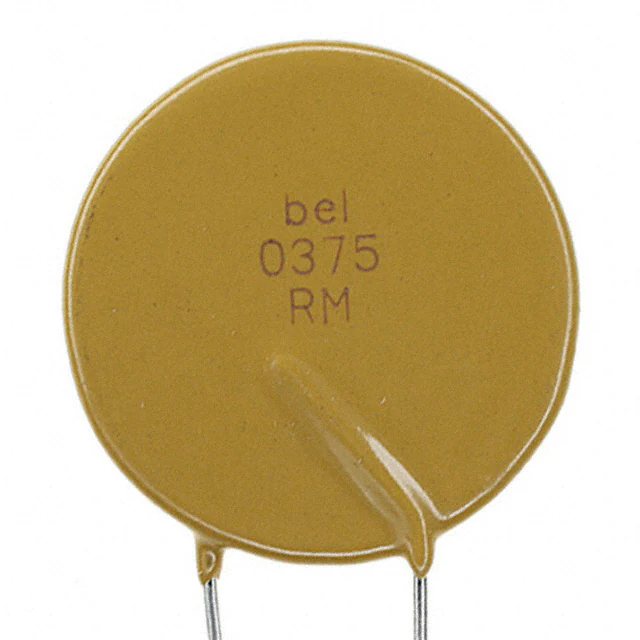

0ZRM0375FF1APTC RESET FUSE 120V 3.75A RADIAL |
9,941 | - |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRM | Active | Polymeric | 120V | 20 A | 3.75 A | 7.5 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 1.161 Dia x 0.161 T (29.50mm x 4.10mm) | 1.339 (34.00mm) | - | |

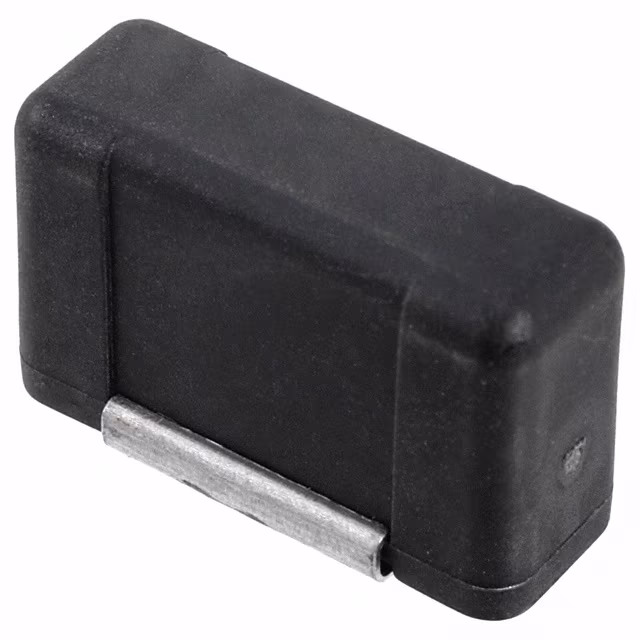

TS600-170F-2PTC RESET FUSE 60V 170MA 2SMD |
2,069 | - |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TS600 | Active | Polymeric | 60V (600V Int) | 3 A | 170 mA | 400 mA | 10 s | 4 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.742 L x 0.305 W (18.85mm x 7.75mm) | - | 0.485 (12.32mm) | |
B59873C0120A070PTC RESET FUSE 265V 70MA RADIAL |
7,400 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | - | Active | Ceramic | 265V | 1 A | 70 mA | 140 mA | - | - | - | 45 Ohms | 0°C ~ 60°C | - | Through Hole | 0.354 Dia x 0.197 T (9.00mm x 5.00mm) | 0.492 (12.50mm) | - |
