Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
MINISMDC125F-2 PTC RESET FUSE 6V 1.25A 1812 Littelfuse Inc.	18,516	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, miniSMD	Active	Polymeric	6V	100 A	1.25 A	2.5 A	400 ms	50 mOhms	140 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.019 (0.48mm)
MINISMDC160F-2 PTC RESET FUSE 9V 1.6A 1812 Littelfuse Inc.	7,264	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, miniSMD	Active	Polymeric	9V	100 A	1.6 A	3.2 A	1 s	30 mOhms	100 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.019 (0.48mm)
MF-RX090/72-2 PTC RESET FUSE 72V 900MA RADIAL Bourns Inc.	11,642	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-RX/72	Active	Polymeric	72V	40 A	900 mA	1.8 A	7.2 s	140 mOhms	470 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.461 Dia x 0.122 T (11.70mm x 3.10mm)	0.657 (16.70mm)	-
60R030XPR PTC RESET FUSE 60V 300MA RADIAL Littelfuse Inc.	3,338	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	POLY-FUSE®, 60R	Active	Polymeric	60V	40 A	300 mA	600 mA	3 s	880 mOhms	2.1 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.500 (12.70mm)	-
MF-R185-2 PTC RESET FUSE 30V 1.85A RADIAL Bourns Inc.	6,937	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-R	Active	Polymeric	30V	40 A	1.85 A	3.7 A	8.7 s	40 mOhms	110 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.472 Dia x 0.118 T (12.00mm x 3.00mm)	0.724 (18.40mm)	-
RUEF090-2 PTC RESET FUSE 30V 900MA RADIAL Littelfuse Inc.	13,199	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT)	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	900 mA	1.8 A	5.9 s	70 mOhms	220 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.291 L x 0.118 W (7.40mm x 3.00mm)	0.480 (12.20mm)	-
0ZRE0016FF2C PTC RESET FUSE 240V 160MA RADIAL Bel Fuse Inc.	3,937	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	0ZRE	Active	Polymeric	240V	2 A	160 mA	370 mA	15 s	2.5 Ohms	7.8 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.390 L x 0.150 W (9.90mm x 3.80mm)	0.492 (12.50mm)	-

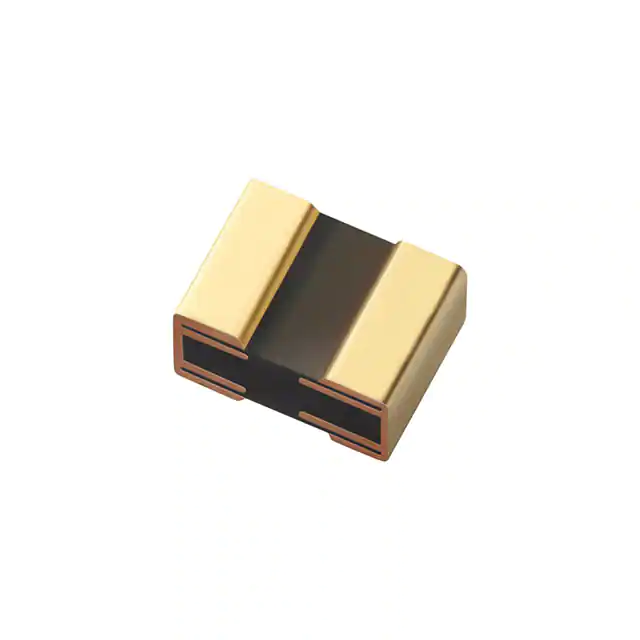

ZEPTOSMDC0015F PTC RESET FUSE 15MA 13VDC 0201 Littelfuse Inc.	29,920	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	POLYSWITCH® zeptoSMDC	Active	Polymeric	13V	200 mA	15 mA	80 mA	20 ms	10 Ohms	150 Ohms	-	-20°C ~ 60°C	-	Surface Mount	0.024 L x 0.018 W (0.60mm x 0.45mm)	-	0.016 (0.40mm)
1210L110THYR PTC RESET FUSE 8V 1.1A 1210 Littelfuse Inc.	11,968	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1210L	Active	Polymeric	8V	100 A	1.1 A	2.2 A	100 ms	60 mOhms	210 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.102 W (3.22mm x 2.58mm)	-	0.028 (0.71mm)
RXEF065-2 PTC RESET FUSE 72V 650MA RADIAL Littelfuse Inc.	8,476	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	650 mA	1.3 A	5.3 s	310 mOhms	720 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.370 Dia x 0.118 T (9.40mm x 3.00mm)	0.571 (14.50mm)	-
RXEF075-2 PTC RESET FUSE 72V 750MA RADIAL Littelfuse Inc.	8,461	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	750 mA	1.5 A	6.3 s	250 mOhms	600 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.402 Dia x 0.118 T (10.20mm x 3.00mm)	0.598 (15.20mm)	-

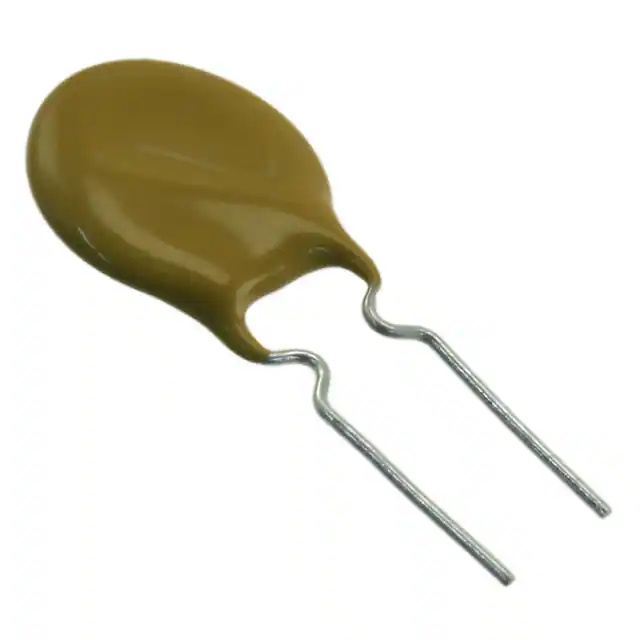

60R090XPR PTC RESET FUSE 60V 900MA RADIAL Littelfuse Inc.	4,905	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	POLY-FUSE®, 60R	Active	Polymeric	60V	40 A	900 mA	1.8 A	7.2 s	200 mOhms	470 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.441 Dia x 0.122 T (11.20mm x 3.10mm)	0.622 (15.80mm)	-
0ZRM0050FF2C PTC RESET FUSE 120V 500MA RADIAL Bel Fuse Inc.	5,205	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	0ZRM	Active	Polymeric	120V	3 A	500 mA	1 A	6 s	500 mOhms	1.17 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.362 Dia x 0.150 T (9.20mm x 3.80mm)	0.587 (14.90mm)	-
1206L150THWR-A PTC RESET FUSE 8V 1.5A 1206 Littelfuse Inc.	4,704	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1206L	Active	Polymeric	8V	100 A	1.5 A	3 A	300 ms	40 mOhms	120 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.039 (1.00mm)
0ZRE0025FF2B PTC RESET FUSE 240V 250MA RADIAL Bel Fuse Inc.	3,790	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	0ZRE	Active	Polymeric	240V	6 A	250 mA	560 mA	18.5 s	1.3 Ohms	3.8 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.378 L x 0.150 W (9.60mm x 3.80mm)	0.685 (17.40mm)	-
RUSBF110-2 PTC RESET FUSE 16V 1.1A RADIAL Littelfuse Inc.	5,090	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RUSBF	Active	Polymeric	16V	40 A	1.1 A	2.2 A	2.3 s	50 mOhms	140 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.118 T (7.40mm x 3.00mm)	0.559 (14.20mm)	-
NANOSMDC200F-2 PTC RESET FUSE 6V 2A 1206 Littelfuse Inc.	8,245	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, nanoSMD	Active	Polymeric	6V	100 A	2 A	4 A	1.5 s	20 mOhms	72 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.59mm)	-	0.043 (1.10mm)
30R160UPR PTC RESET FUSE 30V 1.6A RADIAL Littelfuse Inc.	4,130	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	POLY-FUSE®, 30R	Active	Polymeric	30V	40 A	1.6 A	3.2 A	8 s	30 mOhms	110 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.350 L x 0.118 W (8.90mm x 3.00mm)	0.598 (15.20mm)	-
MF-MSMF125-2 PTC RESET FUSE 6V 1.25A 1812 Bourns Inc.	4,083	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-MSMF	Active	Polymeric	6V	100 A	1.25 A	2.5 A	400 ms	35 mOhms	140 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.033 (0.85mm)
0ZCN0110FF2C PTC RESET FUSE 15V 1.1A 2016 Bel Fuse Inc.	2,101	-	RFQ	Datasheet	2016 (5041 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	0ZCN	Active	Polymeric	15V	100 A	1.1 A	2.2 A	500 ms	100 mOhms	400 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.200 L x 0.160 W (5.08mm x 4.07mm)	-	0.028 (0.70mm)
