Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
RGEF700-2 PTC RESET FUSE 16V 7A RADIAL Littelfuse Inc.	5,426	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RGEF	Active	Polymeric	16V	100 A	7 A	11.9 A	3.5 s	7.7 mOhms	20 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.421 L x 0.098 W (10.70mm x 2.50mm)	0.776 (19.70mm)	-
0ZRA0300FF1C PTC RESET FUSE 16V 3A RADIAL Bel Fuse Inc.	4,716	-	RFQ	Datasheet	Radial, Disc	Box	0ZRA	Active	Polymeric	16V	100 A	3 A	5.1 A	2 s	34 mOhms	105 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.280 L x 0.118 W (7.10mm x 3.00mm)	0.433 (11.00mm)	-
TRF250-180-2 PTC RESET FUSE 100V 180MA RADIAL Littelfuse Inc.	5,990	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, TRF250	Active	Polymeric	100V (250V Int)	10 A	180 mA	650 mA	2 s	800 mOhms	4 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.354 Dia x 0.150 T (9.00mm x 3.80mm)	0.472 (12.00mm)	-
TRF250-120-2 PTC RESET FUSE 60V 120MA RADIAL Littelfuse Inc.	15,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	PolySwitch®, TRF250	Active	Polymeric	60V (250V Int)	3 A	120 mA	240 mA	2.5 s	4 Ohms	16 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.256 L x 0.181 W (6.50mm x 4.60mm)	0.433 (11.00mm)	-
PRG21BC0R6MM1RA PTC RESET FUSE 6V 420MA 0805 Murata Electronics	11,870	-	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	POSISTOR®, PRG	Not For New Designs	Ceramic	6V	10 A	420 mA	920 mA	-	-	-	600 mOhms	-20°C ~ 85°C	-	Surface Mount	0.079 L x 0.049 W (2.00mm x 1.25mm)	-	0.043 (1.10mm)
PFDF.050.2 PTC RESET FUSE 60V 550MA 2018 SCHURTER Inc.	5,646	-	RFQ	Datasheet	2018 (5045 Metric)	Tape & Reel (TR),Cut Tape (CT)	PFDF	Active	Polymeric	60V	10 A	550 mA	1.2 A	3 s	200 mOhms	1 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.200 L x 0.180 W (5.08mm x 4.58mm)	-	0.043 (1.09mm)

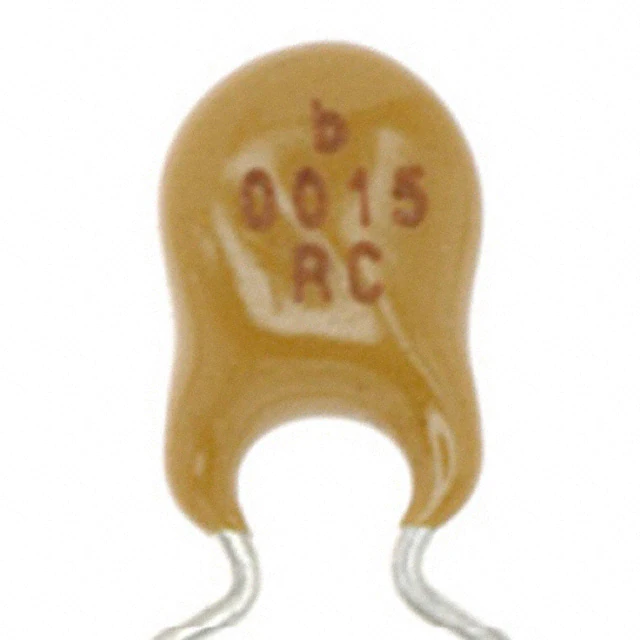

0ZRC0015FF1E PTC RESET FUSE 90V 150MA RADIAL Bel Fuse Inc.	1,225	-	RFQ	Datasheet	Radial, Disc	Box	0ZRC	Active	Polymeric	90V	40 A	150 mA	350 mA	10 s	2.4 Ohms	7 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.291 L x 0.122 W (7.40mm x 3.10mm)	0.500 (12.70mm)	-

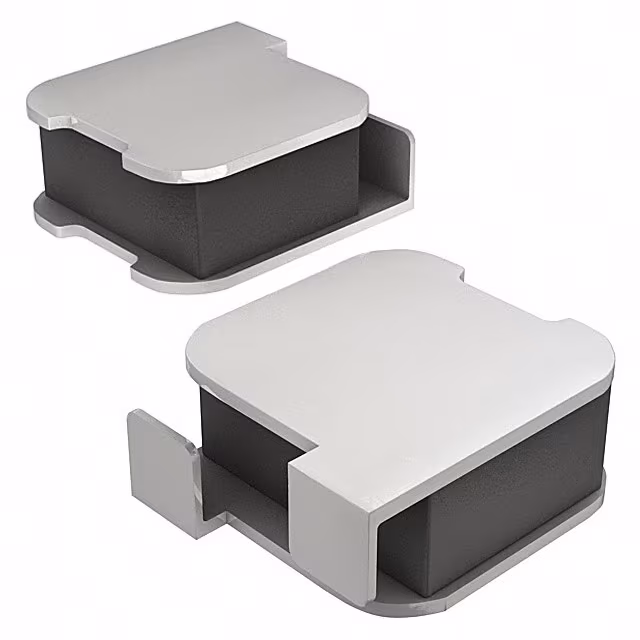

MF-SM013/250V-2 PTC RESET FUSE 60V 130MA 2SMD Bourns Inc.	17,014	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-SM/250V	Active	Polymeric	60V (250V Int)	3 A	130 mA	-	-	4 Ohms	16 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.350 L x 0.283 W (8.90mm x 7.20mm)	-	0.402 (10.20mm)
250R080ZR PTC RESET FUSE 60V 80MA RADIAL Littelfuse Inc.	2,777	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	POLY-FUSE®, 250R	Active	Polymeric	60V (250V Int)	3 A	80 mA	160 mA	4 s	14 Ohms	33 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.228 Dia x 0.181 T (5.80mm x 4.60mm)	0.390 (9.90mm)	-
MF-SM008/250F-2 PTC RESET FUSE 80V 80MA 2SMD Bourns Inc.	3,768	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-SM/250	Active	Polymeric	80V	3 A	80 mA	-	-	5 Ohms	20 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.311 L x 0.209 W (7.90mm x 5.30mm)	0.146 (3.70mm)	0.402 (10.20mm)
250R120-RCZR PTC RESET FUSE 60V 120MA RADIAL Littelfuse Inc.	7,267	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	POLY-FUSE®, 250R	Active	Polymeric	60V (250V Int)	3 A	120 mA	240 mA	3 s	5.4 Ohms	14 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.256 L x 0.181 W (6.50mm x 4.60mm)	0.433 (11.00mm)	-
RXEF017S PTC RESET FUSE 60V 170MA RADIAL Littelfuse Inc.	16,560	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RXEF	Active	Polymeric	60V	40 A	170 mA	340 mA	3 s	3.3 Ohms	8 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.118 T (7.40mm x 3.00mm)	0.500 (12.70mm)	-
PFSM.250.2 PTC RESET FUSE 15V 2.5A 2SMD SCHURTER Inc.	4,500	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PFSM	Active	Polymeric	15V	100 A	2.5 A	5 A	25 s	24 mOhms	85 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.344 L x 0.264 W (8.75mm x 6.71mm)	-	0.118 (3.00mm)
PRG21AR420MS1RA PTC RESET FUSE 20V 54MA 0805 Murata Electronics	14,586	-	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	POSISTOR®, PRG	Active	Ceramic	20V	590 mA	54 mA	100 mA	-	-	-	42 Ohms	-40°C ~ 105°C	-	Surface Mount	0.079 L x 0.049 W (2.00mm x 1.25mm)	-	0.043 (1.10mm)

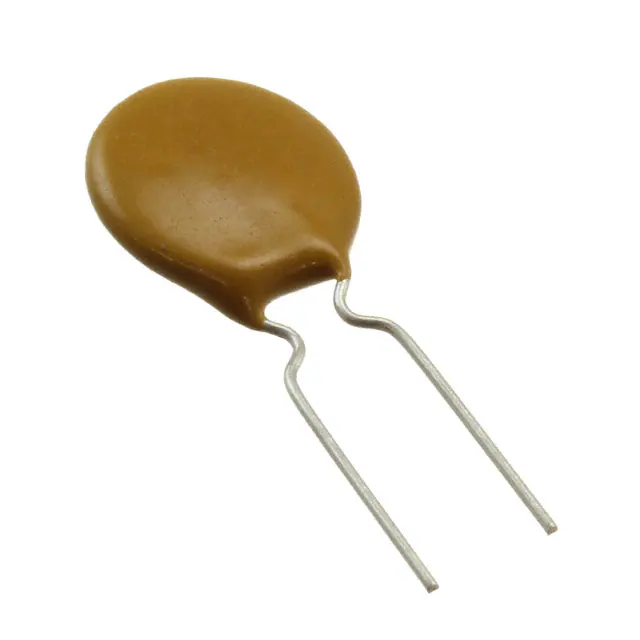

0ZRR0090FF1E PTC RESET FUSE 60V 900MA RADIAL Bel Fuse Inc.	3,385	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRR	Active	Polymeric	60V	40 A	900 mA	1.8 A	7.2 s	200 mOhms	470 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.461 Dia x 0.122 T (11.70mm x 3.10mm)	0.622 (15.80mm)	-

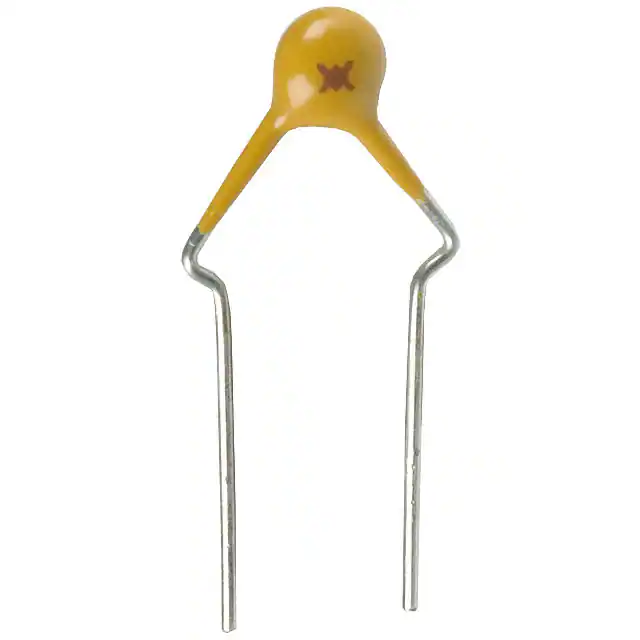

RXEF020S PTC RESET FUSE 72V 200MA RADIAL Littelfuse Inc.	3,354	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	200 mA	400 mA	2.2 s	1.83 Ohms	4.4 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.118 T (7.40mm x 3.00mm)	0.461 (11.70mm)	-

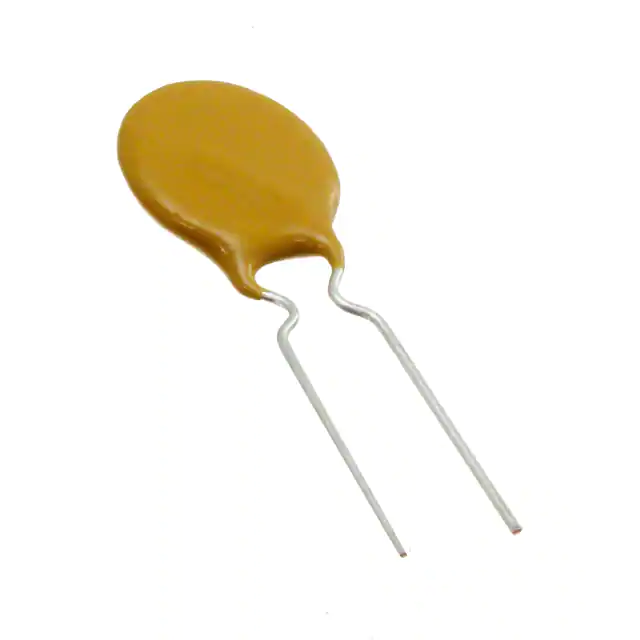

0ZRR0075FF1E PTC RESET FUSE 60V 750MA RADIAL Bel Fuse Inc.	2,110	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRR	Active	Polymeric	60V	40 A	750 mA	1.5 A	6.3 s	250 mOhms	600 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.409 Dia x 0.122 T (10.40mm x 3.10mm)	0.598 (15.20mm)	-

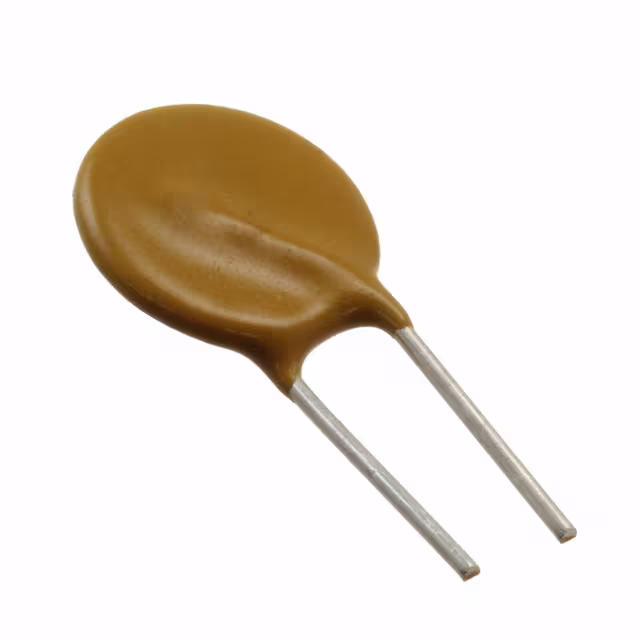

0ZRR0110FF1A PTC RESET FUSE 60V 1.1A RADIAL Bel Fuse Inc.	1,797	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRR	Active	Polymeric	60V	40 A	1.1 A	2.2 A	8.2 s	150 mOhms	380 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.512 Dia x 0.122 T (13.00mm x 3.10mm)	0.709 (18.00mm)	-
B59985C0120A051 PTC RESET FUSE 30V 250MA RADIAL EPCOS - TDK Electronics	14,974	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200	Active	Ceramic	30V	1 A	250 mA	500 mA	-	-	-	4.6 Ohms	-40°C ~ 85°C	AEC-Q200	Through Hole	0.256 Dia x 0.138 T (6.50mm x 3.50mm)	0.394 (10.00mm)	-
0ZRG0135FF1E PTC RESET FUSE 30V 1.35A RADIAL Bel Fuse Inc.	4,143	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRG	Active	Polymeric	30V	40 A	1.35 A	2.7 A	4.5 s	40 mOhms	120 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.350 L x 0.118 W (8.90mm x 3.00mm)	0.532 (13.50mm)	-
