Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)

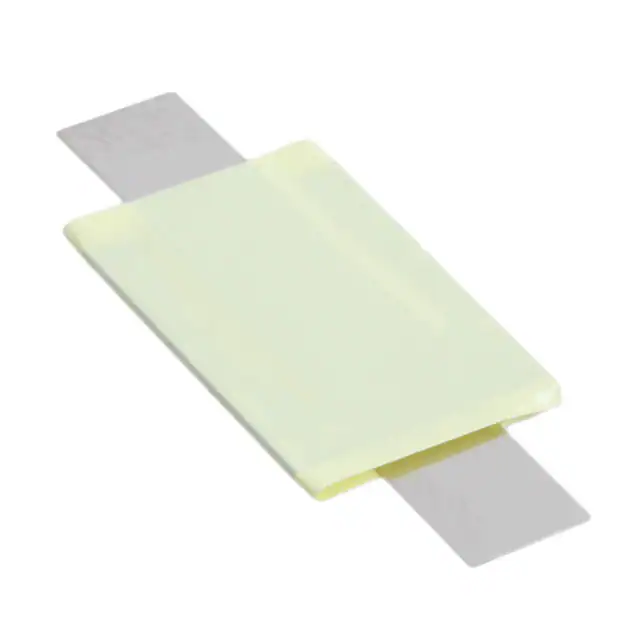

MF-S420 PTC RESET FUSE 30V 4.2A STRAP Bourns Inc.	6,281	-	RFQ	Datasheet	Strap	Bulk	Multifuse®, MF-S	Active	Polymeric	30V	100 A	4.2 A	7.6 A	6 s	12 mOhms	40 mOhms	-	-40°C ~ 85°C	-	User Defined	1.240 L x 0.522 W (31.50mm x 13.25mm)	-	0.043 (1.10mm)
MF-RX025/72-0 PTC RESET FUSE 72V 250MA RADIAL Bourns Inc.	1,770	-	RFQ	Datasheet	Radial, Disc	Bulk	Multifuse®, MF-RX/72	Active	Polymeric	72V	40 A	250 mA	500 mA	2.5 s	1 Ohms	3 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.500 (12.70mm)	-
MF-RX030/72-0 PTC RESET FUSE 72V 300MA RADIAL Bourns Inc.	1,314	-	RFQ	Datasheet	Radial, Disc	Bulk	Multifuse®, MF-RX/72	Active	Polymeric	72V	40 A	300 mA	600 mA	3 s	760 mOhms	2.1 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.528 (13.40mm)	-
MF-PSML380/8-2 PTC RESET FUSE 8V 3.8A 0805 Bourns Inc.	5,975	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-PSML/X	Active	Polymeric	8V	50 A	3.8 A	7.6 A	5 s	1 mOhms	16 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.085 L x 0.053 W (2.15mm x 1.35mm)	-	0.055 (1.40mm)

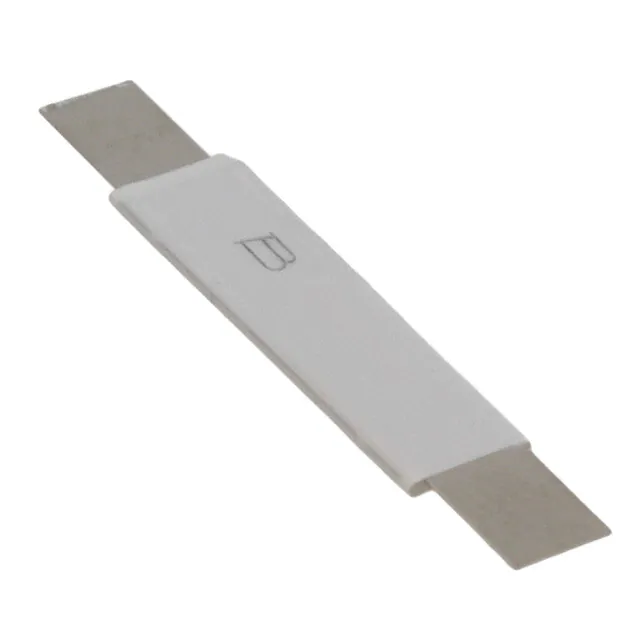

MF-LS180 PTC RESET FUSE 24V 1.8A STRAP Bourns Inc.	2,294	-	RFQ	Datasheet	Strap	Bulk	Multifuse®, MF-LS	Active	Polymeric	24V	100 A	1.8 A	3.8 A	2.9 s	40 mOhms	120 mOhms	-	-40°C ~ 85°C	-	User Defined	0.984 L x 0.199 W (25.00mm x 5.05mm)	-	0.039 (1.00mm)
MF-RX065/72-0 PTC RESET FUSE 72V 650MA RADIAL Bourns Inc.	11,318	-	RFQ	Datasheet	Radial, Disc	Bulk	Multifuse®, MF-RX/72	Active	Polymeric	72V	40 A	650 mA	1.3 A	5.3 s	270 mOhms	720 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.382 Dia x 0.122 T (9.70mm x 3.10mm)	0.598 (15.20mm)	-
MF-RX040/72-0 PTC RESET FUSE 72V 400MA RADIAL Bourns Inc.	2,946	-	RFQ	Datasheet	Radial, Disc	Bulk	Multifuse®, MF-RX/72	Active	Polymeric	72V	40 A	400 mA	800 mA	3.9 s	520 mOhms	1.29 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.539 (13.70mm)	-
MF-RX050/72-0 PTC RESET FUSE 72V 500MA RADIAL Bourns Inc.	2,885	-	RFQ	Datasheet	Radial, Disc	Bulk	Multifuse®, MF-RX/72	Active	Polymeric	72V	40 A	500 mA	1 A	4 s	410 mOhms	1.17 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.311 Dia x 0.122 T (7.90mm x 3.10mm)	0.539 (13.70mm)	-
CMF-SDP50A-2 PTC RESET FUSE 230V 90MA 4SMD Bourns Inc.	3,032	-	RFQ	Datasheet	4-SMD Cube	Tape & Reel (TR),Cut Tape (CT)	CMF-SDP	Active	Ceramic	230V (600V Int)	2.5 A	90 mA	190 mA	200 ms	-	-	50 Ohms	-40°C ~ 125°C	-	Surface Mount	0.344 L x 0.283 W (8.75mm x 7.20mm)	-	0.402 (10.20mm)
CMF-SDP25A-2 PTC RESET FUSE 230V 130MA 4SMD Bourns Inc.	2,059	-	RFQ	Datasheet	4-SMD Cube	Tape & Reel (TR),Cut Tape (CT)	CMF-SDP	Active	Ceramic	230V (250V Int)	2.8 A	130 mA	260 mA	300 ms	-	-	25 Ohms	-40°C ~ 125°C	-	Surface Mount	0.344 L x 0.283 W (8.75mm x 7.20mm)	-	0.402 (10.20mm)

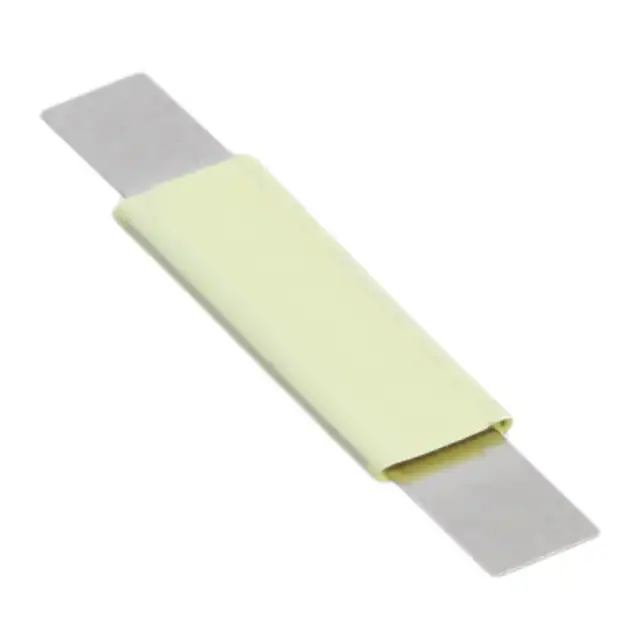

MF-S175 PTC RESET FUSE 15V 1.75A STRAP Bourns Inc.	12,156	-	RFQ	Datasheet	Strap	Bulk	Multifuse®, MF-S	Active	Polymeric	15V	100 A	1.75 A	3.8 A	4 s	50 mOhms	120 mOhms	-	-40°C ~ 85°C	-	User Defined	0.827 L x 0.199 W (21.00mm x 5.05mm)	-	0.039 (1.00mm)

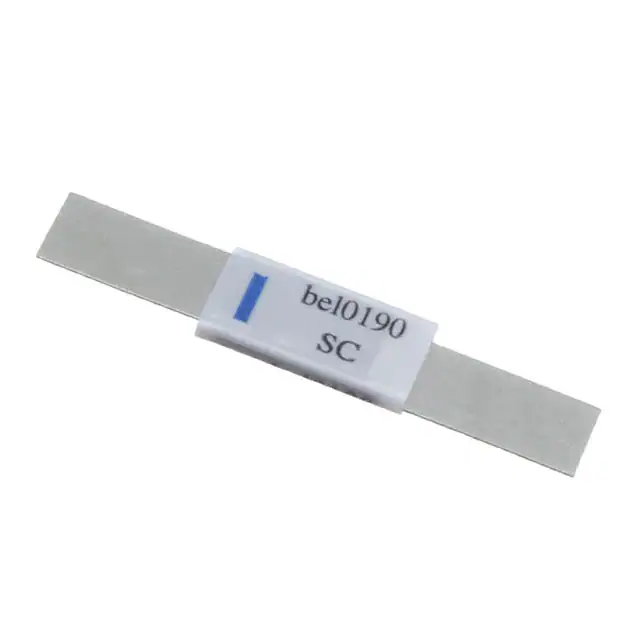

0ZSC0190FF1E PTC RESET FUSE 20V 1.9A STRAP Bel Fuse Inc.	4,692	-	RFQ	Datasheet	Strap	Bulk	0ZSC	Active	Polymeric	20V	100 A	1.9 A	3.9 A	5 s	39 mOhms	102 mOhms	-	-40°C ~ 85°C	-	User Defined	0.827 L x 0.205 W (21.00mm x 5.20mm)	-	0.039 (1.00mm)

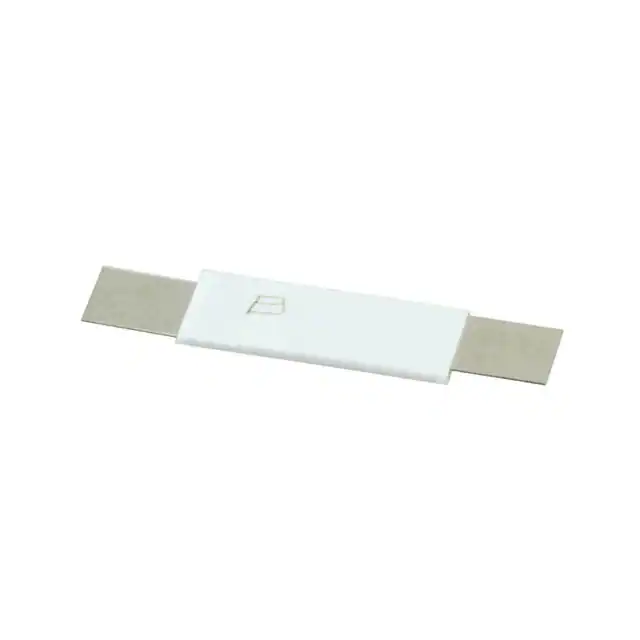

MF-LS100 PTC RESET FUSE 24V 1A STRAP Bourns Inc.	3,924	-	RFQ	Datasheet	Strap	Bulk	Multifuse®, MF-LS	Active	Polymeric	24V	100 A	1 A	2.5 A	7 s	70 mOhms	260 mOhms	-	-40°C ~ 85°C	-	User Defined	0.866 L x 0.199 W (22.00mm x 5.05mm)	-	0.039 (1.00mm)
0ZRF0018FF1A PTC RESET FUSE 60V 180MA RADIAL Bel Fuse Inc.	2,027	-	RFQ	Datasheet	Radial, Disc	Box	0ZRF	Active	Polymeric	60V	3 A	180 mA	580 mA	11 s	800 mOhms	4 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.429 L x 0.181 W (10.90mm x 4.60mm)	0.496 (12.60mm)	-

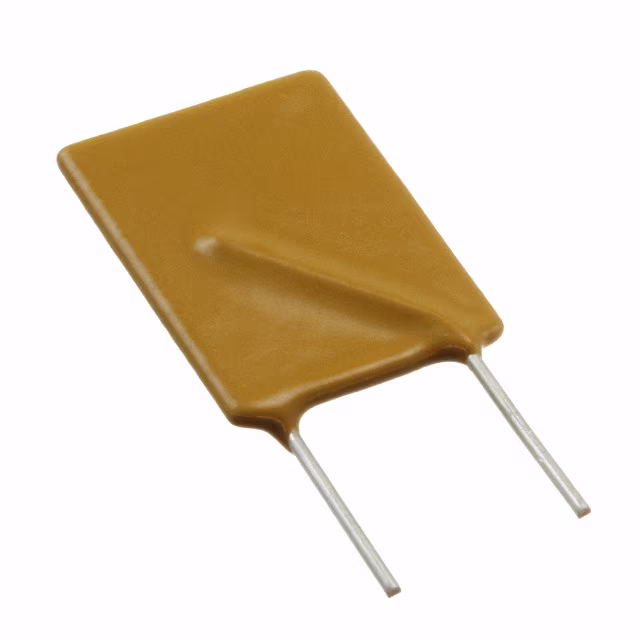

0ZRP0375FF1A PTC RESET FUSE 60V 3.75A RADIAL Bel Fuse Inc.	1,409	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRP	Active	Polymeric	60V	40 A	3.75 A	7.5 A	22 s	17 mOhms	60 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.650 L x 0.142 W (16.50mm x 3.60mm)	0.992 (25.20mm)	-
CMF-RL50-0 PTC RESET FUSE 220V 65MA RADIAL Bourns Inc.	5,260	-	RFQ	Datasheet	Radial, Disc	Bulk	CMF-RL	Active	Ceramic	220V (600V Int)	3 A	65 mA	150 mA	150 ms	-	-	50 Ohms	-40°C ~ 125°C	-	Through Hole	0.386 L x 0.197 W (9.80mm x 5.00mm)	0.532 (13.50mm)	-
0ZRN0070FF1E PTC RESET FUSE 30V 700MA RADIAL Bel Fuse Inc.	2,414	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRN	Active	Polymeric	30V	40 A	700 mA	1.4 A	3.2 s	300 mOhms	800 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.272 L x 0.118 W (6.90mm x 3.00mm)	0.425 (10.80mm)	-
0ZRN0300FF1E PTC RESET FUSE 16V 3A RADIAL Bel Fuse Inc.	1,595	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRN	Active	Polymeric	16V	100 A	3 A	6 A	5 s	33 mOhms	79 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.346 L x 0.118 W (8.80mm x 3.00mm)	0.543 (13.80mm)	-
VLP220F PTC RESET FUSE 16V 2.2A STRAP Littelfuse Inc.	2,000	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, VLP	Active	Polymeric	16V	60 A	2.2 A	5.3 A	5 s	17 mOhms	58 mOhms	-	-40°C ~ 85°C	-	User Defined	0.874 L x 0.146 W (22.20mm x 3.70mm)	-	0.032 (0.80mm)
VTP110F PTC RESET FUSE 16V 1.1A STRAP Littelfuse Inc.	1,342	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, VTP	Active	Polymeric	16V	100 A	1.1 A	2.7 A	5 s	38 mOhms	140 mOhms	-	-40°C ~ 85°C	-	User Defined	1.008 L x 0.114 W (25.60mm x 2.90mm)	-	0.028 (0.70mm)
