Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
YM120D370N100 PTC RESET FUSE 265V 314MA RADIAL Amphenol Thermometrics	1,568	-	RFQ	Datasheet	Radial, Disc	Bulk	YM	Active	Ceramic	265V	2.7 A	314 mA	444 mA	-	-	-	10 Ohms	0°C ~ 55°C	-	Through Hole	0.571 Dia x 0.177 T (14.50mm x 4.50mm)	0.669 (17.00mm)	-
0ZRC0075FF2E PTC RESET FUSE 90V 750MA RADIAL Bel Fuse Inc.	3,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	0ZRC	Active	Polymeric	90V	40 A	750 mA	1.5 A	6.3 s	250 mOhms	600 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.409 L x 0.122 W (10.40mm x 3.10mm)	0.598 (15.20mm)	-
0ZRE0008FF2C PTC RESET FUSE 240V 80MA RADIAL Bel Fuse Inc.	3,450	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	0ZRE	Active	Polymeric	240V	1.5 A	80 mA	190 mA	15 s	7.4 Ohms	26 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.327 L x 0.150 W (8.30mm x 3.80mm)	0.421 (10.70mm)	-
0ZRC0010FF2E PTC RESET FUSE 90V 100MA RADIAL Bel Fuse Inc.	5,386	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	0ZRC	Active	Polymeric	90V	40 A	100 mA	200 mA	4 s	2.5 Ohms	7.5 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.291 L x 0.122 W (7.40mm x 3.10mm)	0.500 (12.70mm)	-
PFMF.110.2 PTC RESET FUSE 6V 1.1A 1812 SCHURTER Inc.	2,593	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFMF	Active	Polymeric	6V	100 A	1.1 A	2.2 A	300 ms	40 mOhms	210 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.033 (0.85mm)
PTSLR12106V200 PTC RESET FUSE 6V 2A 1210 Eaton - Electronics Division	5,780	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PTSLR1210	Active	Polymeric	6V	50 A	2 A	4 A	3 s	5 mOhms	24 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.101 W (3.22mm x 2.58mm)	-	0.028 (0.70mm)

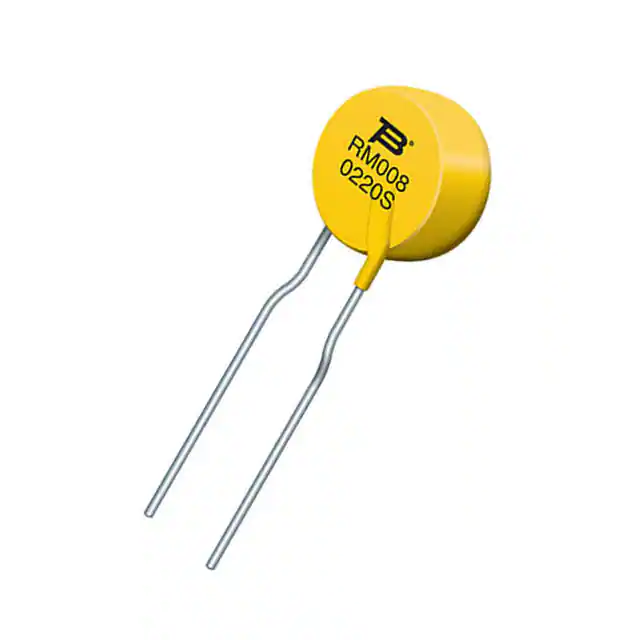

MF-RM008/240-2 PTC RESET FUSE 240V 80MA RADIAL Bourns Inc.	5,751	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-RM	Active	Polymeric	240V (265V Int)	1.2 A	80 mA	190 mA	10 s	7.4 Ohms	26 Ohms	-	-20°C ~ 85°C	-	Through Hole	0.327 Dia x 0.150 T (8.30mm x 3.80mm)	0.508 (12.90mm)	-
MF-R020-AP PTC RESET FUSE 60V 200MA RADIAL Bourns Inc.	4,058	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	Multifuse®, MF-R	Active	Polymeric	60V	40 A	200 mA	400 mA	2.2 s	1.5 Ohms	4.4 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.500 (12.70mm)	-
MF-R065-AP PTC RESET FUSE 60V 650MA RADIAL Bourns Inc.	4,959	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	Multifuse®, MF-R	Active	Polymeric	60V	40 A	650 mA	1.3 A	5.3 s	270 mOhms	720 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.382 Dia x 0.122 T (9.70mm x 3.10mm)	0.598 (15.20mm)	-
MF-SM260-2 PTC RESET FUSE 6V 2.6A 2SMD Bourns Inc.	2,937	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-SM	Active	Polymeric	6V	100 A	2.6 A	5.2 A	20 s	25 mOhms	75 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.287 L x 0.214 W (7.31mm x 5.44mm)	-	0.118 (3.00mm)
PTSLR12066V450 PTC RESET FUSE 6V 4.5A 1206 Eaton - Electronics Division	4,795	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PTSLR1206	Active	Polymeric	6V	50 A	4.5 A	9 A	2 s	1 mOhms	14 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.128 L x 0.065 W (3.25mm x 1.65mm)	-	0.047 (1.20mm)
PTSLR12106V260 PTC RESET FUSE 6V 2.6A 1210 Eaton - Electronics Division	8,675	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PTSLR1210	Active	Polymeric	6V	50 A	2.6 A	5 A	4 s	3 mOhms	20 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.101 W (3.22mm x 2.58mm)	-	0.028 (0.70mm)
PTSLR12106V450 PTC RESET FUSE 6V 4.5A 1210 Eaton - Electronics Division	7,540	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PTSLR1210	Active	Polymeric	6V	50 A	4.5 A	9 A	2 s	2 mOhms	14 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.101 W (3.22mm x 2.58mm)	-	0.047 (1.20mm)
PFSM.125.2 PTC RESET FUSE 15V 1.25A 2SMD SCHURTER Inc.	2,000	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PFSM	Active	Polymeric	15V	100 A	1.25 A	2.5 A	2 s	70 mOhms	250 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.289 L x 0.214 W (7.36mm x 5.44mm)	-	0.118 (3.00mm)
MF-RG500-2 PTC RESET FUSE 16V 5A RADIAL Bourns Inc.	6,501	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-RG	Active	Polymeric	16V	100 A	5 A	8.5 A	2 s	15 mOhms	34 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.409 L x 0.118 W (10.40mm x 3.00mm)	0.563 (14.30mm)	-
PFSM.150.2 PTC RESET FUSE 15V 1.5A 2SMD SCHURTER Inc.	1,500	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PFSM	Active	Polymeric	15V	100 A	1.5 A	3 A	5 s	60 mOhms	250 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.344 L x 0.264 W (8.75mm x 6.71mm)	-	0.118 (3.00mm)
B59980C0080A051 PTC RESET FUSE 80V 50MA RADIAL EPCOS - TDK Electronics	4,380	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q200	Active	Ceramic	80V	1 A	50 mA	110 mA	-	-	-	25 Ohms	-40°C ~ 85°C	-	Through Hole	0.256 Dia x 0.138 T (6.50mm x 3.50mm)	0.394 (10.00mm)	-
0ZRG0160FF1E PTC RESET FUSE 30V 1.6A RADIAL Bel Fuse Inc.	2,725	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRG	Active	Polymeric	30V	40 A	1.6 A	3.2 A	9 s	30 mOhms	110 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.350 L x 0.118 W (8.90mm x 3.00mm)	0.598 (15.20mm)	-
0ZRG0250FF1E PTC RESET FUSE 30V 2.5A RADIAL Bel Fuse Inc.	1,252	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRG	Active	Polymeric	30V	40 A	2.5 A	5 A	40 s	20 mOhms	70 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.449 L x 0.118 W (11.40mm x 3.00mm)	0.720 (18.30mm)	-
PTSLR18126V270 PTC RESET FUSE 6V 2.7A 1812 Eaton - Electronics Division	3,990	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PTSLR1812	Active	Polymeric	6V	50 A	2.7 A	6.2 A	2 s	3 mOhms	23 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.028 (0.70mm)
