Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)

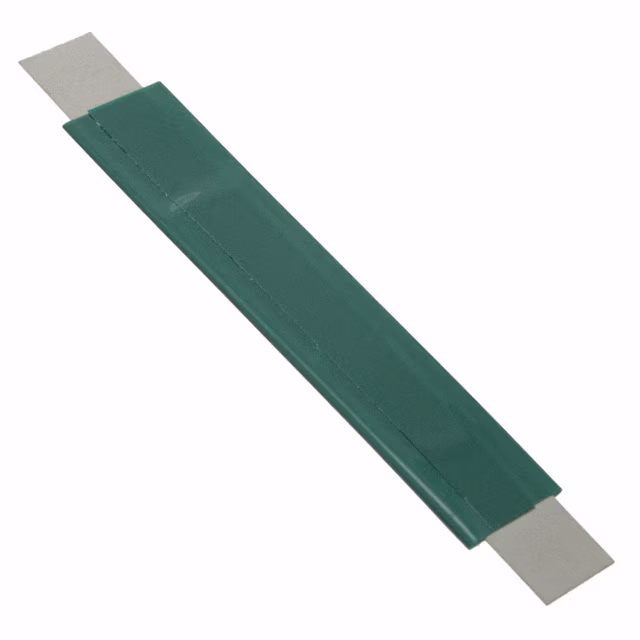

MF-LR900/20-0 PTC RESET FUSE 20V 9A STRAP Bourns Inc.	2,266	-	RFQ	Datasheet	Strap	Bulk	Multifuse®, MF-LR	Active	Polymeric	20V	100 A	9 A	16.7 A	5 s	6 mOhms	14 mOhms	-	-40°C ~ 85°C	-	User Defined	1.831 L x 0.323 W (46.50mm x 8.20mm)	-	0.051 (1.30mm)
YQS6054 PTC RESET FUSE 30V RADIAL DISC Amphenol Thermometrics	1,150	-	RFQ	Datasheet	Radial, Disc	Bulk	YQ	Active	Ceramic	30V	-	-	-	-	-	-	100 Ohms	-	-	Through Hole	0.240 Dia x 0.170 T (6.09mm x 4.31mm)	0.470 (12.00mm)	-
YQS8121 PTC RESET FUSE 265V 35MA RADIAL Amphenol Thermometrics	2,751	-	RFQ	Datasheet	Radial, Disc	Strip	YP	Active	Ceramic	265V	400 mA	35 mA	80 mA	-	-	-	120 Ohms	0°C ~ 60°C	-	Through Hole	0.256 Dia x 0.197 T (6.50mm x 5.00mm)	0.472 (12.00mm)	-
YQS8070 PTC RESET FUSE 265V 22MA RADIAL Amphenol Thermometrics	1,465	-	RFQ	Datasheet	Radial, Disc	Bulk	YM	Active	Ceramic	265V	-	22 mA	40 mA	-	-	-	600 Ohms	0°C ~ 55°C	-	Through Hole	0.157 Dia x 0.197 T (4.00mm x 5.00mm)	0.315 (8.00mm)	-
YM120C15N182 PTC RESET FUSE 265V 16MA RADIAL Amphenol Thermometrics	536	-	RFQ	Datasheet	Radial, Disc	Bulk	YM	Active	Ceramic	265V	100 mA	16 mA	23 mA	-	-	-	1.8 kOhms	0°C ~ 55°C	-	Through Hole	0.157 Dia x 0.177 T (4.00mm x 4.50mm)	0.256 (6.50mm)	-

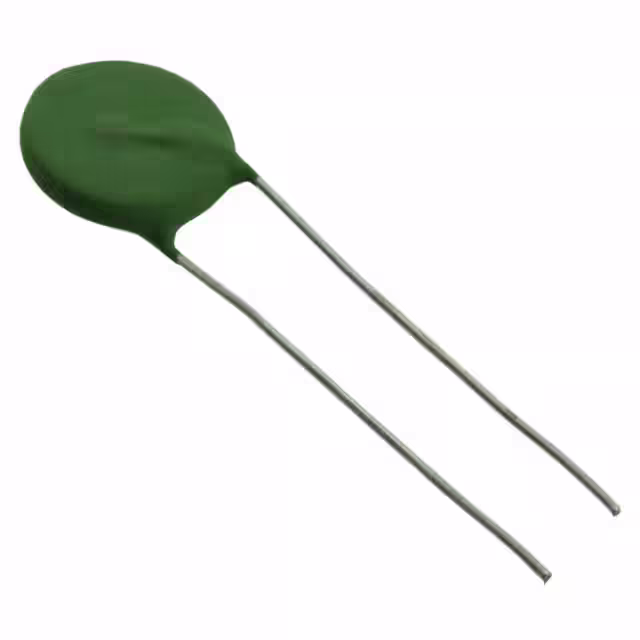

YQS6000 PTC RESET FUSE 120V RADIAL DISC Amphenol Thermometrics	587	-	RFQ	Datasheet	Radial, Disc	Bulk	-	Active	Ceramic	120V	-	-	-	-	-	-	10 Ohms	-	-	Through Hole	0.865 Dia x 0.300 T (21.97mm x 7.62mm)	0.990 (25.15mm)	-
YQS5878PTF PTC RESET FUSE 240V 45MA RADIAL Amphenol Thermometrics	937	-	RFQ	Datasheet	Radial, Disc	Bulk	PTF	Active	Ceramic	240V	-	45 mA	120 mA	-	-	-	250 Ohms	10°C ~ 55°C	-	Through Hole	0.650 Dia x 0.272 T (16.50mm x 6.90mm)	0.650 (16.50mm)	-
SMD1206B025TF POLYMERIC PTC RESETTABLE FUSE SU YAGEO	19,785	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	SMD1206	Active	Polymeric	16V	100 A	250 mA	500 mA	80 ms	550 mOhms	2.3 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.049 (1.25mm)
SMD1812B125TF/16 POLYMERIC PTC RESETTABLE FUSE SU YAGEO	7,330	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	SMD1812	Active	Polymeric	16V	100 A	1.25 A	2.5 A	400 ms	50 mOhms	140 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.059 (1.50mm)
SMD1812B075TF/24 PPTC YAGEO	1,671	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	SMD1812	Active	Polymeric	24V	100 A	750 mA	1.5 A	200 ms	100 mOhms	290 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.061 (1.55mm)
0ZCJ0035AF2E PTC RESET FUSE 30V 350MA 1206 Bel Fuse Inc.	544,488	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	0ZCJ	Active	Polymeric	30V	40 A	350 mA	750 mA	100 ms	300 mOhms	1.2 Ohms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.128 L x 0.065 W (3.25mm x 1.65mm)	-	0.051 (1.30mm)

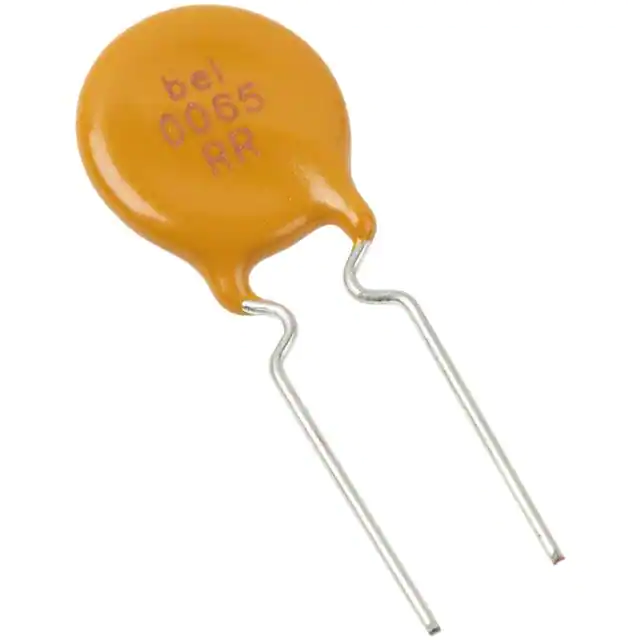

0ZRR0005FF2E PTC RESET FUSE 60V 50MA RADIAL Bel Fuse Inc.	8,305	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	0ZRR	Active	Polymeric	60V	40 A	50 mA	100 mA	5 s	7.3 Ohms	20 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.500 (12.70mm)	-
SMD2016B050TF PPTC YAGEO	2,415	-	RFQ	Datasheet	2016 (5041 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	SMD2016	Active	Polymeric	60V	20 A	550 mA	1.1 A	5 s	200 mOhms	1 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.200 L x 0.160 W (5.08mm x 4.07mm)	-	0.079 (2.00mm)
SMD1206B035TF/16 POLYMERIC PTC RESETTABLE FUSE SU YAGEO	19,852	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	SMD1206	Active	Polymeric	16V	100 A	350 mA	750 mA	100 ms	300 mOhms	1.2 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.039 (1.00mm)
SMD1206B020TF/24 POLYMERIC PTC RESETTABLE FUSE SU YAGEO	10,305	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	SMD1206	Active	Polymeric	24V	100 A	200 mA	420 mA	100 ms	650 mOhms	2.6 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.057 (1.45mm)
SMD1206B110TFT POLYMERIC PTC RESETTABLE FUSE SU YAGEO	19,894	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	SMD1206	Active	Polymeric	8V	100 A	1.1 A	2.2 A	100 ms	40 mOhms	210 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.049 (1.25mm)
SMD1206B200TF POLYMERIC PTC RESETTABLE FUSE SU YAGEO	9,885	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	SMD1206	Active	Polymeric	6V	100 A	2 A	3.5 A	1.5 s	18 mOhms	80 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.063 (1.60mm)
SMD1206B075TF/13.2 POLYMERIC PTC RESETTABLE FUSE SU YAGEO	9,723	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	SMD1206	Active	Polymeric	13.2V	100 A	750 mA	1.5 A	200 ms	90 mOhms	350 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.063 (1.60mm)
SMD1206B175TF POLYMERIC PTC RESETTABLE FUSE SU YAGEO	9,967	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	SMD1206	Active	Polymeric	6V	100 A	1.75 A	3.5 A	500 ms	20 mOhms	90 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.071 (1.80mm)
SMD1206B150TFT POLYMERIC PTC RESETTABLE FUSE SU YAGEO	7,402	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	SMD1206	Active	Polymeric	8V	100 A	1.5 A	3 A	300 ms	30 mOhms	120 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.063 (1.60mm)
