Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
R1206-005-R PTC RESET FUSE 60V 50MA 1206 OptiFuse	3,000	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR)	R1206	Active	Polymeric	60V	100 A	50 mA	150 mA	1.5 s	3.6 Ohms	50 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.128 L x 0.065 W (3.25mm x 1.65mm)	-	0.033 (0.85mm)
PTR060V0025-TR PTC RESET FUSE 60V 250MA RADIAL Eaton - Electronics Division	3,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PTR060V	Active	Polymeric	60V	40 A	250 mA	500 mA	2.5 s	1.25 Ohms	3 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.118 T (7.40mm x 3.00mm)	0.500 (12.70mm)	-

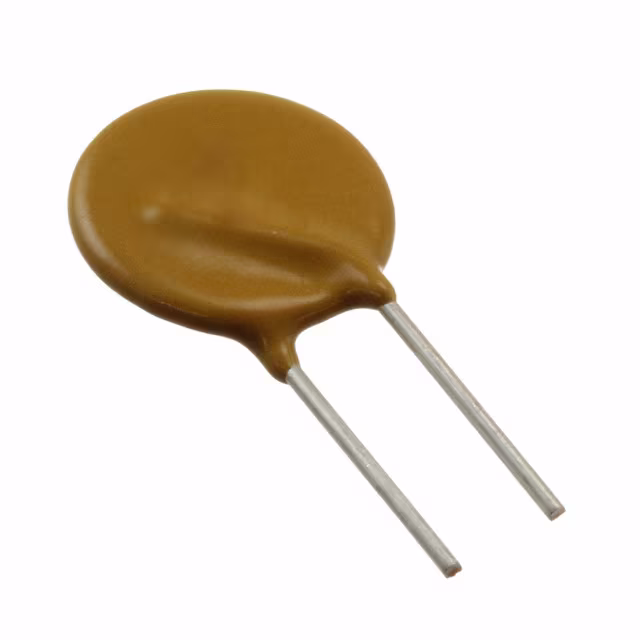

0ZRR0135FF2B PTC RESET FUSE 60V 1.35A RADIAL Bel Fuse Inc.	1,500	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	0ZRR	Active	Polymeric	60V	40 A	1.35 A	2.7 A	9.6 s	120 mOhms	300 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.571 Dia x 0.122 T (14.50mm x 3.10mm)	0.772 (19.60mm)	-
PTR060V0010-TR PTC RESET FUSE 60V 100MA RADIAL Eaton - Electronics Division	3,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PTR060V	Active	Polymeric	60V	40 A	100 mA	200 mA	4 s	2.5 Ohms	7.5 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.118 T (7.40mm x 3.00mm)	0.500 (12.70mm)	-

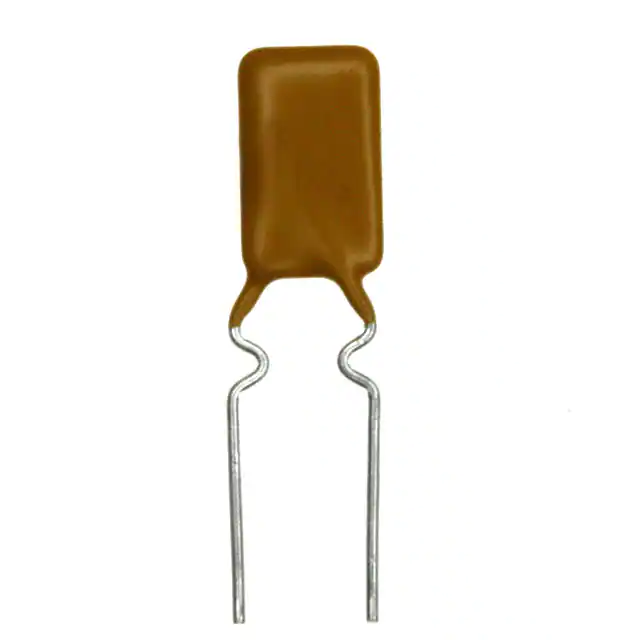

RUEF110-AP PTC RESET FUSE 30V 1.1A RADIAL Littelfuse Inc.	7,956	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	1.1 A	2.2 A	6.6 s	70 mOhms	170 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.118 T (7.40mm x 3.00mm)	0.559 (14.20mm)	-
RUEF135-AP PTC RESET FUSE 30V 1.35A RADIAL Littelfuse Inc.	2,003	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	1.35 A	2.7 A	7.3 s	40 mOhms	130 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.350 L x 0.118 W (8.90mm x 3.00mm)	0.532 (13.50mm)	-
BK30-185-SI PPTC,SQUARE 9.8MM, 30V 1.85A YAGEO	19,200	-	RFQ	Datasheet	Radial, Disc	Bulk	BK30	Active	Polymeric	30V	40 A	1.85 A	3.7 A	8.7 s	35 mOhms	120 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.386 L x 0.122 W (9.80mm x 3.10mm)	0.732 (18.60mm)	-

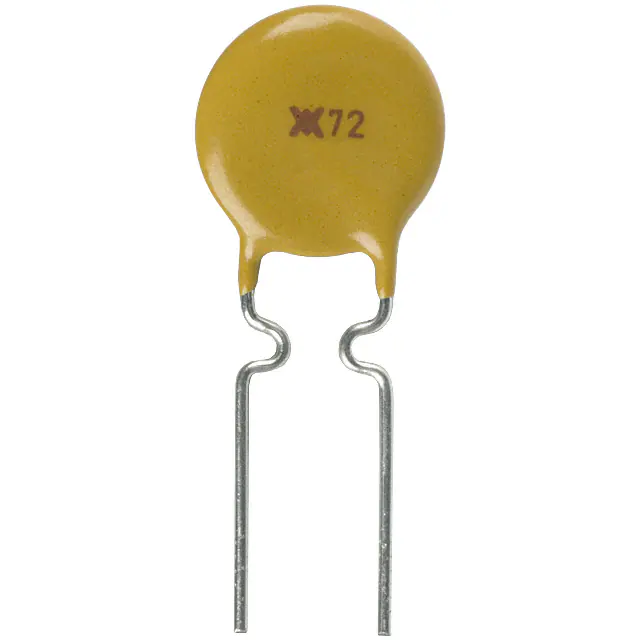

RXEF075-AP PTC RESET FUSE 72V 750MA RADIAL Littelfuse Inc.	5,315	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	750 mA	1.5 A	6.3 s	250 mOhms	600 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.402 Dia x 0.118 T (10.20mm x 3.00mm)	0.598 (15.20mm)	-
PTR030V0090-TR PTC RESET FUSE 30V 900MA RADIAL Eaton - Electronics Division	3,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PTR030V	Active	Polymeric	30V	40 A	900 mA	1.8 A	5.9 s	70 mOhms	220 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.291 L x 0.118 W (7.40mm x 3.00mm)	0.480 (12.20mm)	-
PTR060V0050-TR PTC RESET FUSE 60V 500MA RADIAL Eaton - Electronics Division	2,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PTR060V	Active	Polymeric	60V	40 A	500 mA	1 A	4 s	500 mOhms	1.17 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.299 Dia x 0.118 T (7.60mm x 3.00mm)	0.539 (13.70mm)	-
0ZRR0250FF2A PTC RESET FUSE 60V 2.5A RADIAL Bel Fuse Inc.	2,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	0ZRR	Active	Polymeric	60V	40 A	2.5 A	5 A	15.6 s	50 mOhms	130 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.839 Dia x 0.122 T (21.30mm x 3.10mm)	1.039 (26.40mm)	-
MINIASMDC125F/16-2 PTC RESET FUSE 16V 1.25A 1812 Littelfuse Inc.	175	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, miniASMD	Active	Polymeric	16V	100 A	1.25 A	2.5 A	400 ms	50 mOhms	140 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.181 L x 0.128 W (4.60mm x 3.24mm)	-	0.019 (0.48mm)
PTR060V0075-TR PTC RESET FUSE 60V 750MA RADIAL Eaton - Electronics Division	2,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PTR060V	Active	Polymeric	60V	40 A	750 mA	1.5 A	6.3 s	250 mOhms	600 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.409 Dia x 0.122 T (10.40mm x 3.10mm)	0.598 (15.20mm)	-

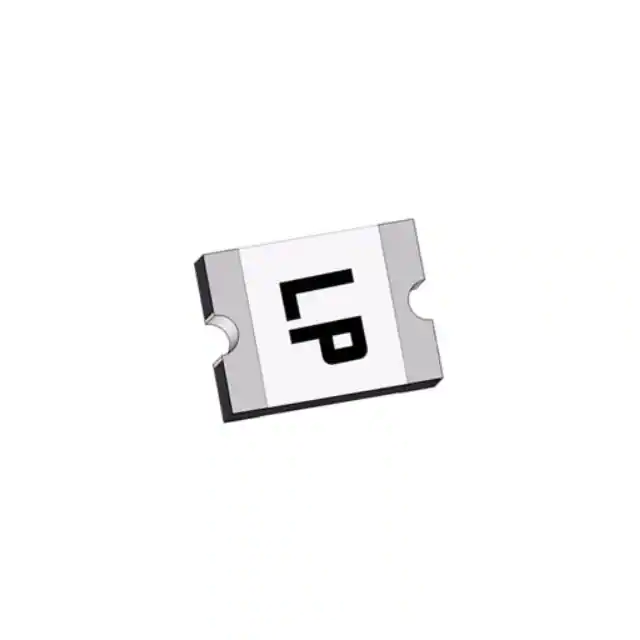

PTSLR12106V550 PTC RESET FUSE 5.5A 6V 1210 Eaton - Electronics Division	4,000	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PTSLR1210	Active	-	6V	50 A	5.5 A	11 A	5 s	1 mOhms	10 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.135 L x 0.110 W (3.43mm x 2.80mm)	-	0.039 (1.00mm)
RUSBF120-2 PTC RESET FUSE 6V 1.2A RADIAL Littelfuse Inc.	3,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RUSBF	Active	Polymeric	6V	40 A	1.2 A	2 A	500 ms	70 mOhms	140 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.272 L x 0.122 W (6.90mm x 3.10mm)	0.461 (11.70mm)	-
PTR030V0135-TR PTC RESET FUSE 30V 1.35A RADIAL Eaton - Electronics Division	3,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PTR030V	Active	Polymeric	30V	40 A	1.35 A	2.7 A	7.3 s	40 mOhms	130 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.350 L x 0.118 W (8.90mm x 3.00mm)	0.532 (13.50mm)	-
MF-R010-AP PTC RESET FUSE 60V 100MA RADIAL Bourns Inc.	4,000	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	Multifuse®, MF-R	Active	Polymeric	60V	40 A	100 mA	200 mA	4 s	2.5 Ohms	7.5 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.500 (12.70mm)	-
MF-RX014/250-2 PTC RESET FUSE 60V 145MA RADIAL Bourns Inc.	12,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-RX/250	Active	Polymeric	60V (250V Int)	3 A	145 mA	-	-	3 Ohms	14 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.256 L x 0.181 W (6.50mm x 4.60mm)	0.433 (11.00mm)	-
MF-LSMF125X-2 2920 RESETTABLE SMD PPTC 1.25A/1 Bourns Inc.	3,000	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-LSMF	Active	Polymeric	-	-	1.25 A	-	-	-	-	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	-
MINISMDC110F/24-2 PTC RESET FUSE 24V 1.1A 1812 Littelfuse Inc.	31,038	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, miniSMD	Active	Polymeric	24V	100 A	1.1 A	2.2 A	500 ms	60 mOhms	180 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.181 L x 0.128 W (4.60mm x 3.24mm)	-	0.057 (1.46mm)
