Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
PTSLR18126V300 PTC RESET FUSE 6V 3A 1812 Eaton - Electronics Division	2,887	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PTSLR1812	Active	Polymeric	6V	50 A	3 A	6.2 A	5 s	3 mOhms	21 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.028 (0.70mm)
PTSLR18126V370 PTC RESET FUSE 6V 3.7A 1812 Eaton - Electronics Division	3,686	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PTSLR1812	Active	Polymeric	6V	50 A	3.7 A	9.1 A	2 s	3 mOhms	18 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.028 (0.70mm)
PFRA.160 PTC RESET FUSE 30V 1.6A RADIAL SCHURTER Inc.	1,037	-	RFQ	Datasheet	Radial, Disc	Bulk	PFRA	Active	Polymeric	30V	40 A	1.6 A	3.2 A	8 s	55 mOhms	150 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.402 Dia x 0.118 T (10.20mm x 3.00mm)	0.661 (16.80mm)	-
B59873C0120A051 PTC RESET FUSE 265V 70MA RADIAL EPCOS - TDK Electronics	2,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	-	Active	Ceramic	265V	1 A	70 mA	140 mA	-	-	-	45 Ohms	0°C ~ 60°C	-	Through Hole	0.354 Dia x 0.197 T (9.00mm x 5.00mm)	0.492 (12.50mm)	-

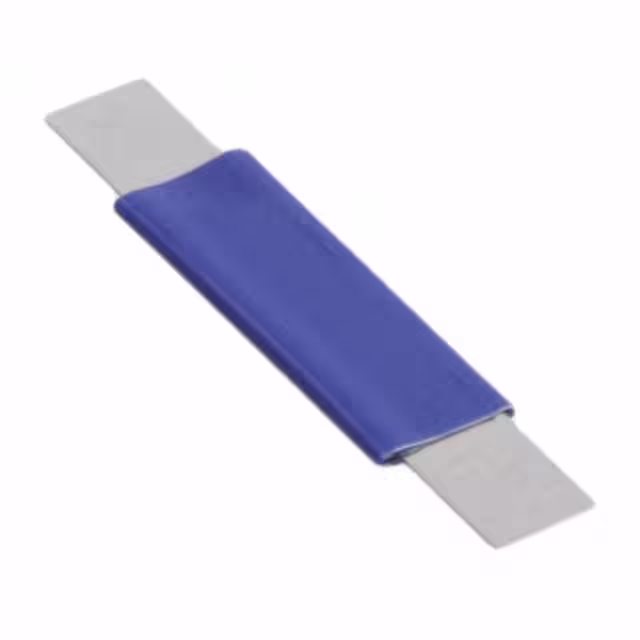

MF-VS210-0 PTC RESET FUSE 16V 2.1A STRAP Bourns Inc.	2,750	-	RFQ	Datasheet	Strap	Bulk	Multifuse®, MF-VS	Active	Polymeric	16V	100 A	2.1 A	4.7 A	5 s	18 mOhms	60 mOhms	-	-40°C ~ 85°C	-	User Defined	0.866 L x 0.205 W (22.00mm x 5.20mm)	-	0.035 (0.90mm)

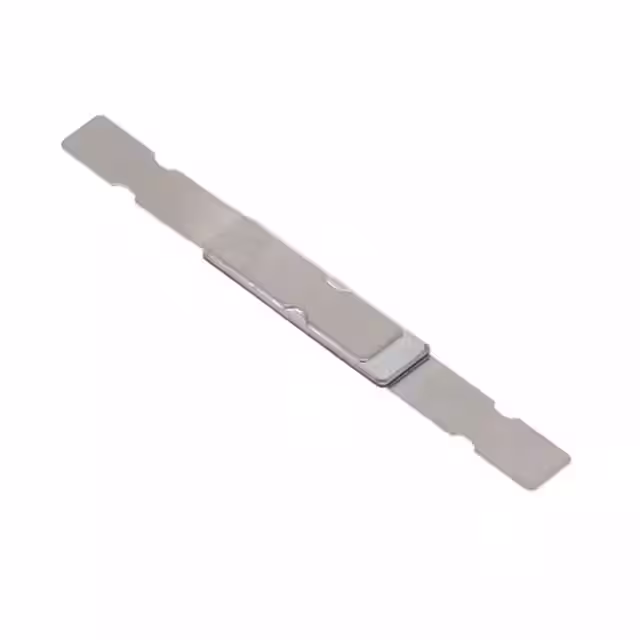

VLP175UAF PTC RESET FUSE 16V 1.75A STRAP Littelfuse Inc.	9,899	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, VLP	Active	Polymeric	16V	60 A	1.75 A	3.9 A	5 s	23 mOhms	82 mOhms	-	-	-	User Defined	-	0.028 (0.70mm)	-
CMF-SDP10-2 PTC RESET FUSE 230V 180MA 4SMD Bourns Inc.	1,465	-	RFQ	Datasheet	4-SMD Cube	Tape & Reel (TR),Cut Tape (CT)	CMF-SDP	Active	Ceramic	230V (250V Int)	1 A	180 mA	360 mA	3.8 s	-	-	10 Ohms	-40°C ~ 125°C	-	Surface Mount	0.433 L x 0.354 W (11.00mm x 9.00mm)	-	0.453 (11.50mm)

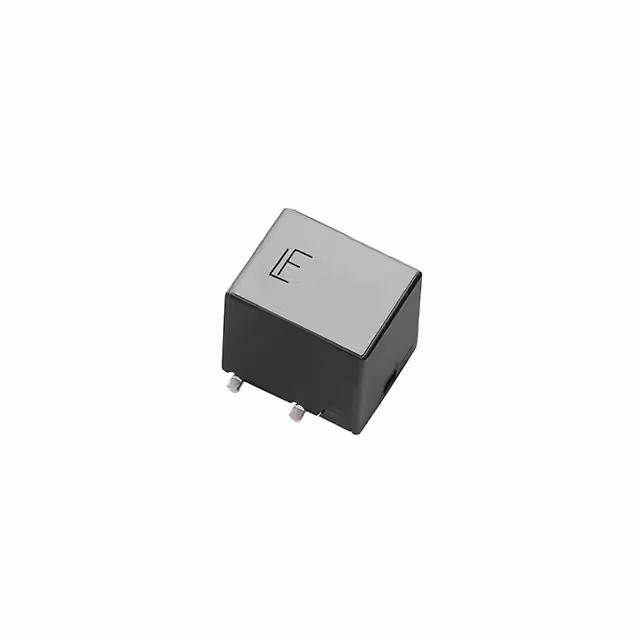

TSM250-130F-2 PTC RESET FUSE 60V 130MA 4SMD Littelfuse Inc.	2,872	-	RFQ	Datasheet	4-SMD	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, TSM	Active	Polymeric	60V	3 A	130 mA	260 mA	2.4 s	4 Ohms	15 Ohms	9 Ohms	-40°C ~ 85°C	-	Surface Mount	0.337 L x 0.323 W (8.55mm x 8.20mm)	-	0.354 (9.00mm)
TSM250-130F-RA-2 PTC RESET FUSE 60V 130MA 4SMD Littelfuse Inc.	2,795	-	RFQ	Datasheet	4-SMD	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, TSM	Active	Polymeric	60V	3 A	130 mA	260 mA	2.4 s	4 Ohms	30 Ohms	22 Ohms	-40°C ~ 85°C	-	Surface Mount	0.337 L x 0.323 W (8.55mm x 8.20mm)	-	0.354 (9.00mm)
VLR175LF PTC RESET FUSE 12V 1.75A STRAP Littelfuse Inc.	9,850	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, VLR	Active	Polymeric	12V	100 A	1.75 A	4.2 A	5 s	17 mOhms	62 mOhms	-	-40°C ~ 70°C	-	User Defined	1.201 L x 0.122 W (30.50mm x 3.10mm)	-	0.032 (0.80mm)

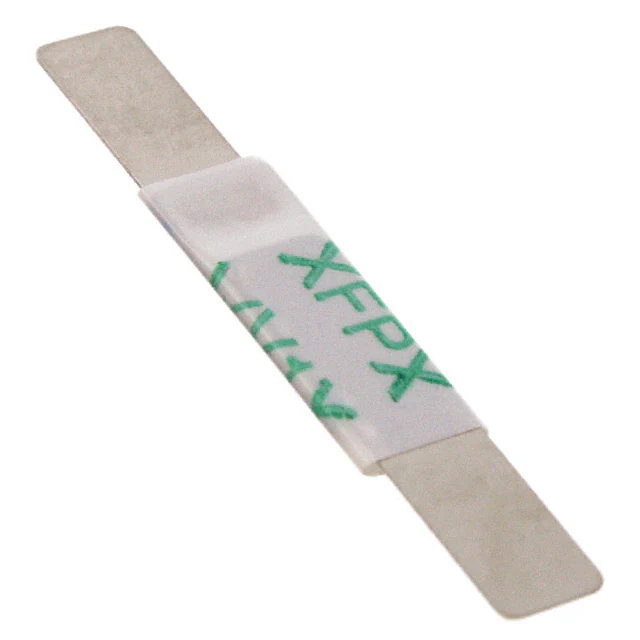

VTP175F PTC RESET FUSE 16V 1.75A STRAP Littelfuse Inc.	8,351	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, VTP	Active	Polymeric	16V	100 A	1.75 A	3.6 A	5 s	29 mOhms	102 mOhms	-	-40°C ~ 85°C	-	User Defined	0.874 L x 0.146 W (22.20mm x 3.70mm)	-	0.032 (0.80mm)

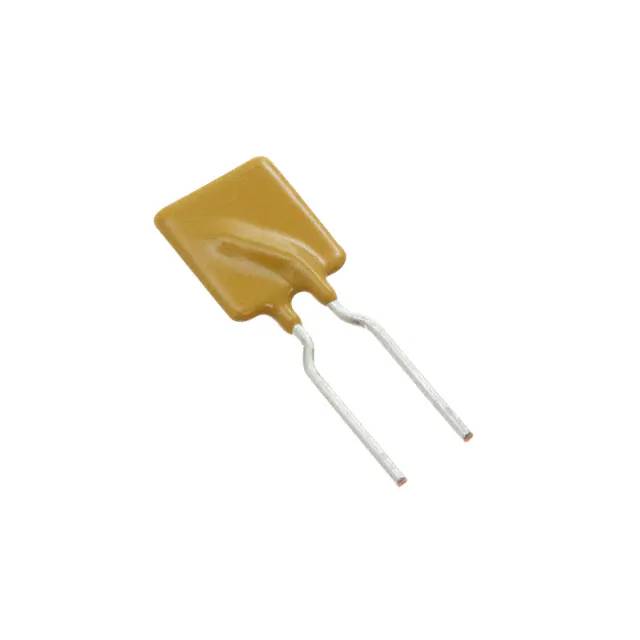

0ZRN0400FF1E PTC RESET FUSE 16V 4A RADIAL Bel Fuse Inc.	2,942	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRN	Active	Polymeric	16V	100 A	4 A	7 A	5 s	24 mOhms	60 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.394 L x 0.118 W (10.00mm x 3.00mm)	0.591 (15.00mm)	-

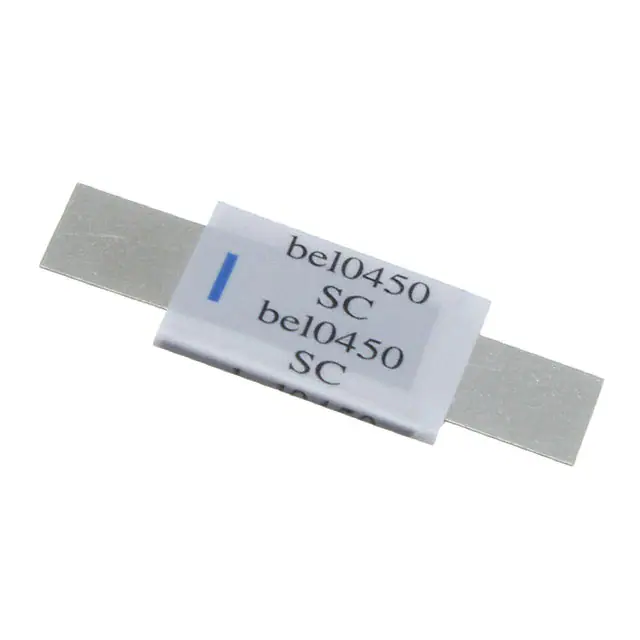

0ZSC0450FF1E PTC RESET FUSE 20V 4.5A STRAP Bel Fuse Inc.	1,389	-	RFQ	Datasheet	Strap	Bulk	0ZSC	Active	Polymeric	20V	100 A	4.5 A	8.9 A	5 s	11 mOhms	28 mOhms	-	-40°C ~ 85°C	-	User Defined	0.984 L x 0.402 W (25.00mm x 10.20mm)	-	0.039 (1.00mm)

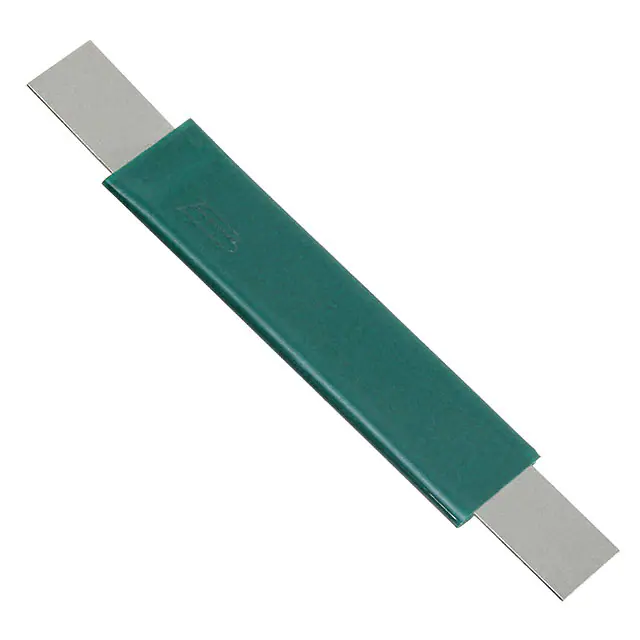

MF-LR550 PTC RESET FUSE 10V 5.5A STRAP Bourns Inc.	1,106	-	RFQ	Datasheet	Strap	Bulk	Multifuse®, MF-LR	Active	Polymeric	10V	100 A	5.5 A	10.5 A	5 s	9 mOhms	22 mOhms	-	-40°C ~ 85°C	-	User Defined	1.417 L x 0.283 W (36.00mm x 7.20mm)	-	0.039 (1.00mm)

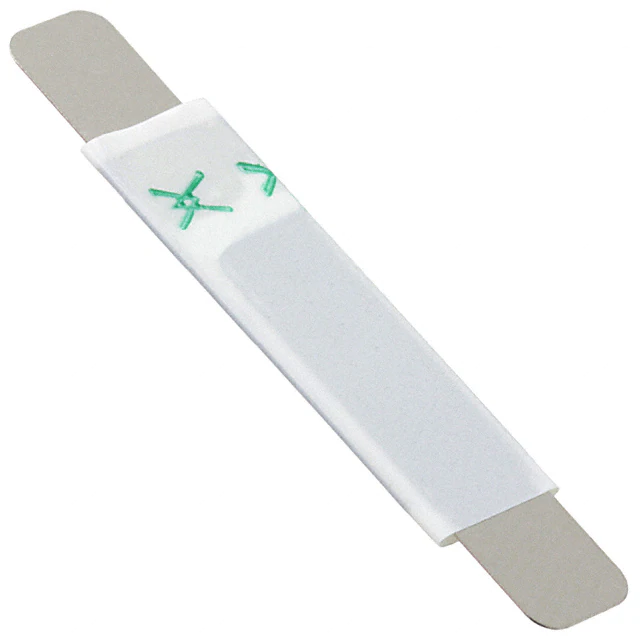

VTP240F PTC RESET FUSE 16V 2.4A STRAP Littelfuse Inc.	13,906	-	RFQ	Datasheet	Strap	Bulk,Bulk	PolySwitch®, VTP	Active	Polymeric	16V	100 A	2.4 A	5.9 A	5 s	14 mOhms	52 mOhms	-	-	-	User Defined	0.984 L x 0.201 W (25.00mm x 5.10mm)	-	0.032 (0.80mm)
MF-RHT750-0 PTC RESET FUSE 16V 7.5A RADIAL Bourns Inc.	1,954	-	RFQ	Datasheet	Radial, Disc	Bulk	Multifuse®, MF-RHT	Active	Polymeric	16V	100 A	7.5 A	13.1 A	7 s	9.4 mOhms	22 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	0.925 (23.50mm)	-

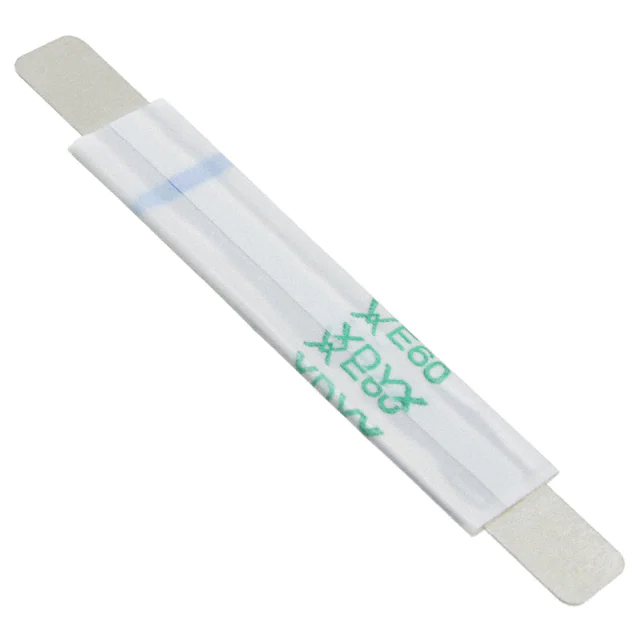

LR4-600XF PTC RESET FUSE 20V 6A STRAP Littelfuse Inc.	4,970	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, LR4	Active	Polymeric	20V	100 A	6 A	11.7 A	5 s	7 mOhms	19 mOhms	-	-40°C ~ 85°C	-	User Defined	1.638 L x 0.283 W (41.60mm x 7.20mm)	-	0.039 (1.00mm)
YQS5750PTO PTC RESET FUSE 25V RADIAL DISC Amphenol Thermometrics	2,990	-	RFQ	Datasheet	Radial, Disc	Bulk	PTO	Active	Ceramic	25V	-	-	-	-	-	-	50 Ohms	10°C ~ 55°C	-	Through Hole	0.350 Dia x 0.150 T (8.90mm x 3.80mm)	0.413 (10.50mm)	-
YQS5898PTO PTC RESET FUSE 12V RADIAL DISC Amphenol Thermometrics	1,133	-	RFQ	Datasheet	Radial, Disc	Bulk	PTO	Active	Ceramic	12V	-	-	-	-	-	-	25 Ohms	10°C ~ 55°C	-	Through Hole	0.350 Dia x 0.150 T (8.90mm x 3.80mm)	0.350 (8.89mm)	-
YQS5838PTF PTC RESET FUSE 18V 140MA RADIAL Amphenol Thermometrics	827	-	RFQ	Datasheet	Radial, Disc	Bulk	PTF	Active	Ceramic	18V	-	140 mA	290 mA	-	-	-	10 Ohms	10°C ~ 55°C	-	Through Hole	0.350 Dia x 0.150 T (8.90mm x 3.80mm)	0.350 (8.90mm)	-
