Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
PTSA121013V050 PTC RESET FUSE 500MA 13V 1210 Eaton - Electronics Division	4,000	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PTSA1210	Active	-	13.2V	40 A	500 mA	1 A	100 ms	150 mOhms	1 Ohms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.128 L x 0.098 W (3.25mm x 2.50mm)	-	0.033 (0.85mm)
SMD2920B300TF/15 POLYMERIC PTC RESETTABLE FUSE SU YAGEO	7,464	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	SMD2920	Active	Polymeric	15V	40 A	3 A	5 A	20 s	12 mOhms	48 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.071 (1.80mm)
SMD2920B200TF/24 POLYMERIC PTC RESETTABLE FUSE SU YAGEO	7,452	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	SMD2920	Active	Polymeric	24V	40 A	2 A	4 A	5 s	20 mOhms	125 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.049 (1.25mm)
SMD2920B150TF POLYMERIC PTC RESETTABLE FUSE SU YAGEO	7,370	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	SMD2920	Active	Polymeric	33V	40 A	1.5 A	3 A	2 s	35 mOhms	230 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.049 (1.25mm)
SMD2920B185TF POLYMERIC PTC RESETTABLE FUSE SU YAGEO	7,488	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	SMD2920	Active	Polymeric	33V	40 A	1.85 A	3.7 A	2.5 s	30 mOhms	150 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.049 (1.25mm)
PTSA181260V014 PTC RESET FUSE 140MA 60V 1812 Eaton - Electronics Division	2,000	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PTSA1812	Active	-	60V	10 A	140 mA	340 mA	300 ms	650 mOhms	6 Ohms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.178 L x 0.126 W (4.53mm x 3.20mm)	-	0.039 (1.00mm)
0ZRA0400FF2D PTC RESET FUSE 16V 4A RADIAL Bel Fuse Inc.	2,500	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	0ZRA	Active	Polymeric	16V	100 A	4 A	6.8 A	3.5 s	20 mOhms	63 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.280 L x 0.118 W (7.10mm x 3.00mm)	0.504 (12.80mm)	-
SMD2920B075TF/60 POLYMERIC PTC RESETTABLE FUSE SU YAGEO	4,890	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	SMD2920	Active	Polymeric	60V	10 A	750 mA	1.5 A	300 ms	100 mOhms	950 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.071 (1.80mm)

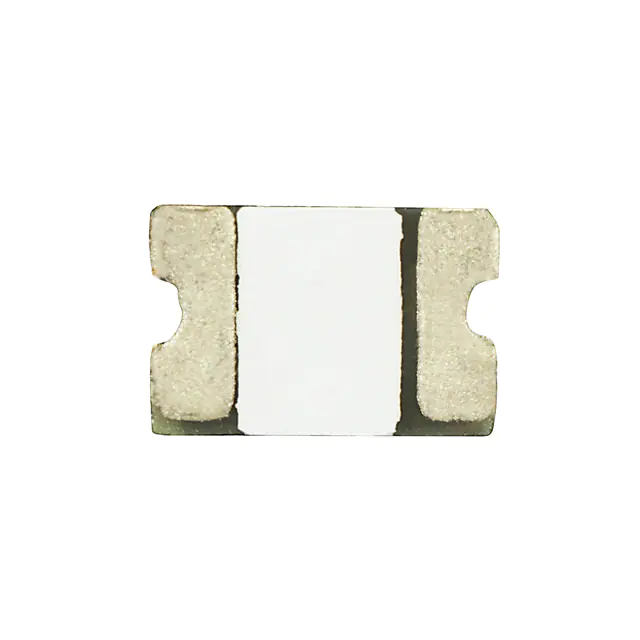

PTSLR06036V250 PTC RESET FUSE 2.5A 6V 0603 Eaton - Electronics Division	5,370	-	RFQ	Datasheet	0603 (1608 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PTSLR0603	Active	-	6V	50 A	2.5 A	5 A	5 s	8 mOhms	60 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.071 L x 0.039 W (1.80mm x 1.00mm)	-	0.043 (1.10mm)
PTSLR06036V200 PTC RESET FUSE 2A 6V 0603 Eaton - Electronics Division	5,965	-	RFQ	Datasheet	0603 (1608 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PTSLR0603	Active	-	6V	50 A	2 A	4 A	5 s	8 mOhms	65 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.071 L x 0.039 W (1.80mm x 1.00mm)	-	0.043 (1.10mm)
PTSLR08058V400 PTC RESET FUSE 4A 8V 0805 Eaton - Electronics Division	4,000	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PTSLR0805	Active	-	8V	50 A	4 A	8 A	60 s	2 mOhms	14 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.098 L x 0.063 W (2.50mm x 1.60mm)	-	0.055 (1.40mm)
PTSLR08058V450 PTC RESET FUSE 4.5A 8V 1206 Eaton - Electronics Division	7,000	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PTSLR0805	Active	-	8V	50 A	4.5 A	9 A	60 s	2 mOhms	12 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.098 L x 0.063 W (2.50mm x 1.60mm)	-	0.055 (1.40mm)

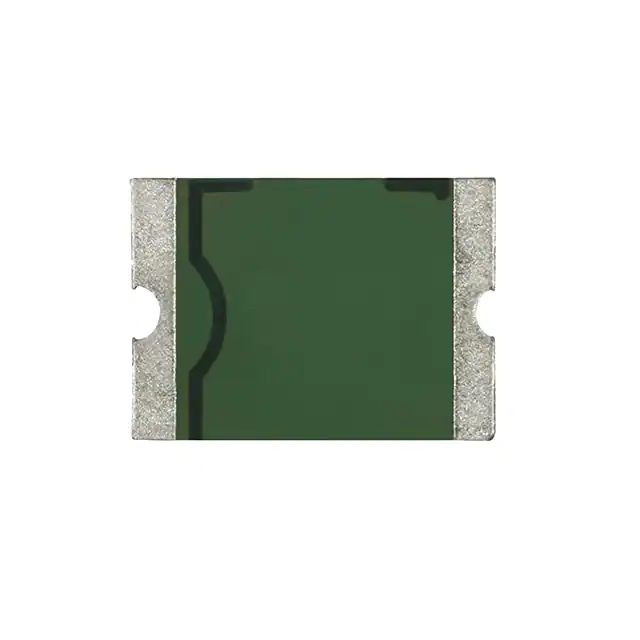

PTSA181224V150 PTC RESET FUSE 1.5A 24V 1812 Eaton - Electronics Division	3,883	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PTSA1812	Active	-	24V	40 A	1.5 A	3 A	1.5 s	30 mOhms	120 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.178 L x 0.126 W (4.53mm x 3.20mm)	-	0.067 (1.70mm)
PTR060V0030-TR PTC RESET FUSE 60V 300MA RADIAL Eaton - Electronics Division	5,909	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PTR060V	Active	Polymeric	60V	40 A	300 mA	600 mA	3 s	880 mOhms	2.1 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.118 T (7.40mm x 3.00mm)	0.512 (13.00mm)	-
RXEF017S-2 PTC RESET FUSE 60V 170MA RADIAL Littelfuse Inc.	2,500	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RXEF	Active	Polymeric	60V	40 A	170 mA	340 mA	3 s	3.3 Ohms	8 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.118 T (7.40mm x 3.00mm)	0.441 (11.20mm)	-
RXEF030S-2 PTC RESET FUSE 72V 300MA RADIAL Littelfuse Inc.	3,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	300 mA	600 mA	3 s	880 mOhms	2.1 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.118 T (7.40mm x 3.00mm)	0.500 (12.70mm)	-

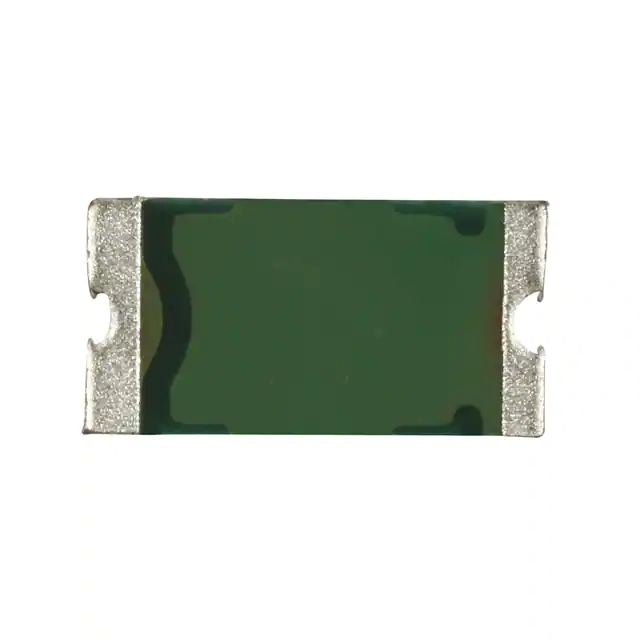

PTSAHT120616V035 PTC RESET FUSE 350MA 16V 1206 Eaton - Electronics Division	4,000	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PTSAHT1206	Active	-	16V	50 A	350 mA	950 mA	200 ms	200 mOhms	1.6 Ohms	-	-40°C ~ 125°C	AEC-Q200	Surface Mount	0.132 L x 0.067 W (3.35mm x 1.70mm)	-	0.057 (1.46mm)
RXEF050S-AP PTC RESET FUSE 72V 500MA RADIAL Littelfuse Inc.	3,986	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	500 mA	1 A	4 s	500 mOhms	1.17 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.311 Dia x 0.118 T (7.90mm x 3.00mm)	0.539 (13.70mm)	-

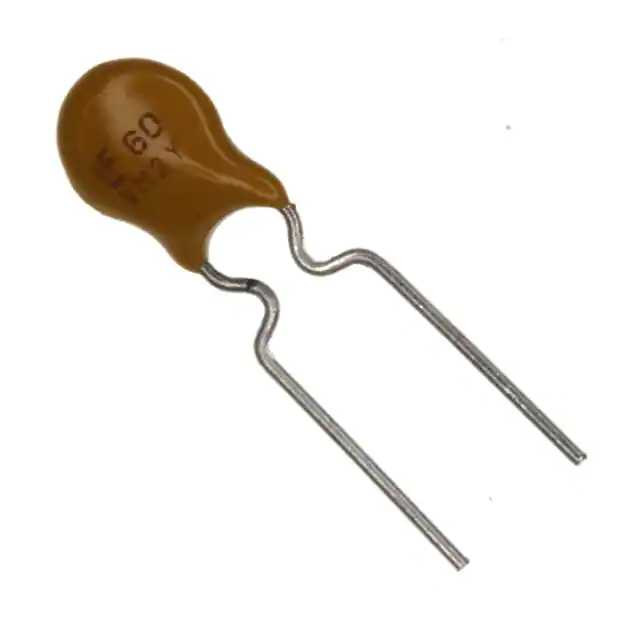

60R017XPR PTC RESET FUSE 60V 170MA RADIAL Littelfuse Inc.	3,840	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	POLY-FUSE®, 60R	Active	Polymeric	60V	40 A	170 mA	340 mA	3 s	3.3 Ohms	8 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.500 (12.70mm)	-
R0603-010-R PTC RESET FUSE 15V 100MA 0603 OptiFuse	4,000	-	RFQ	Datasheet	0603 (1608 Metric), Concave	Tape & Reel (TR)	R0603	Active	Polymeric	15V	40 A	100 mA	250 mA	100 ms	900 mOhms	8 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.063 L x 0.029 W (1.60mm x 0.73mm)	-	0.030 (0.75mm)
