Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LR4-450FPTC RESET FUSE 20V 4.5A STRAP |
11,124 | - |
RFQ |
Datasheet |
Strap | Bag | PolySwitch®, LR4 | Active | Polymeric | 20V | 100 A | 4.5 A | 8.9 A | 5 s | 11 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.984 L x 0.413 W (25.00mm x 10.50mm) | - | 0.039 (1.00mm) | |
B59880C0160A070PTC RESET FUSE 160V 70MA RADIAL |
1,500 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | - | Active | Ceramic | 160V | 400 mA | 70 mA | 140 mA | - | - | - | 70 Ohms | 0°C ~ 60°C | - | Through Hole | 0.256 Dia x 0.197 T (6.50mm x 5.00mm) | 0.394 (10.00mm) | - | |
16R1400GHPTC RESET FUSE 16V 14A RADIAL |
22,852 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 16R | Active | Polymeric | 16V | 100 A | 14 A | 23.8 A | 9 s | 2.6 mOhms | 6.4 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.925 L x 0.138 W (23.50mm x 3.50mm) | 1.098 (27.90mm) | - | |
B59975C0120A070PTC RESET FUSE 30V 450MA RADIAL |
10,851 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | Automotive, AEC-Q200 | Active | Ceramic | 30V | 3 A | 450 mA | 900 mA | - | - | - | 1.8 Ohms | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.354 Dia x 0.138 T (9.00mm x 3.50mm) | 0.492 (12.50mm) | - | |
B59970C0120A070PTC RESET FUSE 80V 150MA RADIAL |
3,101 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | Automotive, AEC-Q200 | Active | Ceramic | 80V | 3 A | 150 mA | 300 mA | - | - | - | 9.4 Ohms | -40°C ~ 125°C | - | Through Hole | 0.354 Dia x 0.138 T (9.00mm x 3.50mm) | 0.492 (12.50mm) | - | |
B59860C0160A070PTC RESET FUSE 160V 180MA RADIAL |
3,254 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | - | Active | Ceramic | 160V | 1.5 A | 180 mA | 360 mA | - | - | - | 15 Ohms | 0°C ~ 60°C | - | Through Hole | 0.433 Dia x 0.197 T (11.00mm x 5.00mm) | 0.571 (14.50mm) | - | |

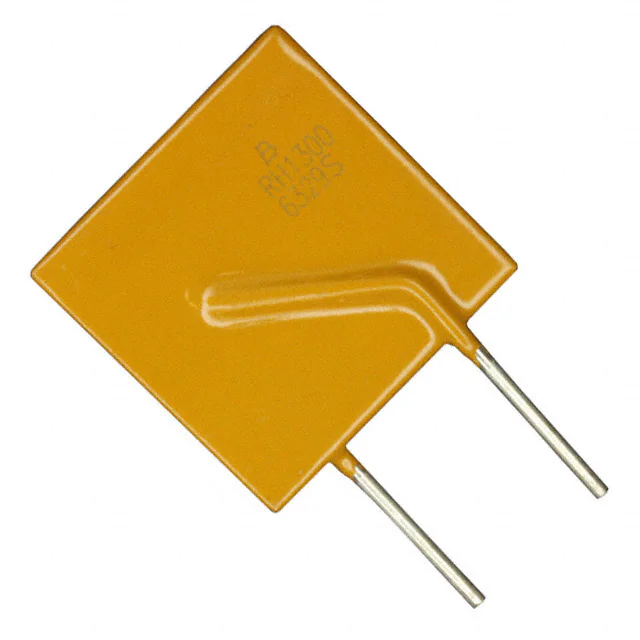

MF-RHT1300-0PTC RESET FUSE 16V 13A RADIAL |
1,404 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | Multifuse®, MF-RHT | Active | Polymeric | 16V | 100 A | 13 A | 24 A | 13 s | 4.1 mOhms | 10 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.925 L x 0.142 W (23.50mm x 3.60mm) | 1.130 (28.70mm) | - | |
RHEF1500PTC RESET FUSE 16V 15A RADIAL |
1,091 | - |
RFQ |
Datasheet |
Radial, Disc | Bag,Bag | PolySwitch®, RHEF | Active | Polymeric | 16V | 100 A | 15 A | 28 A | 20 s | 3.2 mOhms | 9.2 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.925 L x 0.142 W (23.50mm x 3.60mm) | 1.130 (28.70mm) | - | |
YQS5745PTOPTC RESET FUSE 25V RADIAL DISC |
1,222 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTO | Active | Ceramic | 25V | - | - | - | - | - | - | 50 Ohms | 10°C ~ 55°C | - | Through Hole | 0.350 Dia x 0.150 T (8.90mm x 3.80mm) | 0.394 (10.00mm) | - | |
YS5675PTC RESET FUSE 75V 60MA RADIAL |
1,053 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | - | Active | Ceramic | 75V | - | 60 mA | 190 mA | - | - | - | 25 Ohms | - | - | Through Hole | 0.270 Dia x 0.170 T (6.86mm x 4.32mm) | 0.270 (6.86mm) | - | |

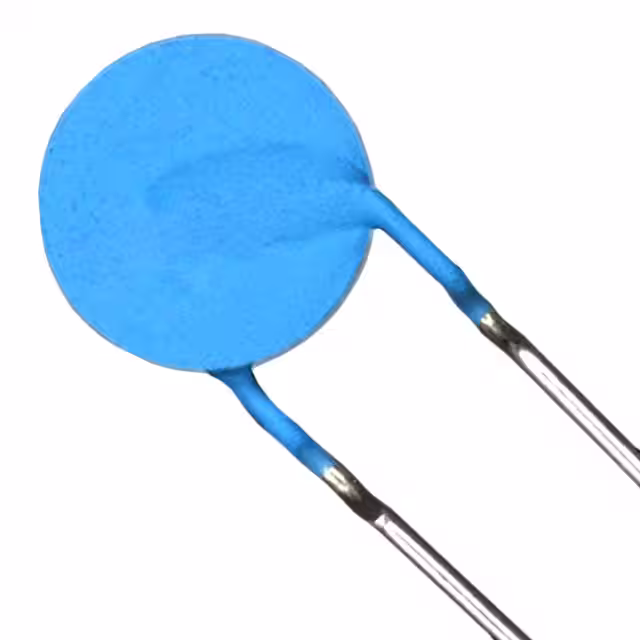

B59840C0120A070PTC RESET FUSE 265V 330MA RADIAL |
3,000 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | - | Active | Ceramic | 265V | 4.1 A | 330 mA | 660 mA | - | - | - | 6 Ohms | 0°C ~ 60°C | - | Through Hole | 0.689 Dia x 0.197 T (17.50mm x 5.00mm) | 0.827 (21.00mm) | - | |

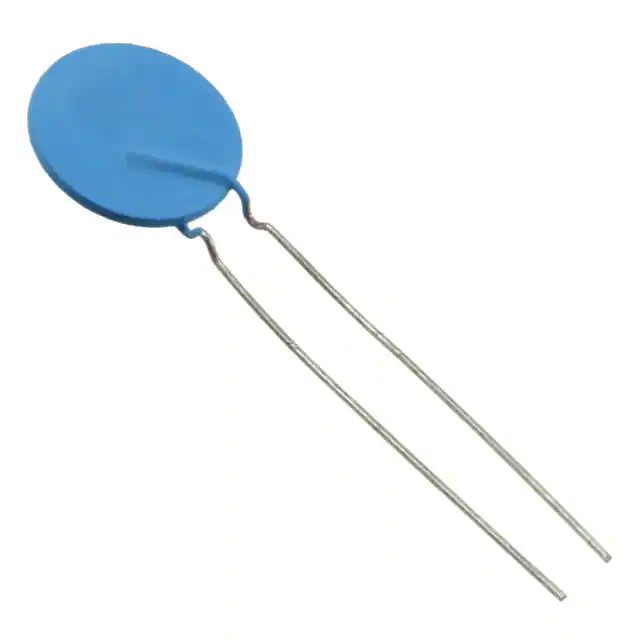

B59945C0160A070PTC RESET FUSE 20V 1.5A RADIAL |
1,823 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | Automotive, AEC-Q200 | Active | Ceramic | 20V | 8 A | 1.5 A | 3.05 A | - | - | - | 450 mOhms | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.689 Dia x 0.138 T (17.50mm x 3.50mm) | 0.827 (21.00mm) | - | |

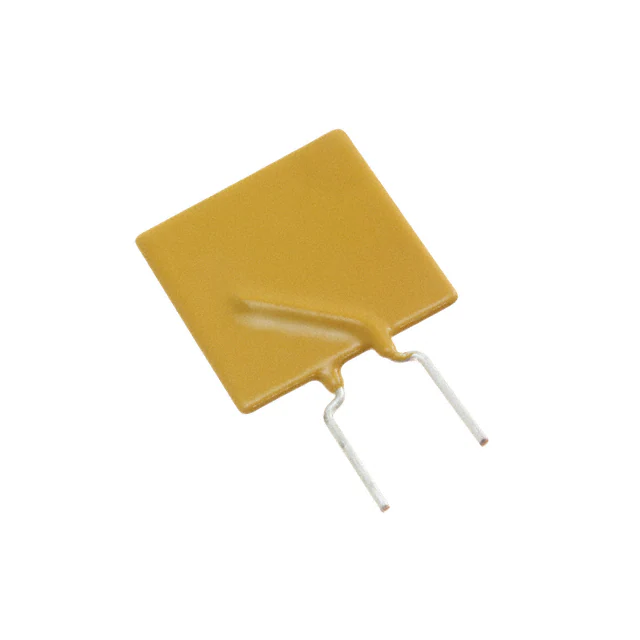

0ZRN1500FF1APTC RESET FUSE 16V 15A RADIAL |
8,024 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | 0ZRN | Active | Polymeric | 16V | 100 A | 15 A | 28 A | 20 s | 3.2 mOhms | 9.2 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.925 L x 0.142 W (23.50mm x 3.60mm) | 1.130 (28.70mm) | - | |
YQS5856PTFPTC RESET FUSE 50V 60MA RADIAL |
1,247 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTF | Active | Ceramic | 50V | - | 60 mA | 120 mA | - | - | - | 100 Ohms | 10°C ~ 55°C | - | Through Hole | 0.421 Dia x 0.201 T (10.70mm x 5.10mm) | 0.472 (12.00mm) | - | |
YS5921PTOPTC RESET FUSE 120V RADIAL DISC |
1,563 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTO | Active | Ceramic | 120V | - | - | - | - | - | - | 200 Ohms | 10°C ~ 55°C | - | Through Hole | 0.300 Dia x 0.200 T (7.62mm x 5.08mm) | 0.300 (7.62mm) | - | |
LR4-1300SSFPTC RESET FUSE 20V 13A STRAP |
53,983 | - |
RFQ |
Datasheet |
Strap | Bag | PolySwitch®, LR4 | Active | Polymeric | 20V | 100 A | 13 A | 21.2 A | 10 s | 3.5 mOhms | 9 mOhms | - | -40°C ~ 85°C | - | User Defined | 2.520 L x 0.382 W (64.00mm x 9.70mm) | - | - | |
YQD120N0025PTC RESET FUSE 265V 130MA RADIAL |
1,330 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | YQ | Active | Ceramic | 265V | 800 mA | 130 mA | 250 mA | - | - | - | 25 Ohms | 0°C ~ 60°C | - | Through Hole | 0.354 Dia x 0.197 T (9.00mm x 5.00mm) | - | - | |
B59930C0120A070PTC RESET FUSE 80V 700MA RADIAL |
3,610 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | - | Active | Ceramic | 80V | 10 A | 700 mA | 1.4 A | - | - | - | 1.65 Ohms | 0°C ~ 60°C | - | Through Hole | 0.866 Dia x 0.138 T (22.00mm x 3.50mm) | 1.004 (25.50mm) | - | |
YQS5868PTFPTC RESET FUSE 120V 80MA RADIAL |
3,093 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTF | Active | Ceramic | 120V | - | 80 mA | 170 mA | - | - | - | 50 Ohms | 10°C ~ 55°C | - | Through Hole | 0.532 Dia x 0.201 T (13.50mm x 5.10mm) | 0.551 (14.00mm) | - | |
YM120D260N150PTC RESET FUSE 265V 234MA RADIAL |
968 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | YM | Active | Ceramic | 265V | 1.7 A | 234 mA | 330 mA | - | - | - | 15 Ohms | 0°C ~ 55°C | - | Through Hole | 0.453 Dia x 0.177 T (11.50mm x 4.50mm) | 0.551 (14.00mm) | - |
