Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
MF-LSMF330X-2 2920 RESETTABLE SMD PPTC 3.3A/6V Bourns Inc.	3,000	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-LSMF	Active	Polymeric	-	-	3.3 A	-	-	-	-	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	-
MF-LSMF260/16X-2 2920 RESETTABLE SMD PPTC 2.6A/16 Bourns Inc.	3,000	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-LSMF	Active	Polymeric	16V	-	2.6 A	-	-	-	-	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	-
AHRF200-2 PTC RESET FUSE 16V 2A RADIAL Littelfuse Inc.	2,500	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, AHRF	Active	Polymeric	16V	100 A	2 A	3.8 A	4.8 s	39 mOhms	110 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.370 Dia x 0.118 T (9.40mm x 3.00mm)	0.567 (14.40mm)	-
MF-R250-2-10 PTC RESET FUSE 30V 2.5A RADIAL Bourns Inc.	4,100	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	Multifuse®, MF-R	Active	Polymeric	30V	40 A	2.5 A	5 A	10.3 s	25 mOhms	70 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.472 L x 0.118 W (12.00mm x 3.00mm)	0.720 (18.30mm)	-
MF-RX185/72-2-14 FUSE PTC RESETTABLE Bourns Inc.	6,600	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	MF-RX/72	Active	-	72V	40 A	1.85 A	3.7 A	12.6 s	-	-	-	-	-	Through Hole	0.701 L x 0.122 W (17.80mm x 3.10mm)	0.902 (22.90mm)	-
TRF250-183-2 PTC RESET FUSE 100V 183MA RADIAL Littelfuse Inc.	1,500	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, TRF250	Active	Polymeric	100V (250V Int)	10 A	183 mA	685 mA	1.8 s	800 mOhms	3.4 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.295 Dia x 0.161 T (7.50mm x 4.10mm)	0.413 (10.50mm)	-
MF-R250-AP PTC RESET FUSE 30V 2.5A RADIAL Bourns Inc.	3,000	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	Multifuse®, MF-R	Active	Polymeric	30V	40 A	2.5 A	5 A	10.3 s	25 mOhms	70 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.472 L x 0.118 W (12.00mm x 3.00mm)	0.720 (18.30mm)	-
2920L030DR-A PTC RESET FUSE 60V 300MA 2920 Littelfuse Inc.	2,474	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 2920L	Active	Polymeric	60V	10 A	300 mA	600 mA	3 s	1.2 Ohms	4.8 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.049 (1.25mm)
MF-RX018/250-2 PTC RESET FUSE 60V 180MA RADIAL Bourns Inc.	4,500	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-RX/250	Active	Polymeric	60V (250V Int)	10 A	180 mA	-	-	800 mOhms	4 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.433 L x 0.181 W (11.00mm x 4.60mm)	0.535 (13.60mm)	-
MF-R300-2-14 PTC RESET FUSE 30V 3A RADIAL Bourns Inc.	3,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	Multifuse®, MF-R	Active	Polymeric	30V	40 A	3 A	6 A	10.8 s	20 mOhms	80 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.472 L x 0.118 W (12.00mm x 3.00mm)	0.720 (18.30mm)	-
MF-LSMF185/24X-2 2920 RESETTABLE SMD PPTC 1.85/24 Bourns Inc.	3,000	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-LSMF	Active	Polymeric	24V	-	1.85 A	-	-	-	-	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	-

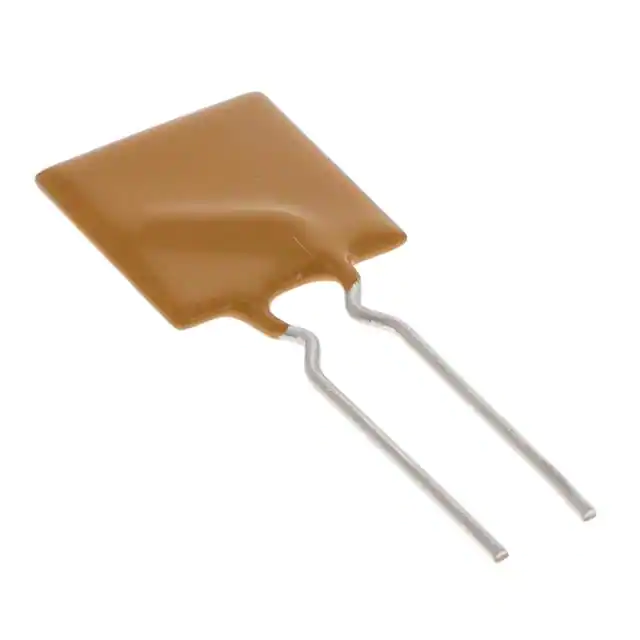

MF-R400-2-14 PTC RESET FUSE 30V 4A RADIAL Bourns Inc.	2,468	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-R	Active	Polymeric	30V	40 A	4 A	8 A	12.7 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.567 L x 0.118 W (14.40mm x 3.00mm)	0.976 (24.80mm)	-
MF-RX012/250-T-2 PTC RESET FUSE 60V 120MA RADIAL Bourns Inc.	1,500	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-RX/250	Active	Polymeric	60V (250V Int)	3 A	120 mA	-	-	7 Ohms	16 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.256 L x 0.181 W (6.50mm x 4.60mm)	0.433 (11.00mm)	-
RS30-110 PTC RESET FUSE 30V 1.1A RADIAL OptiFuse	3,041	-	RFQ	Datasheet	Radial, Disc	Bulk	RS30	Active	Polymeric	30V	100 A	1.1 A	2.2 A	6.6 s	50 mOhms	170 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.291 L x 0.118 W (7.40mm x 3.00mm)	0.559 (14.20mm)	-
AGRF700-2 PTC RESET FUSE 16V 7A RADIAL Littelfuse Inc.	1,500	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, AGRF	Active	Polymeric	16V	100 A	7 A	13.2 A	4 s	6.6 mOhms	20 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.441 L x 0.118 W (11.20mm x 3.00mm)	0.827 (21.00mm)	-
MF-USHT016KX-2 PTC RESET FUSE 30V 160MA 1210 Bourns Inc.	3,000	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-USHT	Active	Polymeric	30V	20 A	160 mA	800 mA	100 ms	700 mOhms	6 Ohms	-	-40°C ~ 125°C	AEC-Q200	Surface Mount	0.127 L x 0.101 W (3.22mm x 2.58mm)	-	0.033 (0.85mm)
RS90-090 PTC RESET FUSE 72V 900MA RADIAL OptiFuse	6,200	-	RFQ	Datasheet	Radial, Disc	Bulk	RS90	Active	Polymeric	72V (90V Int)	40 A	900 mA	1.8 A	7.2 s	200 mOhms	470 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.461 Dia x 0.122 T (11.70mm x 3.10mm)	0.622 (15.80mm)	-

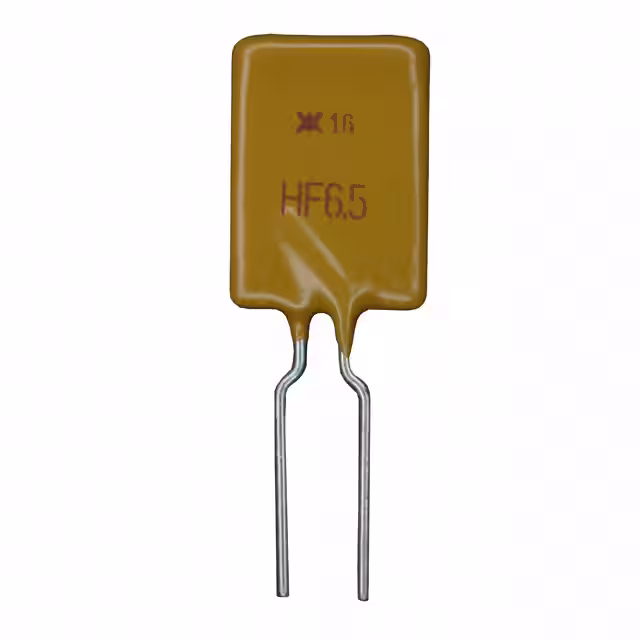

RHEF650-2 PTC RESET FUSE 16V 6.5A RADIAL Littelfuse Inc.	3,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT)	PolySwitch®, RHEF	Active	Polymeric	16V	100 A	6.5 A	12 A	5.5 s	11 mOhms	26 mOhms	-	-40°C ~ 125°C	-	Through Hole	0.500 L x 0.118 W (12.70mm x 3.00mm)	0.874 (22.20mm)	-
MF-LSMF330/12X-2 2920 RESETTABLE SMD PPTC 3.3A/12 Bourns Inc.	3,000	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-LSMF	Active	Polymeric	12V	-	3.3 A	-	-	-	-	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	-

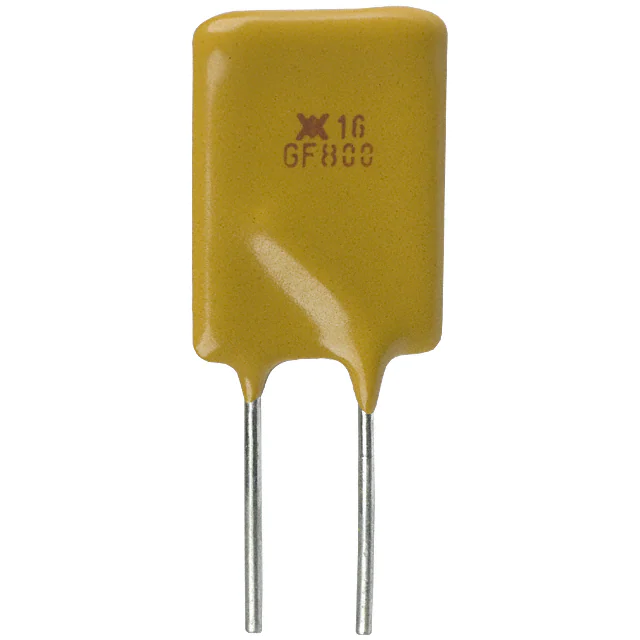

RGEF800-2 PTC RESET FUSE 16V 8A RADIAL Littelfuse Inc.	4,500	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RGEF	Active	Polymeric	16V	100 A	8 A	13.6 A	5 s	5.6 mOhms	17.5 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.480 L x 0.098 W (12.20mm x 2.50mm)	0.823 (20.90mm)	-
