Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
AHRF600-2 PTC RESET FUSE 16V 6A RADIAL Littelfuse Inc.	2,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT)	PolySwitch®, AHRF	Active	Polymeric	16V	100 A	6 A	12 A	6.5 s	10 mOhms	32 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.441 L x 0.118 W (11.20mm x 3.00mm)	0.827 (21.00mm)	-
R0603LR-035-R PTC RESET FUSE 6V 350MA 0603 OptiFuse	12,000	-	RFQ	Datasheet	0603 (1608 Metric), Concave	Tape & Reel (TR)	R0603LR	Active	Polymeric	6V	100 A	350 mA	750 mA	100 ms	200 mOhms	1 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.063 L x 0.029 W (1.60mm x 0.73mm)	-	0.030 (0.75mm)
R2920-100-R PTC RESET FUSE 33V 1.1A 2920 OptiFuse	4,000	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR)	R2920	Active	Polymeric	33V	100 A	1.1 A	2.2 A	500 ms	90 mOhms	410 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.039 (1.00mm)
R2920-050-R PTC RESET FUSE 60V 500MA 2920 OptiFuse	2,000	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR)	R2920	Active	Polymeric	60V	100 A	500 mA	1 A	4 s	300 mOhms	1.4 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.045 (1.15mm)
MF-RX012/250-2-2 PTC RESET FUSE 60V 120MA RADIAL Bourns Inc.	6,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-RX/250	Active	Polymeric	60V (250V Int)	3 A	120 mA	-	-	8 Ohms	16 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.256 L x 0.181 W (6.50mm x 4.60mm)	0.433 (11.00mm)	-
MF-LSMF300/16X-2 2920 RESETTABLE SMD PPTC 3.0A/16 Bourns Inc.	2,950	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-LSMF	Active	Polymeric	16V	-	3 A	-	-	-	-	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	-
MF-R700-2 PTC RESET FUSE 30V 7A RADIAL Bourns Inc.	3,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-R	Active	Polymeric	30V	40 A	7 A	14 A	17.5 s	5 mOhms	30 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.870 L x 0.118 W (22.10mm x 3.00mm)	1.173 (29.80mm)	-

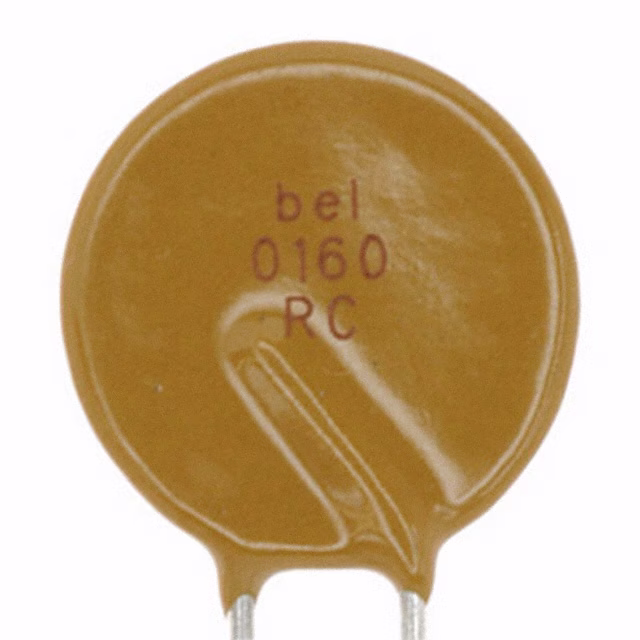

0ZRC0160FF1A PTC RESET FUSE 90V 1.6A RADIAL Bel Fuse Inc.	1,868	-	RFQ	Datasheet	Radial, Disc	Box	0ZRC	Active	Polymeric	90V	40 A	1.6 A	3.2 A	11.4 s	90 mOhms	220 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.641 L x 0.122 W (16.30mm x 3.10mm)	0.839 (21.30mm)	-
MF-USML175/12-2 PTC RESET FUSE 12V 1.75A 1210 Bourns Inc.	5,000	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-USML/X	Active	Polymeric	12V	50 A	1.75 A	3.5 A	800 ms	6 mOhms	50 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.101 W (3.22mm x 2.58mm)	-	0.031 (0.80mm)
TRF250-145T-2 PTC RESET FUSE 60V 145MA RADIAL Littelfuse Inc.	1,500	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, TRF250	Active	Polymeric	60V (250V Int)	3 A	145 mA	290 mA	1.5 s	5.4 Ohms	14 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.181 L x 0.181 W (4.60mm x 4.60mm)	0.433 (11.00mm)	-

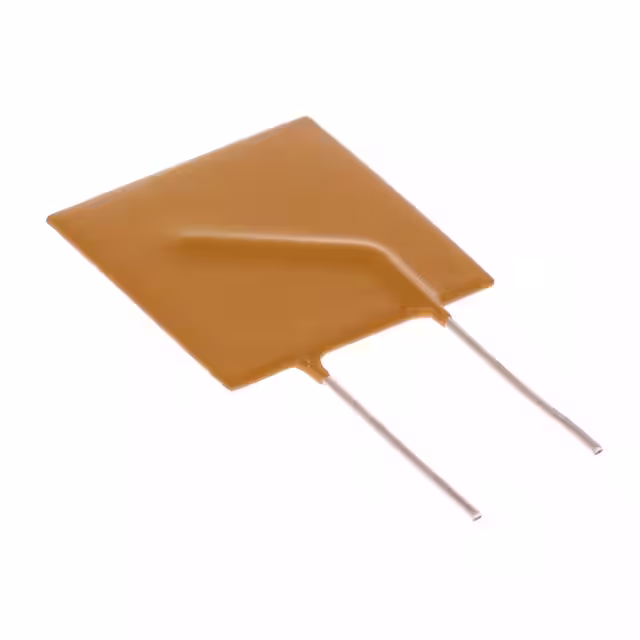

MF-R800-2 PTC RESET FUSE 30V 8A RADIAL Bourns Inc.	2,827	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-R	Active	Polymeric	30V	40 A	8 A	16 A	18.8 s	5 mOhms	30 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.953 L x 0.118 W (24.20mm x 3.00mm)	1.295 (32.90mm)	-
R1812-110-24-R PTC RESET FUSE 24V 1.1A 1812 OptiFuse	1,500	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	R1812	Active	Polymeric	24V	100 A	1.1 A	2.2 A	500 ms	60 mOhms	200 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.051 (1.30mm)
MF-RG400-0 PTC RESET FUSE 16V 3A RADIAL Bourns Inc.	2,098	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-RG	Active	Polymeric	16V	100 A	3 A	5.1 A	1 s	38 mOhms	65 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.350 Dia x 0.118 T (8.90mm x 3.00mm)	0.504 (12.80mm)	-
MF-RG700-2 PTC RESET FUSE 16V 7A RADIAL Bourns Inc.	2,960	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-RG	Active	Polymeric	16V	100 A	7 A	11.9 A	8 s	8 mOhms	21 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.441 Dia x 0.118 T (11.20mm x 3.00mm)	0.740 (18.80mm)	-
MF-USML380/12-2 PTC RESET FUSE 12V 3.8A 1210 Bourns Inc.	3,450	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-USML/X	Active	Polymeric	12V	50 A	3.8 A	7.6 A	5 s	2 mOhms	20 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.101 W (3.22mm x 2.58mm)	-	0.047 (1.20mm)
MF-LSMF300/24X-2 PTC RESET FUSE 24V 3A 2920 Bourns Inc.	25,999	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-LSMF	Active	Polymeric	24V	20 A	3 A	5.2 A	5 s	20 mOhms	75 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.289 L x 0.202 W (7.36mm x 5.12mm)	-	0.063 (1.60mm)
MINIASMDC075F-2 PTC RESET FUSE 13.2V 750MA 1812 Littelfuse Inc.	1,975	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Bulk	PolySwitch®, miniASMD	Active	Polymeric	13.2V	100 A	750 mA	1.5 A	200 ms	110 mOhms	450 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.024 (0.62mm)
MF-RG800-2 PTC RESET FUSE 16V 8A RADIAL Bourns Inc.	3,874	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-RG	Active	Polymeric	16V	100 A	8 A	13.6 A	5 s	5.6 mOhms	17.5 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.500 L x 0.118 W (12.70mm x 3.00mm)	0.823 (20.90mm)	-
MF-R1100-2 PTC RESET FUSE 16V 11A RADIAL Bourns Inc.	3,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-R	Active	Polymeric	16V	100 A	11 A	22 A	20 s	3 mOhms	14 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.953 L x 0.118 W (24.20mm x 3.00mm)	1.295 (32.90mm)	-
MF-RG600-0 PTC RESET FUSE 16V RADIAL DISC Bourns Inc.	2,963	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-RG	Active	Polymeric	16V	100 A	-	18.7 A	-	3 mOhms	10 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.421 L x 0.118 W (10.70mm x 3.00mm)	0.673 (17.10mm)	-
