Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
TS250-130F-RB-2 PTC RESET FUSE 60V 130MA 2SMD Littelfuse Inc.	11,380	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, TS250	Active	Polymeric	60V (600V Int)	1 A	130 mA	260 mA	1.5 s	9 Ohms	20 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.352 L x 0.291 W (8.95mm x 7.40mm)	-	0.134 (3.40mm)
MF-MSHT050KX-2 1812 HIGH TEMP SMD POLYMER PTC 0 Bourns Inc.	2,741	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse® MF-MSHT	Active	Polymeric	30V	40 A	500 mA	2.5 A	100 ms	180 mOhms	1.6 Ohms	-	-40°C ~ 125°C	AEC-Q200	Surface Mount	0.181 L x 0.128 W (4.60mm x 3.24mm)	-	0.033 (0.85mm)
MF-MSHT110KX-2 1812 HIGH TEMP SMD POLYMER PTC 1 Bourns Inc.	2,274	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse® MF-MSHT	Active	Polymeric	16V	40 A	1.1 A	5.5 A	5 s	50 mOhms	450 mOhms	-	-40°C ~ 125°C	AEC-Q200	Surface Mount	0.181 L x 0.128 W (4.60mm x 3.24mm)	-	0.047 (1.20mm)
MF-RG900-2 PTC RESET FUSE 16V 9A RADIAL Bourns Inc.	6,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-RG	Active	Polymeric	16V	100 A	9 A	15.3 A	12 s	4 mOhms	15 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	0.819 (20.80mm)	-
PFRA.400.2 PTC RESET FUSE 30V 4A RADIAL SCHURTER Inc.	1,500	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PFRA	Active	Polymeric	30V	40 A	4 A	8 A	12.7 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.567 L x 0.118 W (14.40mm x 3.00mm)	0.976 (24.80mm)	-
RS60RB-025 PTC RESET FUSE 60V 250MA RADIAL OptiFuse	4,989	-	RFQ	Datasheet	Radial, Disc	Bulk	RS60RB	Active	Polymeric	60V	40 A	250 mA	500 mA	2.5 s	1.25 Ohms	3 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.500 (12.70mm)	-

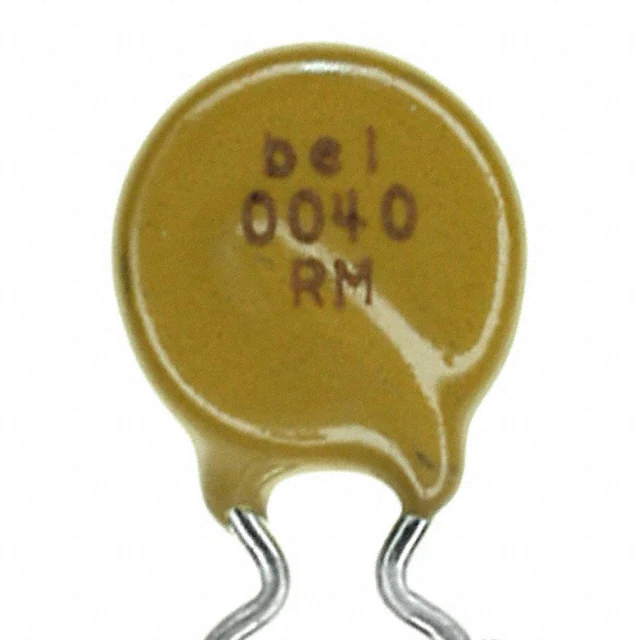

0ZRM0040FF1E PTC RESET FUSE 120V 400MA RADIAL Bel Fuse Inc.	2,393	-	RFQ	Datasheet	Radial, Disc	Box	0ZRM	Active	Polymeric	120V	3 A	400 mA	800 mA	6.5 s	550 mOhms	1.29 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.323 Dia x 0.150 T (8.20mm x 3.80mm)	0.559 (14.20mm)	-
RS60RB-010 PTC RESET FUSE 60V 100MA RADIAL OptiFuse	1,099	-	RFQ	Datasheet	Radial, Disc	Bulk	RS60RB	Active	Polymeric	60V	40 A	100 mA	200 mA	4 s	2.5 Ohms	7.5 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.500 (12.70mm)	-

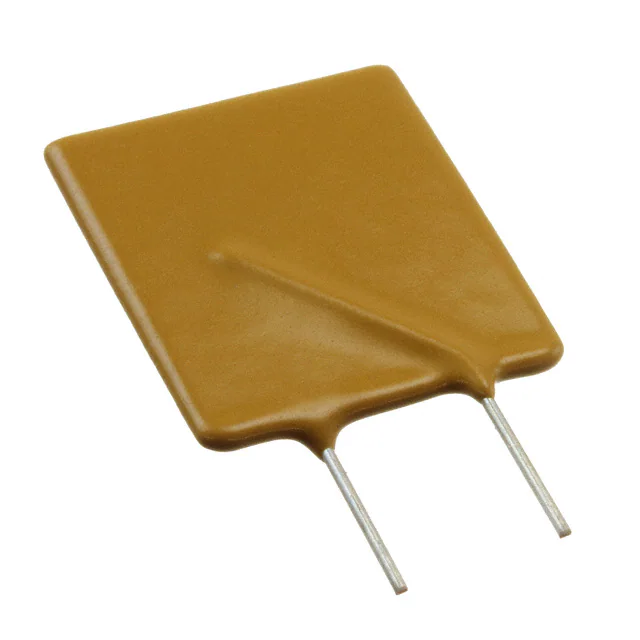

0ZRP0500FF2A PTC RESET FUSE 60V 5A RADIAL Bel Fuse Inc.	5,421	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	0ZRP	Active	Polymeric	60V	40 A	5 A	10 A	28 s	12 mOhms	50 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.949 L x 0.118 W (24.10mm x 3.00mm)	1.142 (29.00mm)	-

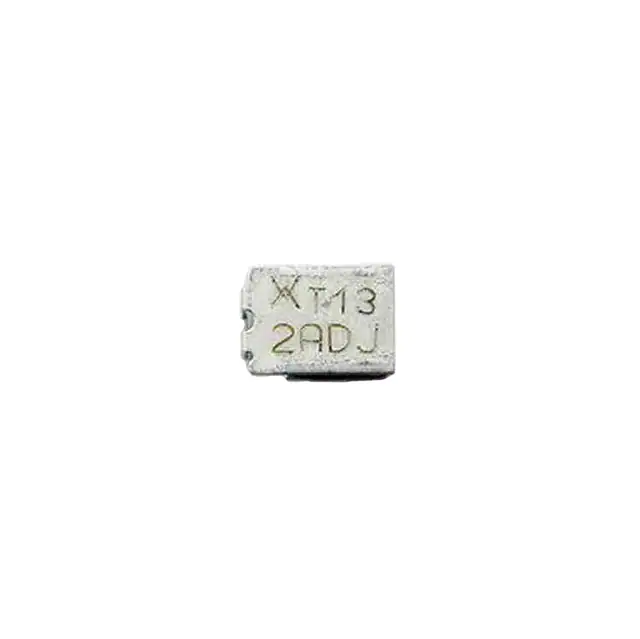

TS250-130F-B-0.5-2 PPTC-TLINE-PSW Littelfuse Inc.	14,990	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	TS	Active	Polymeric	60V (600V Int)	3 A	130 mA	260 mA	900 ms	6.5 Ohms	20 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.352 L x 0.291 W (8.95mm x 7.40mm)	-	0.134 (3.40mm)
TS250130F-B-0.5-2 PTC RESET FUSE 60V 130MA 2SMD Littelfuse Inc.	7,500	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, TS250	Active	Polymeric	60V (600V Int)	1 A	130 mA	260 mA	2.5 s	6.5 Ohms	20 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.352 L x 0.291 W (8.95mm x 7.40mm)	-	0.134 (3.40mm)

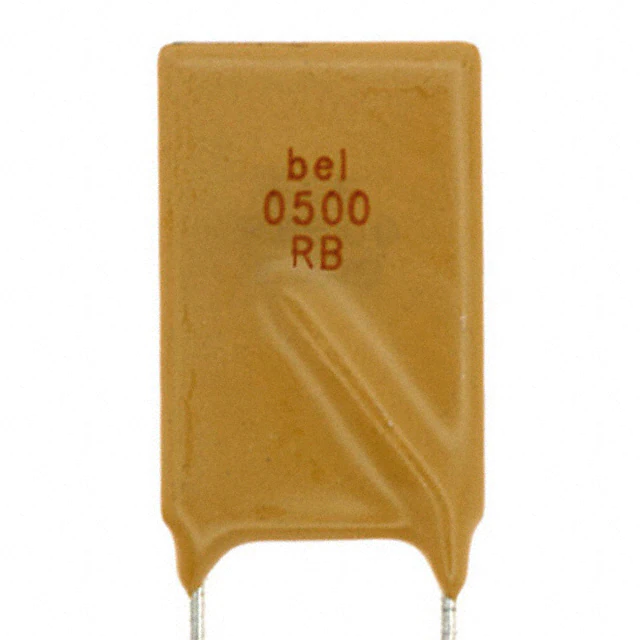

0ZRB0500FF1A PTC RESET FUSE 30V 5A RADIAL Bel Fuse Inc.	1,532	-	RFQ	Datasheet	Radial, Disc	Box	0ZRB	Active	Polymeric	30V	40 A	5 A	10 A	14.5 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	0.980 (24.90mm)	-
MF-RHT800-2 PTC RESET FUSE 16V 8A RADIAL Bourns Inc.	3,000	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-RHT	Active	Polymeric	16V	100 A	8 A	15 A	8 s	8 mOhms	20 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.630 L x 0.118 W (16.00mm x 3.00mm)	0.886 (22.50mm)	-
MF-RHT900-2 PTC RESET FUSE 16V 9A RADIAL Bourns Inc.	2,988	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-RHT	Active	Polymeric	16V	100 A	9 A	16.5 A	10 s	7.4 mOhms	17 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.650 L x 0.118 W (16.50mm x 3.00mm)	1.012 (25.70mm)	-

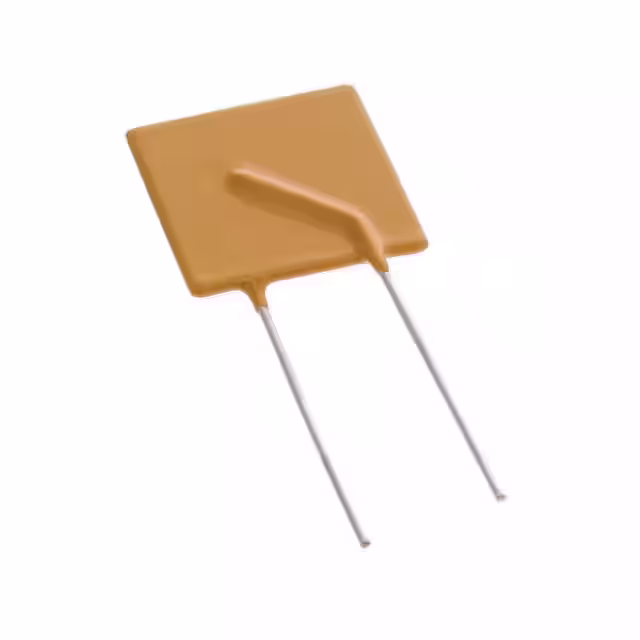

RKEF400-2 RKEF400-2 Littelfuse Inc.	5,137	-	RFQ		Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RKEF	Active	Polymeric	60V	40 A	4 A	8 A	24 s	14 mOhms	60 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.827 L x 0.118 W (21.00mm x 3.00mm)	0.980 (24.90mm)	-

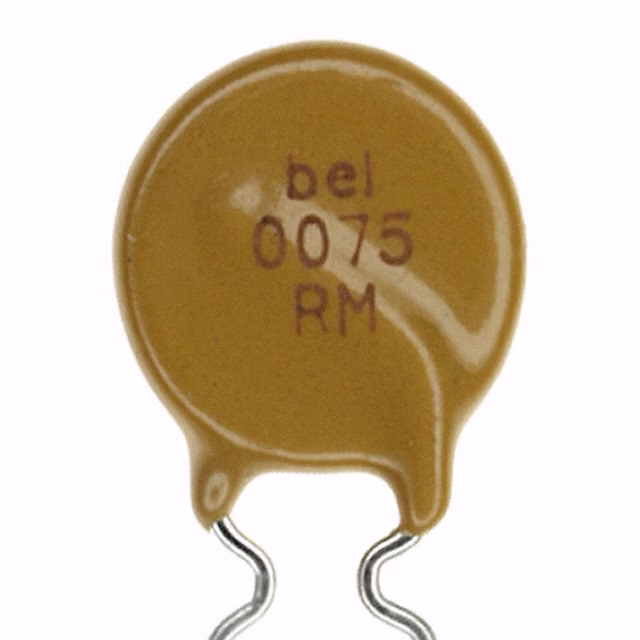

0ZRM0075FF1E PTC RESET FUSE 120V 750MA RADIAL Bel Fuse Inc.	2,946	-	RFQ	Datasheet	Radial, Disc	Box	0ZRM	Active	Polymeric	120V	5 A	750 mA	1.5 A	6.3 s	250 mOhms	600 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.417 Dia x 0.150 T (10.60mm x 3.80mm)	0.610 (15.50mm)	-
MF-RM005/240-0 PTC RESET FUSE 240V 50MA RADIAL Bourns Inc.	2,521	-	RFQ	Datasheet	Radial, Disc	Bulk	Multifuse®, MF-RM	Active	Polymeric	240V (265V Int)	1 A	50 mA	120 mA	10 s	18.5 Ohms	65 Ohms	-	-20°C ~ 85°C	-	Through Hole	0.327 Dia x 0.150 T (8.30mm x 3.80mm)	0.508 (12.90mm)	-
0ZRM0075AF1E PTC RESET FUSE 120V 750MA RADIAL Bel Fuse Inc.	1,865	-	RFQ	Datasheet	Radial, Disc	Box	0ZRM	Active	Polymeric	120V	7 A	750 mA	1.5 A	15 s	250 mOhms	690 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.429 Dia x 0.161 T (10.90mm x 4.10mm)	0.669 (17.00mm)	-
MF-FSML260/6-2 PTC RESET FUSE 6V 2.6A 0603 Bourns Inc.	4,000	-	RFQ	Datasheet	0603 (1608 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-FSML	Active	Polymeric	6V	50 A	2.6 A	5.2 A	5 s	3 mOhms	55 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.065 L x 0.033 W (1.65mm x 0.85mm)	-	0.055 (1.40mm)
MICROASMD050F-2 PTC RESET FUSE 13.2V 500MA 1210 Littelfuse Inc.	1,940	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Bulk	PolySwitch®, microASMD	Active	Polymeric	13.2V	40 A	500 mA	1 A	50 ms	250 mOhms	900 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.127 L x 0.102 W (3.22mm x 2.58mm)	-	0.024 (0.62mm)
