Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
PTSLR12066V200 PTC RESET FUSE 6V 2A 1206 Eaton - Electronics Division	3,168	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PTSLR1206	Active	Polymeric	6V	50 A	2 A	4 A	500 ms	5 mOhms	40 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.128 L x 0.065 W (3.25mm x 1.65mm)	-	0.047 (1.20mm)
RGEF300K-2 PTC RESET FUSE 16V 3A RADIAL Littelfuse Inc.	7,500	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RGEF	Active	Polymeric	16V	100 A	3 A	5.1 A	1 s	38 mOhms	97.5 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.260 L x 0.098 W (6.60mm x 2.50mm)	0.535 (13.60mm)	-
RUEF300-AP PTC RESET FUSE 30V 3A RADIAL Littelfuse Inc.	3,032	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	3 A	6 A	10.8 s	20 mOhms	80 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.449 L x 0.118 W (11.40mm x 3.00mm)	0.650 (16.50mm)	-
MF-USMF175X-2 PTC RESET FUSE 6V 1.75A 1210 Bourns Inc.	6,009	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-USMF	Active	-	6V	40 A	1.75 A	3.5 A	1 s	-	-	-	-	-	Surface Mount	0.127 L x 0.102 W (3.22mm x 2.58mm)	-	0.033 (0.85mm)
0ZTH0020FF2E PTC RESET FUSE 200MA 30V 1210 Bel Fuse Inc.	4,731	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	0ZTH	Active	Polymeric	30V	10 A	200 mA	500 mA	100 ms	800 mOhms	5 Ohms	-	-40°C ~ 125°C	AEC-Q200	Surface Mount	0.127 L x 0.102 W (3.22mm x 2.58mm)	-	0.047 (1.20mm)
MF-SM300-2 PTC RESET FUSE 6V 3A 2SMD Bourns Inc.	4,875	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-SM	Active	Polymeric	6V	100 A	3 A	6 A	35 s	15 mOhms	48 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.287 L x 0.214 W (7.31mm x 5.44mm)	-	0.118 (3.00mm)
MF-MSMF150/12-2 PTC RESET FUSE 12V 1.5A 1812 Bourns Inc.	4,000	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	Multifuse®, MF-MSMF	Active	Polymeric	12V	-	1.5 A	3 A	-	30 mOhms	120 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.033 (0.85mm)

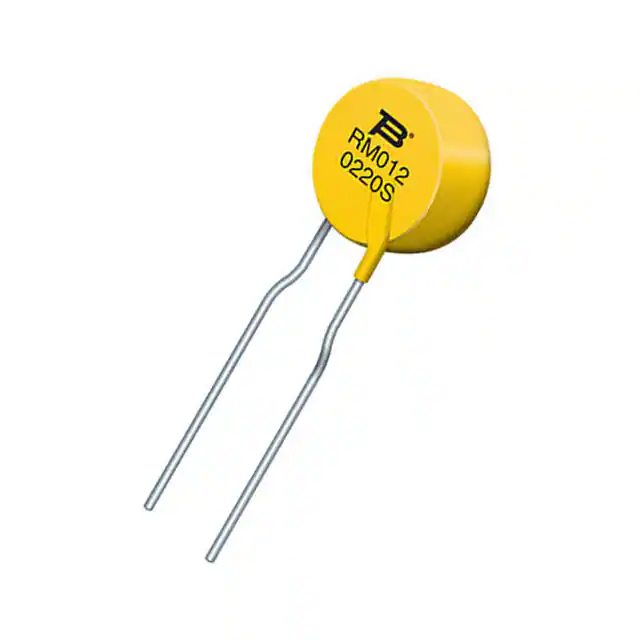

MF-RM012/240-2 PTC RESET FUSE 240V 120MA RADIAL Bourns Inc.	3,421	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-RM	Active	Polymeric	240V (265V Int)	1.2 A	120 mA	300 mA	15 s	3 Ohms	12 Ohms	-	-20°C ~ 85°C	-	Through Hole	0.327 Dia x 0.150 T (8.30mm x 3.80mm)	0.508 (12.90mm)	-

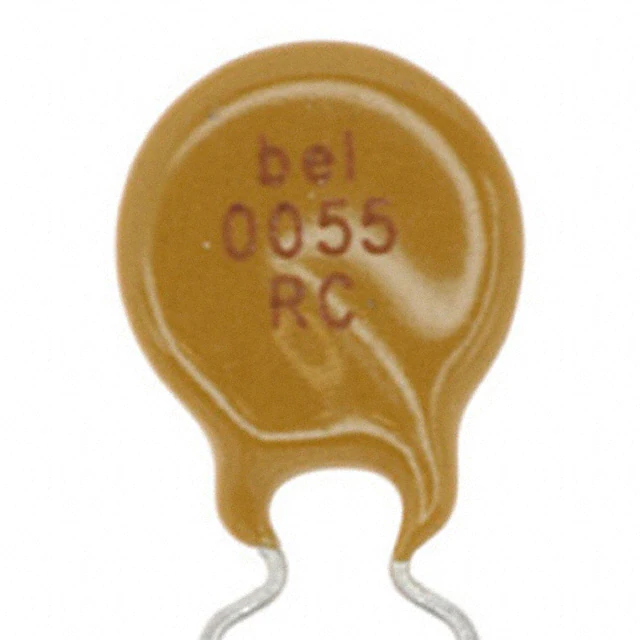

0ZRC0055FF1E PTC RESET FUSE 90V 550MA RADIAL Bel Fuse Inc.	5,972	-	RFQ	Datasheet	Radial, Disc	Box	0ZRC	Active	Polymeric	90V	40 A	550 mA	1.2 A	10 s	400 mOhms	1.5 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.382 L x 0.122 W (9.70mm x 3.10mm)	0.551 (14.00mm)	-
PTSLR12066V075 PTC RESET FUSE 6V 750MA 1206 Eaton - Electronics Division	6,096	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PTSLR1206	Active	Polymeric	6V	50 A	750 mA	1.5 A	300 ms	17 mOhms	180 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.128 L x 0.065 W (3.25mm x 1.65mm)	-	0.028 (0.70mm)
PFMF.200.2 PTC RESET FUSE 8V 2A 1812 SCHURTER Inc.	3,902	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFMF	Active	Polymeric	8V	40 A	2 A	4 A	3 s	20 mOhms	80 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.033 (0.85mm)

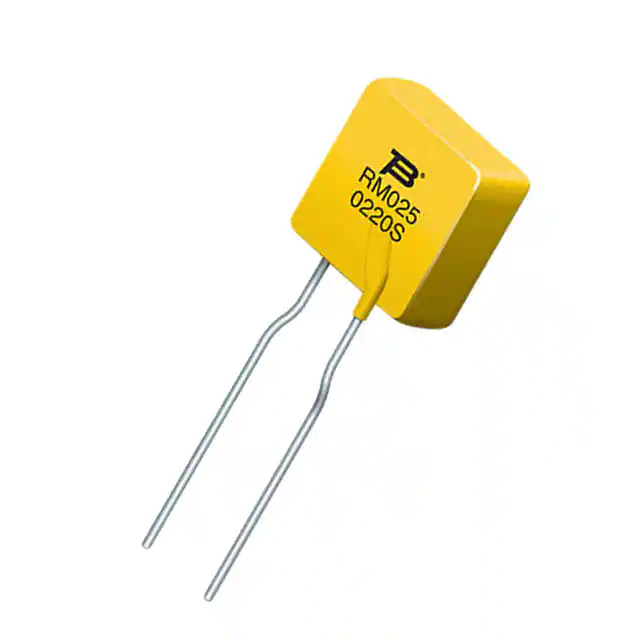

MF-RM025/240-2 PTC RESET FUSE 240V 250MA RADIAL Bourns Inc.	2,932	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-RM	Active	Polymeric	240V (265V Int)	3.5 A	250 mA	560 mA	18.5 s	1.3 Ohms	3.8 Ohms	-	-20°C ~ 85°C	-	Through Hole	0.394 L x 0.150 W (10.00mm x 3.80mm)	0.787 (20.00mm)	-
LVR008NS-2 PTC RESET FUSE 240V 80MA RADIAL Littelfuse Inc.	5,674	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, LVR	Active	Polymeric	240V (265V Int)	1.2 A	80 mA	190 mA	10 s	7.4 Ohms	26 Ohms	-	-20°C ~ 85°C	-	Through Hole	0.283 Dia x 0.181 T (7.20mm x 4.60mm)	0.402 (10.20mm)	-
ASMDC030F-2 PTC RESET FUSE 60V 300MA 2SMD Littelfuse Inc.	8,534	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, ASMD	Active	Polymeric	60V	10 A	300 mA	600 mA	3 s	300 mOhms	3.4 Ohms	-	-	PS300, PS400	Surface Mount	0.295 L x 0.201 W (7.50mm x 5.10mm)	-	0.035 (0.90mm)
0ZRR0040FF1E PTC RESET FUSE 60V 400MA RADIAL Bel Fuse Inc.	4,247	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRR	Active	Polymeric	60V	40 A	400 mA	800 mA	3.8 s	550 mOhms	1.29 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.299 Dia x 0.122 T (7.60mm x 3.10mm)	0.532 (13.50mm)	-

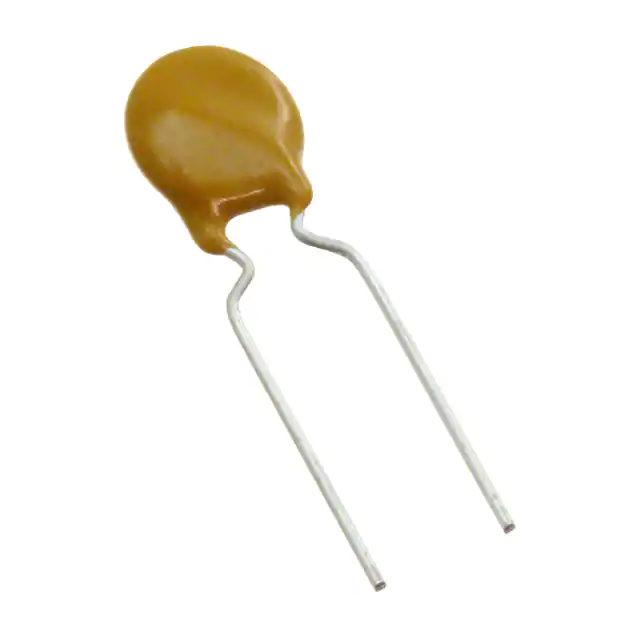

0ZRR0030FF1E PTC RESET FUSE 60V 300MA RADIAL Bel Fuse Inc.	3,012	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRR	Active	Polymeric	60V	40 A	300 mA	600 mA	3 s	880 mOhms	2.1 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.512 (13.00mm)	-

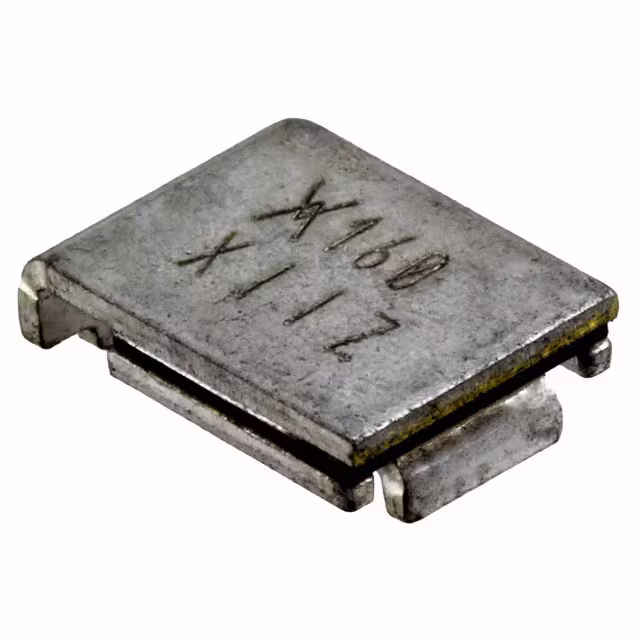

SMDH160-2 PTC RESET FUSE 16V 1.6A 2SMD Littelfuse Inc.	1,500	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, SMD	Active	Polymeric	16V	70 A	1.6 A	3.2 A	15 s	50 mOhms	150 mOhms	-	-40°C ~ 125°C	-	Surface Mount	0.343 L x 0.250 W (8.70mm x 6.36mm)	-	0.118 (3.00mm)
0ZRE0055FF2A PTC RESET FUSE 240V 550MA RADIAL Bel Fuse Inc.	52,258	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	0ZRE	Active	Polymeric	240V	7 A	550 mA	1.25 A	26 s	450 mOhms	1.45 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.551 L x 0.161 W (14.00mm x 4.10mm)	0.854 (21.70mm)	-
MF-SMHT160-2 PTC RESET FUSE 16V 1.6A 2SMD Bourns Inc.	2,535	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-SMHT	Active	Polymeric	16V	100 A	1.6 A	3.2 A	10 s	50 mOhms	150 mOhms	-	-40°C ~ 125°C	AEC-Q200	Surface Mount	0.374 L x 0.234 W (9.50mm x 5.94mm)	-	0.118 (3.00mm)
MF-NSML150/6-2 PTC RESET FUSE 6V 1.5A 1206 Bourns Inc.	5,134	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-NSML/X	Active	Polymeric	6V	50 A	1.5 A	3 A	5 s	10 mOhms	65 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.128 L x 0.063 W (3.25mm x 1.60mm)	-	0.028 (0.70mm)
