Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
RHEF900 PTC RESET FUSE 16V 9A RADIAL Littelfuse Inc.	1,216	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RHEF	Active	Polymeric	16V	100 A	9 A	16.5 A	10 s	7.4 mOhms	17 mOhms	-	-40°C ~ 125°C	-	Through Hole	0.650 L x 0.118 W (16.50mm x 3.00mm)	1.012 (25.70mm)	-
PTCCL05H760HBE PTC RESET FUSE 265V 76MA RADIAL Vishay Beyschlag/Draloric/BC Components	2,327	-	RFQ	Datasheet	Radial, Disc	Bulk	PTCCL - 265V	Active	Ceramic	265V	550 mA	76 mA	115 mA	-	-	-	85 Ohms	0°C ~ 70°C	-	Through Hole	0.197 Dia x 0.217 T (5.00mm x 5.50mm)	0.394 (10.00mm)	-

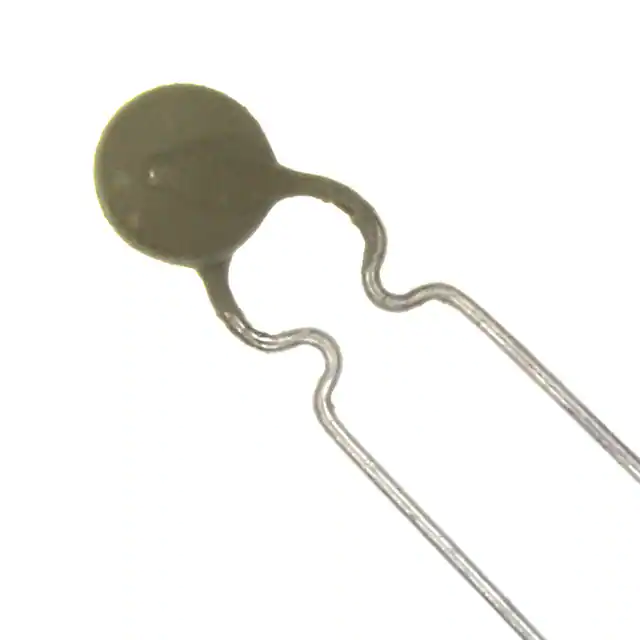

PTCCL05H940EBE PTC RESET FUSE 60V 94MA RADIAL Vishay Beyschlag/Draloric/BC Components	1,422	-	RFQ	Datasheet	Radial, Disc	Bulk	PTCCL - 60V	Active	Ceramic	60V	800 mA	94 mA	145 mA	-	-	-	50 Ohms	-40°C ~ 85°C	-	Through Hole	0.197 Dia x 0.157 T (5.00mm x 4.00mm)	0.394 (10.00mm)	-
LR4-600F PTC RESET FUSE 20V 6A STRAP Littelfuse Inc.	18,510	-	RFQ	Datasheet	Strap	Bag	PolySwitch®, LR4	Active	Polymeric	20V	100 A	6 A	11.7 A	5 s	7 mOhms	19 mOhms	-	-40°C ~ 85°C	-	User Defined	0.984 L x 0.559 W (25.00mm x 14.20mm)	-	0.039 (1.00mm)

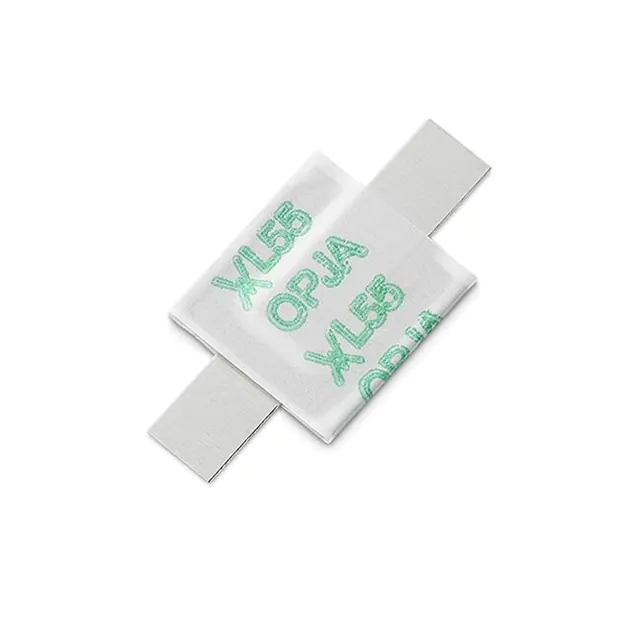

LSP550 PTC RESET FUSE 16V 5.5A Littelfuse Inc.	9,878	-	RFQ	Datasheet	Strap	Bag	PolySwitch®, LSP	Active	Polymeric	16V	50 A	5.5 A	10.2 A	5 s	8 mOhms	26 mOhms	13 mOhms	-40°C ~ 85°C	AEC-Q200	User Defined	0.787 L x 0.402 W (20.00mm x 10.20mm)	-	0.035 (0.90mm)
MF-RHT1000-0 PTC RESET FUSE 16V 10A RADIAL Bourns Inc.	3,000	-	RFQ	Datasheet	Radial, Disc	Bag	Multifuse®, MF-RHT	Active	Polymeric	16V	100 A	10 A	18.5 A	9 s	6.2 mOhms	15 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.689 L x 0.118 W (17.50mm x 3.00mm)	1.051 (26.70mm)	-
NTE16010-ECG PTC RESET FUSE 30V 900MOHM RAD NTE Electronics, Inc	412	-	RFQ	Datasheet	Radial, Disc	Bag	-	Active	Polymeric	30V	40 A	900 mOhms	1.8 A	5.9 s	70 mOhms	220 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.290 L x 0.120 W (7.40mm x 3.00mm)	0.480 (12.20mm)	-

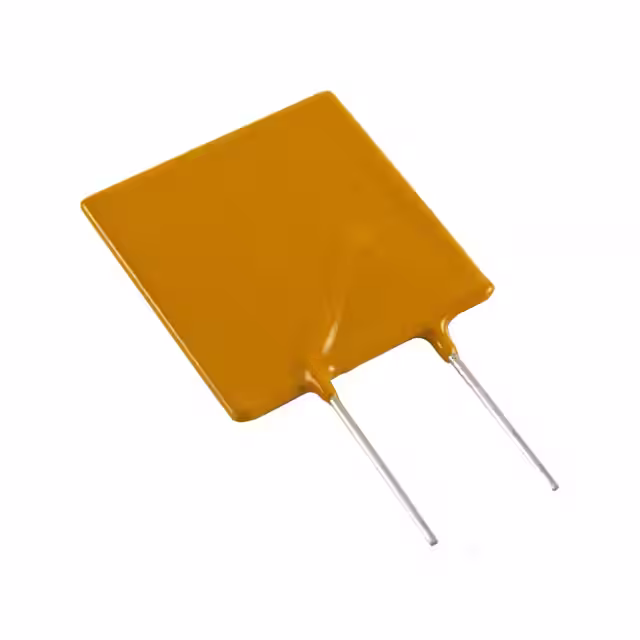

NTE16018-ECG PTC RESET FUSE 30V 5A RADIAL NTE Electronics, Inc	136	-	RFQ	Datasheet	Radial, Disc	Bag	-	Active	Polymeric	30V	40 A	5 A	10 A	14.5 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.690 L x 0.118 W (17.40mm x 3.00mm)	0.980 (24.90mm)	-
MF-RHT1100-0 PTC RESET FUSE 16V 11A RADIAL Bourns Inc.	3,000	-	RFQ	Datasheet	Radial, Disc	Bag	Multifuse®, MF-RHT	Active	Polymeric	16V	100 A	11 A	20 A	11 s	5.5 mOhms	13 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.827 L x 0.118 W (21.00mm x 3.00mm)	1.028 (26.10mm)	-
MF-RG1000-0 PTC RESET FUSE 16V 10A RADIAL Bourns Inc.	2,778	-	RFQ	Datasheet	Radial, Disc	Bag	Multifuse®, MF-RG	Active	Polymeric	16V	100 A	10 A	17 A	6 s	4 mOhms	10.2 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.650 L x 0.118 W (16.50mm x 3.00mm)	0.854 (21.70mm)	-
PTCCL09H171HBE PTC RESET FUSE 265V 170MA RADIAL Vishay Beyschlag/Draloric/BC Components	6,748	-	RFQ	Datasheet	Radial, Disc	Bulk	PTCCL - 265V	Active	Ceramic	265V	900 mA	170 mA	255 mA	-	-	-	22 Ohms	0°C ~ 70°C	-	Through Hole	0.335 Dia x 0.217 T (8.50mm x 5.50mm)	0.532 (13.50mm)	-
PTCCL09H471DBE PTC RESET FUSE 30V 470MA RADIAL Vishay Beyschlag/Draloric/BC Components	1,500	-	RFQ	Datasheet	Radial, Disc	Bulk	PTCCL - 30V	Active	Ceramic	30V	5 A	470 mA	705 mA	-	-	-	2.5 Ohms	-40°C ~ 85°C	-	Through Hole	0.335 Dia x 0.157 T (8.50mm x 4.00mm)	0.532 (13.50mm)	-
PTCCL09H541DBE PTC RESET FUSE 30V 540MA RADIAL Vishay Beyschlag/Draloric/BC Components	1,455	-	RFQ	Datasheet	Radial, Disc	Bulk	PTCCL - 30V	Active	Ceramic	30V	6 A	540 mA	810 mA	-	-	-	1.9 Ohms	-40°C ~ 85°C	-	Through Hole	0.335 Dia x 0.157 T (8.50mm x 4.00mm)	0.532 (13.50mm)	-
PTCCL07H411DBE PTC RESET FUSE 30V 410MA RADIAL Vishay Beyschlag/Draloric/BC Components	1,254	-	RFQ	Datasheet	Radial, Disc	Bulk	PTCCL - 30V	Active	Ceramic	30V	4.5 A	410 mA	615 mA	-	-	-	3 Ohms	-40°C ~ 85°C	-	Through Hole	0.276 Dia x 0.157 T (7.00mm x 4.00mm)	0.472 (12.00mm)	-
PTCCL07H141HBE PTC RESET FUSE 265V 140MA RADIAL Vishay Beyschlag/Draloric/BC Components	1,157	-	RFQ	Datasheet	Radial, Disc	Bulk	PTCCL - 265V	Active	Ceramic	265V	800 mA	140 mA	210 mA	-	-	-	29 Ohms	0°C ~ 70°C	-	Through Hole	0.276 Dia x 0.217 T (7.00mm x 5.50mm)	0.472 (12.00mm)	-

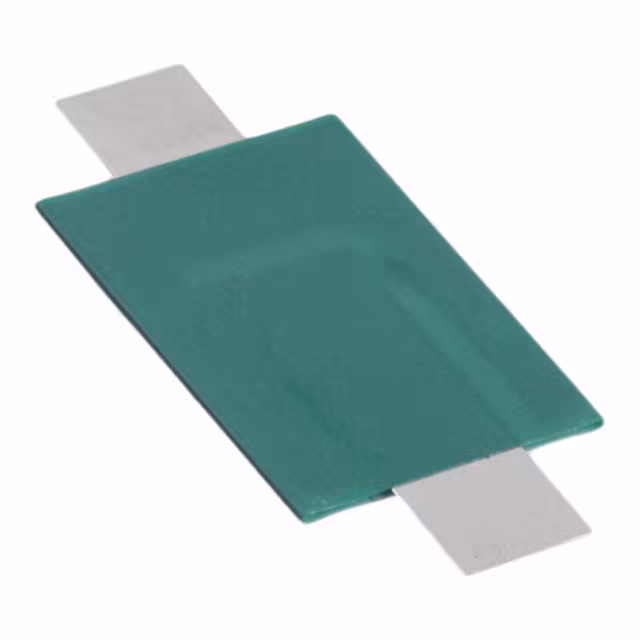

MF-LR730/20-0 PTC RESET FUSE 20V 7.3A STRAP Bourns Inc.	5,000	-	RFQ	Datasheet	Strap	Bulk	Multifuse®, MF-LR	Active	Polymeric	20V	100 A	7.3 A	14.1 A	5 s	6 mOhms	15 mOhms	-	-40°C ~ 85°C	-	User Defined	1.106 L x 0.559 W (28.10mm x 14.20mm)	-	0.039 (1.00mm)
MF-RG1100-0 PTC RESET FUSE 16V 11A RADIAL Bourns Inc.	3,000	-	RFQ	Datasheet	Radial, Disc	Bulk	Multifuse®, MF-RG	Active	Polymeric	16V	100 A	11 A	18.7 A	15.2 s	3 mOhms	10 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.689 L x 0.118 W (17.50mm x 3.00mm)	0.988 (25.10mm)	-
RALT-300 PTC RESET FUSE 24V 3A STRAP OptiFuse	1,789	-	RFQ	Datasheet	Strap	Bulk	RALT	Active	Polymeric	24V	100 A	3 A	6.3 A	-	15 mOhms	55 mOhms	-	-40°C ~ 85°C	-	User Defined	1.185 L x 0.522 W (30.10mm x 13.25mm)	-	0.043 (1.10mm)
NTE16015-ECG PTC RESET FUSE 30V 2.5A RADIAL NTE Electronics, Inc	133	-	RFQ	Datasheet	Radial, Disc	Bag	-	Active	Polymeric	30V	40 A	2.5 A	5 A	8.7 s	25 mOhms	110 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.470 L x 0.118 W (12.00mm x 3.00mm)	0.720 (18.30mm)	-
RS120-200 PTC RESET FUSE 120V 2A RADIAL OptiFuse	527	-	RFQ	Datasheet	Radial, Disc	Bulk	RS120	Active	Polymeric	120V (135V Int)	20 A	2 A	4.2 A	36 s	80 mOhms	210 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.925 L x 0.161 W (23.50mm x 4.10mm)	1.098 (27.90mm)	-
