Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Structure | NumberofSCRsDiodes | Voltage-OffState | Current-OnState(It(AV))(Max) | Current-OnState(It(RMS))(Max) | Voltage-GateTrigger(Vgt)(Max) | Current-GateTrigger(Igt)(Max) | Current-NonRepSurge5060Hz(Itsm) | Current-Hold(Ih)(Max) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TT240N18SOFHPSA1LA-T-BOND MODULE |
2,440 | - |
RFQ |
Datasheet |
Tray | - | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 240 A | 275 A | 2.5 V | 145 mA | 5200A @ 50Hz | 200 mA | 130°C (TC) | Chassis Mount | |

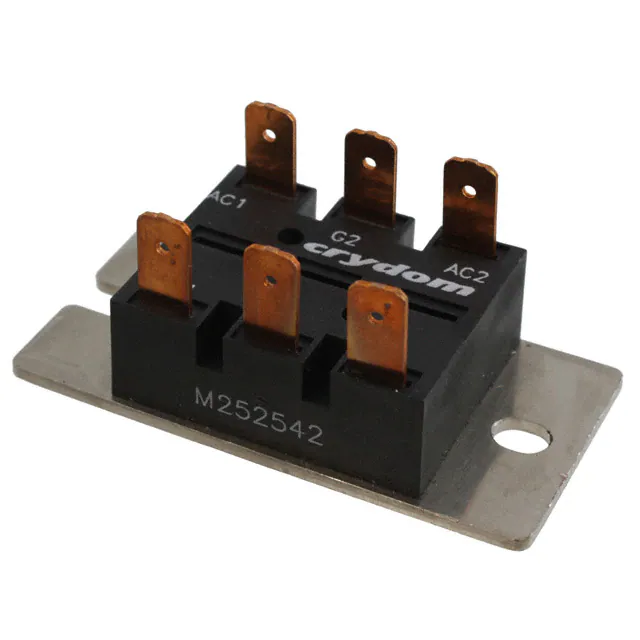

M252542MODULE POWER 25A 600V AC SWITCH |
2,232 | - |
RFQ |
Datasheet |
Bulk,Box | - | Not For New Designs | 1-Phase Controller - All SCRs | 2 SCRs | 600 V | - | - | 2.5 V | 50 mA | 300A @ 60Hz | 75 mA | - | Chassis Mount | |
MCD162-12IO1MOD THYRISTOR/DIODE 1200V Y4-M6 |
2,615 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 190 A | 300 A | 2.5 V | 150 mA | 6000A, 6400A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
T620062004DNSCR PHASE CTRL MOD 600V 200A |
3,755 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 600 V | 200 A | 315 A | 3 V | 150 mA | 3650A, 4000A | - | -40°C ~ 125°C (TJ) | Chassis Mount, 8 Wire Lead | |
MT160C16T2-BPMOD SCR DUAL 160A 1600V T2 |
2,930 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 160 A | - | 3 V | 150 mA | 5400A @ 50Hz | 400 mA | -40°C ~ 130°C (TJ) | Chassis Mount | |
B612-2TMOD DIODE SCR 42.5A 240V .250QC |
3,384 | - |
RFQ |
Datasheet |
Bulk,Box | B-2T | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 80 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
MCC132-08IO1MOD THYRISTOR DUAL 800V Y4-M6 |
2,129 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 800 V | 130 A | 300 A | 2.5 V | 150 mA | 4750A, 5080A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
MT130C16T2-BPMOD SCR DUAL 130A 1600V T2 |
2,496 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 130 A | - | 3 V | 150 mA | 4700A @ 50Hz | 400 mA | -40°C ~ 130°C (TJ) | Chassis Mount | |

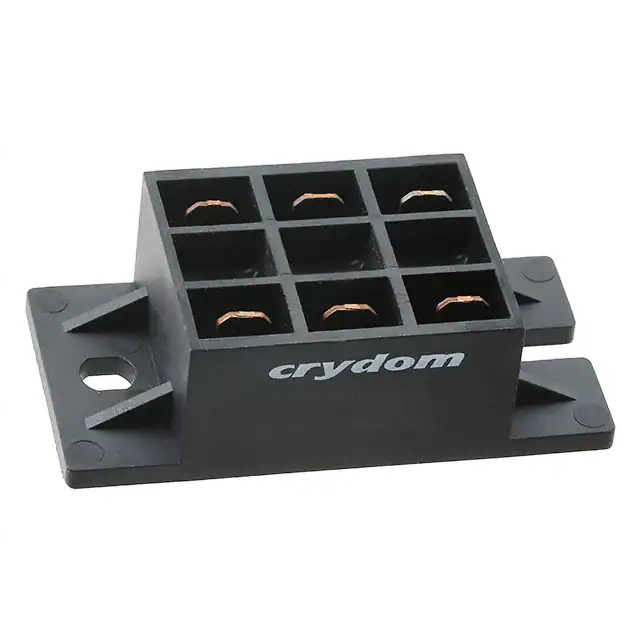

B653-2THYRISTOR MODULE |
2,090 | - |
RFQ |
Datasheet |
Bulk,Box | B-2 | Active | 1-Phase Controller - All SCRs | 2 SCRs | 800 V | - | - | 3 V | 80 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
B574-2TMOD DIODE SCR 25A 480VAC .250QC |
3,402 | - |
RFQ |
Datasheet |
Bulk,Box | B-2T | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
T620063004DNSCR PHASE CTRL MOD 600V 300A |
2,961 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 600 V | 300 A | 470 A | 3 V | 150 mA | 5000A, 5500A | - | -40°C ~ 125°C (TJ) | Chassis Mount, 8 Wire Lead | |
MCD162-14IO1MOD THYRISTOR/DIODE 1400V Y4-M6 |
2,538 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | 190 A | 300 A | 2.5 V | 150 mA | 6000A, 6400A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
B522F-2-YECMOD DIODE SCR 25A 240VAC ISO QC |
3,804 | - |
RFQ |
Datasheet |
Bulk | B-2 | Active | Bridge, Single Phase - SCRs/Diodes (Layout 2) | 2 SCRs, 2 Diodes | 600 V | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
T620082004DNSCR PHASE CTRL MOD 800V 200A |
3,407 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 800 V | 200 A | 315 A | 3 V | 150 mA | 3650A, 4000A | - | -40°C ~ 125°C (TJ) | Chassis Mount, 8 Wire Lead | |
MCC162-08IO1MOD THYRISTOR DUAL 800V Y4-M6 |
3,624 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 800 V | 190 A | 300 A | 2.5 V | 150 mA | 6000A, 6400A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
B652-2AX2THYRISTOR MODULE |
3,900 | - |
RFQ |
Datasheet |
Bulk | B-2 | Not For New Designs | 1-Phase Controller - All SCRs | 2 SCRs | 600 V | - | - | 3 V | 80 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
MCD132-18IO1MOD THYRISTOR/DIODE 1800V Y4-M6 |
2,628 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 130 A | 300 A | 2.5 V | 150 mA | 4750A, 5080A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
CD630815CSCR MODULE DUAL 150A 800V |
3,438 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 800 V | 150 A | 235 A | 2.5 V | 150 mA | 5400A @ 50Hz | 150 mA | -40°C ~ 125°C (TJ) | - | |
CD631415CSCR MODULE DUAL 150A 1400V |
3,309 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 150 A | 235 A | 2.5 V | 150 mA | 5400A @ 50Hz | 150 mA | -40°C ~ 125°C (TJ) | Screw Mount | |
CD631015CSCR MODULE DUAL 150A 1000V |
2,227 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1 kV | 150 A | 235 A | 2.5 V | 150 mA | 5400A @ 50Hz | 150 mA | -40°C ~ 125°C (TJ) | - |
