Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Structure | NumberofSCRsDiodes | Voltage-OffState | Current-OnState(It(AV))(Max) | Current-OnState(It(RMS))(Max) | Voltage-GateTrigger(Vgt)(Max) | Current-GateTrigger(Igt)(Max) | Current-NonRepSurge5060Hz(Itsm) | Current-Hold(Ih)(Max) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
B542-2TMOD DIODE SCR 25A 240VAC .250QC |
3,212 | - |
RFQ |
Datasheet |
Bulk | B-2T | Active | Bridge, Single Phase - All SCRs | 4 SCRs | 600 V | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
B542-2THYRISTOR MODULE |
3,376 | - |
RFQ |
Datasheet |
Bulk | B-2 | Active | Bridge, Single Phase - All SCRs | 4 SCRs | 600 V | - | - | 2.5 V | 60 mA | 250A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
T620083004DNSCR PHASE CTRL MOD 800V 300A |
3,244 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 800 V | 300 A | 470 A | 3 V | 150 mA | 5000A, 5500A | - | -40°C ~ 125°C (TJ) | Chassis Mount, 8 Wire Lead | |
CD631215CSCR MODULE DUAL 150A 1200V |
2,092 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 150 A | 235 A | 2.5 V | 150 mA | 5400A @ 50Hz | 150 mA | -40°C ~ 125°C (TJ) | Screw Mount | |

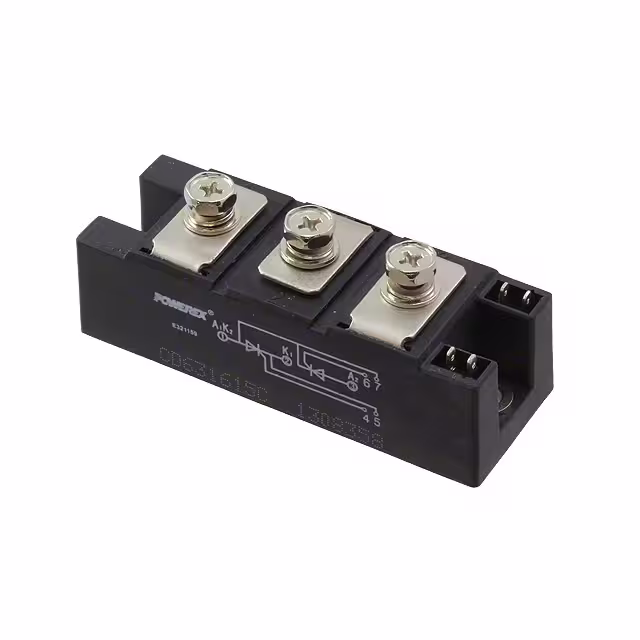

CD631615CSCR MODULE DUAL 150A 1600V |
2,728 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 150 A | 235 A | 2.5 V | 150 mA | 5400A @ 50Hz | 150 mA | -40°C ~ 125°C (TJ) | Screw Mount | |
MT200C16T2-BPMOD SCR DUAL 200A 1600V T2 |
3,362 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 200 A | - | 3 V | 200 mA | 5500A @ 50Hz | 400 mA | -40°C ~ 130°C (TJ) | Chassis Mount | |
MCC132-14IO1THYRISTOR MODULE 1400V 2X130A |
2,629 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 130 A | 300 A | 2.5 V | 150 mA | 4750A, 5080A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
T620102004DNSCR PHASE CTRL MOD 1000V 200A |
3,059 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 1 kV | 200 A | 315 A | 3 V | 150 mA | 3650A, 4000A | - | -40°C ~ 125°C (TJ) | Chassis Mount, 8 Wire Lead | |
T552MODULE POWER |
3,088 | - |
RFQ |
Datasheet |
Bulk,Box | - | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | |
VS-VSKH136/04PBFMODULE DIODE 135A INT-A-PAK |
3,409 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 135 A | 300 A | 2.5 V | 150 mA | 3200A, 3360A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
VS-VSKL136/04PBFMODULE DIODE 135A INT-A-PAK |
3,865 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 135 A | 300 A | 2.5 V | 150 mA | 3200A, 3360A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
B611F-2TMOD DIODE SCR 42.5A 120V .250QC |
3,100 | - |
RFQ |
Datasheet |
Bulk | B-2T | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 400 V | - | - | 3 V | 80 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |

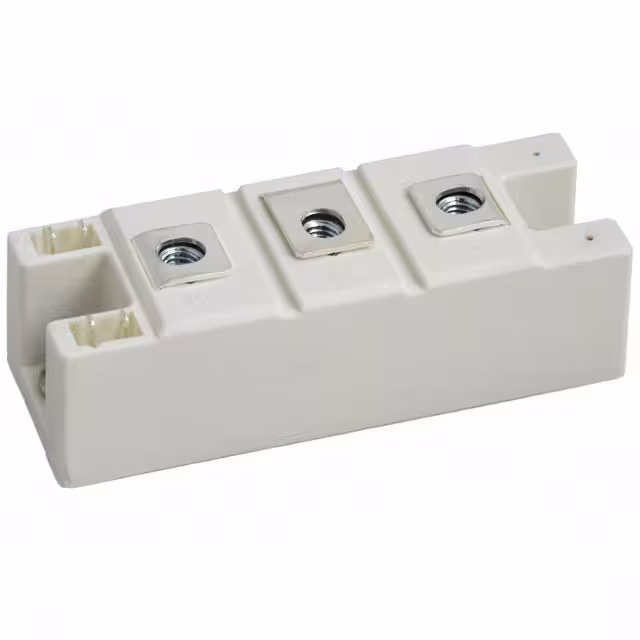

CD631615BSCR MOD DUAL 1600V 150A |
3,906 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 160 A | 235 A | 2 V | 150 mA | 5000A, 5250A | 150 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
VS-VSKH136/08PBFMODULE DIODE 135A INT-A-PAK |
2,228 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 135 A | 300 A | 2.5 V | 150 mA | 3200A, 3360A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
VS-VSKL136/08PBFMODULE DIODE 135A INT-A-PAK |
3,421 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 135 A | 300 A | 2.5 V | 150 mA | 3200A, 3360A | 200 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
DFA200CB160DIODE MODULE 1600V 200A |
2,421 | - |
RFQ |
Datasheet |
Tray | - | Active | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 200 A | - | 3 V | 100 mA | 1850A, 2000A | 100 mA | -40°C ~ 150°C (TJ) | Chassis Mount | |
PD250GB80THYRISTOR MODULE 800V 250A |
3,842 | - |
RFQ |
Datasheet |
Tray | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 250 A | 390 A | 3 V | 100 mA | 5000A, 5500A | 50 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
PK250HB160THYRISTOR MODULE 1600V 250A |
3,948 | - |
RFQ |
Datasheet |
Tray | - | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 250 A | 390 A | 3 V | 100 mA | 5000A, 5500A | 50 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
PK250GB80THYRISTOR MODULE 800V 250A |
2,212 | - |
RFQ |
Datasheet |
Tray | - | Active | Series Connection - All SCRs | 2 SCRs | 800 V | 250 A | 3690 A | 3 V | 100 mA | 5000A, 5500A | 50 mA | -40°C ~ 125°C (TJ) | Chassis Mount | |
PD250HB160THYRISTOR MODULE 1600V 250A |
3,219 | - |
RFQ |
Datasheet |
Tray | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 250 A | 390 A | 3 V | 100 mA | 5000A, 5500A | 50 mA | -40°C ~ 125°C (TJ) | Chassis Mount |
