Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Structure | NumberofSCRsDiodes | Voltage-OffState | Current-OnState(It(AV))(Max) | Current-OnState(It(RMS))(Max) | Voltage-GateTrigger(Vgt)(Max) | Current-GateTrigger(Igt)(Max) | Current-NonRepSurge5060Hz(Itsm) | Current-Hold(Ih)(Max) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

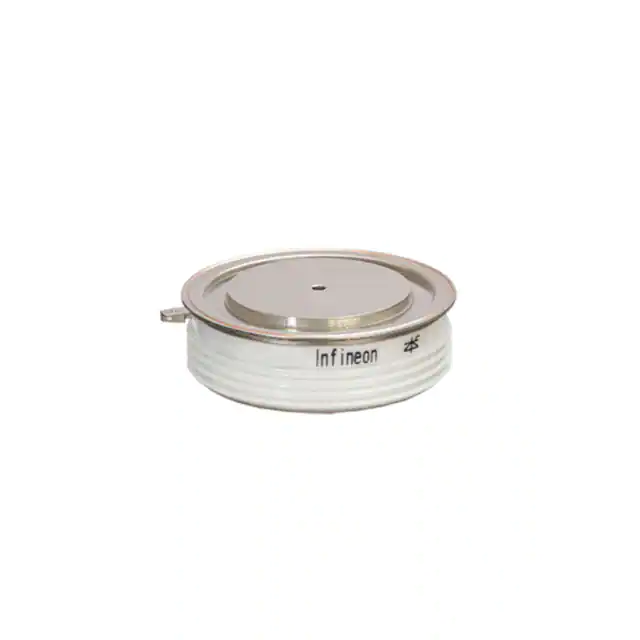

T830N18TOFXPSA1SCR MODULE 1800V 1500A DO200AB |
2,670 | - |
RFQ |
Datasheet |
Tray | - | Active | Single | 1 SCR | 1.8 kV | 844 A | 1500 A | 1.5 V | 250 mA | 14500A @ 50Hz | 300 mA | -40°C ~ 125°C | Chassis Mount | |
VS-VSKV230-08PBFMODULE THYRISTOR 230A MAGN-A-PAK |
2,526 | - |
RFQ |
Datasheet |
Bulk | - | Active | Common Anode - All SCRs | 2 SCRs | 800 V | 230 A | 510 A | 3 V | 200 mA | 7500A, 7850A | 500 mA | -40°C ~ 130°C (TJ) | Chassis Mount | |
VS-VSKV250-04PBFMODULE THYRISTOR 250A MAGN-A-PAK |
2,618 | - |
RFQ |
Datasheet |
Bulk | - | Active | Common Anode - All SCRs | 2 SCRs | 400 V | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 130°C (TJ) | Chassis Mount | |
VS-VSKV250-08PBFMODULE THYRISTOR 250A MAGN-A-PAK |
3,512 | - |
RFQ |
Datasheet |
Bulk | - | Active | Common Anode - All SCRs | 2 SCRs | 800 V | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 130°C (TJ) | Chassis Mount | |
T9G0041203DHSCR PHASE CTRL MOD 400V 1200A |
3,706 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 400 V | 1200 A | 1880 A | 3 V | 200 mA | 24650A, 27000A | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
LS432043SCR MOD ISO SGL 2000V 430A |
3,995 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 2 kV | 510 A | 800 A | 3 V | 200 mA | 14000A, 16000A | - | -40°C ~ 130°C (TJ) | Chassis Mount | |

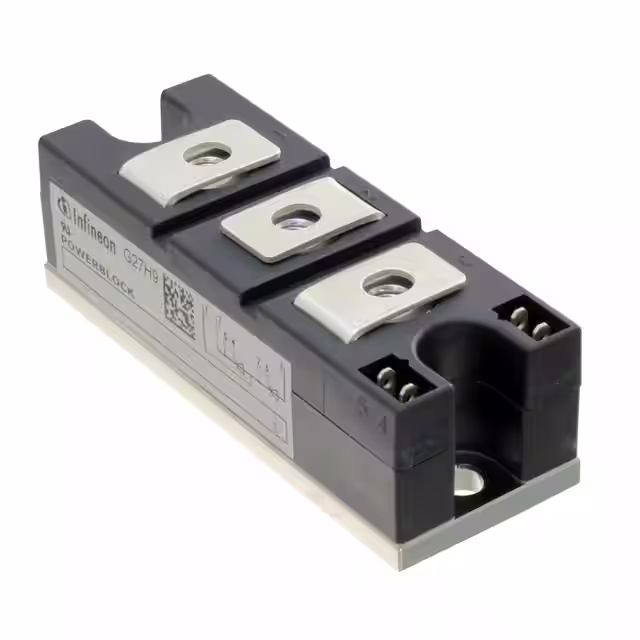

TT180N16KOFHPSA1SCR MODULE 1.6KV 285A MODULE |
2,857 | - |
RFQ |
Datasheet |
Bulk,Bulk | - | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 180 A | 285 A | 2 V | 150 mA | - | 200 mA | 130°C (TJ) | Surface Mount | |
TT180N16KOFHPSA2MODULE |
2,299 | - |
RFQ |
Datasheet |
Tray | - | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 180 A | 285 A | 2 V | 150 mA | 4800A @ 50Hz | 200 mA | 130°C (TJ) | Chassis Mount | |

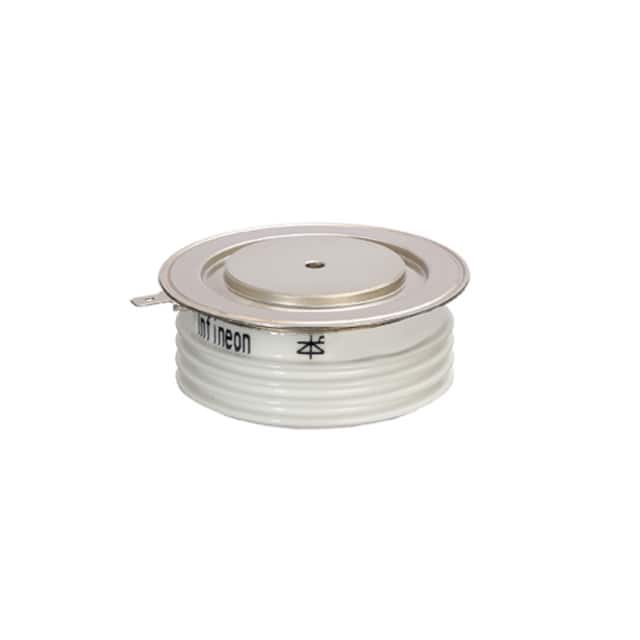

T940N14TOFXPSA1SCR MODULE 1800V 1759A DO200AB |
2,923 | - |
RFQ |
Datasheet |
Tray | - | Active | Single | 1 SCR | 1.8 kV | 959 A | 1759 A | 2.2 V | 250 mA | 17500A @ 50Hz | 300 mA | -40°C ~ 125°C | Chassis Mount | |
T820187504DHSCR PHASE CTRL MOD 1800V 750A |
3,719 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 1.8 kV | 750 A | 1175 A | 3 V | 150 mA | 10950A, 12000A | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
TT122N22KOFHPSA2THYR / DIODE MODULE DK |
3,824 | - |
RFQ |
Datasheet |
Tray | - | Active | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 140 A | 220 A | 2 V | 200 mA | 3300A @ 50Hz | 300 mA | 125°C (TJ) | Chassis Mount | |

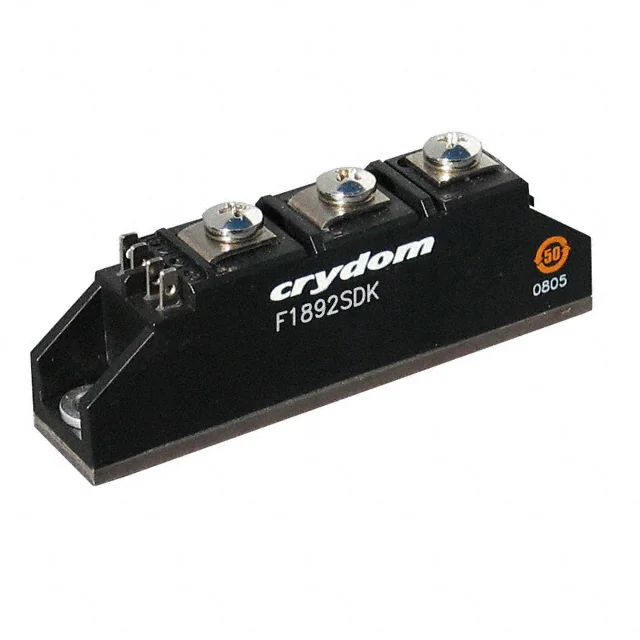

F1892SDK600MODULE SCR/DIODE 90A 240VAC |
3,239 | - |
RFQ |
Datasheet |
Bulk,Box | F18 | Not For New Designs | Series Connection - All SCRs | 2 SCRs | 600 V | - | - | 3 V | 150 mA | 1950A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |

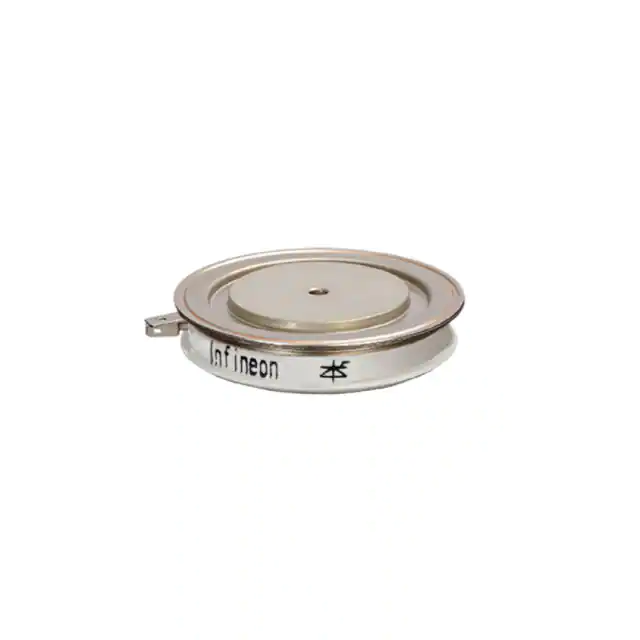

T880N14TOFXPSA1SCR MODULE 1800V 1.75A DO200AB |
3,966 | - |
RFQ |
Datasheet |
Tray | - | Active | Single | 1 SCR | 1.8 kV | 880 A | 1.75 A | 2.2 V | 250 mA | 17500A @ 50Hz | 300 mA | -40°C ~ 120°C | Chassis Mount | |
F1827HD1600MODULE SCR/DIODE 25A 600VAC |
2,562 | - |
RFQ |
Datasheet |
Bulk,Box | F18 | Not For New Designs | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | - | - | 3 V | 150 mA | 400A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
M5010012MODULE POWER 100A 600V SCR CC |
2,356 | - |
RFQ |
Datasheet |
Bulk,Box | M50 | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
F1842CAH1400MODULE SCR/DIODE 40A 530VAC |
3,884 | - |
RFQ |
Datasheet |
Bulk | F18 | Not For New Designs | Common Anode - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | - | - | 3 V | 150 mA | 1000A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
F1842HD1400MODULE SCR/DIODE 40A 530VAC |
3,274 | - |
RFQ |
Datasheet |
Bulk,Box | F18 | Not For New Designs | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | - | - | 3 V | 150 mA | 1000A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
VS-VSKH170-12PBFMODULE DIODE 170A MAGN-A-PAK |
2,353 | - |
RFQ |
Datasheet |
Bulk | - | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 170 A | 377 A | 3 V | 200 mA | 5100A, 5350A | 500 mA | -40°C ~ 130°C (TJ) | Chassis Mount | |
F1857HD1200MODULE SCR/DIODE 55A 480VAC |
2,110 | - |
RFQ |
Datasheet |
Bulk | F18 | Not For New Designs | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | Chassis Mount | |
T9G0061003DHSCR PHASE CTRL MOD 600V 1000A |
3,492 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single | 1 SCR | 600 V | 1000 A | 1590 A | 3 V | 200 mA | 15500A, 17000A | - | -40°C ~ 125°C (TJ) | Chassis Mount |
