Transistors - Bipolar (BJT) - Single- Page 165

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransistorType	Current-Collector(Ic)(Max)	Voltage-CollectorEmitterBreakdown(Max)	VceSaturation(Max)@IbIc	Current-CollectorCutoff(Max)	DCCurrentGain(hFE)(Min)@IcVce	Power-Max	Frequency-Transition	OperatingTemperature	MountingType

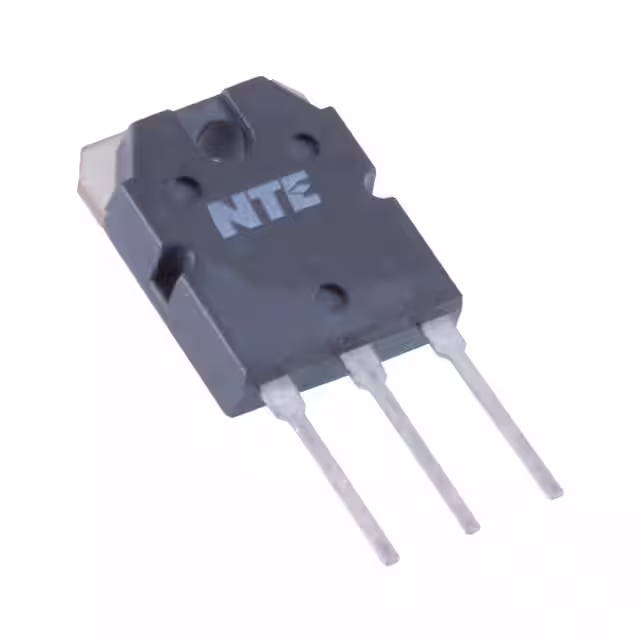

NTE2348 TRANS NPN 800V 12A TO3P NTE Electronics, Inc	608	-	RFQ	Datasheet	Bag	-	Active	NPN	12 A	800 V	2V @ 1.2mA, 6A	10µA (ICBO)	10 @ 800mA, 5V	150 W	15MHz	150°C (TJ)	Through Hole
NTE2331 TRANS NPN 800V 6A TO3PML NTE Electronics, Inc	402	-	RFQ	Datasheet	Bag	-	Active	NPN	6 A	800 V	5V @ 1A, 5A	1mA	8 @ 1A, 5V	60 W	-	150°C (TJ)	Through Hole

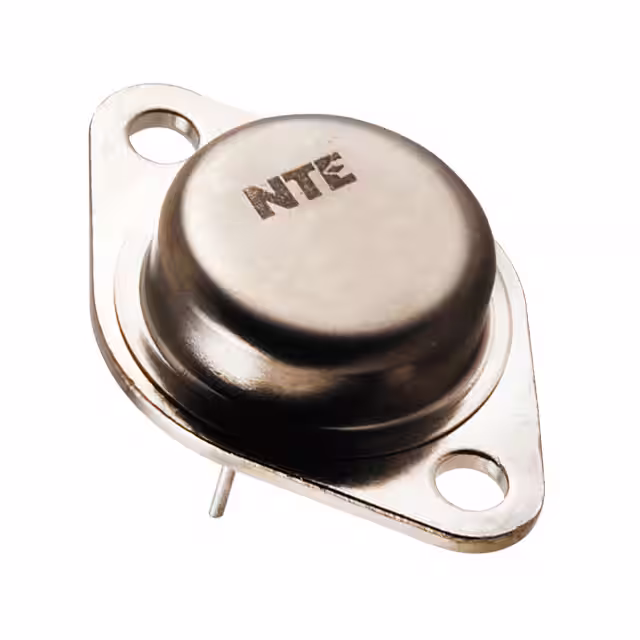

NTE389 TRANS NPN 750V 4A TO3 NTE Electronics, Inc	128	-	RFQ	Datasheet	Bag	-	Active	NPN	4 A	750 V	5V @ 1.2A, 3A	1mA	-	100 W	4MHz	-65°C ~ 150°C (TJ)	Through Hole
2N6969 NPN POWER TRANSISTOR Harris Corporation	3,294	-	RFQ		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-
2N5671 TRANS NPN 90V 30A TO3 Harris Corporation	3,862	-	RFQ	Datasheet	Bulk	-	Active	NPN	30 A	90 V	5V @ 6A, 30A	10mA	20 @ 20A, 5V	6 W	-	-65°C ~ 200°C (TJ)	Through Hole

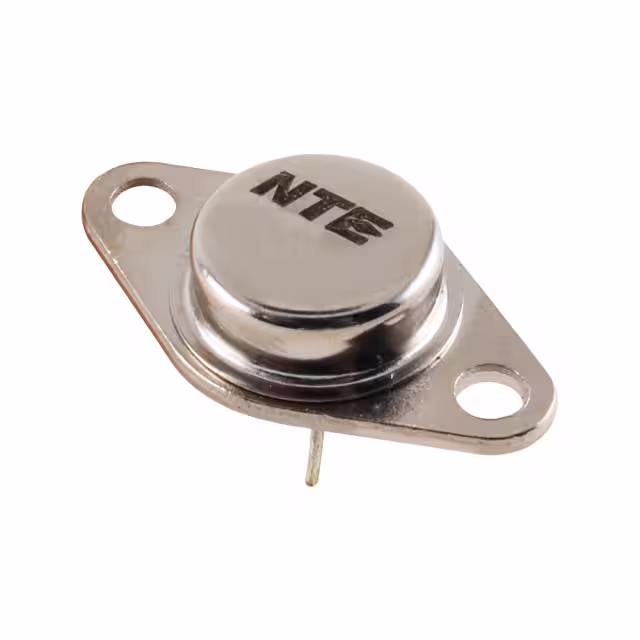

NTE274 TRANS NPN DARL 80V 4A TO66 NTE Electronics, Inc	2,855	-	RFQ	Datasheet	Bag	-	Active	NPN - Darlington	4 A	80 V	3V @ 40mA, 4A	500µA	750 @ 2A, 3V	50 W	-	-65°C ~ 200°C (TJ)	Through Hole

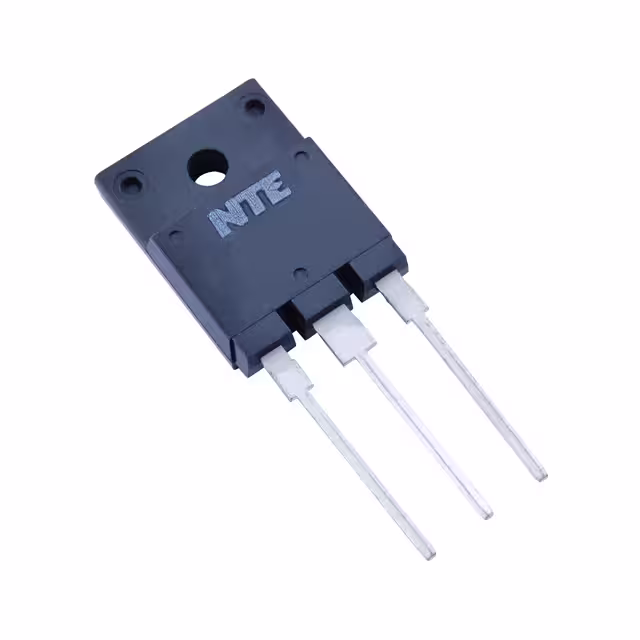

NTE2353 TRANS NPN 800V 10A TO3PML NTE Electronics, Inc	163	-	RFQ	Datasheet	Bag	-	Active	NPN	10 A	800 V	5V @ 1.6A, 8A	1mA	8 @ 1A, 5V	70 W	-	150°C (TJ)	Through Hole
BUX48A TRANS NPN 450V 15A TO3 NTE Electronics, Inc	334	-	RFQ	Datasheet	Bag	-	Active	NPN	15 A	450 V	5V @ 2.4A, 12A	200µA	-	175 W	-	150°C (TJ)	Chassis Mount
2N5683 TRANS PNP 60V 50A TO3 NTE Electronics, Inc	434	-	RFQ	Datasheet	Bag	-	Active	PNP	50 A	60 V	5V @ 10A, 50A	1mA	15 @ 25A, 2V	300 W	2MHz	-65°C ~ 200°C (TJ)	Through Hole
NTE2319 TRANS NPN 450V 15A TO3 NTE Electronics, Inc	695	-	RFQ	Datasheet	Bag	-	Active	NPN	15 A	450 V	3V @ 1.3A, 10A	250µA	5 @ 15A, 5V	175 W	-	-65°C ~ 200°C (TJ)	Through Hole
NTE68 TRANS PNP 250V 16A TO3 NTE Electronics, Inc	120	-	RFQ	Datasheet	Bag	-	Active	PNP	16 A	250 V	4V @ 3.2A, 16A	500µA	15 @ 8A, 4V	250 W	4MHz	-65°C ~ 200°C (TJ)	Through Hole
NTE97 TRANS NPN DARL 400V 10A TO3 NTE Electronics, Inc	141	-	RFQ	Datasheet	Bag	-	Active	NPN - Darlington	10 A	400 V	2.9V @ 1A, 10A	250µA	40 @ 2.5A, 5V	150 W	-	-65°C ~ 200°C (TJ)	Through Hole
NTE2661 TRANS NPN 600V 20A TO3PBL NTE Electronics, Inc	109	-	RFQ	Datasheet	Bag	-	Active	NPN	20 A	600 V	3V @ 2.75A, 11A	1mA (ICBO)	10 @ 2A, 5V	200 W	1.7MHz	150°C (TJ)	Through Hole

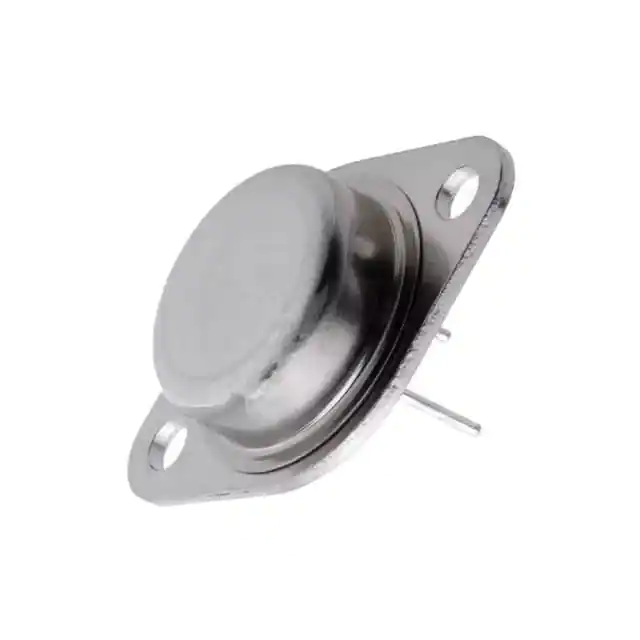

MJ16018 TRANS NPN 750V 10A TO3 Solid State Inc.	200	-	RFQ	Datasheet	Box	-	Active	NPN	10 A	750 V	5V @ 5A, 10A	250µA	4 @ 5A, 5V	175 W	-	150°C (TJ)	Through Hole
NTE53 TRANS NPN 400V 15A TO3 NTE Electronics, Inc	3,424	-	RFQ	Datasheet	Bag	-	Active	NPN	15 A	400 V	5V @ 3A, 15A	1mA	12 @ 5A, 2V	175 W	28MHz	-65°C ~ 200°C (TJ)	Through Hole
NTE2539 TRANS NPN 400V 25A TO3P NTE Electronics, Inc	404	-	RFQ	Datasheet	Bag	-	Active	NPN	25 A	400 V	800mV @ 3.2A, 16A	10µA (ICBO)	15 @ 3.2A, 5V	2.5 W	20MHz	150°C (TJ)	Through Hole
NTE283 TRANS NPN 325V 10A TO3 NTE Electronics, Inc	319	-	RFQ	Datasheet	Bag	-	Active	NPN	10 A	325 V	3.3V @ 2.5A, 8A	1mA	15 @ 2.5A, 10V	100 W	10MHz	200°C (TJ)	Through Hole
MJ11028 TRANS NPN DARL 60V 50A TO204 NTE Electronics, Inc	590	-	RFQ	Datasheet	Bag	-	Active	NPN - Darlington	50 A	60 V	2.5V @ 250mA, 25A	2mA	1000 @ 25A, 5V	300 W	-	-	Through Hole

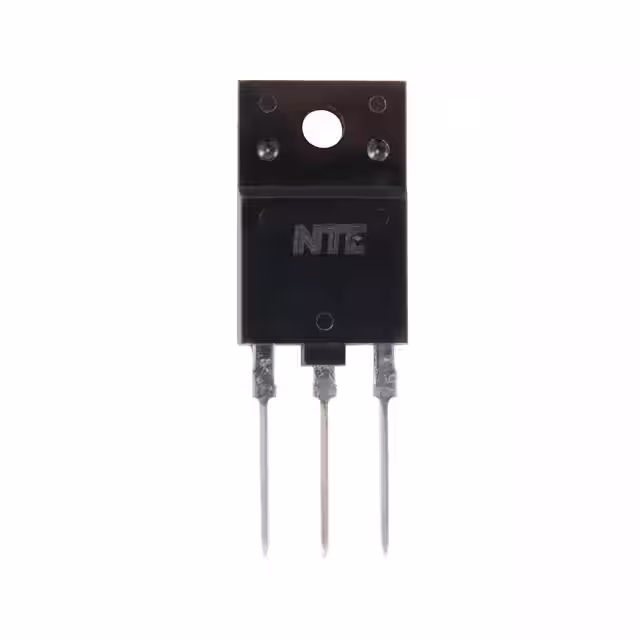

NTE2639 TRANS NPN 825V 12A SOT399 NTE Electronics, Inc	3,537	-	RFQ	Datasheet	Bag	-	Active	NPN	12 A	825 V	1V @ 1.75A, 7A	1mA	4 @ 7A, 1V	45 W	-	150°C (TJ)	Through Hole
NTE2550 TRANS NPN DARL 400V 10A TO220 NTE Electronics, Inc	315	-	RFQ	Datasheet	Bag	-	Active	NPN - Darlington	10 A	400 V	1.5V @ 70mA, 7A	100µA	150 @ 7A, 2V	50 W	10MHz	150°C (TJ)	Through Hole
