Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransistorType | Current-Collector(Ic)(Max) | Voltage-CollectorEmitterBreakdown(Max) | VceSaturation(Max)@IbIc | Current-CollectorCutoff(Max) | DCCurrentGain(hFE)(Min)@IcVce | Power-Max | Frequency-Transition | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2N4033 PBFREETRANS PNP 80V 1A TO39 |
2,356 | - |
RFQ |
Datasheet |
Bulk | - | Active | PNP | 1 A | 80 V | 500mV @ 50mA, 500mA | 50nA (ICBO) | 100 @ 100mA, 5V | 1.25 W | 400MHz | -65°C ~ 200°C (TJ) | Through Hole | |
2SC3835TRANS NPN 120V 7A TO3P |
2,748 | - |
RFQ |
Datasheet |
Bulk | - | Active | NPN | 7 A | 120 V | 500mV @ 300mA, 3A | 100µA (ICBO) | 70 @ 3A, 4V | 70 W | 30MHz | 150°C (TJ) | Through Hole | |
2SC4467TRANS NPN 120V 8A TO3P |
2,673 | - |
RFQ |
Datasheet |
Bulk | - | Active | NPN | 8 A | 120 V | 1.5V @ 300mA, 3A | 10µA (ICBO) | 50 @ 3A, 4V | 80 W | 20MHz | 150°C (TJ) | Through Hole | |
2N3053 PBFREETRANS NPN 40V 0.7A TO-39 |
3,121 | - |
RFQ |
Datasheet |
Bulk | - | Active | NPN | 700 mA | 40 V | 1.4V @ 15mA, 150mA | - | 50 @ 150mA, 10V | 5 W | 100MHz | -65°C ~ 200°C (TJ) | Through Hole | |
BC107 PBFREETRANS NPN 45V 0.2A TO18 |
3,584 | - |
RFQ |
Datasheet |
Bulk | - | Active | NPN | 200 mA | 45 V | 600mV @ 5mA, 100mA | 15nA (ICBO) | 110 @ 2mA, 5V | 600 mW | 150MHz | -65°C ~ 200°C (TJ) | Through Hole | |
2SD2390TRANS NPN DARL 150V 10A TO3P |
2,557 | - |
RFQ |
Datasheet |
Tray | - | Active | NPN - Darlington | 10 A | 150 V | 2.5V @ 7mA, 7A | 100µA (ICBO) | 5000 @ 7A, 4V | 100 W | 55MHz | 150°C (TJ) | Through Hole | |
MJF15031GTRANS PNP 150V 8A TO220FP |
2,032 | - |
RFQ |
Datasheet |
Tube | - | Active | PNP | 8 A | 150 V | 500mV @ 100mA, 1A | 10µA | 20 @ 4A, 2V | 2 W | 30MHz | -65°C ~ 150°C (TJ) | Through Hole | |
2SC4468TRANS NPN 140V 10A TO3P |
286 | - |
RFQ |
Datasheet |
Bulk | - | Active | NPN | 10 A | 140 V | 500mV @ 500mA, 5A | 10µA (ICBO) | 50 @ 3A, 4V | 100 W | 20MHz | 150°C (TJ) | Through Hole | |
2N5320 PBFREETRANS NPN 75V 2A TO39 |
419 | - |
RFQ |
Datasheet |
Bulk | - | Active | NPN | 2 A | 75 V | 500mV @ 50mA, 500mA | 500nA (ICBO) | 30 @ 500mA, 4V | 10 W | 50MHz | -65°C ~ 200°C (TJ) | Through Hole | |
BU931TTRANS NPN DARL 400V 10A TO220 |
2,491 | - |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | NPN - Darlington | 10 A | 400 V | 1.8V @ 250mA, 10A | 100µA | 300 @ 5A, 10V | 125 W | - | 175°C (TJ) | Through Hole | |
2N5322 PBFREETRANS PNP 75V 2A TO39 |
729 | - |
RFQ |
Datasheet |
Bulk | - | Active | PNP | 2 A | 75 V | 700mV @ 50mA, 500mA | 500nA (ICBO) | 30 @ 500mA, 4V | 10 W | 50MHz | -65°C ~ 200°C (TJ) | Through Hole | |
2SA1695TRANS PNP 140V 10A TO3P |
2,357 | - |
RFQ |
Datasheet |
Bulk | - | Active | PNP | 10 A | 140 V | 500mV @ 500mA, 5A | 10µA (ICBO) | 50 @ 3A, 4V | 100 W | 20MHz | 150°C (TJ) | Through Hole | |

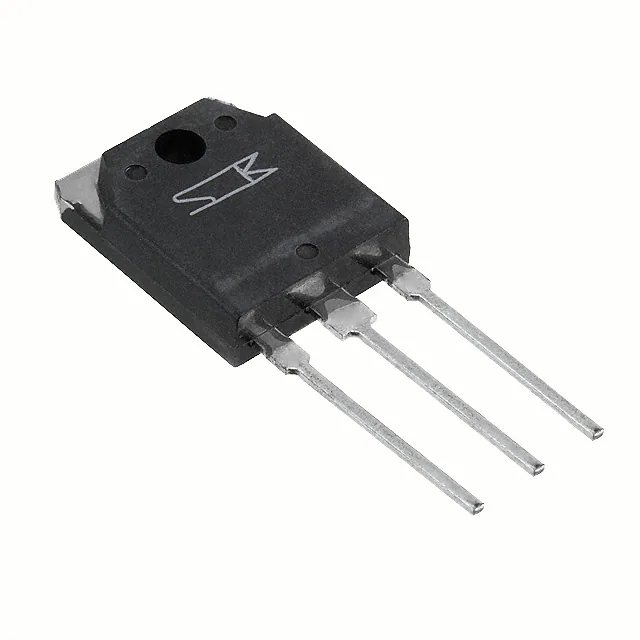

2SB1560TRANS PNP DARL 150V 10A TO3P |
2,313 | - |
RFQ |
Datasheet |
Bulk | - | Active | PNP - Darlington | 10 A | 150 V | 2.5V @ 7mA, 7A | 100µA (ICBO) | 5000 @ 7A, 4V | 100 W | 50MHz | 150°C (TJ) | Through Hole | |
MJE5852GTRANS PNP 400V 8A TO220 |
305 | - |
RFQ |
Datasheet |
Tube | SWITCHMODE™ | Active | PNP | 8 A | 400 V | 5V @ 3A, 8A | - | 5 @ 5A, 5V | 80 W | - | -65°C ~ 150°C (TJ) | Through Hole | |

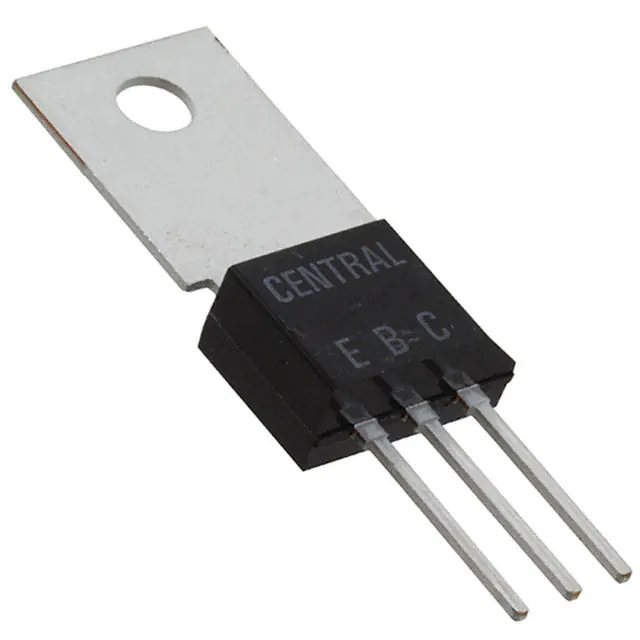

CEN-U07 PBFREETRANS NPN 100V 2A TO202 |
468 | - |
RFQ |
Datasheet |
Bulk | - | Active | NPN | 2 A | 100 V | 350mV @ 25mA, 250mA | 100nA (ICBO) | 20 @ 500mA, 1V | 1.75 W | 50MHz | -65°C ~ 150°C (TJ) | Through Hole | |

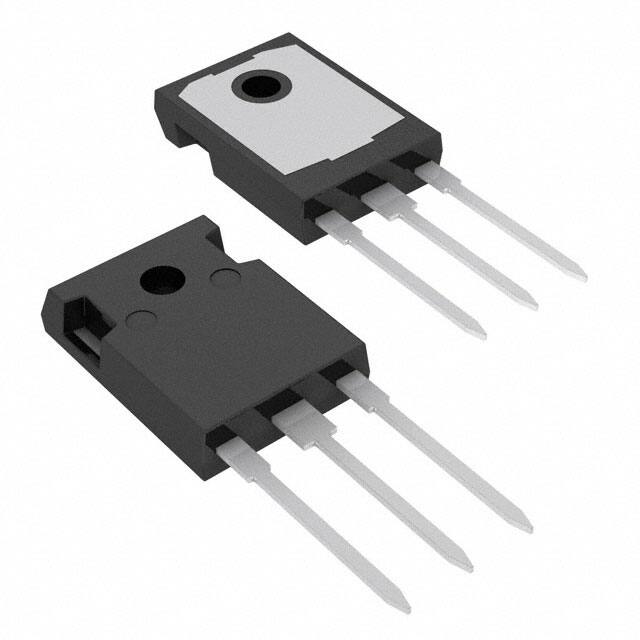

TIP36CGTRANS PNP 100V 25A TO247-3 |
2,492 | - |
RFQ |
Datasheet |
Tube | - | Active | PNP | 25 A | 100 V | 4V @ 5A, 25A | 1mA | 15 @ 15A, 4V | 125 W | 3MHz | -65°C ~ 150°C (TJ) | Through Hole | |
2N3964 PBFREETRANS PNP 45V 0.2A TO18 |
3,524 | - |
RFQ |
Datasheet |
Bulk | - | Active | PNP | 200 mA | 45 V | 400mV @ 5mA, 50mA | 10nA | 250 @ 1mA, 5V | 360 mW | 50MHz | -65°C ~ 200°C (TJ) | Through Hole | |
TIP147GTRANS PNP DARL 100V 10A TO247-3 |
2,142 | - |
RFQ |
Datasheet |
Tube | - | Active | PNP - Darlington | 10 A | 100 V | 3V @ 40mA, 10A | 2mA | 1000 @ 5A, 4V | 125 W | - | -65°C ~ 150°C (TJ) | Through Hole | |
2SC3856TRANS NPN 180V 15A TO3P |
167 | - |
RFQ |
Datasheet |
Bulk | - | Active | NPN | 15 A | 180 V | 2V @ 500mA, 5A | 100µA (ICBO) | 50 @ 3A, 4V | 130 W | 20MHz | 150°C (TJ) | Through Hole | |

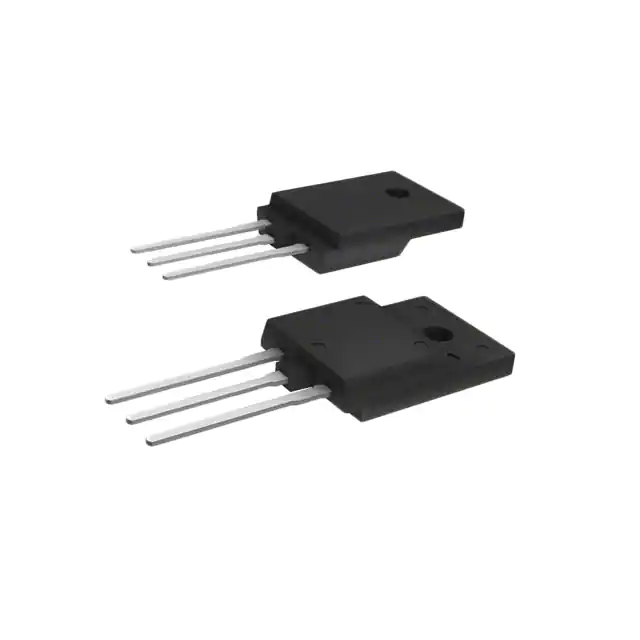

2SC4131TRANS NPN 50V 15A TO3PF |
330 | - |
RFQ |
Datasheet |
Bulk | - | Active | NPN | 15 A | 50 V | 500mV @ 80mA, 400mA | 10µA (ICBO) | 60 @ 5A, 1V | 60 W | 18MHz | 150°C (TJ) | Through Hole |
