Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransistorType	Current-Collector(Ic)(Max)	Voltage-CollectorEmitterBreakdown(Max)	VceSaturation(Max)@IbIc	Current-CollectorCutoff(Max)	DCCurrentGain(hFE)(Min)@IcVce	Power-Max	Frequency-Transition	OperatingTemperature	MountingType

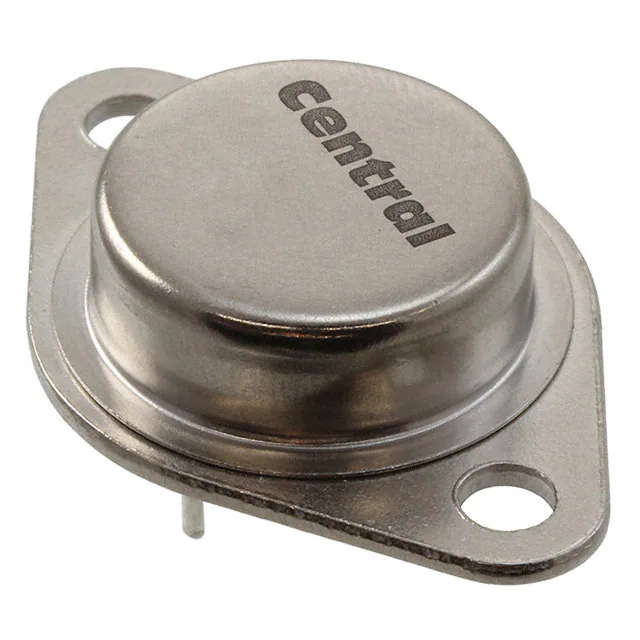

2N3792 PBFREE TRANS PNP 80V 10A TO-3 Central Semiconductor Corp	101	-	RFQ	Datasheet	Tube	-	Active	PNP	10 A	80 V	1V @ 500mA, 5A	-	50 @ 1A, 2V	150 W	4MHz	-65°C ~ 200°C (TJ)	Through Hole

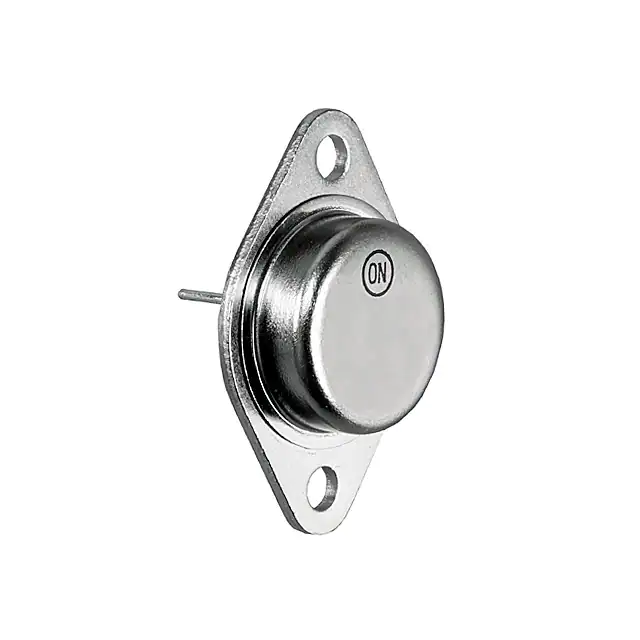

2N3055AG TRANS NPN 60V 15A TO204 onsemi	2,567	-	RFQ	Datasheet	Tray	-	Active	NPN	15 A	60 V	5V @ 7A, 15A	700µA	10 @ 4A, 2V	115 W	6MHz	-65°C ~ 200°C (TJ)	Through Hole
2N2219A TRANS NPN 50V 0.8A TO39 Microchip Technology	267	-	RFQ	Datasheet	Bulk	-	Active	NPN	800 mA	50 V	1V @ 50mA, 500mA	10nA	100 @ 150mA, 10V	800 mW	-	-55°C ~ 200°C (TJ)	Through Hole

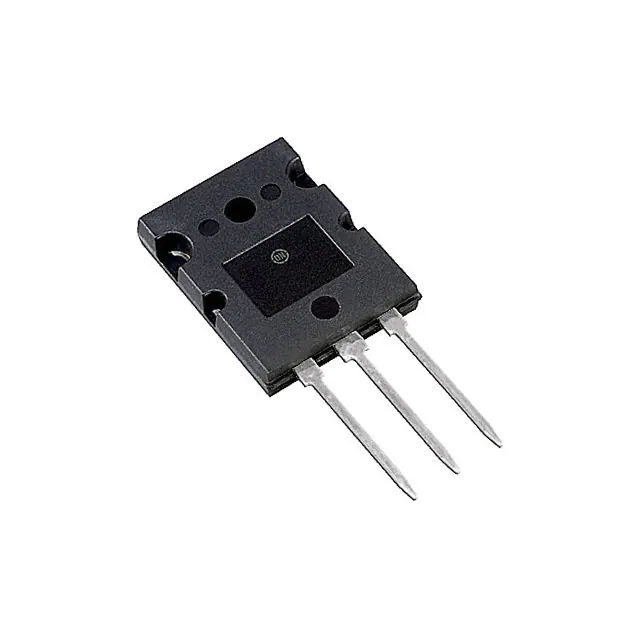

MJL4281AG TRANS NPN 350V 15A TO264 onsemi	3,296	-	RFQ	Datasheet	Tube	-	Active	NPN	15 A	350 V	1V @ 800mA, 8A	100µA	80 @ 5A, 5V	230 W	35MHz	-65°C ~ 150°C (TJ)	Through Hole
MJ2955G TRANS PNP 60V 15A TO204 onsemi	177	-	RFQ	Datasheet	Tray	-	Active	PNP	15 A	60 V	3V @ 3.3A, 10A	700µA	20 @ 4A, 4V	115 W	2.5MHz	-65°C ~ 200°C (TJ)	Through Hole
MJ11022G TRANS NPN DARL 250V 15A TO204 onsemi	260	-	RFQ	Datasheet	Tray	-	Active	NPN - Darlington	15 A	250 V	3.4V @ 150mA, 15A	1mA	400 @ 10A, 5V	175 W	-	-65°C ~ 200°C (TJ)	Through Hole
2N3773G TRANS NPN 140V 16A TO204 onsemi	195	-	RFQ	Datasheet	Tray	-	Active	NPN	16 A	140 V	1.4V @ 800mA, 8A	10mA	15 @ 8A, 4V	150 W	-	-65°C ~ 200°C (TJ)	Through Hole
MJ802G TRANS NPN 90V 30A TO204 onsemi	216	-	RFQ	Datasheet	Tray	-	Active	NPN	30 A	90 V	800mV @ 750mA, 7.5A	1mA (ICBO)	25 @ 7.5A, 2V	200 W	2MHz	-65°C ~ 200°C (TJ)	Through Hole
MJ15025G TRANS PNP 250V 16A TO204 onsemi	291	-	RFQ	Datasheet	Tray	-	Active	PNP	16 A	250 V	4V @ 3.2A, 16A	500µA	15 @ 8A, 4V	250 W	4MHz	-65°C ~ 200°C (TJ)	Through Hole
MJ4502G TRANS PNP 100V 30A TO204 onsemi	287	-	RFQ	Datasheet	Tray	-	Active	PNP	30 A	100 V	800mV @ 750mA, 7.5A	1mA (ICBO)	25 @ 7.5A, 2V	200 W	2MHz	-65°C ~ 200°C (TJ)	Through Hole
MJ21195G TRANS PNP 250V 16A TO204 onsemi	195	-	RFQ	Datasheet	Tray	-	Active	PNP	16 A	250 V	4V @ 3.2A, 16A	100µA	25 @ 8A, 5V	250 W	4MHz	-65°C ~ 200°C (TJ)	Through Hole
MJ15015G TRANS NPN 120V 15A TO204 onsemi	155	-	RFQ	Datasheet	Tray	-	Active	NPN	15 A	120 V	5V @ 7A, 15A	100µA	10 @ 4A, 2V	180 W	6MHz	-65°C ~ 200°C (TJ)	Through Hole
MJ21193G TRANS PNP 250V 16A TO204 onsemi	438	-	RFQ	Datasheet	Tray	-	Active	PNP	16 A	250 V	4V @ 3.2A, 16A	100µA	25 @ 8A, 5V	250 W	4MHz	-65°C ~ 200°C (TJ)	Through Hole
MJ15004G TRANS PNP 140V 20A TO204 onsemi	980	-	RFQ	Datasheet	Tray	-	Active	PNP	20 A	140 V	1V @ 500mA, 5A	250µA	25 @ 5A, 2V	250 W	2MHz	-65°C ~ 200°C (TJ)	Through Hole
MJH11022G TRANS NPN DARL 250V 15A TO247-3 onsemi	955	-	RFQ	Datasheet	Tube	-	Active	NPN - Darlington	15 A	250 V	4V @ 150mA, 15A	1mA	400 @ 10A, 5V	150 W	3MHz	-65°C ~ 150°C (TJ)	Through Hole
MJ11015G TRANS PNP DARL 120V 30A TO204 onsemi	2,776	-	RFQ	Datasheet	Tray	-	Active	PNP - Darlington	30 A	120 V	4V @ 300mA, 30A	1mA	1000 @ 20A, 5V	200 W	4MHz	-55°C ~ 200°C (TJ)	Through Hole
JANTX2N2484 TRANS NPN 60V 0.05A TO18 Microchip Technology	3,994	-	RFQ	Datasheet	Bulk	Military, MIL-PRF-19500/376	Active	NPN	50 mA	60 V	300mV @ 100µA, 1mA	2nA	225 @ 10mA, 5V	360 mW	-	-65°C ~ 200°C (TJ)	Through Hole
MJ15023G TRANS PNP 200V 16A TO204 onsemi	3,641	-	RFQ	Datasheet	Tray	-	Active	PNP	16 A	200 V	4V @ 3.2A, 16A	500µA	15 @ 8A, 4V	250 W	4MHz	-65°C ~ 200°C (TJ)	Through Hole
2N5038G TRANS NPN 90V 20A TO204 onsemi	2,222	-	RFQ	Datasheet	Tray	-	Active	NPN	20 A	90 V	2.5V @ 5A, 20A	-	20 @ 12A, 5V	140 W	-	-65°C ~ 200°C (TJ)	Through Hole
PMBS3904,215 TRANS NPN 40V 0.1A TO236AB Nexperia USA Inc.	2,188	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	NPN	100 mA	40 V	300mV @ 5mA, 50mA	50nA (ICBO)	100 @ 10mA, 1V	250 mW	180MHz	150°C (TJ)	Surface Mount
