Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SIHG73N60AEL-GE3MOSFET N-CH 600V 69A TO247AC |
2,984 | - |
RFQ |
Datasheet |
Tube | EL | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 69A (Tc) | 10V | 42mOhm @ 36.5A, 10V | 4V @ 250µA | 342 nC @ 10 V | ±30V | 6709 pF @ 100 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
STWA75N60M6MOSFET N-CH 600V 72A TO247 |
2,352 | - |
RFQ |
Datasheet |
Tube | MDmesh™ M6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 72A (Tc) | 10V | 36mOhm @ 36A, 10V | 4.75V @ 250µA | 106 nC @ 10 V | ±25V | 4850 pF @ 100 V | - | 446W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
STWA70N65DM6MOSFET N-CH 650V 68A TO247 |
3,495 | - |
RFQ |
Datasheet |
Tube | MDmesh™ DM6 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 68A (Tc) | 10V | 40mOhm @ 34A, 10V | 4.75V @ 250µA | 125 nC @ 10 V | ±25V | 4900 pF @ 100 V | - | 450W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |

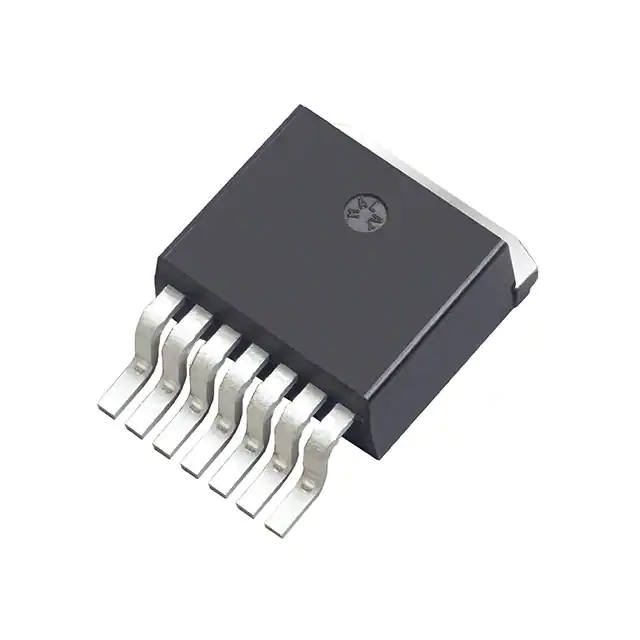

NTBG080N120SC1SICFET N-CH 1200V 30A D2PAK-7 |
2,880 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 30A (Tc) | 20V | 110mOhm @ 20A, 20V | 4.3V @ 5mA | 56 nC @ 20 V | +25, -15V | 1154 pF @ 800 V | - | 179W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
STW62NM60NMOSFET N-CH 600V 65A TO247 |
2,460 | - |
RFQ |
Datasheet |
Tube | MDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 65A (Tc) | 10V | 49mOhm @ 32.5A, 10V | 4V @ 250µA | 174 nC @ 10 V | ±25V | 5800 pF @ 100 V | - | 450W (Tc) | 150°C (TJ) | Through Hole | |
IXTT440N055T2MOSFET N-CH 55V 440A TO268 |
3,682 | - |
RFQ |
Datasheet |
Tube | TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 440A (Tc) | 10V | 1.8mOhm @ 100A, 10V | 4V @ 250µA | 405 nC @ 10 V | ±20V | 25000 pF @ 25 V | - | 1000W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
IXFK102N30PMOSFET N-CH 300V 102A TO264AA |
3,742 | - |
RFQ |
Datasheet |
Bulk | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 102A (Tc) | 10V | 33mOhm @ 500mA, 10V | 5V @ 4mA | 224 nC @ 10 V | ±20V | 7500 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |

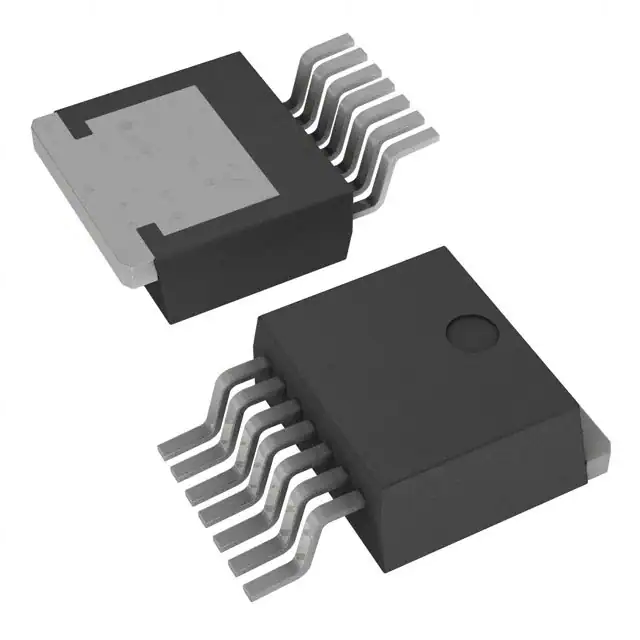

SCT040H65G3AGAUTOMOTIVE-GRADE SILICON CARBIDE |
2,364 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | SiC (Silicon Carbide Junction Transistor) | 650 V | 30A (Tc) | 15V, 18V | 55mOhm @ 20A, 18V | 4.2V @ 1mA | 39.5 nC @ 18 V | +18V, -5V | 920 pF @ 400 V | - | 221W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
IXFX120N30P3MOSFET N-CH 300V 120A PLUS247-3 |
2,305 | - |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 120A (Tc) | 10V | 27mOhm @ 60A, 10V | 5V @ 4mA | 150 nC @ 10 V | ±20V | 8630 pF @ 25 V | - | 1130W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
IXFT15N100Q3MOSFET N-CH 1000V 15A TO268 |
3,972 | - |
RFQ |
Datasheet |
Tube | HiPerFET™, Q3 Class | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 15A (Tc) | 10V | 1.05Ohm @ 7.5A, 10V | 6.5V @ 4mA | 64 nC @ 10 V | ±30V | 3250 pF @ 25 V | - | 690W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
IXFT26N100XHVMOSFET N-CH 1000V 26A TO268HV |
2,354 | - |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 26A (Ta) | 10V | 320mOhm @ 500mA, 10V | 6V @ 4mA | 113 nC @ 10 V | ±30V | 3290 pF @ 25 V | - | 860mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
IXFR15N100Q3MOSFET N-CH 1000V 10A ISOPLUS247 |
3,351 | - |
RFQ |
Datasheet |
Tube | HiPerFET™, Q3 Class | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 10A (Tc) | 10V | 1.2Ohm @ 7.5A, 10V | 6.5V @ 4mA | 64 nC @ 10 V | ±30V | 3250 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
IXFT70N30Q3MOSFET N-CH 300V 70A TO268 |
3,670 | - |
RFQ |
Datasheet |
Tube | HiPerFET™, Q3 Class | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 70A (Tc) | 10V | 54mOhm @ 35A, 10V | 6.5V @ 4mA | 98 nC @ 10 V | ±20V | 4735 pF @ 25 V | - | 830W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
APT37M100B2MOSFET N-CH 1000V 37A T-MAX |
2,943 | - |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 37A (Tc) | 10V | 330mOhm @ 18A, 10V | 5V @ 2.5mA | 305 nC @ 10 V | ±30V | 9835 pF @ 25 V | - | 1135W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
IXFX64N60Q3MOSFET N-CH 600V 64A PLUS247-3 |
3,725 | - |
RFQ |
Datasheet |
Tube | HiPerFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 64A (Tc) | 10V | 95mOhm @ 32A, 10V | 6.5V @ 4mA | 190 nC @ 10 V | ±30V | 9930 pF @ 25 V | - | 1250W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
IXFT150N25X3HVMOSFET N-CH 250V 150A TO268HV |
3,710 | - |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 150A (Tc) | 10V | 9mOhm @ 75A, 10V | 4.5V @ 4mA | 154 nC @ 10 V | ±20V | 10400 pF @ 25 V | - | 780W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
APT8024B2LLGMOSFET N-CH 800V 31A T-MAX |
3,072 | - |
RFQ |
Datasheet |
Tube | POWER MOS 7® | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 31A (Tc) | 10V | 240mOhm @ 15.5A, 10V | 5V @ 2.5mA | 160 nC @ 10 V | ±30V | 4670 pF @ 25 V | - | 565W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
IXFX48N60Q3MOSFET N-CH 600V 48A PLUS247-3 |
2,918 | - |
RFQ |
Datasheet |
Tube | HiPerFET™, Q3 Class | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 48A (Tc) | 10V | 140mOhm @ 24A, 10V | 6.5V @ 4mA | 140 nC @ 10 V | ±30V | 7020 pF @ 25 V | - | 1000W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
IXFX64N50Q3MOSFET N-CH 500V 64A PLUS247-3 |
2,496 | - |
RFQ |
Datasheet |
Tube | HiPerFET™, Q3 Class | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 64A (Tc) | 10V | 85mOhm @ 32A, 10V | 6.5V @ 4mA | 145 nC @ 10 V | ±30V | 6950 pF @ 25 V | - | 1000W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
IXTX20N150MOSFET N-CH 1500V 20A PLUS247-3 |
3,352 | - |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 1500 V | 20A (Tc) | 10V | 1Ohm @ 10A, 10V | 4.5V @ 1mA | 215 nC @ 10 V | ±30V | 7800 pF @ 25 V | - | 1250W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
