Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType

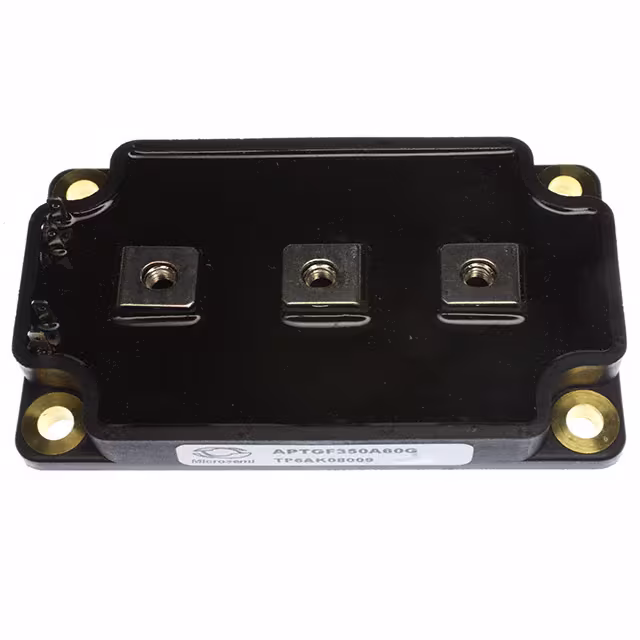

APTGF350A60G IGBT MODULE 600V 430A 1562W SP6 Microchip Technology	2,594	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Half Bridge	600 V	430 A	1562 W	2.5V @ 15V, 360A	200 µA	17.2 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF350DA60G IGBT MODULE 600V 430A 1562W SP6 Microsemi Corporation	3,857	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	600 V	430 A	1562 W	2.5V @ 15V, 360A	200 µA	17.2 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF350DU60G IGBT MODULE 600V 430A 1562W SP6 Microsemi Corporation	3,506	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Dual, Common Source	600 V	430 A	1562 W	2.5V @ 15V, 360A	200 µA	17.2 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF350SK60G IGBT MODULE 600V 430A 1562W SP6 Microsemi Corporation	3,959	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	600 V	430 A	1562 W	2.5V @ 15V, 360A	200 µA	17.2 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF360U60D4G IGBT MODULE 600V 450A 1560W D4 Microsemi Corporation	3,275	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	600 V	450 A	1560 W	2.45V @ 15V, 360A	500 µA	17 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF400U120D4G IGBT MODULE 1200V 510A 2500W D4 Microsemi Corporation	2,499	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	1200 V	510 A	2500 W	3.7V @ 15V, 400A	5 mA	26 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

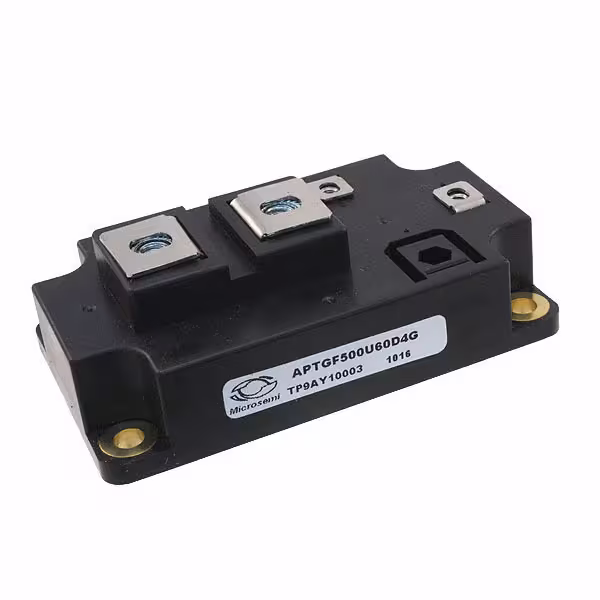

APTGF500U60D4G IGBT MODULE 600V 625A 2000W D4 Microchip Technology	2,670	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	600 V	625 A	2000 W	2.45V @ 15V, 500A	500 µA	26 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF50A120T1G IGBT MODULE 1200V 75A 312W SP1 Microsemi Corporation	3,853	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Half Bridge	1200 V	75 A	312 W	3.7V @ 15V, 50A	250 µA	3.45 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF50A120TG IGBT MODULE 1200V 75A 312W SP4 Microsemi Corporation	3,256	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	NPT	Half Bridge	1200 V	75 A	312 W	3.7V @ 15V, 50A	250 µA	3.45 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGF50A60T1G IGBT MODULE 600V 65A 250W SP1 Microsemi Corporation	2,722	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Half Bridge	600 V	65 A	250 W	2.45V @ 15V, 50A	250 µA	2.2 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGF50DA120T1G IGBT MODULE 1200V 75A 312W SP1 Microsemi Corporation	3,841	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	1200 V	75 A	312 W	3.7V @ 15V, 50A	250 µA	3.45 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF50DA120TG IGBT MODULE 1200V 75A 312W SP4 Microsemi Corporation	3,037	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	NPT	Single	1200 V	75 A	312 W	3.7V @ 15V, 50A	250 µA	3.45 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGF50DDA60T3G IGBT MODULE 600V 65A 250W SP3 Microchip Technology	3,662	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Dual Boost Chopper	600 V	65 A	250 W	2.45V @ 15V, 50A	250 µA	2.2 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF50DH120TG IGBT MODULE 1200V 75A 312W SP4 Microsemi Corporation	3,202	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Asymmetrical Bridge	1200 V	75 A	312 W	3.7V @ 15V, 50A	250 µA	3.45 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF50DH60TG IGBT MODULE 600V 65A 250W SP4 Microsemi Corporation	3,021	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	NPT	Asymmetrical Bridge	600 V	65 A	250 W	2.45V @ 15V, 50A	250 µA	2.2 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGF50DSK60T3G IGBT MODULE 600V 65A 250W SP3 Microsemi Corporation	3,499	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Dual Buck Chopper	600 V	65 A	250 W	2.45V @ 15V, 50A	250 µA	2.2 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF50DU120TG IGBT MODULE 1200V 75A 312W SP4 Microsemi Corporation	2,435	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Dual, Common Source	1200 V	75 A	312 W	3.7V @ 15V, 50A	250 µA	3.45 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGF50H120TG IGBT MODULE 1200V 75A 312W SP4 Microsemi Corporation	3,675	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Full Bridge Inverter	1200 V	75 A	312 W	3.7V @ 15V, 50A	250 µA	3.45 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF50H60T1G IGBT MODULE 600V 65A 250W SP1 Microchip Technology	3,070	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Full Bridge Inverter	600 V	65 A	250 W	2.45V @ 15V, 50A	250 µA	2.2 nF @ 25 V	Standard	Yes	-	Chassis Mount

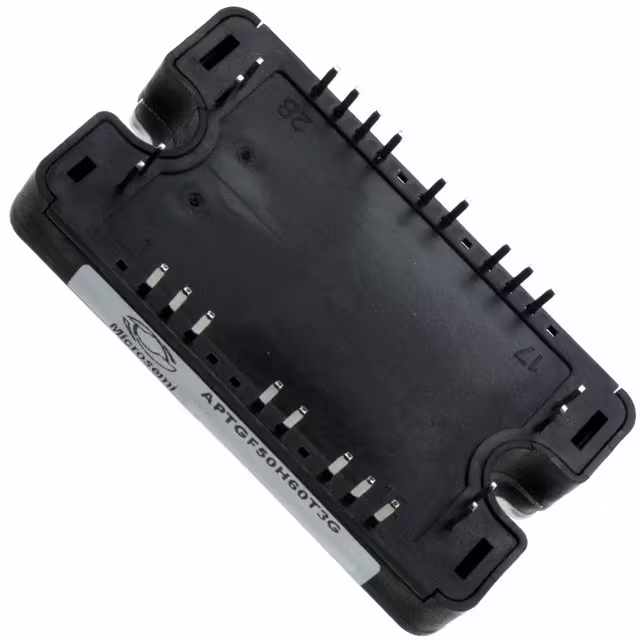

APTGF50H60T3G IGBT MODULE 600V 65A 250W SP3 Microchip Technology	2,325	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Full Bridge Inverter	600 V	65 A	250 W	2.45V @ 15V, 50A	250 µA	2.2 nF @ 25 V	Standard	Yes	-	Chassis Mount
