Transistors - IGBTs - Modules- Page 122

MAX3232IDR AOZ5311NQI-03 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
MWI75-12A8T IGBT MODULE 1200V 125A 500W IXYS	2,806	-	RFQ		Tube	-	Active	NPT	Three Phase Inverter	1200 V	125 A	500 W	2.6V @ 15V, 75A	5 mA	5.5 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF50TL60T3G IGBT MODULE 600V 65A 250W SP3 Microsemi Corporation	2,277	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Three Level Inverter	600 V	65 A	250 W	2.45V @ 15V, 50A	250 µA	2.2 nF @ 25 V	Standard	Yes	-55°C ~ 150°C (TJ)	Chassis Mount
APTGF100A120T3WG IGBT MODULE 1200V 130A 657W SP3 Microsemi Corporation	2,964	-	RFQ		Bulk	-	Obsolete	NPT	Half Bridge	1200 V	130 A	657 W	3.7V @ 15V, 100A	250 µA	6.5 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF150A120T3WG IGBT MODULE 1200V 210A 961W SP3 Microsemi Corporation	3,992	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Half Bridge	1200 V	210 A	961 W	3.7V @ 15V, 150A	250 µA	9.3 nF @ 25 V	Standard	Yes	-	Chassis Mount

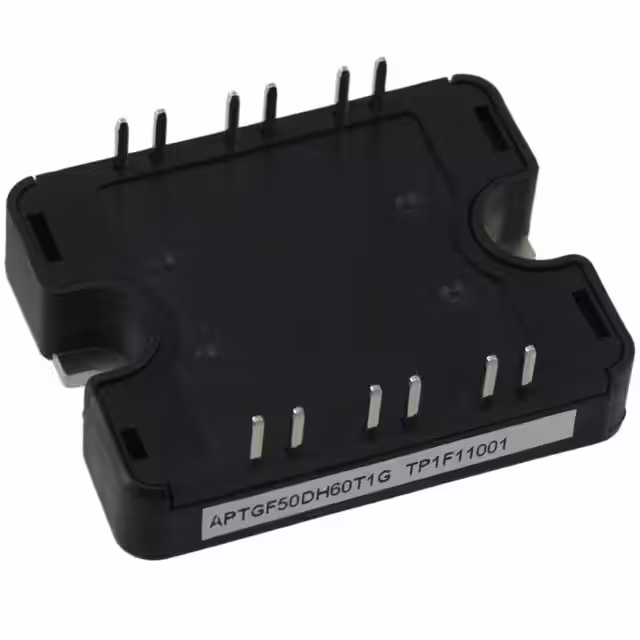

APTGF50DH60T1G IGBT MODULE 600V 65A 250W SP1 Microchip Technology	3,065	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Asymmetrical Bridge	600 V	65 A	250 W	2.45V @ 15V, 50A	250 µA	2.2 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF90DH60T3G IGBT MODULE 600V 110A 416W SP3 Microsemi Corporation	3,348	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Asymmetrical Bridge	600 V	110 A	416 W	2.5V @ 15V, 100A	250 µA	4.3 nF @ 25 V	Standard	Yes	-	Chassis Mount
CM75RX-24S IGBT MOD 1200V 75A 600W Powerex Inc.	3,547	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Three Phase Inverter with Brake	1200 V	75 A	600 W	2.15V @ 15V, 75A	1 mA	7.5 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
CM100RX-24S IGBT MOD 1200V 100A 750W Powerex Inc.	3,689	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Three Phase Inverter with Brake	1200 V	100 A	750 W	2.15V @ 15V, 100A	1 mA	10 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
CM150RX-24S IGBT MOD 1200V 150A 1150W Powerex Inc.	3,803	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Three Phase Inverter with Brake	1200 V	150 A	1150 W	2.15V @ 15V, 150A	1 mA	15 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
CM150TX-24S IGBT MOD 1200V 150A 1150W Powerex Inc.	3,950	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Three Phase Inverter	1200 V	150 A	1150 W	2.15V @ 15V, 150A	1 mA	15 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
CM200DX-24S IGBT MOD 1200V 200A 1500W Powerex Inc.	2,339	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	200 A	1500 W	2.15V @ 15V, 200A	1 mA	20 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
CM300DX-24S IGBT MOD 1200V 300A 2270W Powerex Inc.	3,848	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	300 A	2270 W	2.15V @ 15V, 300A	1 mA	30 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
CM450DX-24S IGBT MOD 1200V 450A 3400W Powerex Inc.	2,220	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	450 A	3400 W	2.15V @ 15V, 450A	1 mA	45 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
STGE200N60K IGBT MODULE 600V 150A ISOTOP STMicroelectronics	3,557	-	RFQ		Tube	-	Obsolete	-	-	600 V	150 A	-	-	-	-	-	No	-	Chassis Mount

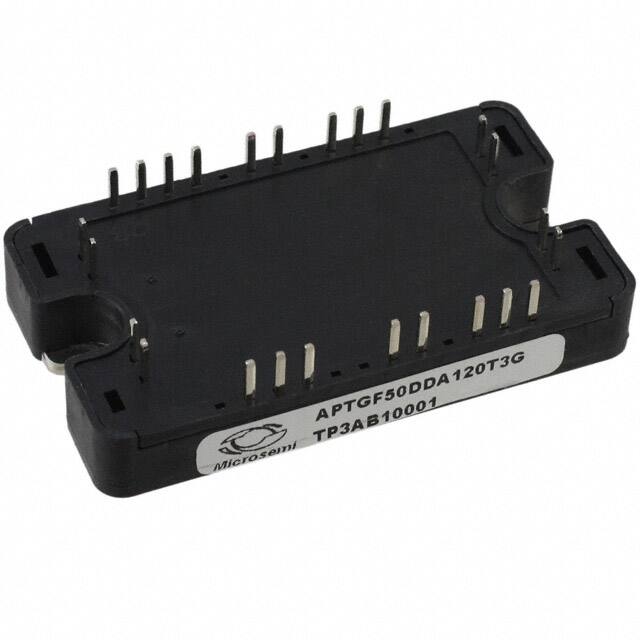

APTGF50DDA120T3G IGBT MODULE 1200V 70A 312W SP3 Microsemi Corporation	3,126	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Dual Boost Chopper	1200 V	70 A	312 W	3.7V @ 15V, 50A	250 µA	3.45 nF @ 25 V	Standard	Yes	-	Chassis Mount
FS200R07A1E3BOSA1 IGBT MOD 650V 250A 790W Infineon Technologies	2,957	-	RFQ	Datasheet	Tray	-	Obsolete	-	Three Phase Inverter	650 V	250 A	790 W	1.9V @ 15V, 200A	1 mA	13 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FS400R07A1E3BOSA1 IGBT MOD 650V 500A 1250W Infineon Technologies	3,406	-	RFQ	Datasheet	Tray,Tray	-	Obsolete	-	Three Phase Inverter	650 V	500 A	1250 W	1.9V @ 15V, 400A	1 mA	26 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Surface Mount

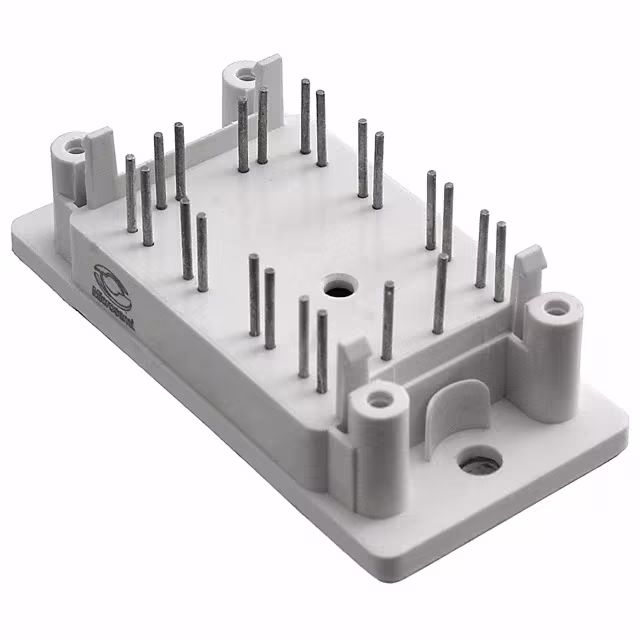

APTGFQ25H120T2G IGBT MODULE 1200V 40A 227W SP2 Microsemi Corporation	2,160	-	RFQ	Datasheet	Bulk	-	Active	NPT and Fieldstop	Full Bridge	1200 V	40 A	227 W	2.1V @ 15V, 25A	250 µA	2.02 nF @ 25 V	Standard	Yes	-	Through Hole

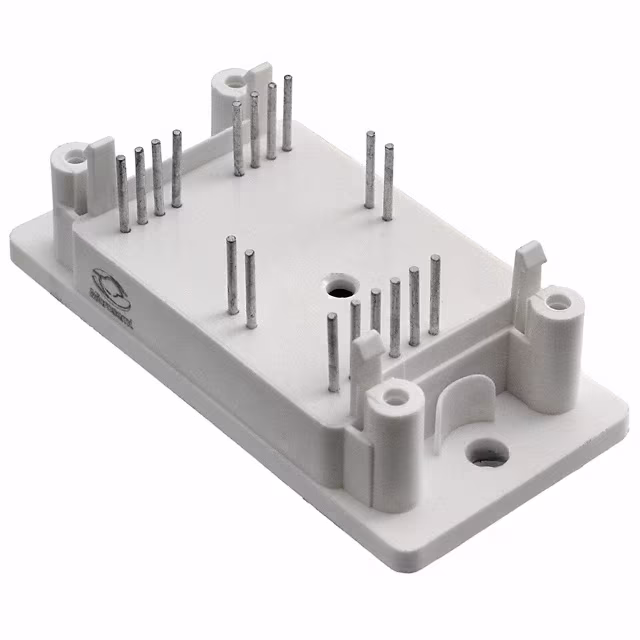

APTGF100A1202G IGBT MODULE 1200V 135A 568W SP2 Microsemi Corporation	2,583	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Half Bridge	1200 V	135 A	568 W	3.7V @ 15V, 100A	250 µA	6.5 nF @ 25 V	Standard	No	-	Chassis Mount

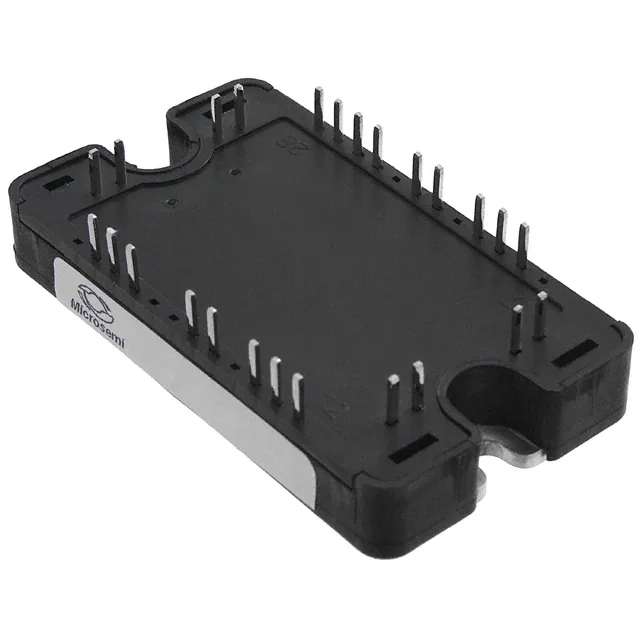

APTGF150A120T3AG IGBT MODULE 1200V 210A 1041W SP3 Microchip Technology	2,433	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Half Bridge	1200 V	210 A	1041 W	3.7V @ 15V, 150A	250 µA	9.3 nF @ 25 V	Standard	Yes	-	Chassis Mount
