Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType

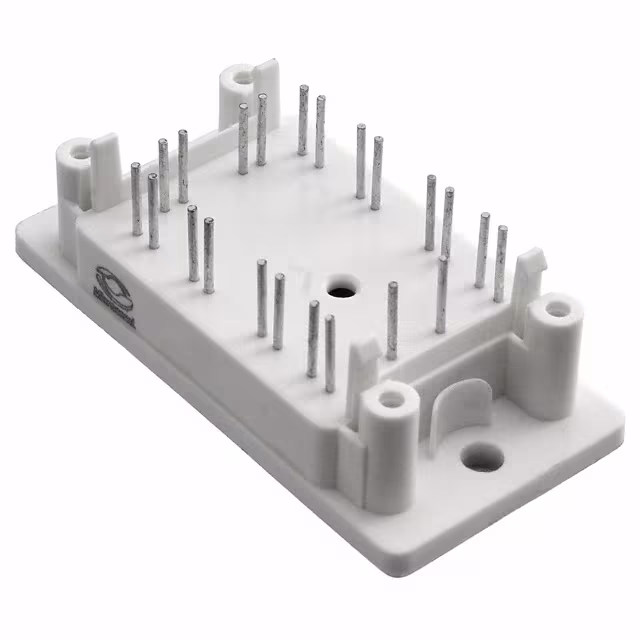

APTGF50H60T2G IGBT MODULE 600V 65A 250W SP3 Microsemi Corporation	2,418	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Full Bridge Inverter	600 V	65 A	250 W	2.45V @ 15V, 50A	250 µA	2.2 nF @ 25 V	Standard	Yes	-	Chassis Mount

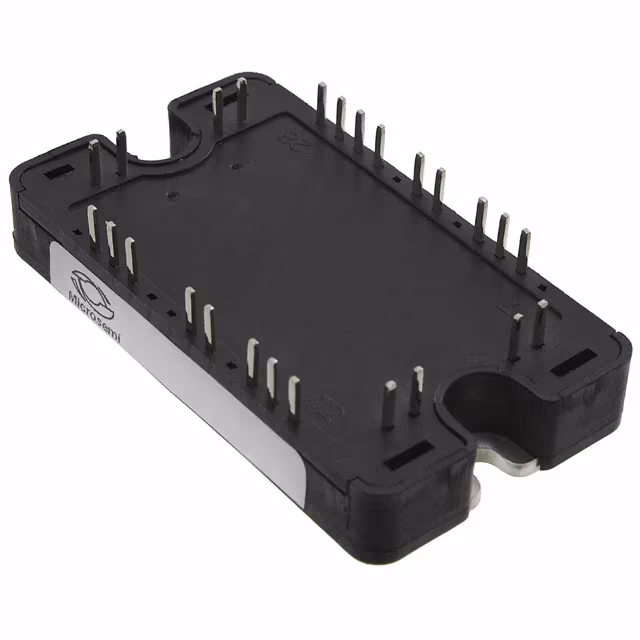

APTGF50VDA120T3G IGBT MODULE 1200V 70A 312W SP3 Microsemi Corporation	2,789	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Dual Boost Chopper	1200 V	70 A	312 W	3.7V @ 15V, 50A	250 µA	3.45 nF @ 25 V	Standard	Yes	-	Chassis Mount

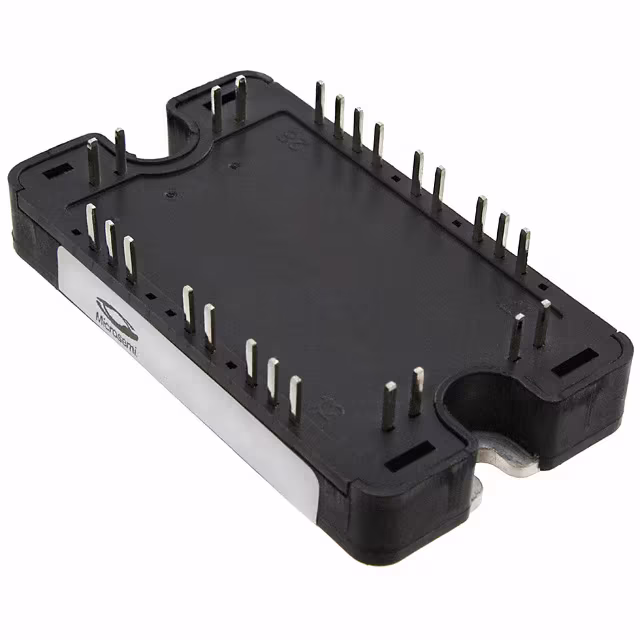

APTGF50VDA60T3G IGBT MODULE 600V 65A 250W SP3 Microchip Technology	2,692	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Dual Boost Chopper	600 V	65 A	250 W	2.45V @ 15V, 50A	250 µA	2.2 nF @ 25 V	Standard	Yes	-	Chassis Mount

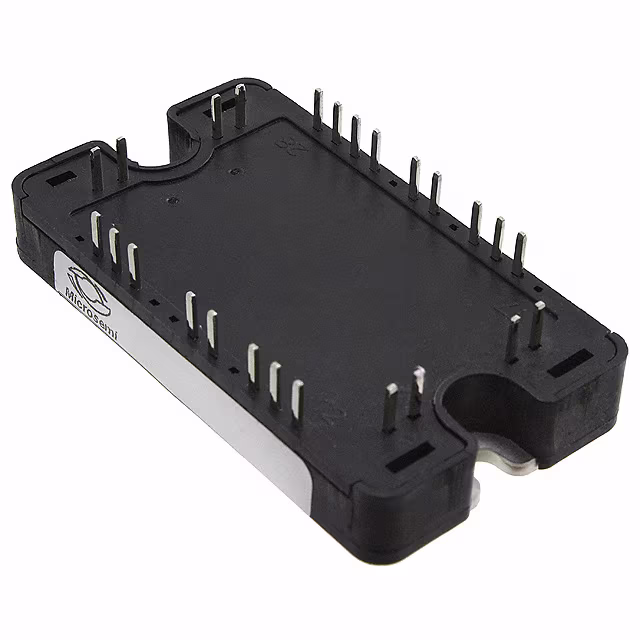

APTGF90H60T3G IGBT MODULE 600V 120A 416W SP3 Microchip Technology	3,092	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Full Bridge Inverter	600 V	120 A	416 W	2.45V @ 15V, 100A	250 µA	4.4 nF @ 25 V	Standard	Yes	-	Chassis Mount

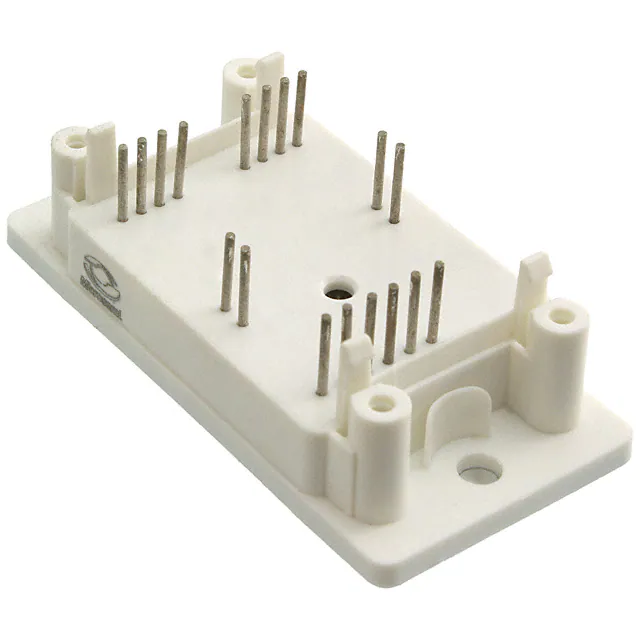

APTGT200A602G IGBT MODULE 600V 290A 625W SP2 Microsemi Corporation	3,384	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	600 V	290 A	625 W	1.9V @ 15V, 200A	50 µA	12.3 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount

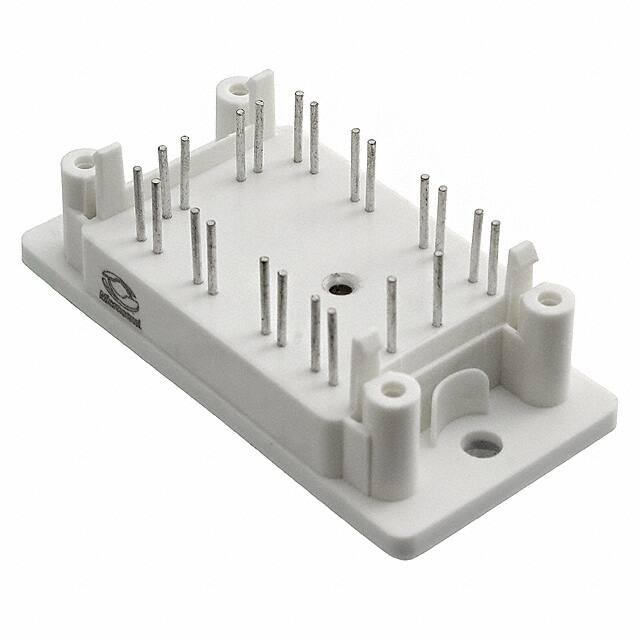

APTGT75H60T2G IGBT MODULE 600V 100A 250W SP2 Microsemi Corporation	3,647	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge Inverter	600 V	100 A	250 W	1.9V @ 15V, 75A	250 µA	4.62 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
GB100XCP12-227 IGBT MODULE 1200V 100A SOT227 GeneSiC Semiconductor	2,079	-	RFQ	Datasheet	Bulk	-	Obsolete	PT	Single	1200 V	100 A	-	2V @ 15V, 100A	1 mA	8.55 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount

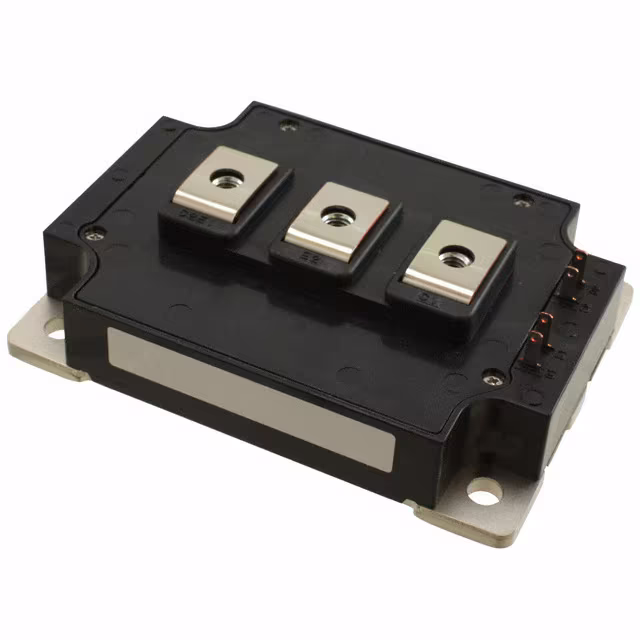

CM450DY-24S IGBT MOD 1200V 410A 3330W Powerex Inc.	3,456	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	410 A	3330 W	2.25V @ 15V, 450A	1 mA	45 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

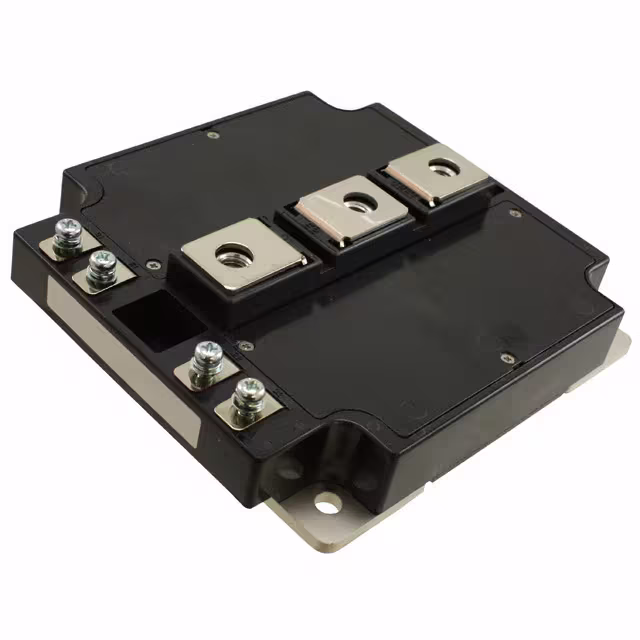

CM800DY-24S IGBT MOD 1200V 790A 5355W Powerex Inc.	3,045	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	790 A	5355 W	2.4V @ 15V, 800A	1 mA	80 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM1000DXL-24S IGBT MOD 1200V 1000A 7500W Powerex Inc.	2,854	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	1000 A	7500 W	2.3V @ 15V, 1000A	1 mA	100 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	-
CM1000E3U-34NF IGBT MOD 1700V 1000A 3900W Powerex Inc.	3,138	-	RFQ		Bulk	IGBTMOD™	Obsolete	-	Single	1700 V	1000 A	3900 W	2.8V @ 15V, 1000A	1 mA	220 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	-
CM100MXA-24S IGBT MOD 1200V 100A 750W Powerex Inc.	3,125	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	-	Three Phase Inverter with Brake	1200 V	100 A	750 W	2.25V @ 15V, 100A	1 mA	10 nF @ 10 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	-
CM100TX-24S IGBT MOD 1200V 100A 750W Powerex Inc.	2,214	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Three Phase Inverter	1200 V	100 A	750 W	2.25V @ 15V, 100A	1 mA	10 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	-
CM1400DUC-24NF IGBT MOD 1200V 1400A 8900W Powerex Inc.	3,694	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	1400 A	8900 W	2.5V @ 15V, 1400A	1 mA	220 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	-
CM1400E3U-24NF IGBT MOD 1200V 1400A 3900W Powerex Inc.	3,829	-	RFQ		Bulk	IGBTMOD™	Obsolete	-	Single	1200 V	1400 A	3900 W	2.5V @ 15V, 1400A	1 mA	220 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	-
CM35MXA-24S IGBT MOD 1200V 35A 355W Powerex Inc.	2,062	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	-	Three Phase Inverter with Brake	1200 V	35 A	355 W	2.25V @ 15V, 35A	1 mA	3.5 nF @ 10 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Through Hole
CM400DY-34A IGBT MOD 1700V 400A 3780W Powerex Inc.	2,824	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1700 V	400 A	3780 W	2.8V @ 15V, 400A	1 mA	98.8 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	-
CM50MXA-24S IGBT MOD 1200V 50A 355W Powerex Inc.	3,935	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	-	Three Phase Inverter with Brake	1200 V	50 A	355 W	2.25V @ 15V, 50A	1 mA	5 nF @ 10 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	-
CM600DU-12NFH IGBT MOD 600V 600A 1130W Powerex Inc.	3,203	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	600 V	600 A	1130 W	2.7V @ 15V, 600A	1 mA	166 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	-
CM600DXL-24S IGBT MOD 1200V 600A 4545W Powerex Inc.	2,211	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	600 A	4545 W	2.3V @ 15V, 600A	1 mA	60 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	-
