Transistors - IGBTs - Modules- Page 165

MAX3232IDR AOZ5311NQI-03 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
FF450R06ME3BOSA1 IGBT MOD 600V 550A 1250W Infineon Technologies	3,242	-	RFQ	Datasheet	Bulk	EconoDUAL™ 3	Not For New Designs	Trench Field Stop	2 Independent	600 V	550 A	1250 W	1.9V @ 15V, 450A	5 mA	28 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount

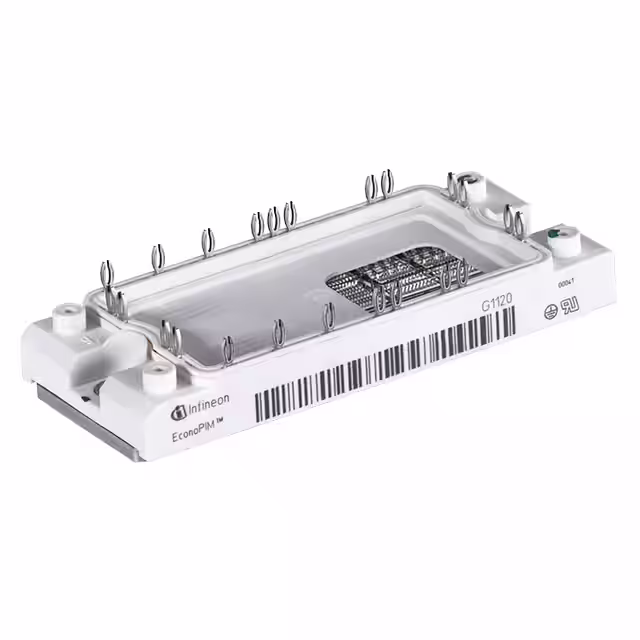

FP75R12KT4PBPSA1 IGBT MOD 1200V 150A 20MW Infineon Technologies	2,055	-	RFQ	Datasheet	Tray	EconoPIM™ 3	Active	Trench Field Stop	Three Phase Inverter	1200 V	150 A	20 mW	2.15V @ 15V, 75A	1 mA	4.3 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C	Chassis Mount
FD400R12KE3HOSA1 IGBT MOD 1200V 580A 2000W Infineon Technologies	2,675	-	RFQ	Datasheet	Bulk	C	Active	Trench Field Stop	Single Chopper	1200 V	580 A	2000 W	2.15V @ 15V, 400A	5 mA	28 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount
FF300R12KE3B2HOSA1 IGBT MOD 1200V 440A 1450W Infineon Technologies	3,506	-	RFQ		Tray	C	Active	Trench Field Stop	Half Bridge	1200 V	440 A	1450 W	2.15V @ 15V, 300A	5 mA	21 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount
VS-GT300YH120N IGBT MOD 1200V 341A INT-A-PAK Vishay General Semiconductor - Diodes Division	2,382	-	RFQ	Datasheet	Bulk	-	Active	Trench	Half Bridge	1200 V	341 A	1042 W	2.17V @ 15V, 300A (Typ)	300 µA	36 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FS200R07N3E4RB11BOSA1 IGBT MOD 650V 200A 600W Infineon Technologies	3,745	-	RFQ	Datasheet	Bulk	EconoPACK™ 3	Active	Trench Field Stop	Three Phase Inverter	650 V	200 A	600 W	1.95V @ 15V, 200A	1 mA	13 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FS150R12KT4PB11BPSA1 MOD IGBT LOW PWR ECONO3-4 Infineon Technologies	3,527	-	RFQ		Tray	EconoPACK™ 3	Active	-	-	-	-	-	-	-	-	-	-	-	-
FS100R17KE3BOSA1 IGBT MOD 1700V 145A 555W Infineon Technologies	2,074	-	RFQ	Datasheet	Bulk	-	Not For New Designs	-	Three Phase Inverter	1700 V	145 A	555 W	2.45V @ 15V, 100A	5 mA	9 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
BSM75GD120DN2BOSA1 IGBT MOD 1200V 103A 520W Infineon Technologies	2,567	-	RFQ		Tray	-	Not For New Designs	-	Three Phase Inverter	1200 V	103 A	520 W	3V @ 15V, 75A	1.5 mA	5.1 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount
BSM400GA120DN2HOSA1 IGBT MOD 1200V 550A 2700W Infineon Technologies	2,928	-	RFQ		Tray	-	Not For New Designs	-	Single Switch	1200 V	550 A	2700 W	3V @ 15V, 400A	8 mA	26 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount

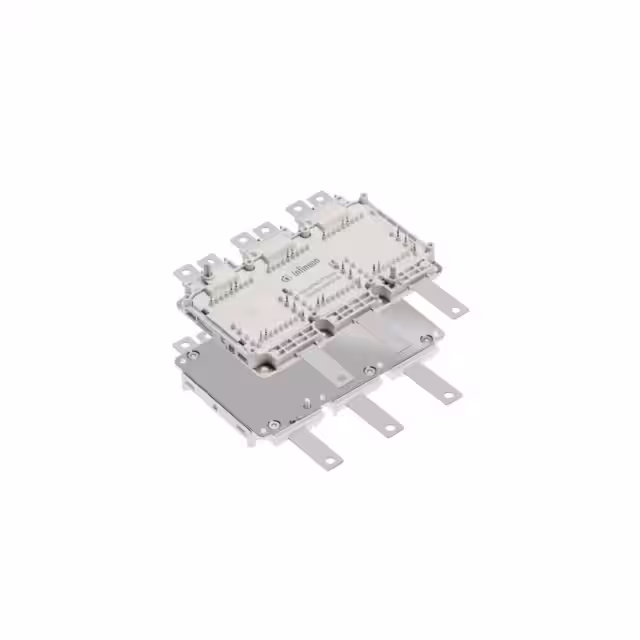

FS660R08A6P2FLBBPSA1 HYBRID PACK DRIVE Infineon Technologies	2,047	-	RFQ	Datasheet	Tray	HybridPACK™	Active	Trench Field Stop	Three Phase Inverter	750 V	450 A	1053 W	1.35V @ 15V, 450A	1 mA	80 nF @ 50 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
VS-GT300FD060N IGBT MOD 600V 379A INT-A-PAK Vishay General Semiconductor - Diodes Division	2,037	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Three Level Inverter	600 V	379 A	1250 W	2.5V @ 15V, 300A	250 µA	23.3 nF @ 30 V	Standard	No	175°C (TJ)	Chassis Mount
FZ1200R12HE4HOSA2 IGBT MODULE 1200V 1200A Infineon Technologies	3,036	-	RFQ	Datasheet	Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
FS450R12KE4BOSA1 IGBT MOD 1200V 675A 2250W Infineon Technologies	2,098	-	RFQ	Datasheet	Tray	EconoPACK™+ B	Not For New Designs	Trench Field Stop	Full Bridge	1200 V	675 A	2250 W	2.1V @ 15V, 450A	3 mA	28 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FD1200R17KE3KNOSA1 IGBT MOD 1700V 1600A 5950W Infineon Technologies	3,366	-	RFQ	Datasheet	Tray	EconoPACK™ 4	Not For New Designs	-	Dual Brake Chopper	1700 V	1600 A	5950 W	2.45V @ 15V, 1200A	5 mA	110 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount
FZ3600R17HE4PHPSA1 IGBT MODULE 1700V 7200A Infineon Technologies	3,263	-	RFQ	Datasheet	Tray	-	Active	Trench Field Stop	Single Switch	1700 V	7200 A	-	2.3V @ 15V, 3600A	5 mA	295 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount
FD800R33KF2CNOSA1 IGBT MODULE 3300V 9600W Infineon Technologies	3,459	-	RFQ	Datasheet	Bulk	-	Last Time Buy	-	Single Chopper	3300 V	-	9600 W	4.25V @ 15V, 800A	5 mA	100 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount
DDB6U180N16RRB11BPSA1 LOW POWER ECONO Infineon Technologies	3,770	-	RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
FP35R12KT4BOSA1 FP35R12 - IGBT MODULE Infineon Technologies	2,166	-	RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
F4200R06KL4BOSA1 LOW POWER ECONO Infineon Technologies	2,422	-	RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
