Transistors - IGBTs - Modules- Page 168

MAX3232IDR AOZ5311NQI-03 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType

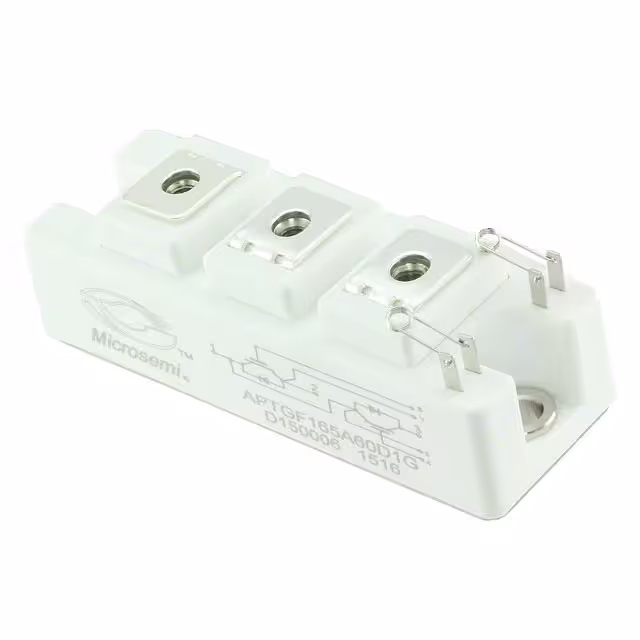

APTGF165A60D1G IGBT MODULE 600V 230A 781W D1 Microsemi Corporation	3,664	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Half Bridge	600 V	230 A	781 W	2.45V @ 15V, 200A	250 µA	9 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF165DA60D1G IGBT MODULE 600V 230A 730W D1 Microsemi Corporation	2,154	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	600 V	230 A	730 W	2.5V @ 15V, 200A	500 µA	9 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF165SK60D1G IGBT MODULE 600V 230A 730W D1 Microsemi Corporation	3,779	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	600 V	230 A	730 W	2.5V @ 15V, 200A	500 µA	9 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF180DA60TG IGBT MODULE 600V 220A 833W SP4 Microsemi Corporation	2,821	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	600 V	220 A	833 W	2.5V @ 15V, 180A	300 µA	8.6 nF @ 25 V	Standard	Yes	-	Chassis Mount

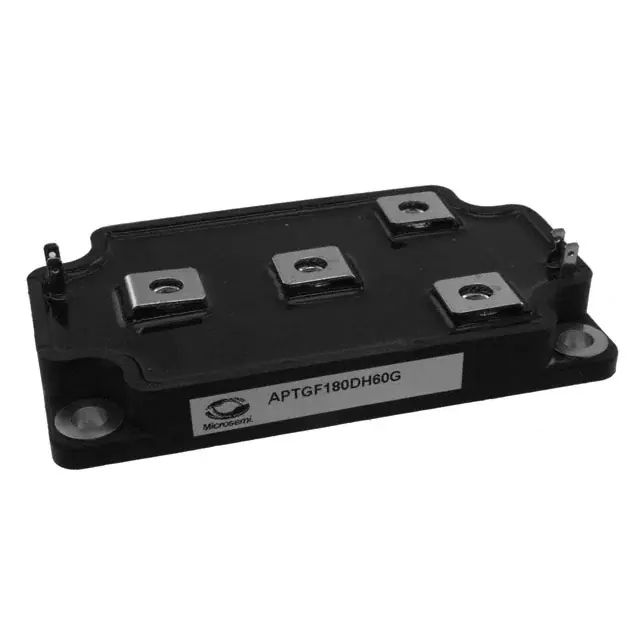

APTGF180DH60G IGBT MODULE 600V 220A 833W SP6 Microsemi Corporation	2,812	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Asymmetrical Bridge	600 V	220 A	833 W	2.5V @ 15V, 180A	300 µA	8.6 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF180DU60TG IGBT MODULE 600V 220A 833W SP4 Microsemi Corporation	3,598	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Dual, Common Source	600 V	220 A	833 W	2.5V @ 15V, 180A	300 µA	8.6 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF200A120D3G IGBT MODULE 1200V 300A 1400W D3 Microsemi Corporation	2,152	-	RFQ		Bulk	-	Obsolete	NPT	Half Bridge	1200 V	300 A	1400 W	3.7V @ 15V, 200A	5 mA	13 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF200DA120D3G IGBT MODULE 1200V 300A 1400W D3 Microsemi Corporation	3,876	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	1200 V	300 A	1400 W	3.7V @ 15V, 200A	5 mA	13 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
APTGF200SK120D3G IGBT MODULE 1200V 300A 1400W D3 Microsemi Corporation	2,925	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	1200 V	300 A	1400 W	3.7V @ 15V, 200A	5 mA	13 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
APTGF200U120DG IGBT MODULE 1200V 275A 1136W SP6 Microsemi Corporation	2,997	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	1200 V	275 A	1136 W	3.7V @ 15V, 200A	500 µA	13.8 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF250A60D3G IGBT MODULE 600V 400A 1250W D3 Microsemi Corporation	2,208	-	RFQ		Bulk	-	Obsolete	NPT	Half Bridge	600 V	400 A	1250 W	2.45V @ 15V, 300A	500 µA	13 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF250DA60D3G IGBT MODULE 600V 400A 1250W D3 Microsemi Corporation	2,051	-	RFQ		Bulk	-	Obsolete	NPT	Single	600 V	400 A	1250 W	2.45V @ 15V, 300A	500 µA	13 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF250SK60D3G IGBT MODULE 600V 400A 1250W D3 Microsemi Corporation	3,629	-	RFQ		Bulk	-	Obsolete	NPT	Single	600 V	400 A	1250 W	2.45V @ 15V, 300A	500 µA	13 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF25A120T1G IGBT MODULE 1200V 40A 208W SP1 Microsemi Corporation	3,994	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Half Bridge	1200 V	40 A	208 W	3.7V @ 15V, 25A	250 µA	1.65 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF25DDA120T3G IGBT MODULE 1200V 40A 208W SP3 Microsemi Corporation	3,084	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Dual Boost Chopper	1200 V	40 A	208 W	3.7V @ 15V, 25A	250 µA	1.65 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF25DSK120T3G IGBT MODULE 1200V 40A 208W SP3 Microsemi Corporation	3,439	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Dual Buck Chopper	1200 V	40 A	208 W	3.7V @ 15V, 25A	250 µA	1.65 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGF300A120D3G IGBT MODULE 1200V 420A 2100W D3 Microsemi Corporation	3,442	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Half Bridge	1200 V	420 A	2100 W	3.7V @ 15V, 300A	5 mA	19 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF300DA120D3G IGBT MODULE 1200V 420A 2100W D3 Microsemi Corporation	2,890	-	RFQ		Bulk	-	Obsolete	NPT	Single	1200 V	420 A	2100 W	3.7V @ 15V, 300A	5 mA	19 nF @ 25 V	Standard	No	-	Chassis Mount

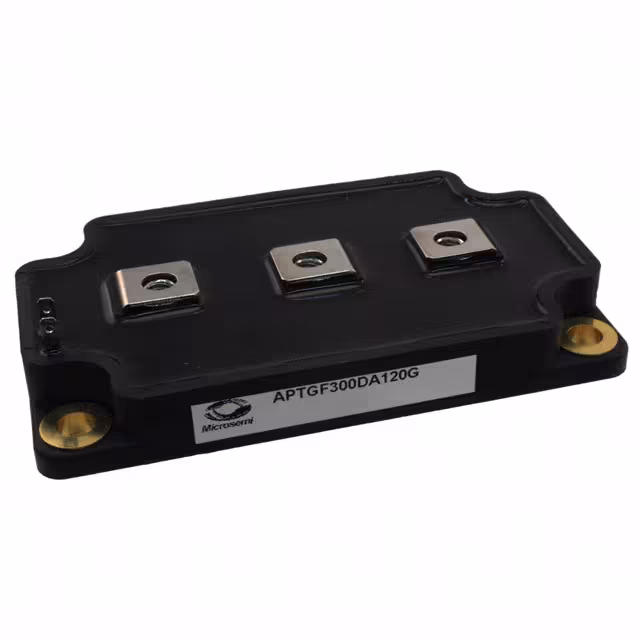

APTGF300DA120G IGBT MODULE 1200V 400A 1780W SP6 Microsemi Corporation	2,921	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Single	1200 V	400 A	1780 W	3.9V @ 15V, 300A	500 µA	21 nF @ 25 V	Standard	No	-	Chassis Mount
APTGF300DU120G IGBT MODULE 1200V 400A 1780W SP6 Microsemi Corporation	3,935	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Dual, Common Source	1200 V	400 A	1780 W	3.9V @ 15V, 300A	500 µA	21 nF @ 25 V	Standard	No	-	Chassis Mount
