Transistors - IGBTs - Modules- Page 176

MAX3232IDR AOZ5311NQI-03 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
APTGT75SK120D1G IGBT MODULE 1200V 110A 357W D1 Microsemi Corporation	2,604	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	Trench Field Stop	Single	1200 V	110 A	357 W	2.1V @ 15V, 75A	4 mA	5.345 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT75SK120T1G IGBT MODULE 1200V 110A 357W SP1 Microsemi Corporation	2,445	-	RFQ	Datasheet	Bulk	-	Obsolete	Trench Field Stop	Single	1200 V	110 A	357 W	2.1V @ 15V, 75A	250 µA	5.34 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT75SK170D1G IGBT MODULE 1700V 120A 520W D1 Microsemi Corporation	2,413	-	RFQ		Bulk	-	Obsolete	Trench Field Stop	Single	1700 V	120 A	520 W	2.4V @ 15V, 75A	5 mA	6.5 nF @ 25 V	Standard	No	-	Chassis Mount
APTGT75SK60T1G IGBT MODULE 600V 100A 250W SP1 Microsemi Corporation	2,729	-	RFQ	Datasheet	Bulk	-	Obsolete	Trench Field Stop	Single	600 V	100 A	250 W	1.9V @ 15V, 75A	250 µA	4.62 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT75TA60PG IGBT MODULE 600V 100A 250W SP6P Microsemi Corporation	2,406	-	RFQ	Datasheet	Bulk	-	Obsolete	Trench Field Stop	Three Phase	600 V	100 A	250 W	1.9V @ 15V, 75A	250 µA	4.62 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
APTGV100H60BTPG IGBT MODULE 600V 150A 340W SP6P Microsemi Corporation	3,843	-	RFQ		Bulk	-	Obsolete	NPT, Trench Field Stop	Boost Chopper, Full Bridge	600 V	150 A	340 W	1.9V @ 15V, 100A	250 µA	6.1 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGV100H60T3G IGBT MODULE 600V 150A 340W SP3 Microsemi Corporation	3,997	-	RFQ		Bulk	-	Obsolete	NPT, Trench Field Stop	Full Bridge Inverter	600 V	150 A	340 W	1.9V @ 15V, 100A	250 µA	6.1 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGV15H120T3G IGBT MODULE 1200V 25A 115W SP3 Microsemi Corporation	2,456	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT, Trench Field Stop	Full Bridge Inverter	1200 V	25 A	115 W	2.1V @ 15V, 15A	250 µA	1.1 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGV25H120BG IGBT MODULE 1200V 40A 156W SP4 Microsemi Corporation	2,287	-	RFQ		Bulk	-	Obsolete	NPT, Trench Field Stop	Boost Chopper, Full Bridge	1200 V	40 A	156 W	2.1V @ 15V, 25A	250 µA	1.8 nF @ 25 V	Standard	No	-	Chassis Mount
APTGV25H120T3G IGBT MODULE 1200V 40A 156W SP3 Microsemi Corporation	2,068	-	RFQ		Bulk	-	Obsolete	NPT, Trench Field Stop	Full Bridge Inverter	1200 V	40 A	156 W	2.1V @ 15V, 25A	250 µA	1.8 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGV30H60T3G IGBT MODULE 600V 50A 90W SP3 Microsemi Corporation	3,480	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT, Trench Field Stop	Full Bridge Inverter	600 V	50 A	90 W	1.9V @ 15V, 30A	250 µA	1.6 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGV50H120BTPG IGBT MODULE 1200V 75A 270W SP6P Microsemi Corporation	3,194	-	RFQ		Bulk	-	Obsolete	NPT, Trench Field Stop	Boost Chopper, Full Bridge	1200 V	75 A	270 W	2.1V @ 15V, 50A	250 µA	3.6 nF @ 25 V	Standard	Yes	-	Chassis Mount

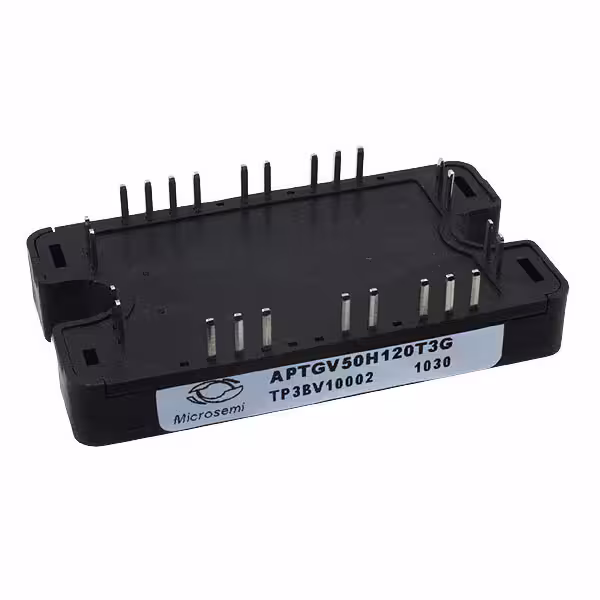

APTGV50H120T3G IGBT MODULE 1200V 75A 270W SP3 Microsemi Corporation	3,529	-	RFQ		Bulk	-	Obsolete	NPT, Trench Field Stop	Full Bridge Inverter	1200 V	75 A	270 W	2.1V @ 15V, 50A	250 µA	3.6 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGV50H60BG IGBT MODULE 600V 80A 176W SP4 Microsemi Corporation	2,064	-	RFQ		Bulk	-	Obsolete	NPT, Trench Field Stop	Boost Chopper, Full Bridge	600 V	80 A	176 W	1.9V @ 15V, 50A	250 µA	3.15 nF @ 25 V	Standard	No	-	Chassis Mount
APTGV50H60T3G IGBT MODULE 600V 80A 176W SP3 Microsemi Corporation	3,735	-	RFQ		Bulk	-	Obsolete	NPT, Trench Field Stop	Full Bridge Inverter	600 V	80 A	176 W	1.9V @ 15V, 50A	250 µA	3.15 nF @ 25 V	Standard	Yes	-	Chassis Mount
APTGV75H60T3G IGBT MODULE 600V 100A 250W SP3 Microsemi Corporation	2,481	-	RFQ		Bulk	-	Obsolete	NPT, Trench Field Stop	Full Bridge Inverter	600 V	100 A	250 W	1.9V @ 15V, 75A	250 µA	4.62 nF @ 25 V	Standard	Yes	-	Chassis Mount
CM1000DU-34NF IGBT MOD 1700V 1000A 3900W Powerex Inc.	2,440	-	RFQ		Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1700 V	1000 A	3900 W	2.8V @ 15V, 1000A	1 mA	220 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM100DU-24NFH IGBT MOD 1200V 100A 560W Powerex Inc.	2,514	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	100 A	560 W	6.5V @ 15V, 100A	1 mA	16 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM100DY-24A IGBT MOD 1200V 100A 672W Powerex Inc.	3,251	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	100 A	672 W	3V @ 15V, 100A	1 mA	17.5 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM100DY-24NF IGBT MOD 1200V 100A 650W Powerex Inc.	2,713	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	100 A	650 W	2.5V @ 15V, 100A	1 mA	23 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
