Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
CM100RX-24A IGBT MOD 1200V 100A 625W Powerex Inc.	2,794	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Three Phase Inverter with Brake	1200 V	100 A	625 W	2.6V @ 15V, 100A	1 mA	17.5 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
CM100TF-12H IGBT MOD 600V 100A 400W Powerex Inc.	2,395	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Three Phase Inverter	600 V	100 A	400 W	2.8V @ 15V, 100A	1 mA	10 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM100TF-24H IGBT MOD 1200V 100A 780W Powerex Inc.	3,592	-	RFQ		Bulk	IGBTMOD™	Discontinued at Mosen	-	Three Phase Inverter	1200 V	100 A	780 W	3.4V @ 15V, 100A	1 mA	20 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM100TF-28H IGBT MOD 1400V 100A 780W Powerex Inc.	2,777	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Three Phase Inverter	1400 V	100 A	780 W	4.2V @ 15V, 100A	1 mA	20 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM100TL-12NF IGBT MOD 600V 100A 540W Powerex Inc.	3,107	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Three Phase Inverter	600 V	100 A	540 W	2.2V @ 15V, 100A	1 mA	15 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM100TL-24NF IGBT MOD 1200V 100A 620W Powerex Inc.	3,205	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Three Phase Inverter	1200 V	100 A	620 W	3V @ 15V, 100A	1 mA	17.5 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM100TU-12F IGBT MOD 600V 100A 350W Powerex Inc.	2,706	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Three Phase Inverter	600 V	100 A	350 W	2.2V @ 15V, 100A	1 mA	27 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM100TU-12H IGBT MOD 600V 100A 400W Powerex Inc.	3,912	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Three Phase Inverter	600 V	100 A	400 W	3V @ 15V, 100A	1 mA	8.8 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM100TU-24F IGBT MOD 1200V 100A 500W Powerex Inc.	3,443	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	Trench	Three Phase Inverter	1200 V	100 A	500 W	2.4V @ 15V, 100A	1 mA	39 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM100TU-24H IGBT MOD 1200V 100A 650W Powerex Inc.	3,479	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Three Phase Inverter	1200 V	100 A	650 W	3.7V @ 15V, 100A	1 mA	15 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM1200HA-24J IGBT MOD 1200V 1200A 5800W Powerex Inc.	3,067	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Single	1200 V	1200 A	5800 W	3.1V @ 15V, 1200A	6 mA	200 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM150DU-12F IGBT MOD 600V 150A 520W Powerex Inc.	2,897	-	RFQ		Bulk	IGBTMOD™	Discontinued at Mosen	Trench	Half Bridge	600 V	150 A	520 W	2.2V @ 15V, 150A	1 mA	41 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM150DU-12H IGBT MOD 600V 150A 600W Powerex Inc.	3,286	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	600 V	150 A	600 W	3V @ 15V, 150A	1 mA	13.2 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM150DU-24F IGBT MOD 1200V 150A 600W Powerex Inc.	3,739	-	RFQ		Bulk	IGBTMOD™	Discontinued at Mosen	Trench	Half Bridge	1200 V	150 A	600 W	2.4V @ 15V, 150A	1 mA	59 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM150DU-24H IGBT MOD 1200V 150A 890W Powerex Inc.	2,835	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1200 V	150 A	890 W	3.7V @ 15V, 150A	1 mA	22 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

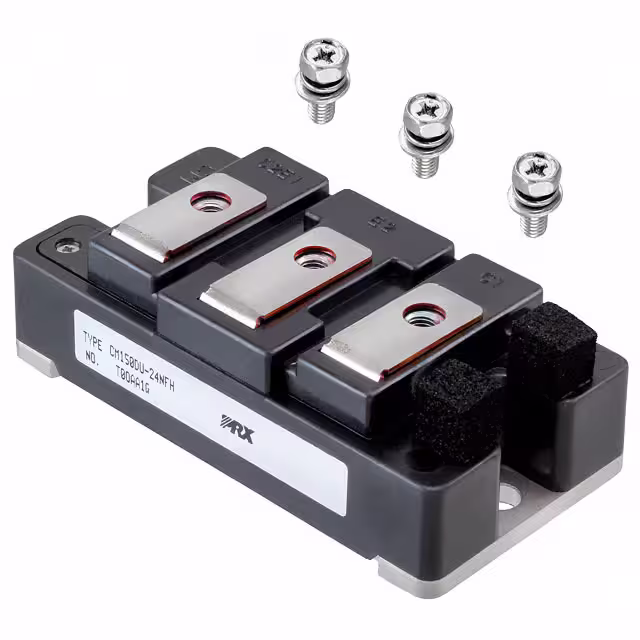

CM150DU-24NFH IGBT MOD 1200V 150A 650W Powerex Inc.	2,958	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1200 V	150 A	650 W	6.5V @ 15V, 150A	1 mA	24 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM150DU-34KA IGBT MOD 1700V 150A 1100W Powerex Inc.	2,285	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1700 V	150 A	1100 W	4V @ 15V, 150A	1 mA	21 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

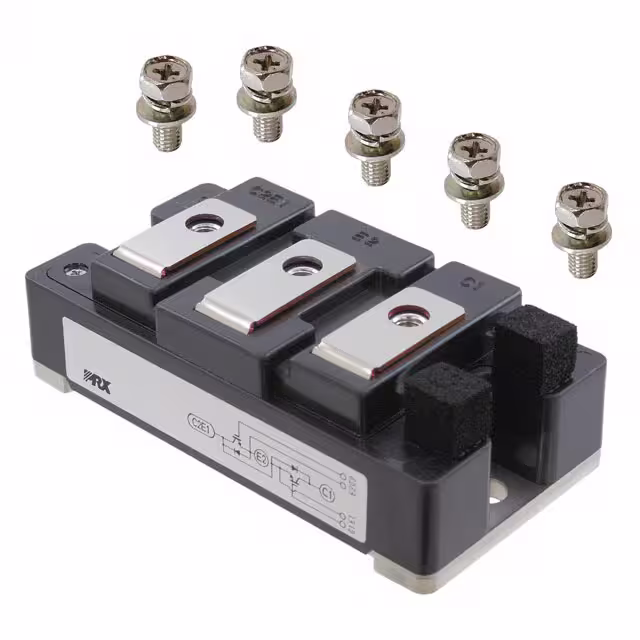

CM150DUS-12F IGBT MOD 600V 150A 520W Powerex Inc.	2,552	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	Trench	Half Bridge	600 V	150 A	520 W	2.7V @ 15V, 150A	1 mA	41 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM150DY-12H IGBT MOD 600V 150A 600W Powerex Inc.	3,903	-	RFQ		Bulk	IGBTMOD™	Obsolete	-	Half Bridge	600 V	150 A	600 W	2.8V @ 15V, 150A	1 mA	15 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM150DY-24A IGBT MOD 1200V 150A 960W Powerex Inc.	3,859	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	150 A	960 W	3V @ 15V, 150A	1 mA	23 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
