Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
CM300DU-12F IGBT MOD 600V 300A 830W Powerex Inc.	2,895	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	Trench	Half Bridge	600 V	300 A	830 W	2.2V @ 15V, 300A	1 mA	81 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM300DU-12H IGBT MOD 600V 300A 890W Powerex Inc.	2,701	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	600 V	300 A	890 W	3V @ 15V, 300A	1 mA	26.4 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM300DU-12NFH IGBT MOD 600V 300A 780W Powerex Inc.	2,818	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	600 V	300 A	780 W	2.7V @ 15V, 300A	1 mA	83 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM300DU-24F IGBT MOD 1200V 300A 890W Powerex Inc.	3,987	-	RFQ		Bulk	IGBTMOD™	Obsolete	Trench	Half Bridge	1200 V	300 A	890 W	2.4V @ 15V, 300A	1 mA	120 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM300DU-24H IGBT MOD 1200V 300A 1130W Powerex Inc.	3,480	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1200 V	300 A	1130 W	3.7V @ 15V, 300A	1 mA	45 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

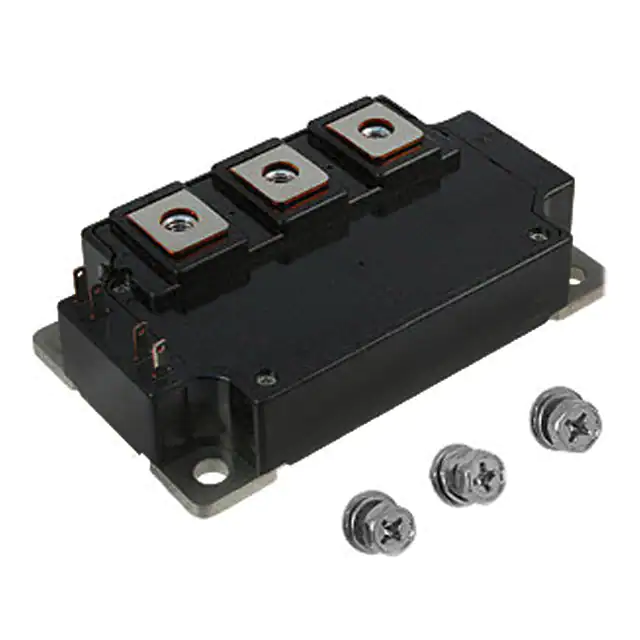

CM300DU-24NFH IGBT MOD 1200V 300A 1130W Powerex Inc.	3,438	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	300 A	1130 W	6.5V @ 15V, 300A	1 mA	47 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM300DU-34KA IGBT MOD 1700V 300A 1500W Powerex Inc.	2,751	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1700 V	300 A	1500 W	4V @ 15V, 300A	1 mA	42 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM300DX-12A IGBT MOD 600V 300A 960W Powerex Inc.	3,443	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	600 V	300 A	960 W	2.1V @ 15V, 300A	1 mA	34 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

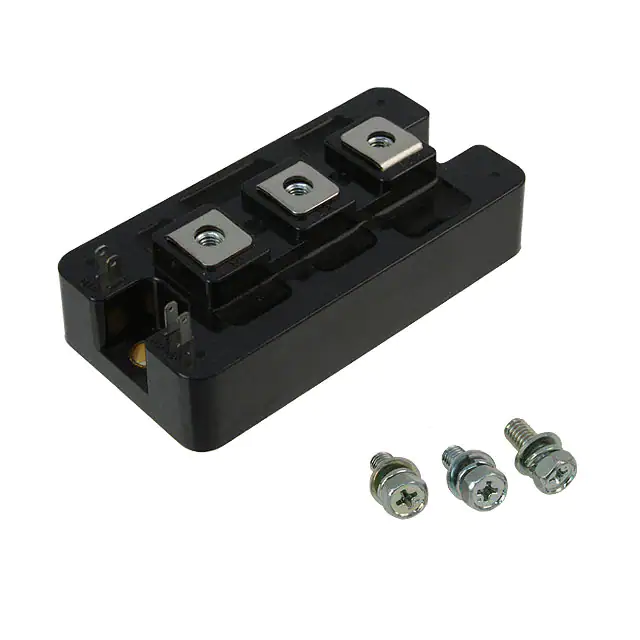

CM300DY-12H IGBT MOD 600V 300A 1100W Powerex Inc.	2,960	-	RFQ		Bulk	IGBTMOD™	Obsolete	-	Half Bridge	600 V	300 A	1100 W	2.8V @ 15V, 300A	1 mA	30 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

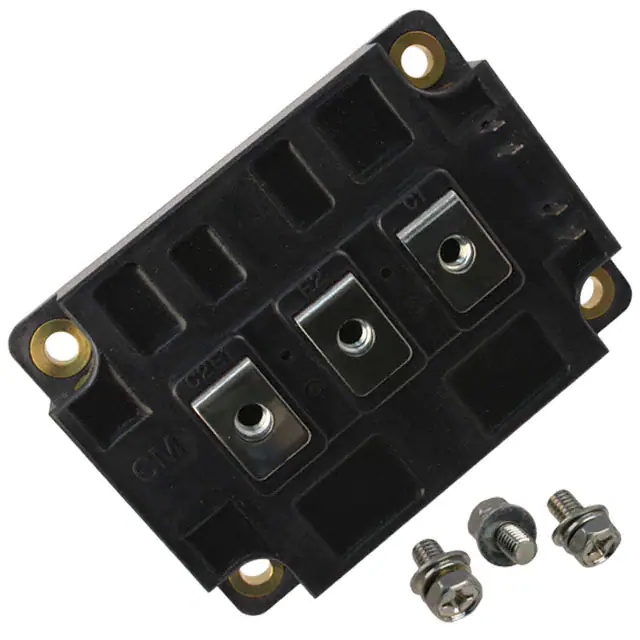

CM300DY-24H IGBT MOD 1200V 300A 2100W Powerex Inc.	2,472	-	RFQ		Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1200 V	300 A	2100 W	3.2V @ 15V, 300A	1 mA	60 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM300DY-28H IGBT MOD 1400V 300A 2100W Powerex Inc.	3,482	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1400 V	300 A	2100 W	4.2V @ 15V, 300A	1 mA	60 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM300DY-34A IGBT MOD 1700V 300A 2900W Powerex Inc.	3,991	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1700 V	300 A	2900 W	2.8V @ 15V, 300A	1 mA	74 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM300E3U-12H IGBT MOD 600V 300A 890W Powerex Inc.	3,512	-	RFQ		Bulk	IGBTMOD™	Obsolete	-	Single	600 V	300 A	890 W	3V @ 15V, 300A	1 mA	26.4 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM300HA-12H IGBT MOD 600V 300A 1100W Powerex Inc.	3,585	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Single	600 V	300 A	1100 W	2.8V @ 15V, 300A	1 mA	30 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM300HA-24H IGBT MOD 1200V 300A 2100W Powerex Inc.	3,390	-	RFQ		Bulk	IGBTMOD™	Obsolete	-	Single	1200 V	300 A	2100 W	3.4V @ 15V, 300A	1 mA	60 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM300HA-28H IGBT MOD 1400V 300A 2100W Powerex Inc.	2,192	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Single	1400 V	300 A	2100 W	4.2V @ 15V, 300A	1 mA	60 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM30TF-12H IGBT MODULE 600V 30A 150W Powerex Inc.	2,794	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Three Phase Inverter	600 V	30 A	150 W	2.8V @ 15V, 30A	1 mA	3 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM30TF-24H IGBT MOD 1200V 30A 310W Powerex Inc.	3,392	-	RFQ		Bulk	IGBTMOD™	Obsolete	-	Three Phase Inverter	1200 V	30 A	310 W	3.4V @ 15V, 30A	1 mA	6 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM400DU-12F IGBT MOD 600V 400A 960W Powerex Inc.	2,577	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	Trench	Half Bridge	600 V	400 A	960 W	2.2V @ 15V, 400A	1 mA	110 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM400DU-12H IGBT MOD 600V 400A 1130W Powerex Inc.	2,710	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	600 V	400 A	1130 W	3V @ 15V, 400A	1 mA	35.2 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
