Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType

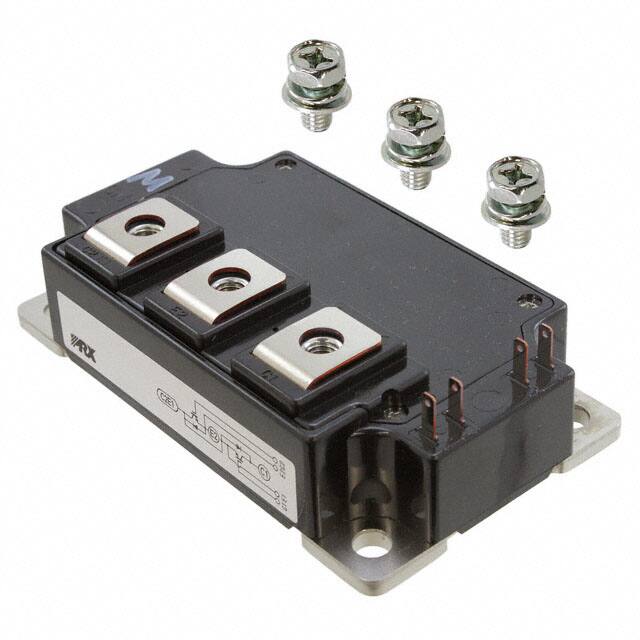

CM400DU-12NFH IGBT MOD 600V 400A 960W Powerex Inc.	3,820	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	600 V	400 A	960 W	2.7V @ 15V, 400A	1 mA	110 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM400DU-24F IGBT MOD 1200V 400A 1100W Powerex Inc.	2,970	-	RFQ		Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	400 A	1100 W	2.4V @ 15V, 400A	2 mA	160 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM400DU-24H IGBT MOD 1200V 400A 2100W Powerex Inc.	3,389	-	RFQ		Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1200 V	400 A	2100 W	3.7V @ 15V, 400A	2 mA	60 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM400DU-24NFH IGBT MOD 1200V 400A 1040W Powerex Inc.	2,037	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	400 A	1040 W	6.5V @ 15V, 400A	1 mA	63 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM400DU-34KA IGBT MOD 1700V 400A 1950W Powerex Inc.	2,017	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1700 V	400 A	1950 W	4.1V @ 15V, 400A	1 mA	57 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM400DU-5F IGBT MOD 250V 400A 890W Powerex Inc.	3,973	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	Trench	Half Bridge	250 V	400 A	890 W	1.7V @ 10V, 400A	1 mA	110 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM400DX-12A IGBT MOD 600V 400A 1340W Powerex Inc.	3,814	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	600 V	400 A	1340 W	2.1V @ 15V, 400A	1 mA	50 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

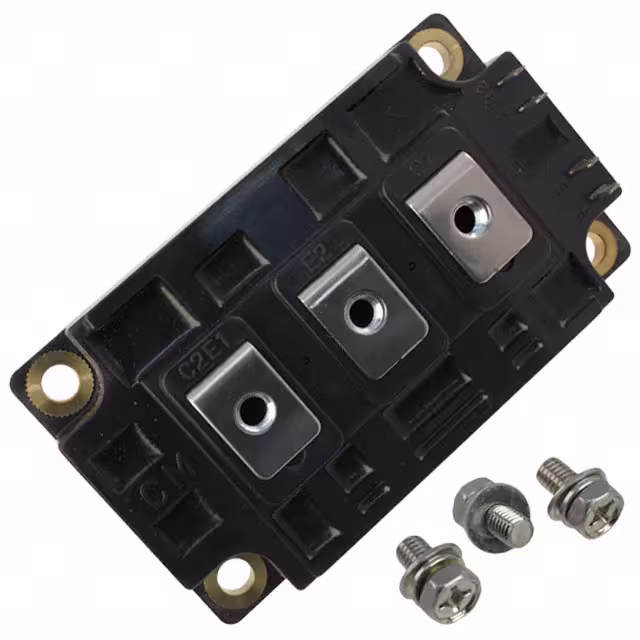

CM400DY-12H IGBT MOD 600V 400A 1500W Powerex Inc.	3,150	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	600 V	400 A	1500 W	2.8V @ 15V, 400A	1 mA	40 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM400DY-24NF IGBT MOD 1200V 400A 1470W Powerex Inc.	2,309	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	400 A	1470 W	2.5V @ 15V, 400A	1 mA	94 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM400HA-12H IGBT MOD 600V 400A 1500W Powerex Inc.	2,096	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Single	600 V	400 A	1500 W	2.8V @ 15V, 400A	1 mA	40 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM400HA-24H IGBT MOD 1200V 400A 2800W Powerex Inc.	3,550	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Single	1200 V	400 A	2800 W	3.4V @ 15V, 400A	2 mA	80 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM400HA-28H IGBT MOD 1400V 400A 2800W Powerex Inc.	3,466	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Single	1400 V	400 A	2800 W	4.2V @ 15V, 400A	2 mA	80 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM400HA-34H IGBT MOD 1700V 400A 4100W Powerex Inc.	2,677	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Single	1700 V	400 A	4100 W	3.7V @ 15V, 400A	4 mA	85 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

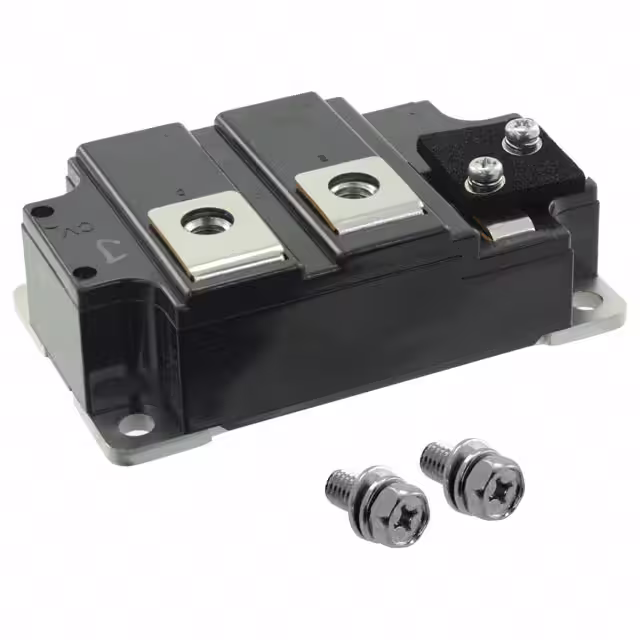

CM400HU-24F IGBT MOD 1200V 400A 1600W Powerex Inc.	2,989	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	Trench	Single	1200 V	400 A	1600 W	2.4V @ 15V, 400A	2 mA	160 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM400HU-24H IGBT MOD 1200V 400A 2100W Powerex Inc.	2,911	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Single	1200 V	400 A	2100 W	3.7V @ 15V, 400A	2 mA	60 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM450HA-5F IGBT MOD 250V 450A 735W Powerex Inc.	3,592	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	Trench	Single	250 V	450 A	735 W	1.7V @ 10V, 450A	1 mA	132 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM500HA-34A IGBT MOD 1700V 500A 5000W Powerex Inc.	3,224	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Single	1700 V	500 A	5000 W	2.8V @ 15V, 500A	1 mA	120 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM50BU-24H IGBT MOD 1200V 50A 400W Powerex Inc.	3,344	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Full Bridge Inverter	1200 V	50 A	400 W	3.7V @ 15V, 50A	1 mA	7.5 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM50DU-24F IGBT MOD 1200V 50A 320W Powerex Inc.	3,050	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	Trench	Half Bridge	1200 V	50 A	320 W	2.4V @ 15V, 50A	1 mA	20 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM50DU-24H IGBT MOD 1200V 50A 400W Powerex Inc.	3,217	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1200 V	50 A	400 W	3.7V @ 15V, 50A	1 mA	7.5 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
