Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
CM200DU-24H IGBT MOD 1200V 200A 1130W Powerex Inc.	3,216	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1200 V	200 A	1130 W	3.7V @ 15V, 200A	1 mA	30 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM200DU-24NFH IGBT MOD 1200V 200A 830W Powerex Inc.	2,425	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	200 A	830 W	6.5V @ 15V, 200A	1 mA	32 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM200DU-34KA IGBT MOD 1700V 200A 1100W Powerex Inc.	2,475	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1700 V	200 A	1100 W	4V @ 15V, 200A	1 mA	29 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM200DY-12H IGBT MOD 600V 200A 780W Powerex Inc.	3,099	-	RFQ		Bulk	IGBTMOD™	Obsolete	-	Half Bridge	600 V	200 A	780 W	2.8V @ 15V, 200A	1 mA	20 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

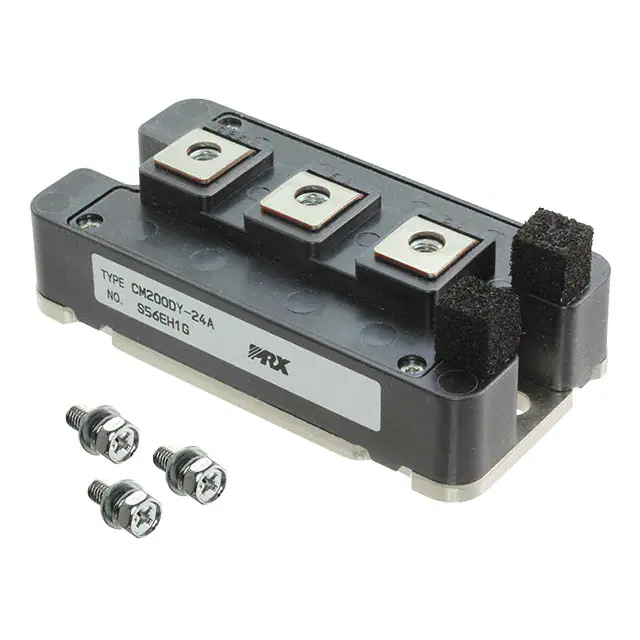

CM200DY-24A IGBT MOD 1200V 200A 1340W Powerex Inc.	2,073	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	200 A	1340 W	3V @ 15V, 200A	1 mA	35 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM200DY-24H IGBT MOD 1200V 200A 1500W Powerex Inc.	3,065	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1200 V	200 A	1500 W	3.4V @ 15V, 200A	1 mA	40 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM200DY-28H IGBT MOD 1400V 200A 1500W Powerex Inc.	3,108	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1400 V	200 A	1500 W	4.2V @ 15V, 200A	1 mA	40 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM200DY-34A IGBT MOD 1700V 200A 1980W Powerex Inc.	2,346	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1700 V	200 A	1980 W	2.8V @ 15V, 200A	1 mA	49.4 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM200E3U-12H IGBT MOD 600V 200A 650W Powerex Inc.	2,407	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Single	600 V	200 A	650 W	3V @ 15V, 200A	1 mA	17.6 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM200HA-24H IGBT MOD 1200V 200A 1500W Powerex Inc.	2,994	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Single	1200 V	200 A	1500 W	3.4V @ 15V, 200A	1 mA	40 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM200RL-12NF IGBT MOD 600V 200A 890W Powerex Inc.	3,749	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Three Phase Inverter with Brake	600 V	200 A	890 W	2.2V @ 15V, 200A	1 mA	30 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM200RL-24NF IGBT MOD 1200V 200A 1160W Powerex Inc.	3,762	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Three Phase Inverter with Brake	1200 V	200 A	1160 W	3.1V @ 15V, 200A	1 mA	35 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM200RX-12A IGBT MOD 600V 200A 735W Powerex Inc.	3,565	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Three Phase Inverter with Brake	600 V	200 A	735 W	2.1V @ 15V, 200A	1 mA	27 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
CM200TL-12NF IGBT MOD 600V 200A 890W Powerex Inc.	2,538	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Three Phase Inverter	600 V	200 A	890 W	2.2V @ 15V, 200A	1 mA	30 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM200TL-24NF IGBT MOD 1200V 200A 1160W Powerex Inc.	3,996	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Three Phase Inverter	1200 V	200 A	1160 W	3.1V @ 15V, 200A	1 mA	35 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM200TU-12F IGBT MOD 600V 200A 590W Powerex Inc.	2,367	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	Trench	Three Phase Inverter	600 V	200 A	590 W	2.2V @ 15V, 200A	1 mA	54 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM200TU-12H IGBT MOD 600V 200A 650W Powerex Inc.	3,847	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Three Phase Inverter	600 V	200 A	650 W	3V @ 15V, 200A	1 mA	17.6 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM200TU-5F IGBT MOD 250V 200A 600W Powerex Inc.	2,135	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	Trench	Three Phase Inverter	250 V	200 A	600 W	1.7V @ 10V, 200A	1 mA	66 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM20TF-12H IGBT MODULE 600V 20A 125W Powerex Inc.	3,133	-	RFQ		Bulk	IGBTMOD™	Obsolete	-	Three Phase Inverter	600 V	20 A	125 W	2.8V @ 15V, 20A	1 mA	2 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
CM20TF-24H IGBT MOD 1200V 20A 250W Powerex Inc.	3,259	-	RFQ		Bulk	IGBTMOD™	Obsolete	-	Three Phase Inverter	1200 V	20 A	250 W	3.4V @ 15V, 20A	1 mA	4 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
