Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
CM50MXA-24S IGBT MOD 1200V 50A 355W Powerex Inc.	3,415	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	-	Three Phase Inverter with Brake	1200 V	50 A	355 W	2.25V @ 15V, 50A	1 mA	5 nF @ 10 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	-
CM600DU-12NFH IGBT MOD 600V 600A 1130W Powerex Inc.	2,888	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	600 V	600 A	1130 W	2.7V @ 15V, 600A	1 mA	166 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	-
CM600DXL-24S IGBT MOD 1200V 600A 4545W Powerex Inc.	2,198	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	600 A	4545 W	2.3V @ 15V, 600A	1 mA	60 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	-
CM600E3U-12NFH IGBT MOD 600V 600A 1420W Powerex Inc.	2,323	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Single	600 V	600 A	1420 W	2.7V @ 15V, 600A	1 mA	166 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	-
CM75MXA-24S IGBT MOD 1200V 75A 600W Powerex Inc.	3,023	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	-	Three Phase Inverter with Brake	1200 V	75 A	600 W	2.25V @ 15V, 75A	1 mA	7.5 nF @ 10 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	-
CM75TX-24S IGBT MOD 1200V 75A 600W Powerex Inc.	2,145	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Three Phase Inverter	1200 V	75 A	600 W	2.25V @ 15V, 75A	1 mA	7.5 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	-
CM900DUC-24NF IGBT MOD 1200V 900A 5900W Powerex Inc.	3,658	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	900 A	5900 W	2.5V @ 15V, 900A	1 mA	140 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	-
PP600T120 IGBT MOD POWR-PAC 3PH 600A 1200V Powerex Inc.	3,855	-	RFQ		Bulk	-	Active	-	-	-	-	-	-	-	-	-	No	-	-
QID4515001 IGBT MOD 4500V 150A 1440W Powerex Inc.	2,299	-	RFQ	Datasheet	Bulk	IGBTMOD™	Active	-	Half Bridge	4500 V	150 A	1440 W	3.9V @ 15V, 150A	2.7 mA	18 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	-
CM300DY-24S IGBT MOD 1200V 300A 2270W Powerex Inc.	3,929	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	-	Half Bridge	1200 V	300 A	2270 W	2.25V @ 15V, 300A	1 mA	30 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

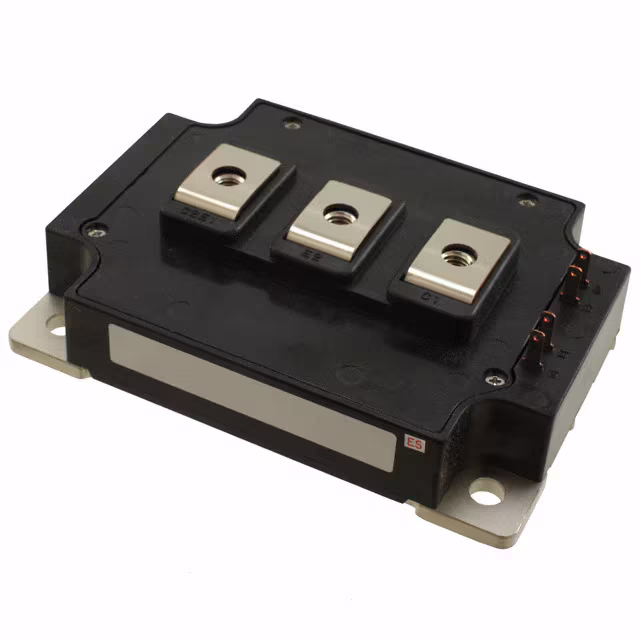

CM600DY-24S IGBT MOD 1200V 600A 4050W Powerex Inc.	2,749	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	-	Half Bridge	1200 V	600 A	4050 W	2.25V @ 15V, 600A	1 mA	60 nF @ 10 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
VS-GA250SA60S IGBT MOD 600V 400A 961W SOT227 Vishay General Semiconductor - Diodes Division	3,959	-	RFQ		Tube	-	Obsolete	-	Single	600 V	400 A	961 W	1.66V @ 15V, 200A	1 mA	16.25 nF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

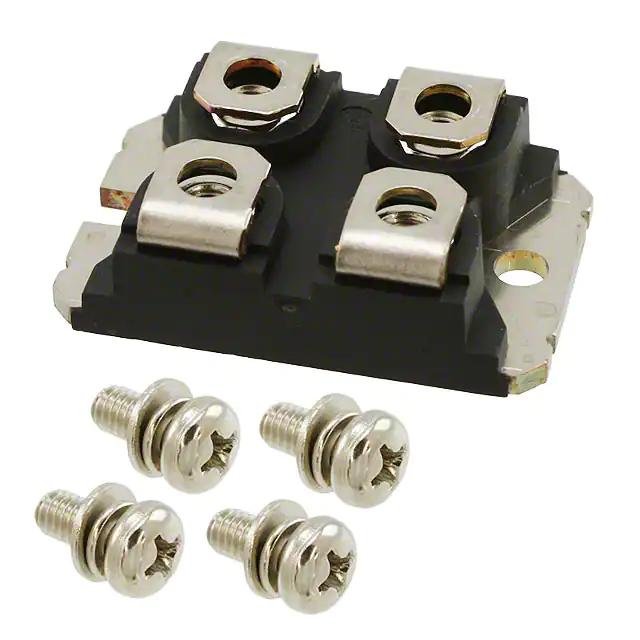

VS-GB90SA120U IGBT MOD 1200V 149A 862W SOT227 Vishay General Semiconductor - Diodes Division	3,549	-	RFQ		Tube	-	Obsolete	NPT	Single	1200 V	149 A	862 W	3.9V @ 15V, 75A	250 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
VS-GB90DA60U IGBT MOD 600V 147A 625W SOT227 Vishay General Semiconductor - Diodes Division	3,866	-	RFQ	Datasheet	Tube	-	Obsolete	NPT	Single	600 V	147 A	625 W	2.8V @ 15V, 100A	100 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

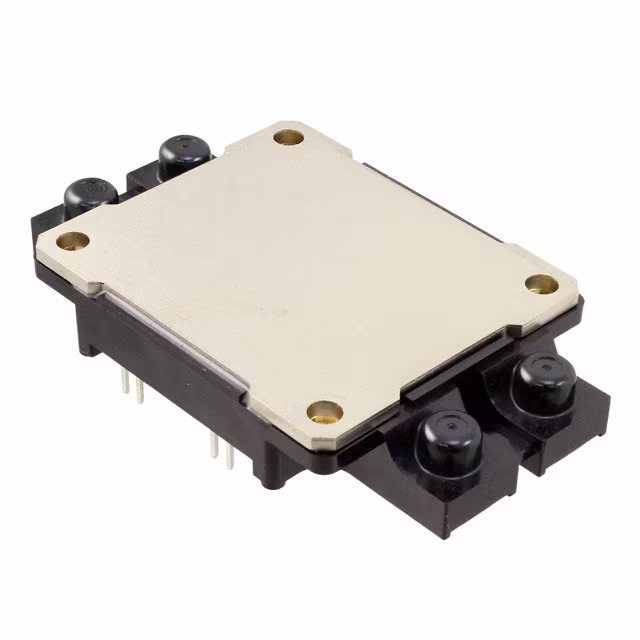

CM150EXS-24S IGBT MOD 1200V 150A 1150W Powerex Inc.	2,683	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	-	Single	1200 V	150 A	1150 W	2.25V @ 15V, 150A	1 mA	15 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	-
CM200EXS-24S IGBT MOD 1200V 200A 1500W Powerex Inc.	3,816	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	-	Single	1200 V	200 A	1500 W	2.15V @ 15V, 200A	1 mA	20 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	-
CM300EXS-24S IGBT MOD 1200V 300A 2270W Powerex Inc.	3,033	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	-	Single	1200 V	300 A	2270 W	2.25V @ 15V, 300A	1 mA	30 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	-
CM200EXS-34SA IGBT MOD 1700V 200A 2000W Powerex Inc.	3,717	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	-	Single	1700 V	200 A	2000 W	2.7V @ 15V, 200A	1 mA	35 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	-
VS-CPV362M4KPBF IGBT MODULE 600V 3PHASE IMS-2 Vishay General Semiconductor - Diodes Division	3,485	-	RFQ		Bulk	-	Obsolete	-	-	-	-	-	-	-	-	-	No	-40°C ~ 150°C (TJ)	Through Hole
VS-CPV362M4UPBF IGBT MODULE 600V 7.2A 23W IMS-2 Vishay General Semiconductor - Diodes Division	2,275	-	RFQ		Bulk	-	Obsolete	-	-	600 V	7.2 A	23 W	2.2V @ 15V, 3.9A	250 µA	530 pF @ 30 V	Standard	No	-40°C ~ 150°C (TJ)	Through Hole
