Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
MG300Q2YS60A IGBT MOD 1200V 300A 2800W Powerex Inc.	3,790	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1200 V	300 A	2800 W	2.8V @ 15V, 300A	1 mA	21 nF @ 10 V	Standard	No	-20°C ~ 150°C (TJ)	Chassis Mount
MG400J2YS61A IGBT MOD 600V 400A 2160W Powerex Inc.	2,025	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	600 V	400 A	2160 W	2.2V @ 15V, 400A	1 mA	85 nF @ 10 V	Standard	No	-20°C ~ 150°C (TJ)	Chassis Mount
MG400Q2YS60A IGBT MOD 1200V 400A 3750W Powerex Inc.	2,756	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1200 V	400 A	3750 W	2.8V @ 15V, 400A	1 mA	31 nF @ 10 V	Standard	No	-20°C ~ 150°C (TJ)	Chassis Mount
MG400V2YS60A IGBT MOD 1700V 400A 4300W Powerex Inc.	3,702	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1700 V	400 A	4300 W	3.4V @ 15V, 400A	1 mA	45 nF @ 10 V	Standard	Yes	-20°C ~ 150°C (TJ)	Chassis Mount
MG600J2YS61A IGBT MOD 600V 600A 2770W Powerex Inc.	2,243	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	600 V	600 A	2770 W	2.5V @ 15V, 600A	1 mA	125 nF @ 10 V	Standard	No	-20°C ~ 150°C (TJ)	Chassis Mount
MG600Q2YS60A IGBT MOD 1200V 600A 4300W Powerex Inc.	2,109	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1200 V	600 A	4300 W	3.1V @ 15V, 600A	1 mA	41 nF @ 10 V	Standard	Yes	-20°C ~ 150°C (TJ)	Chassis Mount
MG800J2YS50A IGBT MOD 600V 800A 2900W Powerex Inc.	3,814	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	600 V	800 A	2900 W	3V @ 15V, 800A	1 mA	93 nF @ 10 V	Standard	No	-20°C ~ 150°C (TJ)	Chassis Mount
QIS4506001 IGBT MODULE 4500V 60A Powerex Inc.	2,746	-	RFQ	Datasheet	Bulk	-	Active	-	Single	4500 V	60 A	-	3.9V @ 15V, 67A	1 mA	9 nF @ 10 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
QIS4506002 IGBT MODULE 4500V 60A Powerex Inc.	2,288	-	RFQ	Datasheet	Bulk	-	Active	-	Single	4500 V	60 A	-	3.9V @ 15V, 67A	1 mA	9 nF @ 10 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount

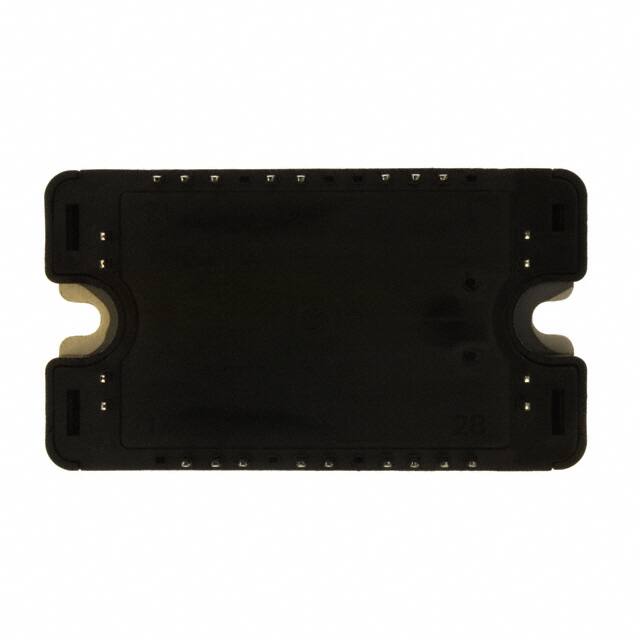

APTCV90TL12T3G IGBT MODULE 1200V 80A 280W SP3 Microsemi Corporation	2,080	-	RFQ	Datasheet	Bulk	-	Obsolete	Trench Field Stop	Three Level Inverter - IGBT, FET	1200 V	80 A	280 W	2.2V @ 15V, 50A	1 mA	2.77 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount

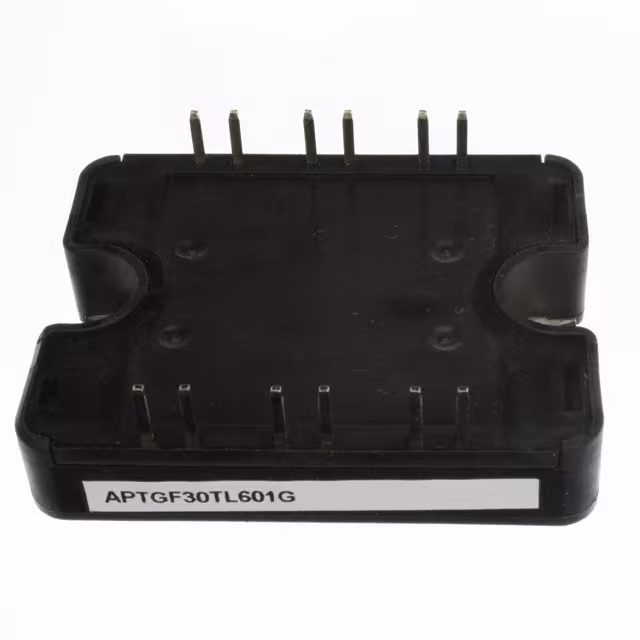

APTGF30TL601G IGBT MODULE 600V 42A 140W SP1 Microsemi Corporation	2,993	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Three Level Inverter	600 V	42 A	140 W	2.45V @ 15V, 30A	250 µA	1.35 nF @ 25 V	Standard	No	-	Chassis Mount

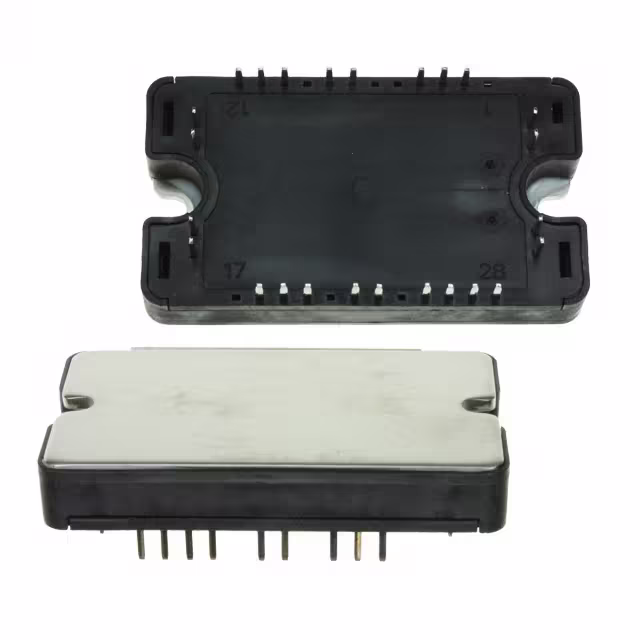

APTGF50TL60T3G IGBT MODULE 600V 65A 250W SP3 Microsemi Corporation	3,692	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Three Level Inverter	600 V	65 A	250 W	2.45V @ 15V, 50A	250 µA	2.2 nF @ 25 V	Standard	Yes	-55°C ~ 150°C (TJ)	Chassis Mount

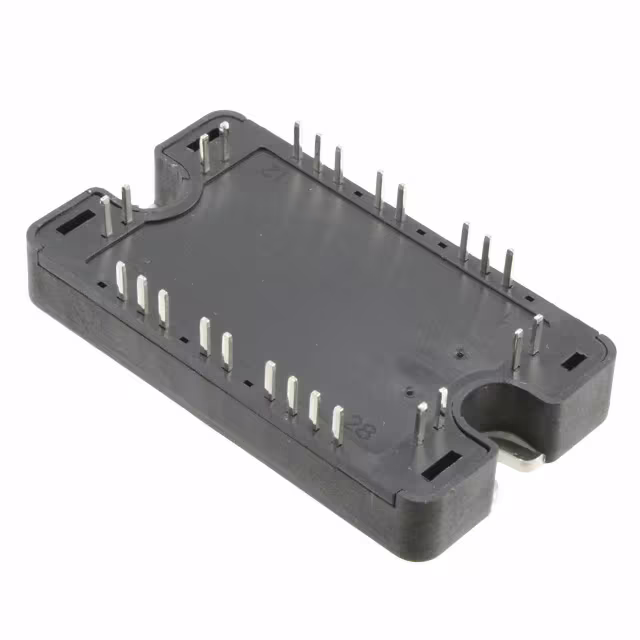

APTGF100A120T3WG IGBT MODULE 1200V 130A 657W SP3 Microsemi Corporation	3,074	-	RFQ		Bulk	-	Obsolete	NPT	Half Bridge	1200 V	130 A	657 W	3.7V @ 15V, 100A	250 µA	6.5 nF @ 25 V	Standard	Yes	-	Chassis Mount

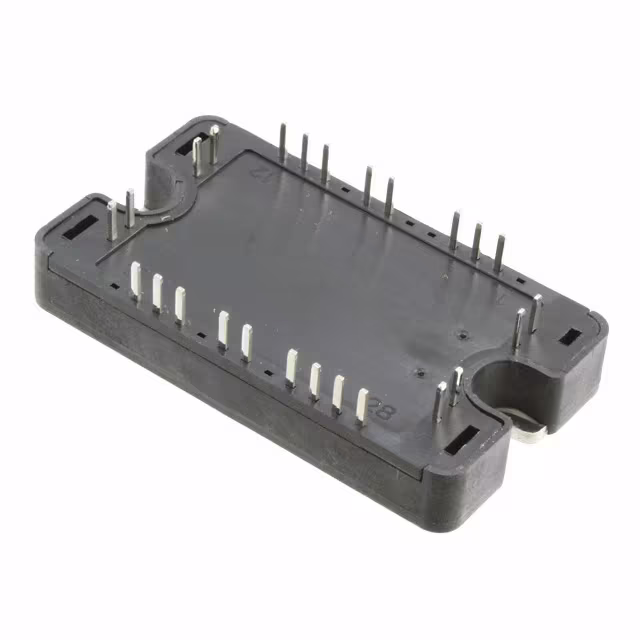

APTGF150A120T3WG IGBT MODULE 1200V 210A 961W SP3 Microsemi Corporation	2,292	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Half Bridge	1200 V	210 A	961 W	3.7V @ 15V, 150A	250 µA	9.3 nF @ 25 V	Standard	Yes	-	Chassis Mount

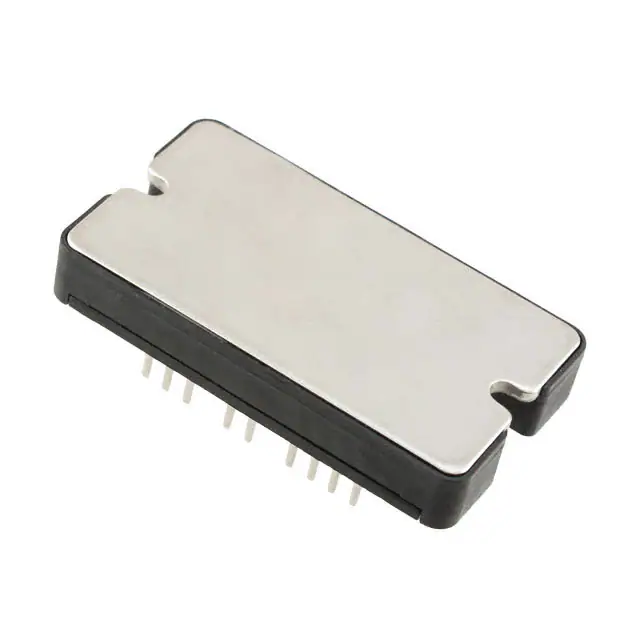

APTGF90DH60T3G IGBT MODULE 600V 110A 416W SP3 Microsemi Corporation	2,323	-	RFQ	Datasheet	Bulk	-	Obsolete	NPT	Asymmetrical Bridge	600 V	110 A	416 W	2.5V @ 15V, 100A	250 µA	4.3 nF @ 25 V	Standard	Yes	-	Chassis Mount

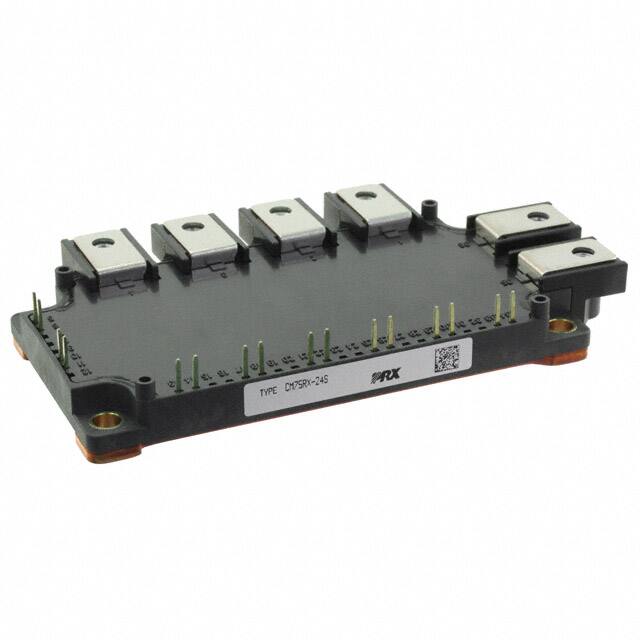

CM75RX-24S IGBT MOD 1200V 75A 600W Powerex Inc.	2,894	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Three Phase Inverter with Brake	1200 V	75 A	600 W	2.15V @ 15V, 75A	1 mA	7.5 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
CM100RX-24S IGBT MOD 1200V 100A 750W Powerex Inc.	3,502	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Three Phase Inverter with Brake	1200 V	100 A	750 W	2.15V @ 15V, 100A	1 mA	10 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
CM150RX-24S IGBT MOD 1200V 150A 1150W Powerex Inc.	2,828	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Three Phase Inverter with Brake	1200 V	150 A	1150 W	2.15V @ 15V, 150A	1 mA	15 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

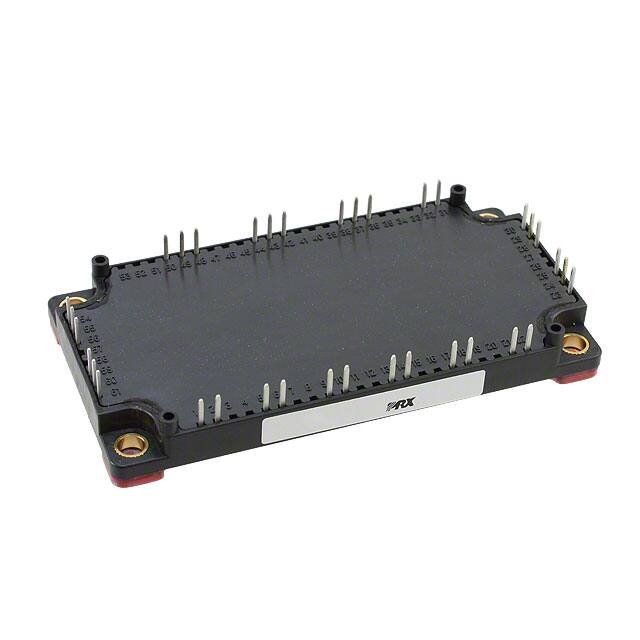

CM150TX-24S IGBT MOD 1200V 150A 1150W Powerex Inc.	3,635	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Three Phase Inverter	1200 V	150 A	1150 W	2.15V @ 15V, 150A	1 mA	15 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
CM200DX-24S IGBT MOD 1200V 200A 1500W Powerex Inc.	3,689	-	RFQ	Datasheet	Bulk	IGBTMOD™	Discontinued at Mosen	-	Half Bridge	1200 V	200 A	1500 W	2.15V @ 15V, 200A	1 mA	20 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
