Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
FP25R12KT4B16BPSA1 LOW POWER ECONO AG-ECONO2B-411 Infineon Technologies	2,232	-	RFQ		Tray	EconoPIM™ 2	Active	Trench Field Stop	Three Phase Inverter	1200 V	25 A	160 W	2.15V @ 15V, 25A	1 mA	1.45 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
BSM10GP120BOSA1 IGBT MOD 1200V 20A 100W Infineon Technologies	3,269	-	RFQ		Tray	-	Last Time Buy	-	Three Phase Inverter	1200 V	20 A	100 W	2.85V @ 15V, 10A	500 µA	600 pF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C	Chassis Mount
MIXA81H1200EH IGBT MODULE 1200V 120A 390W E3 IXYS	3,651	-	RFQ	Datasheet	Box	-	Active	PT	Full Bridge Inverter	1200 V	120 A	390 W	2.2V @ 15V, 77A	200 µA	-	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount
FP35R12N2T7B11BPSA2 LOW POWER ECONO Infineon Technologies	2,447	-	RFQ	Datasheet	Tray	EconoPIM™ 2	Active	Trench Field Stop	Three Phase Inverter	1200 V	35 A	20 mW	1.6V @ 15V, 35A	7 µA	6.62 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT150A60T3AG IGBT MODULE 600V 225A 600W SP3 Microchip Technology	3,282	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	600 V	225 A	600 W	1.9V @ 15V, 150A	250 µA	9.2 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APTGL60H120T3G IGBT MODULE 1200V 80A 280W SP3 Microchip Technology	3,071	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge	1200 V	80 A	280 W	2.25V @ 15V, 50A	250 µA	2.77 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
MG06200S-BN4MM IGBT MODULE 600V 200A 600W S3 Littelfuse Inc.	3,495	-	RFQ	Datasheet	Bulk	-	Obsolete	-	Half Bridge	600 V	300 A	600 W	1.45V @ 15V, 200A (Typ)	1 mA	13 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
APTGL60TL120T3G IGBT MODULE 1200V 80A 280W SP3 Microchip Technology	3,508	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Three Level Inverter	1200 V	80 A	280 W	2.2V @ 15V, 50A	1 mA	2.77 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
MIXG70W1200TED IGBT MODULE - SIXPACK E2-PACK-PF IXYS	2,327	-	RFQ		Box	-	Active	PT	Single	-	-	-	-	-	-	Standard	No	-	Chassis Mount
APTGT50H120T3G IGBT MODULE 1200V 75A 270W SP3 Microchip Technology	3,112	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge Inverter	1200 V	75 A	270 W	2.1V @ 15V, 50A	250 µA	3.6 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGLQ40DDA120CT3G IGBT MODULE 1200V 75A 250W SP6 Microchip Technology	2,578	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Dual Boost Chopper	1200 V	75 A	250 W	2.4V @ 15V, 40A	100 µA	2.3 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Through Hole
FP15R12KS4CBOSA1 IGBT MOD 1200V 30A 180W Infineon Technologies	3,552	-	RFQ	Datasheet	Bulk	-	Last Time Buy	-	Single	1200 V	30 A	180 W	3.7V @ 15V, 15A	5 mA	1 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
APTGT75X60T3G IGBT MODULE 600V 100A 250W SP3 Microchip Technology	2,028	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Three Phase Inverter	600 V	100 A	250 W	1.9V @ 15V, 75A	250 µA	4.62 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FP35R12KT4PBPSA1 IGBT MOD 1200V 70A 20MW Infineon Technologies	3,485	-	RFQ		Tray	EconoPIM™ 2	Active	Trench Field Stop	Three Phase Inverter	1200 V	70 A	20 mW	2.15V @ 15V, 35A	1 mA	2 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C	Chassis Mount
MIXA80W1200TEH IGBT MODULE 1200V 120A 390W E3 IXYS	3,342	-	RFQ	Datasheet	Box	-	Active	PT	Three Phase Inverter with Brake	1200 V	120 A	390 W	2.2V @ 15V, 77A	200 µA	-	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
APTCV60TLM45T3G IGBT MODULE 600V 100A 250W SP3 Microchip Technology	2,253	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Three Level Inverter - IGBT, FET	600 V	100 A	250 W	1.9V @ 15V, 75A	250 µA	4.62 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT75DU120TG IGBT MODULE 1200V 100A 350W SP4 Microchip Technology	3,238	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Dual, Common Source	1200 V	100 A	350 W	2.1V @ 15V, 75A	250 µA	5.34 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

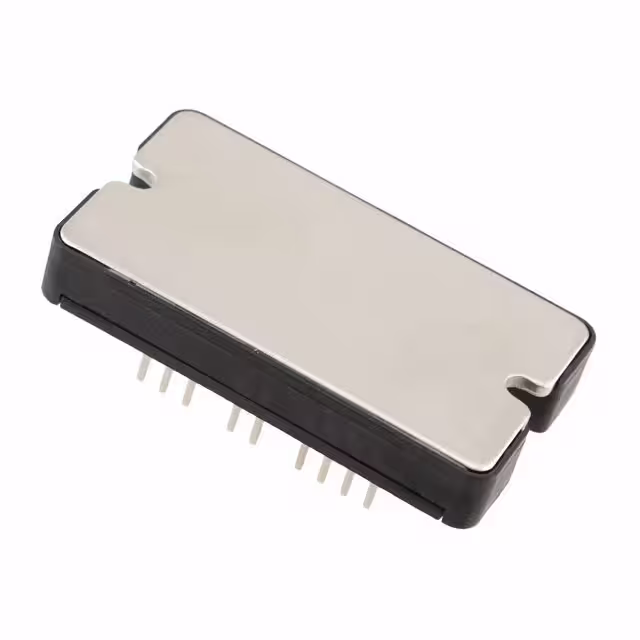

APTGT100TL60T3G IGBT MODULE 600V 150A 340W SP3 Microchip Technology	3,430	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Three Level Inverter	600 V	150 A	340 W	1.9V @ 15V, 100A	250 µA	6.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APTGL40X120T3G IGBT MODULE 1200V 65A 220W SP3 Microchip Technology	3,437	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Three Phase Inverter	1200 V	65 A	220 W	2.25V @ 15V, 35A	250 µA	1.95 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount

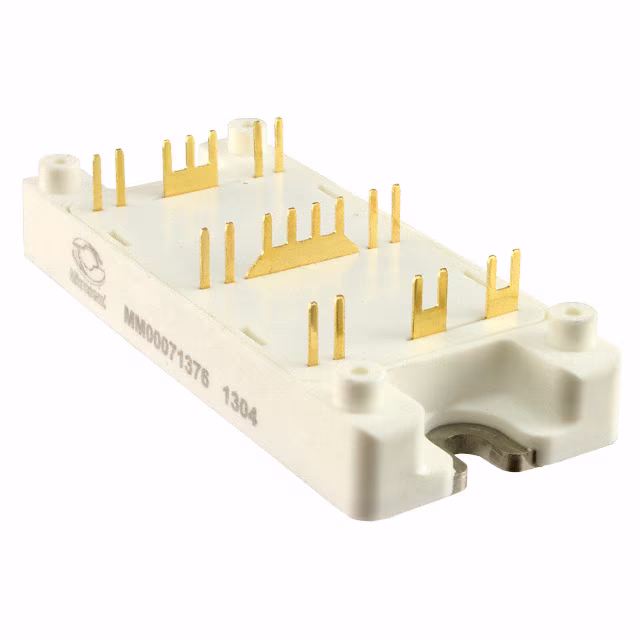

APTGT50DH120TG IGBT MODULE 1200V 75A 277W SP4 Microchip Technology	2,896	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Asymmetrical Bridge	1200 V	75 A	277 W	2.1V @ 15V, 50A	250 µA	3.6 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
