Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType

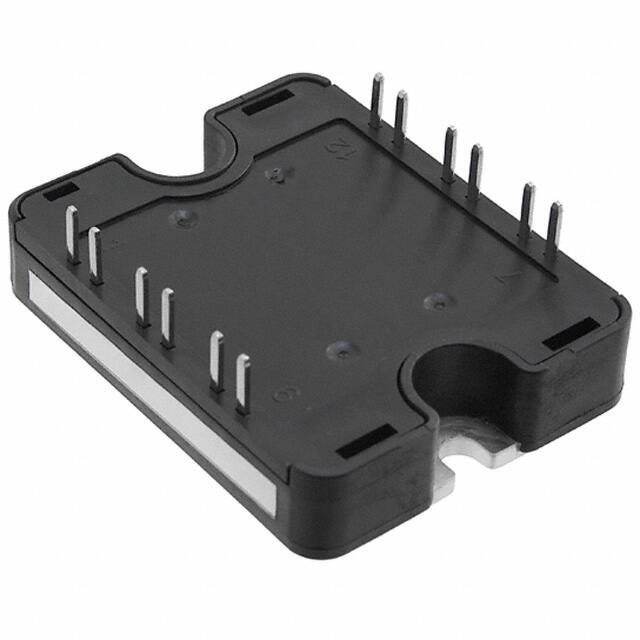

APTGT75H60T1G IGBT MODULE 600V 100A 250W SP1 Microchip Technology	2,060	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge Inverter	600 V	100 A	250 W	1.9V @ 15V, 75A	250 µA	4.62 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APTGT30X60T3G IGBT MODULE 600V 50A 90W SP3 Microchip Technology	2,922	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Three Phase Inverter	600 V	50 A	90 W	1.9V @ 15V, 30A	250 µA	1.6 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FS3L25R12W2H3B11BPSA1 IGBT MOD 1200V 40A 175W Infineon Technologies	2,430	-	RFQ	Datasheet	Tray	EasyPACK™	Active	-	Three Level Inverter	1200 V	40 A	175 W	2.4V @ 15V, 25A	1 mA	1.45 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
NXH027B120MNF2PTG IGBT MODULE 1200V onsemi	3,386	-	RFQ		Tape & Reel (TR)	-	Active	-	-	-	-	-	-	-	-	-	-	-	-

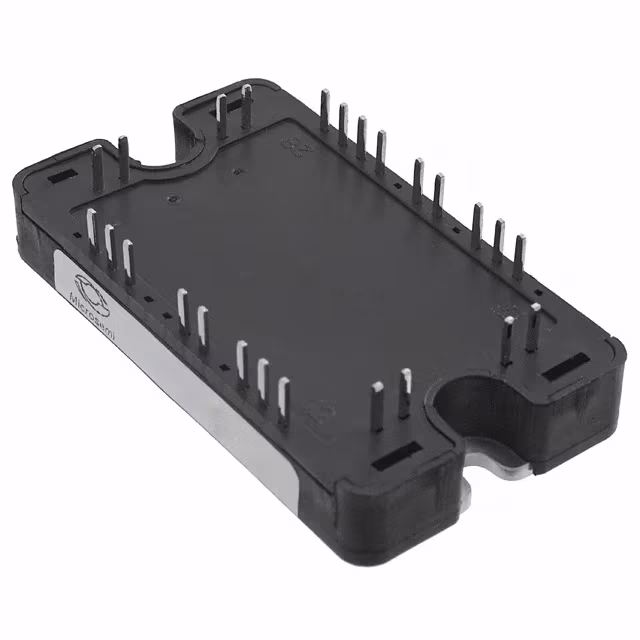

APTGT50DDA120T3G IGBT MODULE 1200V 75A 270W SP3 Microchip Technology	3,637	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Dual Boost Chopper	1200 V	75 A	270 W	2.1V @ 15V, 50A	250 µA	3.6 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FS25R12YT3BOMA1 IGBT MOD 1200V 40A 165W Infineon Technologies	2,027	-	RFQ		Tray	-	Not For New Designs	-	Three Phase Inverter	1200 V	40 A	165 W	2.15V @ 15V, 25A	5 mA	1.8 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
NXH50C120L2C2ES1G IGBT MOD 1200V 50A 26DIP onsemi	3,225	-	RFQ		Tube	-	Active	-	Three Phase Inverter with Brake	1200 V	50 A	20 mW	2.4V @ 15V, 50A	250 µA	11.89 nF @ 20 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Through Hole
BSM15GD120DN2E3224BOSA1 IGBT MOD 1200V 25A 145W Infineon Technologies	2,046	-	RFQ		Tray	-	Last Time Buy	-	Full Bridge	1200 V	25 A	145 W	3V @ 15V, 15A	500 µA	1 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount
DF225R12W2H3FB11BPSA1 LOW POWER EASY AG-EASY2B-2 Infineon Technologies	2,552	-	RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
FS25R12KT3BPSA1 LOW POWER ECONO AG-ECONO2B-311 Infineon Technologies	2,625	-	RFQ	Datasheet	Tray	EconoPACK™ 2	Active	Trench Field Stop	Full Bridge Inverter	1200 V	40 A	145 W	2.15V @ 15V, 25A	5 mA	1.8 nF @ 25 V	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
APTGT50TL60T3G IGBT MODULE 600V 80A 176W SP3 Microchip Technology	3,467	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Three Level Inverter	600 V	80 A	176 W	1.9V @ 15V, 50A	250 µA	3.15 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount

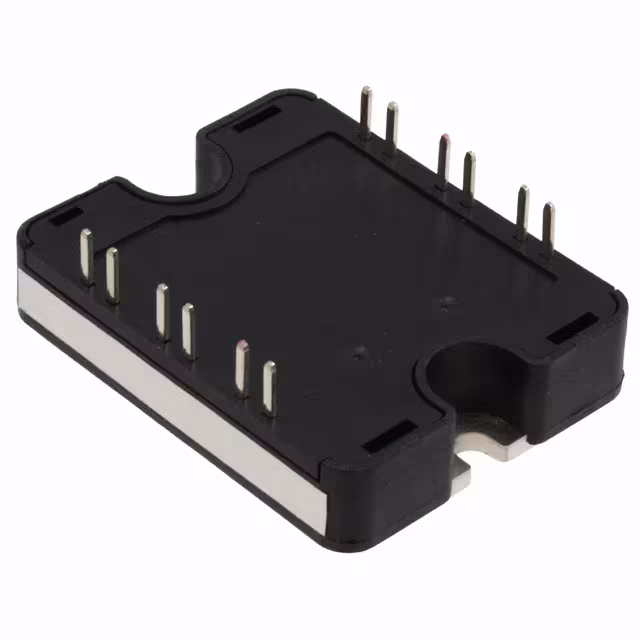

APTGT75A120T1G IGBT MODULE 1200V 110A 357W SP1 Microchip Technology	3,462	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	1200 V	110 A	357 W	2.1V @ 15V, 75A	250 µA	5.34 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
VS-GT100TP60N IGBT MOD 600V 160A INT-A-PAK Vishay General Semiconductor - Diodes Division	2,910	-	RFQ	Datasheet	Bulk	-	Active	Trench	Half Bridge	600 V	160 A	417 W	2.1V @ 15V, 100A	5 mA	7.71 nF @ 30 V	Standard	No	175°C (TJ)	Chassis Mount

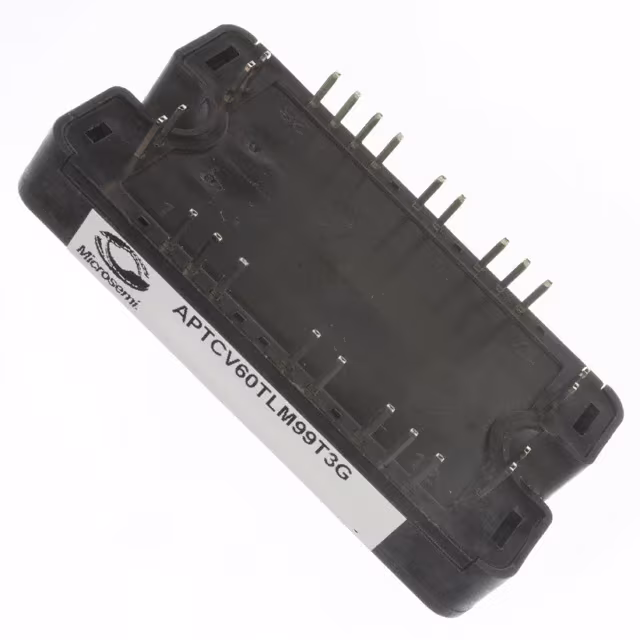

APTCV60TLM99T3G IGBT MODULE 600V 50A 90W SP3 Microchip Technology	2,163	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Three Level Inverter - IGBT, FET	600 V	50 A	90 W	1.9V @ 15V, 30A	250 µA	1.6 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
MIXA41W1200ED NPT IGBT MODULE IXYS	2,083	-	RFQ		Box	-	Active	-	-	-	-	-	-	-	-	-	-	-	-
FS50R06YE3BOMA1 IGBT MODULE 600V 60A 160W Infineon Technologies	3,927	-	RFQ		Tray	-	Not For New Designs	-	Full Bridge Inverter	600 V	60 A	160 W	1.9V @ 15V, 50A	1 mA	3.1 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
APTGT50A170T1G IGBT MODULE 1700V 75A 312W SP1 Microchip Technology	3,388	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	1700 V	75 A	312 W	2.4V @ 15V, 50A	250 µA	4.4 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FS3L25R12W2H3PB11BPSA1 LOW POWER EASY Infineon Technologies	3,156	-	RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
APTGLQ50H65T3G IGBT MODULE 650V 70A 175W SP3F Microchip Technology	3,616	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge	650 V	70 A	175 W	2.3V @ 15V, 50A	50 µA	3.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount

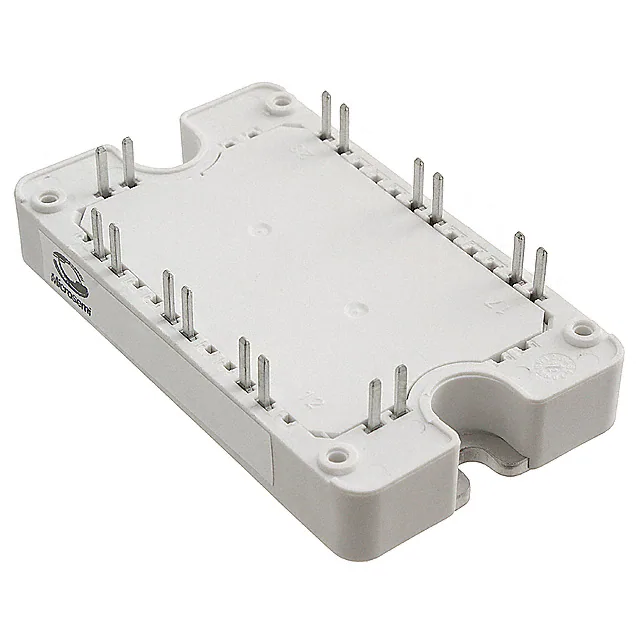

APTGT100BB60T3G IGBT MODULE 600V 150A 340W SP3 Microchip Technology	2,612	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	600 V	150 A	340 W	1.9V @ 15V, 100A	250 µA	6.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Through Hole
